M5Stack Chain Dual Key with ESP32-S3

M5Stack Chain Dual Key with ESP32-S3

$25.68

🔗 Chain DualKey — Smart Control in a Compact Form Chain DualKey is a programmable dual-key input development board powered by the ESP32-S3FN8 main control chip. On the front, it features 2 hot-swappable blue mechanical switches 🔵 and 2 programmable RGB LEDs 🌈 — delivering tactile feedback and vibrant interaction.

🔋 Built-in Power & Efficiency Equipped with a 350mAh lithium battery and optimized for low-power operation, it offers reliable battery life for portable setups.

🧠 Pre-installed Macro Firmware Comes preloaded with Chain macro keyboard firmware, supporting USB and BLE connections. It can emulate HID input devices, making it ideal for custom control applications.

🌐 Web-Based Configuration Once powered on, connect to its AP hotspot and configure HID mappings via the built-in web interface — for both local control and expansion nodes.

🧩 Modular Expansion with M5Stack Chain Design Includes 2 HY2.0-4P expansion ports, supporting lateral connections to other sensors and modules. With USB-OTG support from the ESP32-S3, it’s perfect for:

  • 🏠 Smart home automation

  • ⌨️ Keyboard peripherals

  • 🎮 Macro key setups

  • 🧪 Custom control systems



✨ Features

  • 🧠 ESP32-S3FN8 Main Control Chip — Powerful dual-core performance for smart applications

  • 🔋 Built-in 350mAh Lithium Battery — Compact and energy-efficient for portable use

  • 🌈 2 Programmable RGB LEDs — Customizable lighting for interactive feedback

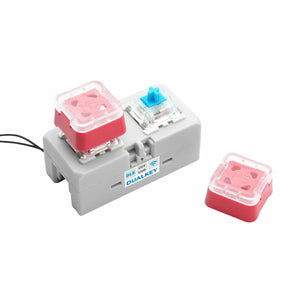

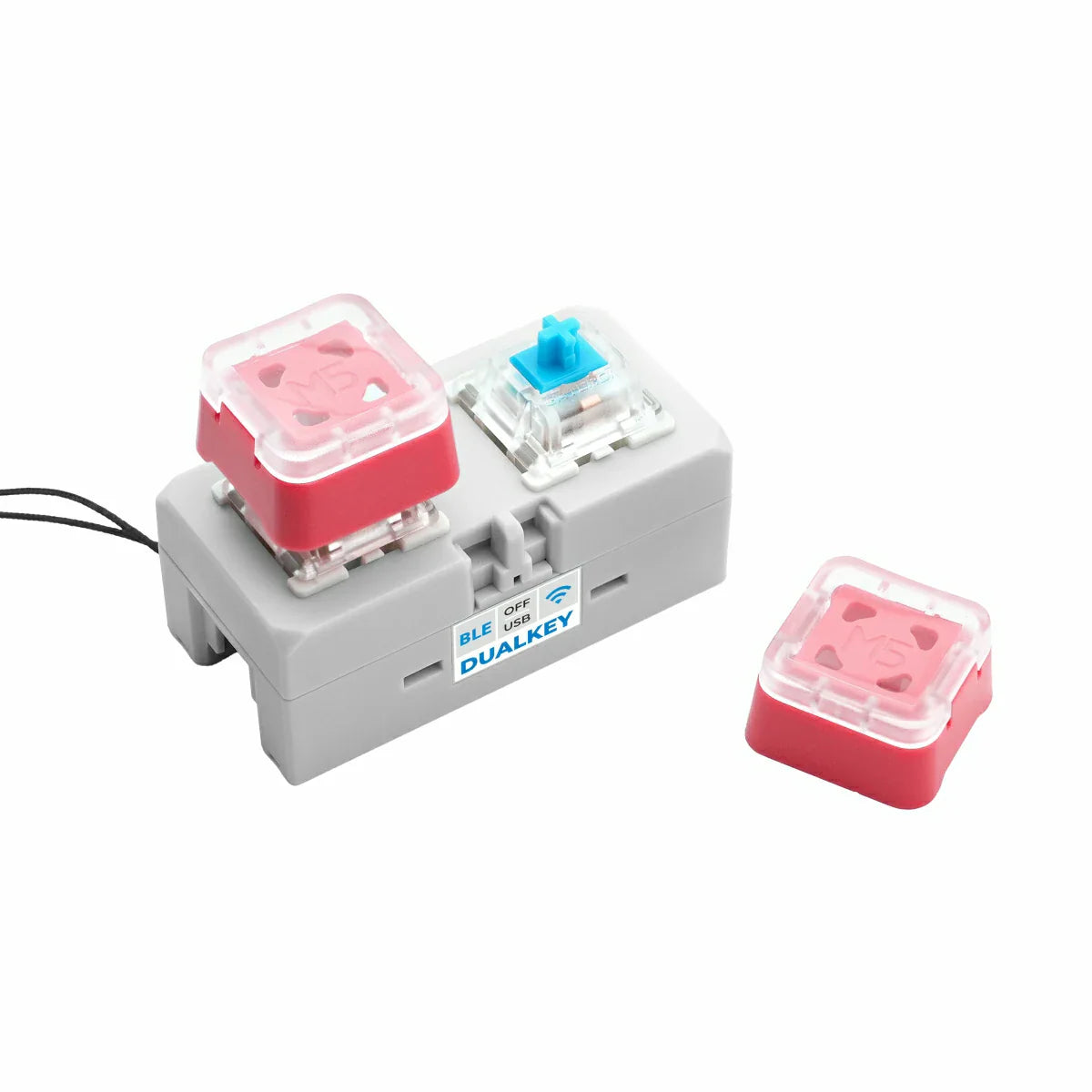

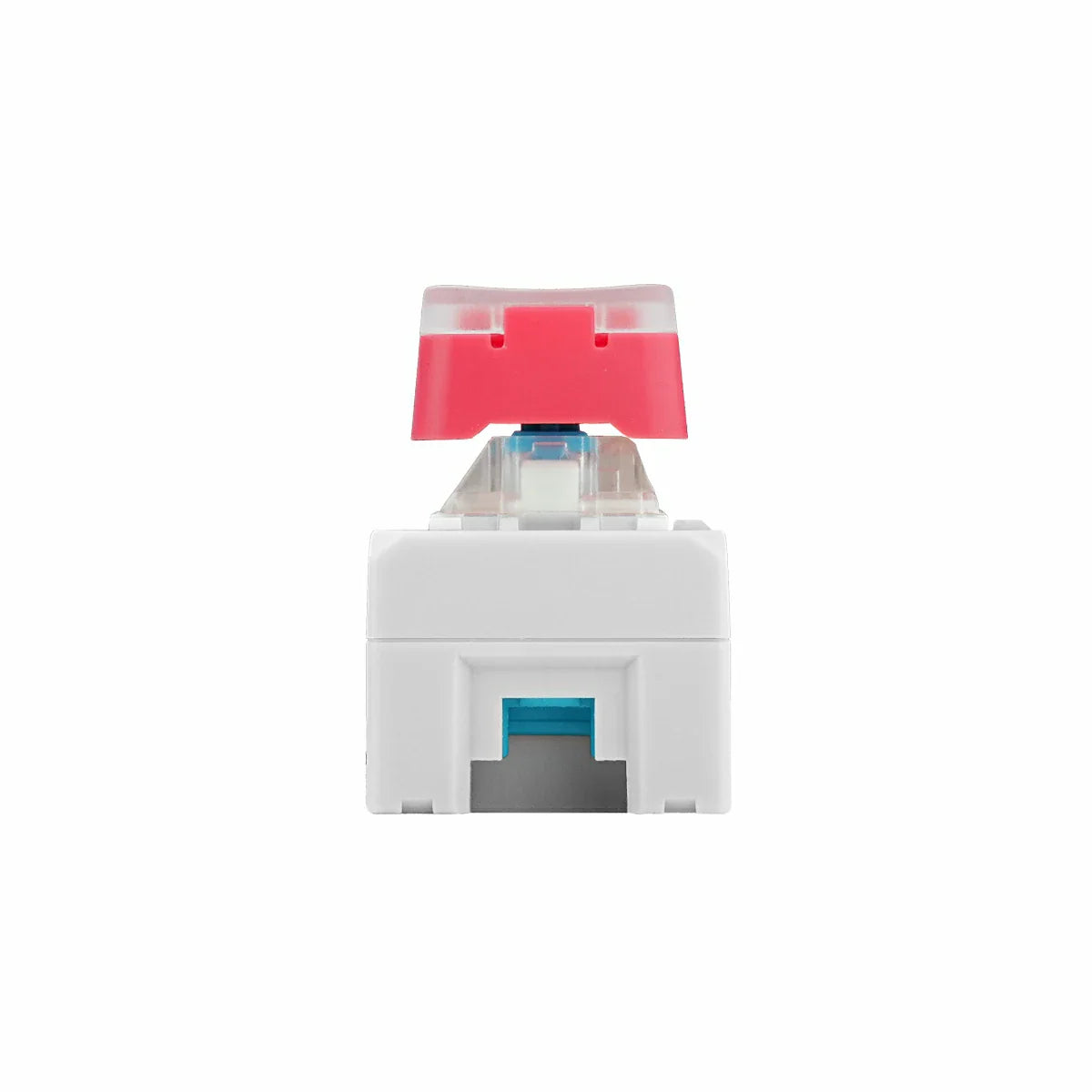

  • ⌨️ 2 Hot-Swappable Blue Switch Keys — Tactile mechanical input with easy replacement

  • 🔗 M5Stack Chain Series Expandable Design — Modular connectivity for sensor expansion

  • 🧱 LEGO-Compatible Mounting Holes — Creative integration with LEGO builds

  • 🪢 Lanyard-Friendly Design — Easy to carry, perfect for wearable or mobile setups



Includes

  • 1 × Chain DualKey
  • 1 × Keycap Sticker



Specifications

Specification Parameter
SoC ESP32-S3FN8 @ Dual-core Xtensa LX7 processor, up to 240MHz
Flash 8MB
Power Input USB: DC 5V
Battery 350mAh lithium battery
RGB LED 2 × WS2812B
Operating Temp 0 ~ 40°C
Standby Current Power-off (VBAT): DC 4.2V@8.97uA
Deep sleep (VBAT): DC 4.2V@107.64uA
USB 5V (no battery): DC 5V@41.7mA
Product Size 47.9 × 34.3 × 23.9mm
Product Weight 23.7g
Package Size 63.0 × 72.0 × 28.0mm
Gross Weight 39.3g

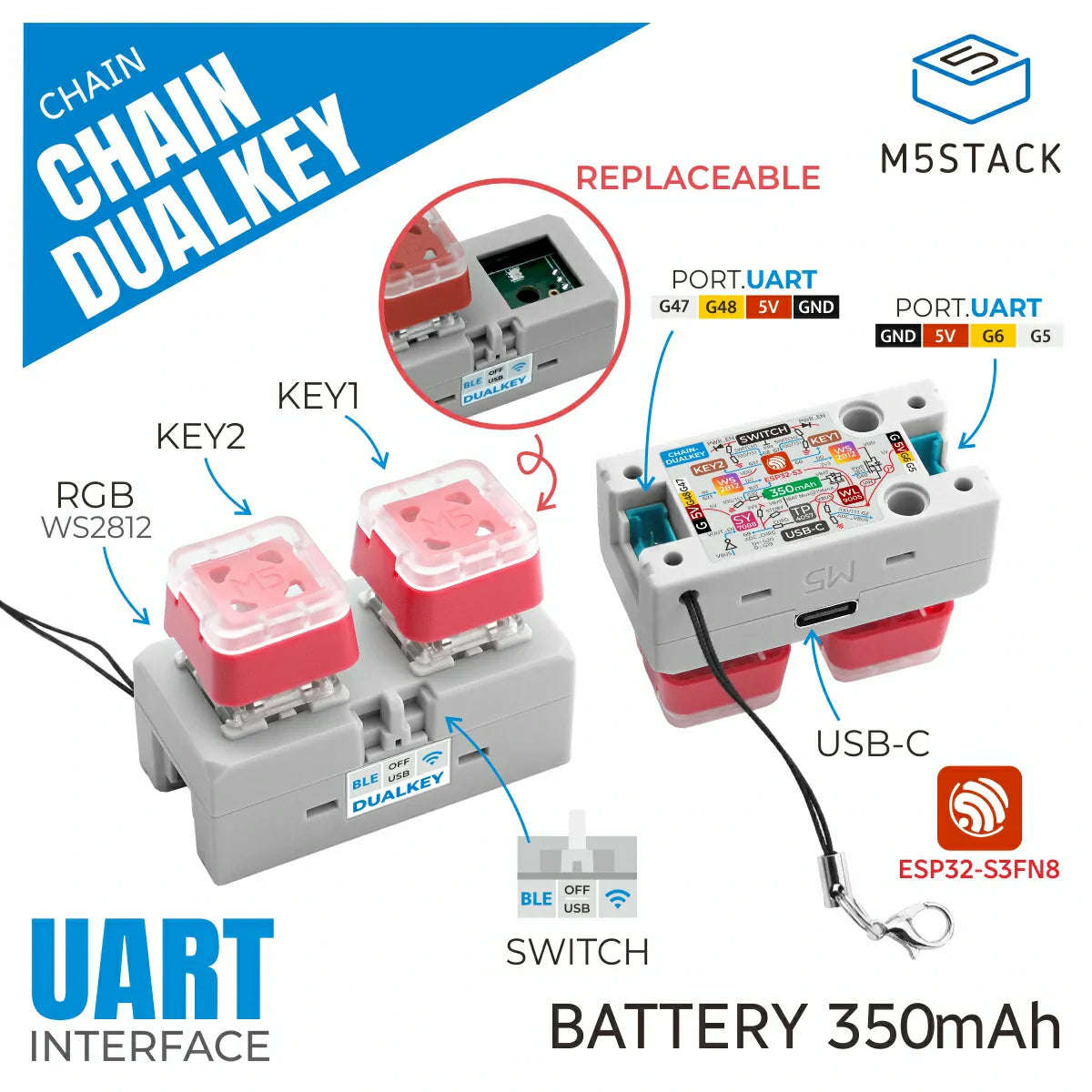

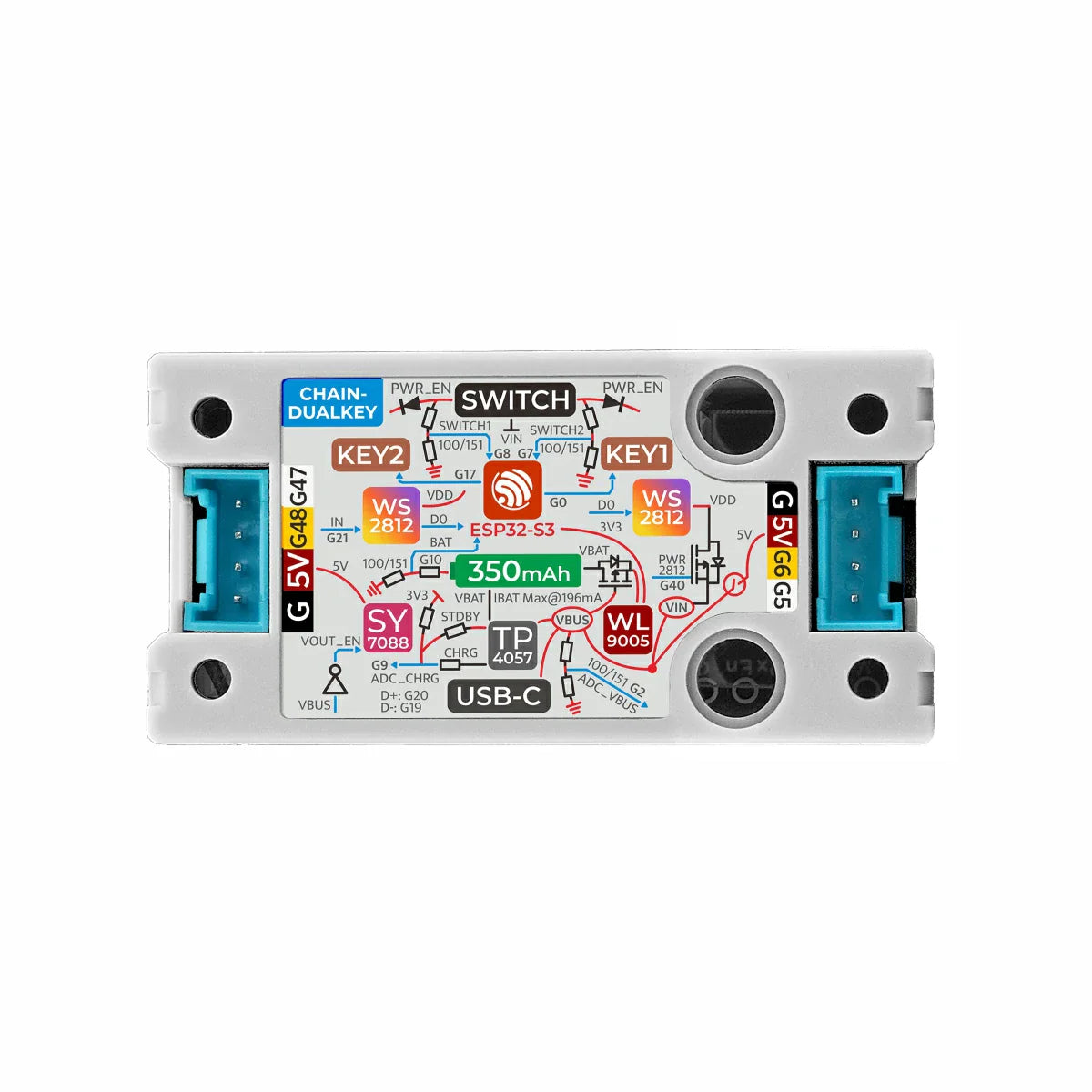

Pin Map

KEY

Chain DualKey G0 G17
KEY_1 INPUT
KEY_2 INPUT

RGB LED

Chain DualKey G21 G40
WS2812 INPUT
WS2812_PWR PWR_EN

ADC

Chain DualKey G8 G7 G10 G2 G9
SWITCH_1 INPUT
SWITCH_2 INPUT
ADC_BAT ADC_BAT
ADC_VBUS ADC_VBUS
ADC_CHARGE ADC_CHARGE

USB

Chain DualKey G19 G20
USB USB_DN USB_DP

HY2.0-4P

Chain DualKey GND VOUT G48 G47
HY2.0-4P_1 GND 5V UART1_RX UART1_TX
Chain DualKey GND VOUT G5 G6
HY2.0-4P_2 GND 5V UART2_RX UART2_TX
