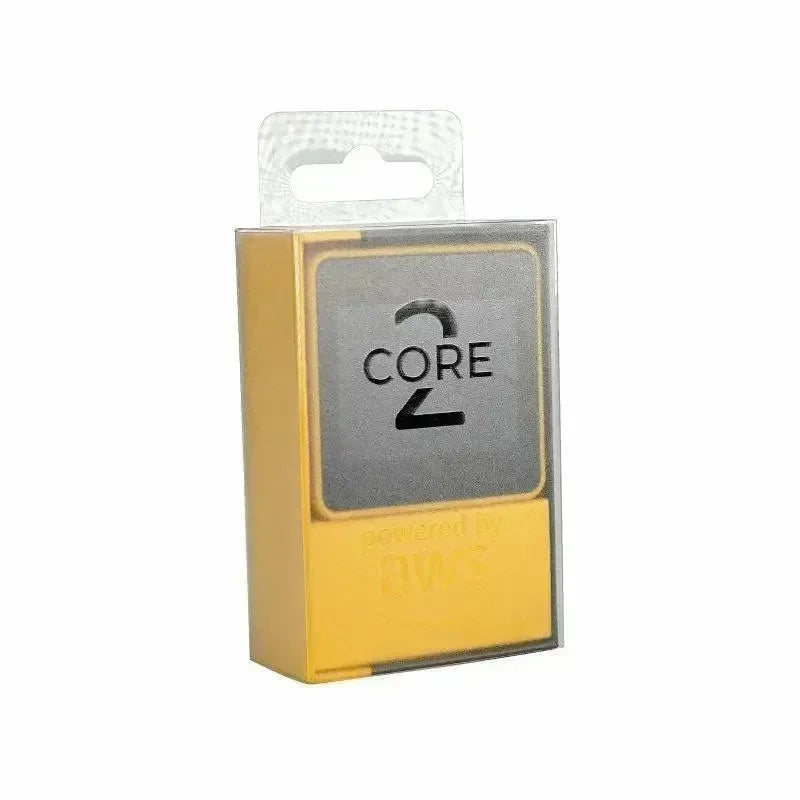

M5Stack Core2 AWS ESP32 IoT Development Kit
M5Stack Core2 AWS ESP32 IoT Development Kit is the official hardware platform for the AWS IoT Kit, designed to simplify and lower the cost of creating connected cloud applications.
Powered by the robust M5Stack Core2, this kit integrates an ESP32 dual-core processor, flexible I/O options, and modular expansion. It also features the Microchip ATECC608 Trust&GO security chip, pre-configured for encrypted communication and identity verification—essential for secure IoT deployments.
The Core2 for AWS comes with a touch-enabled display, built-in microphone, speaker, 6-axis IMU, vibration motor, and rechargeable battery—providing all the essentials for prototyping smart home devices, industrial automation, or remote monitoring systems.
Whether you’re a beginner or an experienced developer, the M5Stack Core2 for AWS ESP32 IoT Kit delivers a reliable, secure, and scalable foundation to bring your AWS IoT projects to reality.
Discover more about the Core2 for AWS IoT Kit program at https://core2-for-aws-docs.m5stack.com
The M5Stack Core2 for AWS is an enhanced ESP32 IoT development kit officially endorsed by AWS. As part of the AWS IoT Kit learning ecosystem, it’s suitable for both newcomers and advanced users.
At its core lies the ESP32-D0WDQ6-V3 microcontroller, offering dual 32-bit Xtensa LX6 cores, a 240MHz clock, and 2.4GHz Wi-Fi. With 8MB PSRAM and 16MB flash, it ensures dependable performance across diverse IoT use cases.
The device includes a 2.0-inch capacitive touchscreen for intuitive interaction, plus a vibration motor, RTC module, and AXP192 power management for optimized energy efficiency. Other hardware highlights include:
- TF card slot (supports microSD up to 16GB)
- Integrated speaker with I2S amplifier
- 3 front-facing capacitive touch keys
- Dedicated power and reset buttons on the sides
The included M5GO Bottom2 for AWS expands capabilities with:
- MPU6886 6-axis IMU and temperature sensor
- SPM1423 digital microphone for audio input
- 10 RGB LEDs (SK6812) for lighting effects
- 500mAh lithium battery for portable operation
- Microchip ATECC608 Trust & GO for hardware-level authentication
- CP2104 interface for battery communication
The M5Stack Core2 AWS ESP32 IoT Development Kit is a ready-to-use, secure, and expandable solution for edge computing, smart home integration, industrial systems, and AWS-based IoT applications.
For assistance or community discussions, visit our forum: forum.m5stack.com
Product Features
- Official reference kit for AWS IoT learning and prototyping
- Powered by ESP32-D0WDQ6-V3 with 2.4GHz Wi-Fi support
- Equipped with 16MB Flash and 8MB PSRAM for smooth performance
- Integrated ATECC608 secure element for hardware-level encryption
- Responsive capacitive touch display
- Onboard PDM microphone, status LED, 6-axis IMU, vibration motor, I2S audio codec, amplifier, speaker, RTC, and reset/power buttons
- TF card slot supporting microSD up to 16GB
- Rechargeable 500mAh lithium battery with advanced power management
- Certified through the AWS Device Qualification Program
- Compatible with multiple development environments:

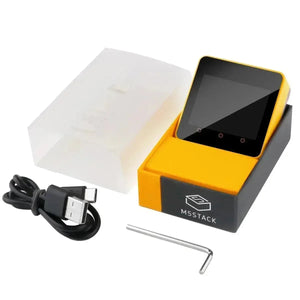

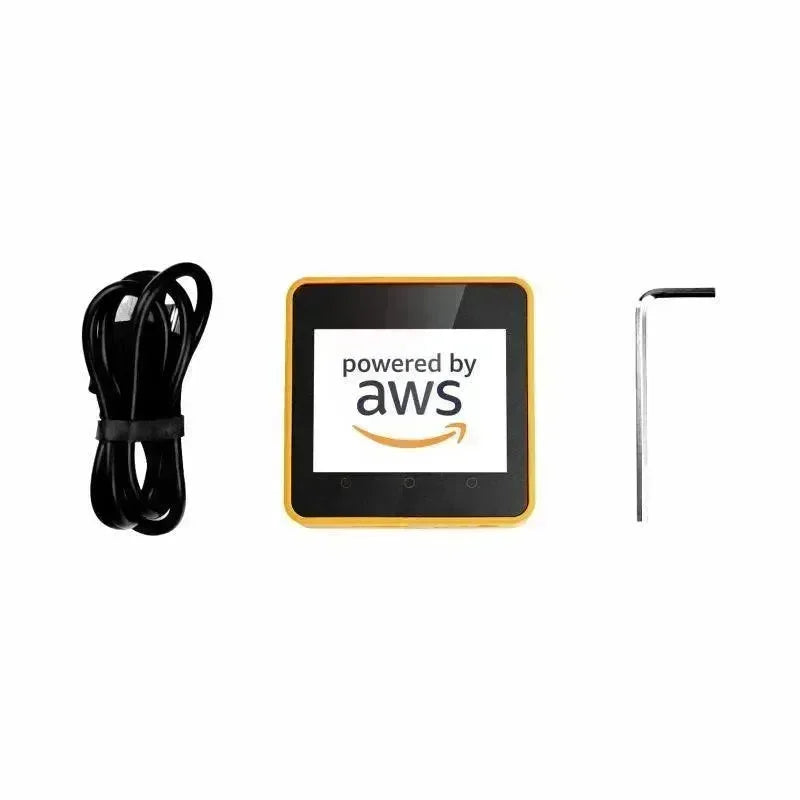

What’s Inside
- 1 × M5Stack Core2 main unit
- 1 × M5GO Bottom2 for AWS expansion base
- 1 × 50cm Type-C USB cable
- 1 × Hex key tool
Use Cases
- IoT device controller
- STEM and coding education
- DIY and maker projects
Technical Specifications
| Component | Details |
|---|---|
| Processor | ESP32-D0WDQ6-V3, dual-core 240MHz, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 16MB |
| PSRAM | 8MB |
| Security | ATECC608B-TNGTLSU-G encryption chip (addr 0x35) |
| Input Voltage | 5V |
Touch Controller (FT6336U)
| ESP32 Pin | GPIO21 | GPIO22 | GPIO39 |
|---|---|---|---|
| AXP192 | |||
| FT6336U | SDA | SCL | INT |
Microphone & Audio Amplifier (NS4168)
| ESP32 Pin | GPIO12 | GPIO0 | GPIO2 | AXP_IO2 | GPIO34 |
|---|---|---|---|---|---|
| NS4168 | BCLK | LRCK | DATA | SPK_EN | |
| SPM1423 Mic | CLK | DATA |
AXP192 Power & Indicators
| AXP192 | AXP_IO1 | AXP_LDO3 |
|---|---|---|
| Status LED (Green) | Vcc | / |
| Vibration Motor | Vcc |
RTC (BM8563)
| ESP32 Pin | GPIO21 | GPIO22 | |
|---|---|---|---|
| AXP192 | AXP_PWR | ||
| BM8563 | SDA | SCL | INT |
IMU & Pogo Pin
| ESP32 Pin | GPIO21 | GPIO22 |
|---|---|---|
| MPU6886 | SDA | SCL |
| Pogo Pin | SDA | SCL |
USB-to-Serial (CP2104)
| ESP32 Pin | GPIO1 | GPIO3 |
|---|---|---|
| CP2104 | RXD | TXD |
PSRAM
| ESP32 Pin | GPIO8 | GPIO7 | GPIO10 | GPIO9 | GPIO17 | GPIO16 |
|---|---|---|---|---|---|---|
| ESP-PSRAM64H | SI/SIO0 | SO/SIO1 | SIO2 | SIO3 | SCLK | CS# |
SK6812 RGB LED
| ESP32 Pin | GPIOxx |
|---|---|
| SK6812 | DIN |
SK6812 RGB LED
| ESP32 Pin | GPIO25 |
|---|---|
| SK6812-LED | DATA |
Internal I2C Bus Mapping
| Device | GPIO21 (SDA) | GPIO22 (SCL) |
|---|---|---|
| MPU6886 IMU | SDA | SCL |
| AXP192 Power Management | SDA | SCL |
| BM8563 RTC | SDA | SCL |
| FT6336U Touch Controller | SDA | SCL |
| ATECC608 Security Chip | SDA | SCL |
Charging Current (Measured)
| Condition | Current (Power OFF) | Current (Power ON) |
|---|---|---|
| Charging | 0.055A | 0.147A |
| Peak Charging Current | 0.219A | |
