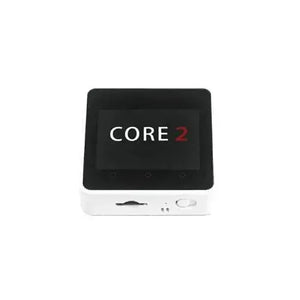

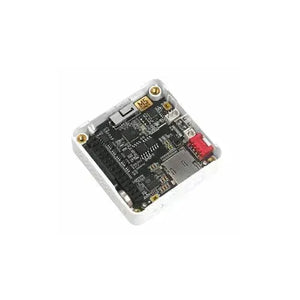

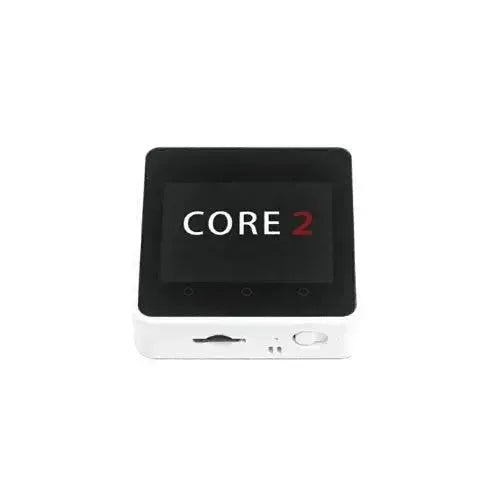

M5Stack Core2 ESP32 IoT Development Kit
The M5Stack Core2 ESP32 IoT Development Kit represents an advanced second-generation core device within the M5Stack ecosystem. It is powered by the ESP32-D0WDQ6-V3 dual-core processor, ensuring exceptional performance. Equipped with integrated Wi-Fi and Bluetooth, it features 16MB Flash memory and 8MB PSRAM, making it ideally suited for complex IoT applications, DIY electronics projects, and STEM educational purposes.
This device comes with a 2.0-inch capacitive touchscreen (320x240), a 390mAh rechargeable lithium battery, and intelligent power management managed by the AXP192 PMU. Additional features include a USB Type-C port, Grove-compatible expansion, a TF card slot, and I2S audio functionality, which provide versatile opportunities for development.
More functionalities consist of virtual programmable buttons, a 6-axis IMU, a real-time clock (RTC), a vibration motor, and a microphone, making this kit an all-encompassing solution for smart device development, prototyping, and other innovative applications.
Getting Started
-
Power On: Click the power button located on the left side.
-
Power Off: Press and hold the power button for 6 seconds.
-
Reset: Use the RST button located at the bottom.
Driver Installation
For proper functionality, download and install the appropriate USB drivers for your operating system from the official website.
Note: The Core2 comes in two variants that utilize CP2104 or CH9102F USB chips. To ensure compatibility, make sure to install both drivers.
Important Considerations
-
Vibration Module Compatibility: The design of the vibration sensor differs between the M5Core2 and the M5 Base series. Avoid stacking them together.
-
Touch Screen Accuracy: If you experience inconsistencies with edge touches, consider updating the screen firmware using the M5Tool.
Included Items
- 1 × M5Stack Core2 ESP32 Device
- 1 × Type-C USB Cable (20cm)
- 1 × Hex Key
Possible Applications
- IoT terminal controller
- STEM education tool
- DIY projects
- Smart home technology
Specifications
Resource |
Parameter |
|---|---|
| ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, Bluetooth |
| Flash Memory | 16MB |
| PSRAM | 8MB |
| Input Voltage | 5V @ 500mA |
| Interfaces | Type-C x 1, GROVE (I2C + I/O + UART) x 1 |
| Display | 2.0" @ 320*240 ILI9342C |
| Touch Sensor | FT6336U |
| Speaker | 1W-092 |
| LED | Green power indicator |
| Buttons | Power button, RST button, 3 Virtual screen buttons |
| Vibration Motor | Included |
| Microphone | SPM1423 |
| I2S Amplifier | NS4168 |
| 6-axis IMU | MPU6886 |
| RTC | BM8563 |
| Power Management Unit | AXP192 |
| USB Chip Type | CP2104/CH9102F (both chips offer identical functionalities) |
| DC-DC Boost Converter | SY7088 |
| TF Card Slot | Supports up to 16GB |
| Battery | 390mAh @ 3.7V |
| Antenna | 2.4G 3D antenna |
| Operating Temperature Range | 0°C to 60°C |
| Base Screw Specification | M3 hex socket countersunk head |
| Reserved PCB Interfaces | Battery interface (1.25mm-2P), USB interface (1.25mm-4P) |
| Net Weight | 52g |
| Gross Weight | 70g |
| Dimensions | 54 x 54 x 16mm |
| Package Dimensions | 75 x 60 x 20mm |
| Casing Material | Plastic (PC) |
