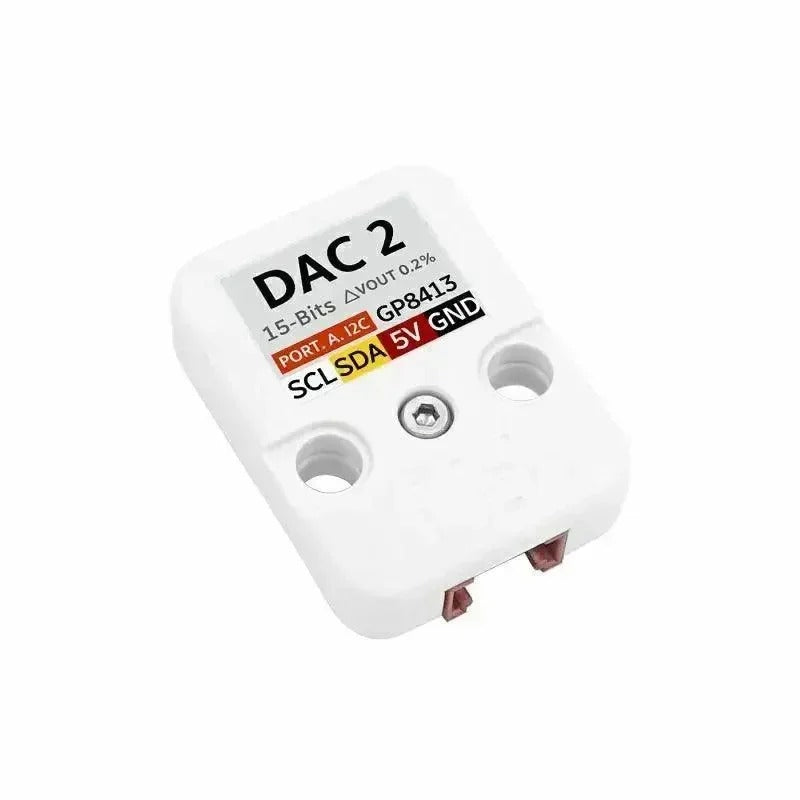

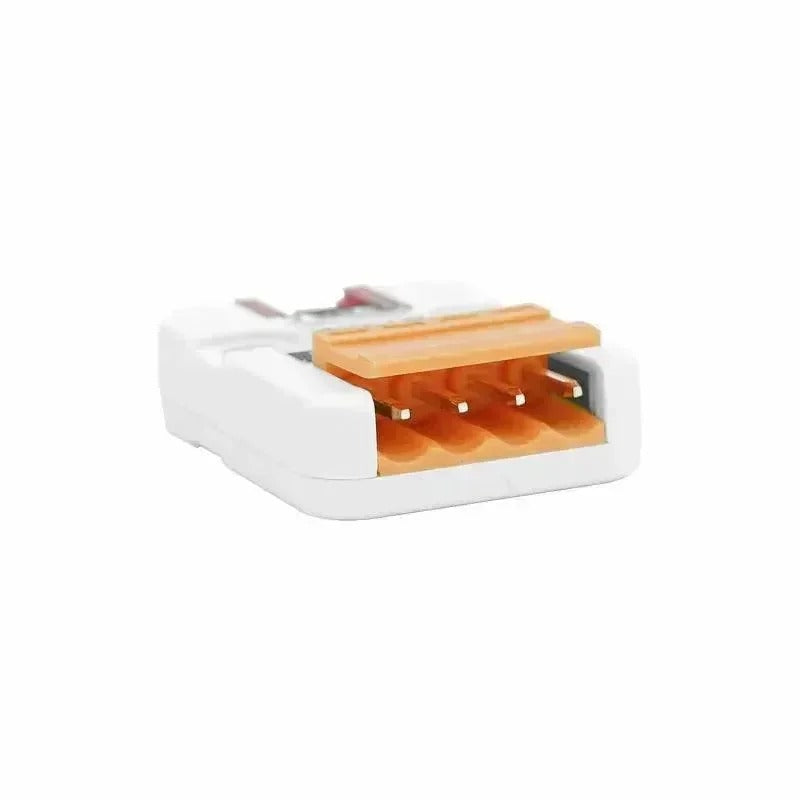

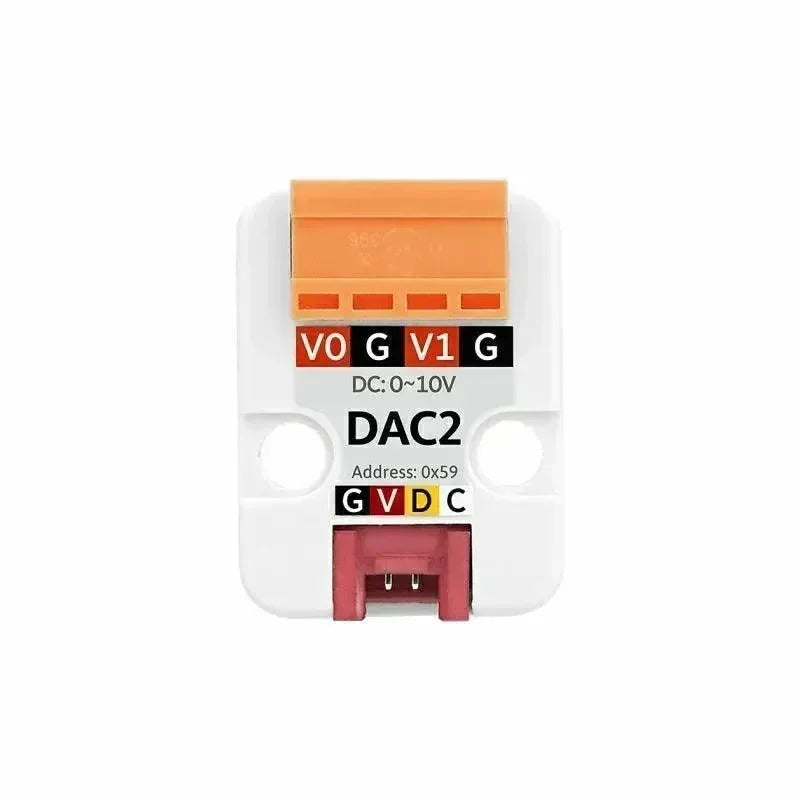

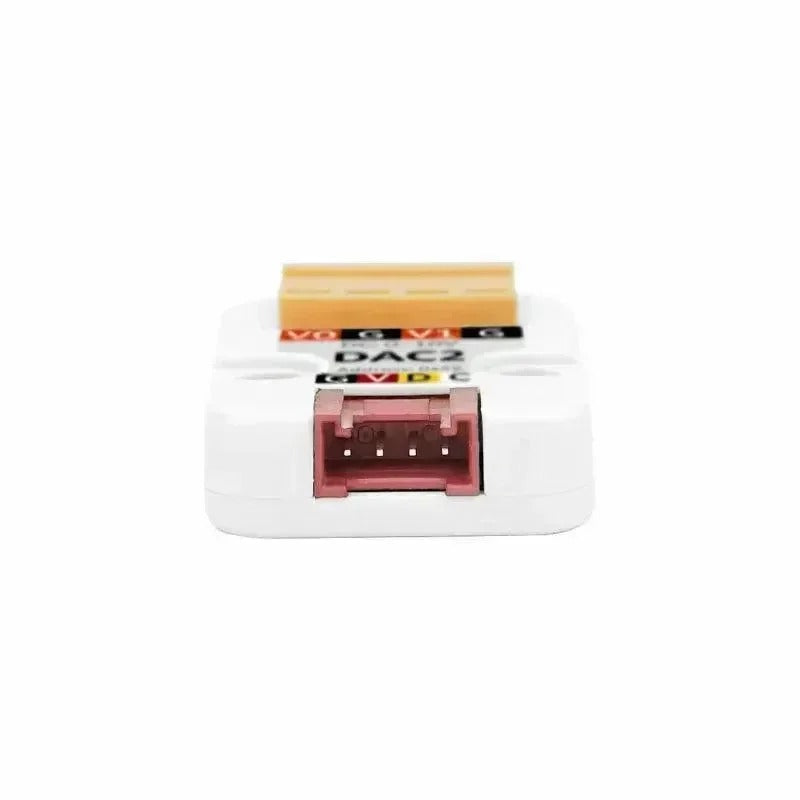

M5Stack DAC 2 I2C Unit (GP8413)
The M5Stack DAC 2 I2C Unit (GP8413) is a state-of-the-art digital-to-analog signal conversion module, meticulously engineered for demanding professional and industrial environments. This compact device, also known as the M5Stack DAC 2 or DAC2 Unit, delivers exceptional precision, flexible scalability, and robust safety mechanisms.
At the heart of the DAC2 Unit lies the advanced GP8413 chipset, which provides a high-resolution 15-bit digital-to-analog conversion. It is capable of independently outputting two analog voltages, configurable within the 0–5V or 0–10V ranges. With remarkable 0.01% linearity and an impressively low voltage error margin of just 0.2%, this unit guarantees highly dependable and stable analog signal generation.
Key Features of the M5Stack DAC 2 I2C Unit (GP8413)
- 15-bit High-Precision DAC Output: Converts digital inputs into two distinct 0–5V or 0–10V analog outputs with unparalleled accuracy.
- I2C Communication (Default Address: 0x59): Ensures straightforward and dependable data transfer. Its unique 3-bit hardware address allows for multiple parallel connections, supporting up to 8 DAC2 Units on a single I2C bus.
- Superior Precision, Minimal Error: Achieves an outstanding 0.01% linearity and maintains a negligible output voltage error (0.2%), ensuring professional-grade analog signal integrity.
- Integrated Short-Circuit Protection: Safeguards the module by automatically disengaging the output if a short circuit occurs between the output pins and ground.
- Compact, Reliable, and Expandable Architecture: Designed for seamless integration and scalability in diverse IoT and industrial applications.
Communication Protocol
The M5Stack DAC 2 employs the robust I2C protocol, with a default address of 0x59. Its address configurability allows for the simultaneous operation of multiple DAC2 Units within complex systems, offering unparalleled flexibility for sophisticated designs.
Typical Applications for the DAC2 Unit
- General Digital-to-Analog Signal Conversion: Effortlessly transforms digital commands into precise analog voltages.
- Motor Speed Control: Enables granular motor control through adjustable analog voltage output.
- LED Dimming Control: Facilitates smooth and programmable brightness adjustments for various LED systems.
- Industrial Inverter and Power Supply Systems: Generates reliable analog reference signals for inverters and voltage regulators.
- Industrial Analog Signal Isolation: Boosts signal integrity and system stability with precise DAC outputs.
- Smart Factory and IoT Applications: Integrates accurate analog controls into automated industrial systems.

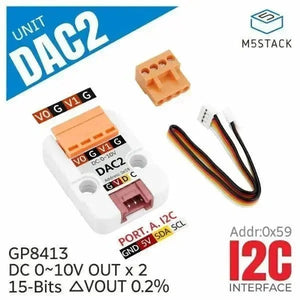

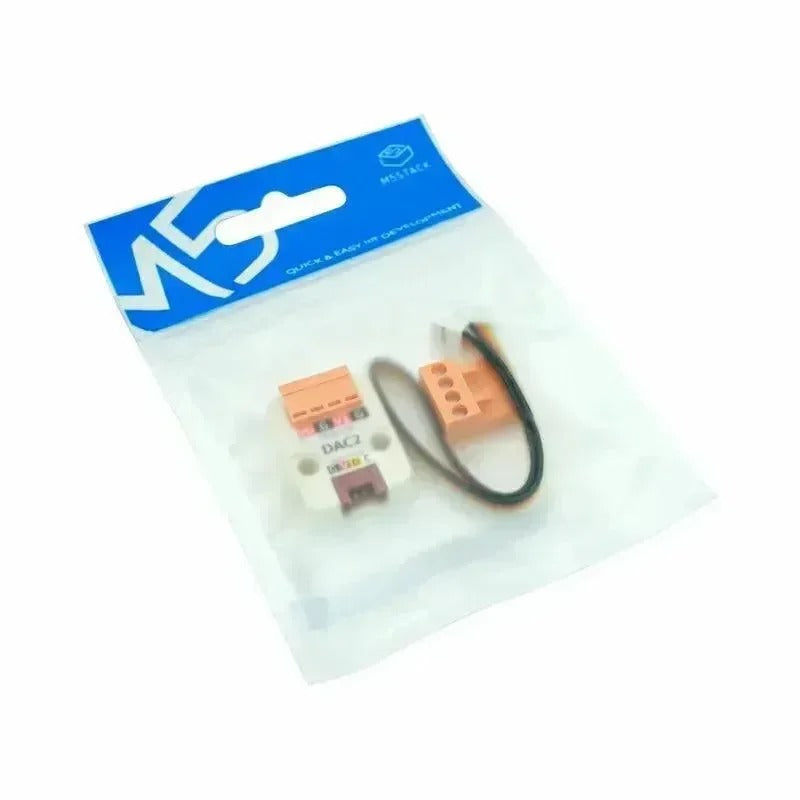

What's Included
- 1x DAC2 Unit
- 1x VH3.96-4P Connector
- 1x Sticker
Application Scenarios
- Universal signal conversion
- Motor speed regulation, LED dimming
- Inverter and power supply management
- Industrial analog signal isolation
Technical Specifications
| Category | Detail |
|---|---|
| DAC Chip | GP8413 |
| Resolution Ratio | 15Bit |
| I2C Serial Communication | 0x59 (default) |
| Maximum Output Voltage | 10V |
| Output Voltage Error | <0.2% |
| Output Voltage Linearity Error | 0.01% |
| Operating Temperature | 0-40°C |
| Product Size | 32 x 24 x 10.2mm |
| Package Size | 136 x 92 x 13.7mm |
| Product Weight | 5g |
| Package Weight | 13.3g |
FAQs – M5Stack DAC 2 I2C Unit (GP8413)
Q1: What communication protocol does the M5Stack DAC 2 Unit utilize?
A: The M5Stack DAC 2 Unit communicates via the I2C protocol, with a default address of 0x59. This facilitates straightforward connection and reliable data exchange with microcontrollers, such as the M5Core.
Q2: How many DAC2 Units can be interconnected within a single system?
A: Thanks to its 3-bit hardware address configuration, you can integrate up to 8 DAC2 Units in parallel on a single I2C bus, allowing for flexible and scalable system architectures.
Q3: What are the resolution and accuracy specifications for the M5Stack DAC 2 I2C Unit?
A: The DAC2 Unit offers a 15-bit digital-to-analog conversion, achieving an impressive 0.01% linearity and maintaining a minimal output voltage error of only 0.2%. This ensures high precision suitable for industrial and professional applications.
Q4: Does the DAC2 Unit incorporate any protective features?
A: Yes, the DAC2 Unit is equipped with short-circuit protection. In the event that the output pins are inadvertently shorted to ground, the module automatically activates a protection mode to prevent potential damage.
Q5: Which voltage ranges are supported by the DAC2 Unit?
A: The M5Stack DAC 2 can produce two independent analog voltages, either within the 0–5V or 0–10V range. This versatility makes it ideal for various applications, including motor speed control, LED dimming, and signal isolation.
Q6: What are some common applications for the M5Stack DAC 2 Unit?
A: Common applications include:
- Motor speed control
- LED brightness adjustment
- Signal conversion in industrial systems
- Power inverter reference signal generation
- Analog signal isolation in smart factories and IoT solutions
