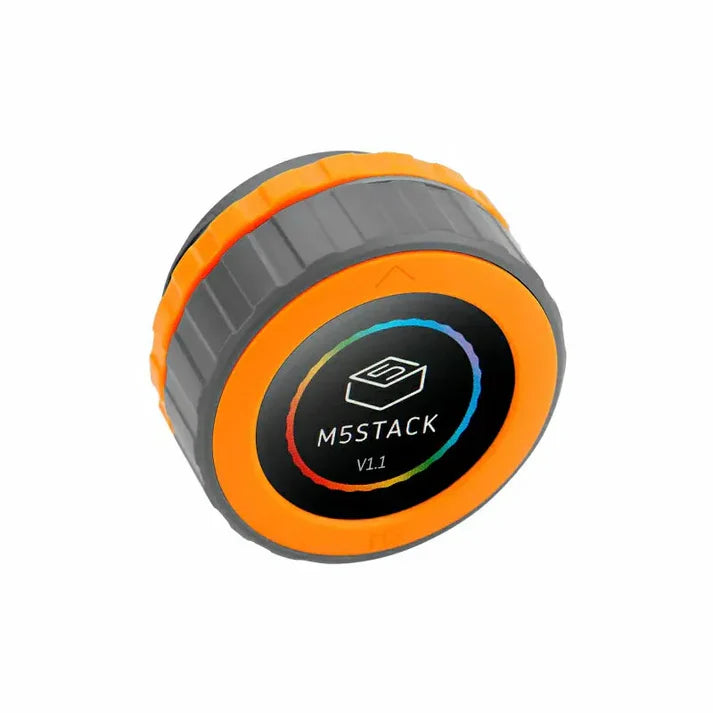

M5Stack Dial v1.1 - ESP32-S3 Smart Rotary Knob with 1.28inch Round Touch Screen
Dial v1.1 is an advanced, multifunctional embedded development board designed as a complete upgrade to the original Dial product. This updated version features the new StampS3A main controller, significantly boosting system performance and reliability. Additionally, the core module's antenna and buttons have been enhanced to improve wireless communication efficiency and overall user experience. The board includes a 1.28-inch round TFT touchscreen and a precision rotary encoder, along with a built-in RFID detection module, an RTC circuit, an integrated buzzer, and under-screen buttons, facilitating user interaction and alert functions. Its power supply accommodates a broad DC input range of DC 6~36V and features a designated lithium battery interface and charging circuit to suit various application needs. Furthermore, the included PORT.A and PORT.B interfaces enable the expansion of I2C and GPIO devices. This device finds its place in smart home control, IoT applications, smart wearables, access control systems, industrial automation, and educational maker projects.
Features

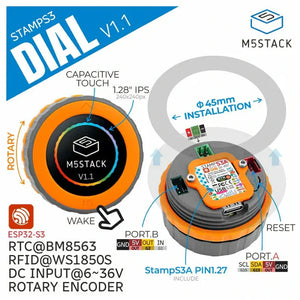

- Round TFT touchscreen
- StampS3A as the main controller
- Rotary encoder
- RFID detection module
- Wide voltage input

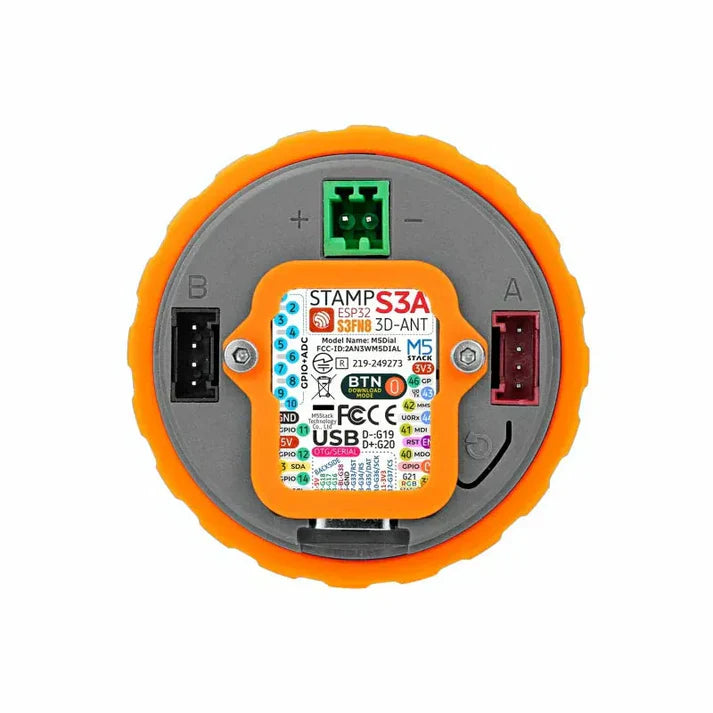

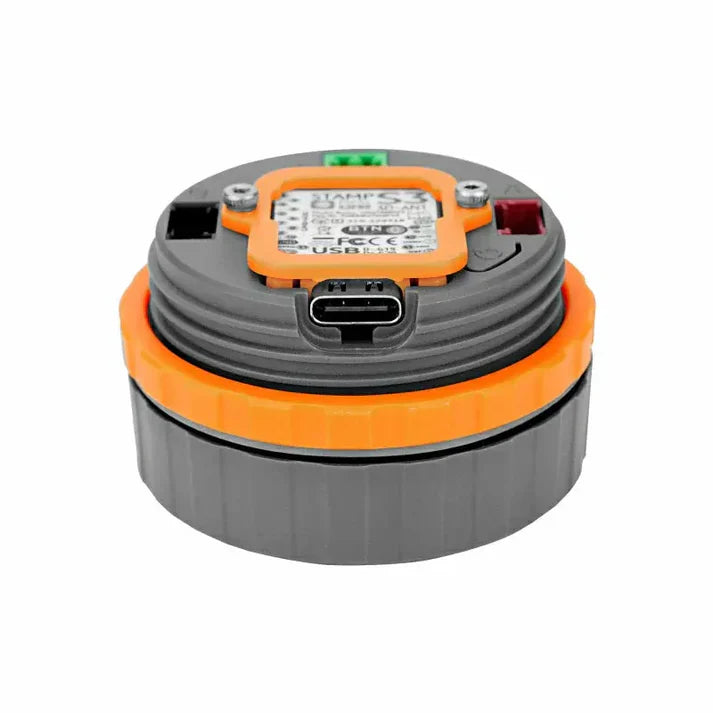

- Expansion support: Reserved PORT.A and PORT.B interfaces
-
Programming Platforms
Includes
- 1 x Dial V1.1
- 1 x L-shaped 1.5mm hex key (for M2 screws)
- 1 x 2.54-2P terminal
Applications
- Smart home control
- IoT projects
- Access control systems
- Industrial control
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3 (Xtensa LX7), 8MB Flash, Wi-Fi, OTG, CDC |
| Flash | 8MB |
| Wide Voltage Input Range | DC 6~36V |
| Screen Driver | GC9A01 1.28 Inch 240 x 240px |
| Touch Driver | FT3267 |
| RFID | WS1850S @ tag operating frequency: 13.56 MHz, ISO/IEC 14443 Type A/B protocol |
| Encoder | Resolution: 16 positions, 64 pulses/rev |
| Buzzer | 80dB |
| Battery Socket Specification | 1.25mm-2P |
| Sleep Current | USB power: DC-5V@6.84mA (LDO consumption) Battery only: DC-4V@6uA |
| Working Current | USB power: DC-5V@88.19mA Battery only: DC-4V@100mA |
| Working Temperature | 0-40°C |
| Product Size | 51.0 x 51.0 x 32.3mm |
| Packaging Size | 163.0 x 120.0 x 59.0mm |
| Product Weight | 46.2g |
| Gross Weight | 61.0g |
Difference Between M5Dial and M5Dial V1.1
| Comparison Item | Dial v1.1
|
Dial
|
|---|---|---|
| Core Module | StampS3A | StampS3 |
| Antenna Design | Enhanced for better signal | Standard design |
| Key Specifications | Refined key feel, with keys sized at 4.0 x 3.0 x 2.0mm | Key size of 2.6 x 1.6 x 0.55mm |
| Power Consumption | Improved for lower consumption | Standard design |
Dial v1.1 Lithium Battery Expansion Interface
Software
Arduino
Easyloader
| Easyloader | Download Link | Remarks |
|---|---|---|
| Dial v1.1 User Demo Easyloader | Download | / |
| Dial v1.1 Knob Panel Demo Easyloader | Download | / |
ESP-IDF
Schematics
Model Size
