M5Stack FIRE IoT Development Kit (PSRAM) V2.7
🔥 M5Stack FIRE V2.7 — Advanced ESP32 IoT Development Board
The M5Stack FIRE V2.7 is a powerful ESP32-based development board designed for IoT prototyping, industrial control, and smart building solutions. Powered by the Espressif ESP32-D0WDQ6-V3 chipset, it features dual Xtensa® 32-bit LX6 microprocessors running at 240MHz, with 8MB PSRAM and 16MB FLASH memory for complex applications.

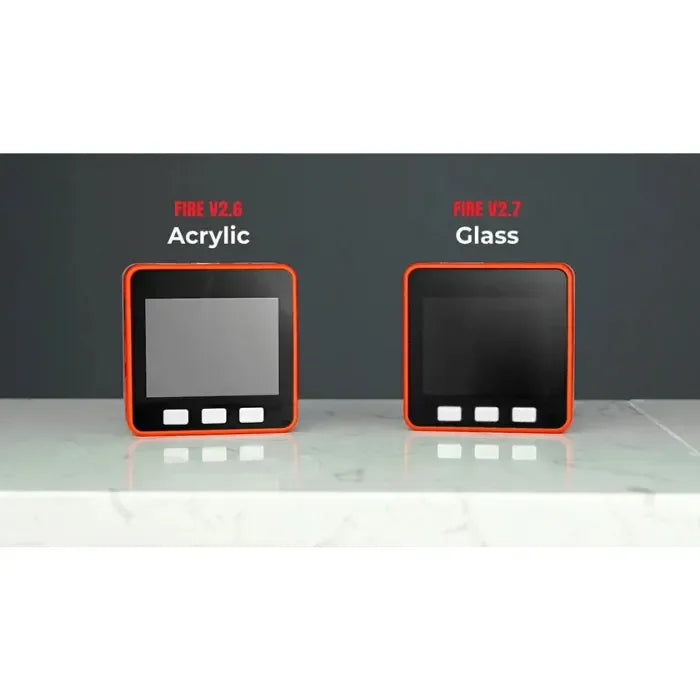

This upgraded version introduces a scratch-resistant glass screen for enhanced clarity and durability, while maintaining a robust design with a 2.0-inch full-color IPS display, 6-axis IMU, microphone, speaker, and TFCard slot. The full-cover enclosure ensures reliable circuit performance even in demanding industrial environments.

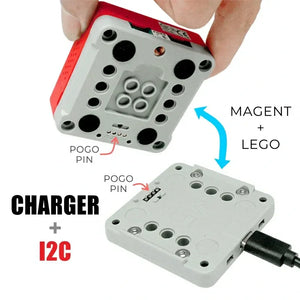

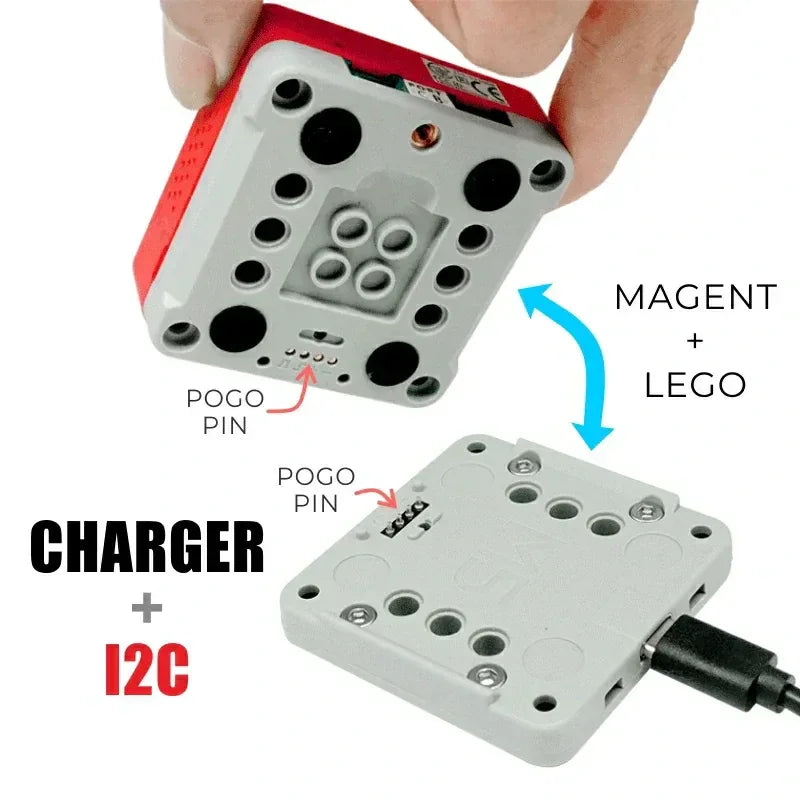

With abundant interfaces (ADC, DAC, I2C, UART, SPI), dual power options (Type-C + POGO pin), and flexible deployment via magnetic and LEGO interfaces, the M5Stack FIRE V2.7 is the ultimate platform for innovative IoT projects.
🔑 Key Advantages
-
ESP32 Performance: Dual-core 240MHz processor, Wi-Fi + Bluetooth connectivity.
-
Generous Memory: 8MB PSRAM + 16MB FLASH for advanced applications.
-
Enhanced Display: 2.0-inch IPS panel with scratch-resistant glass.
-
Rich Interfaces: ADC, DAC, I2C, UART, SPI, GPIO, TFCard slot.
-
Robust Design: Full-cover enclosure for industrial reliability.
-
Flexible Deployment: Magnetic mount + LEGO interface for creative builds.
-
Multi-Platform Development: Compatible with UIFlow, MicroPython, Arduino, .NET nanoFramework.
-
Azure Authentication: Secure integration with Microsoft Azure IoT solutions.
⚙️ Product Features
-

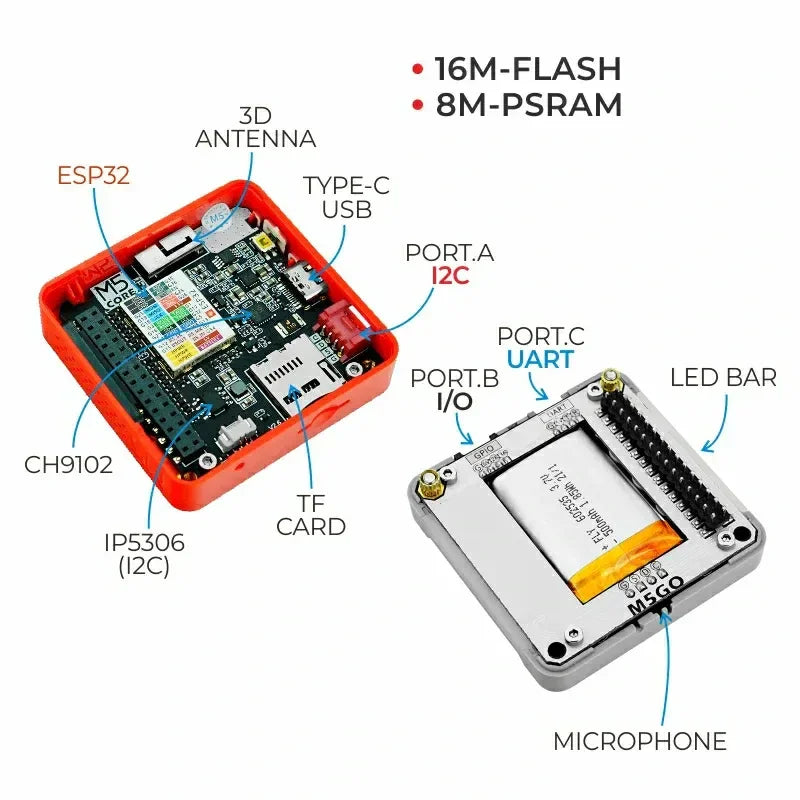

Chipset: ESP32-D0WDQ6-V3 (240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi)
-
Memory: 16MB Flash + 8MB PSRAM
-
Display: 2.0-inch IPS LCD, 320×240 resolution, 853nit brightness
-
IMU: 6-axis MPU6886
-
Audio: 1W speaker + analog microphone
-
Interfaces: Type-C, POGO pin, I2C, UART, GPIO, TFCard slot
-
RGB LEDs: 10× SK6812
-
Antenna: 2.4G 3D antenna
-
Battery: 500mAh lithium @ 3.7V
-
Enclosure: Scratch-resistant glass + PC plastic cover
-
Dimensions: 54 × 54 × 30.5mm
-
Weight: 62.3g (net), 162g (gross)

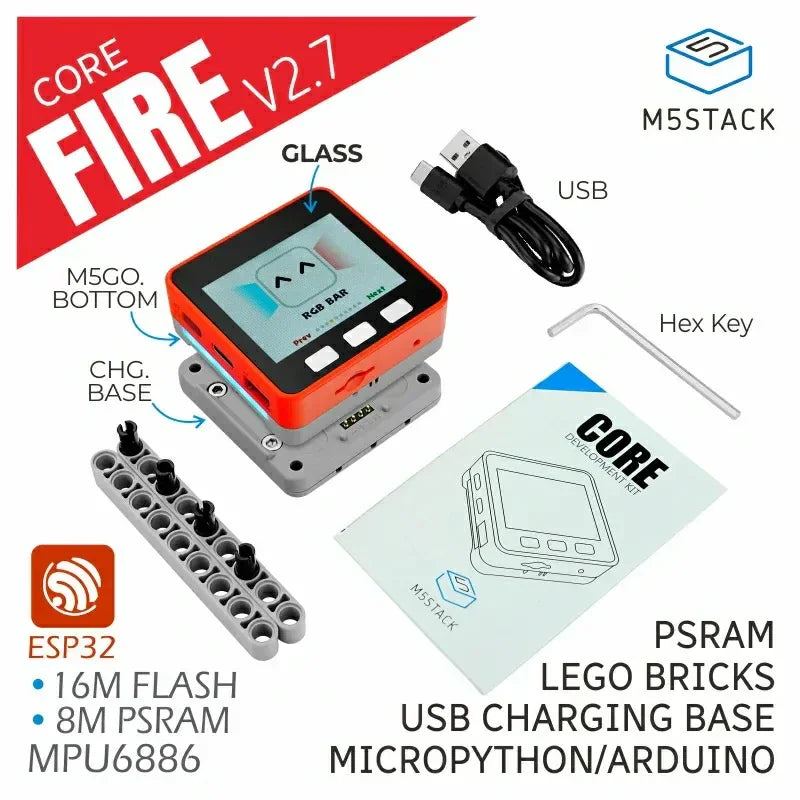

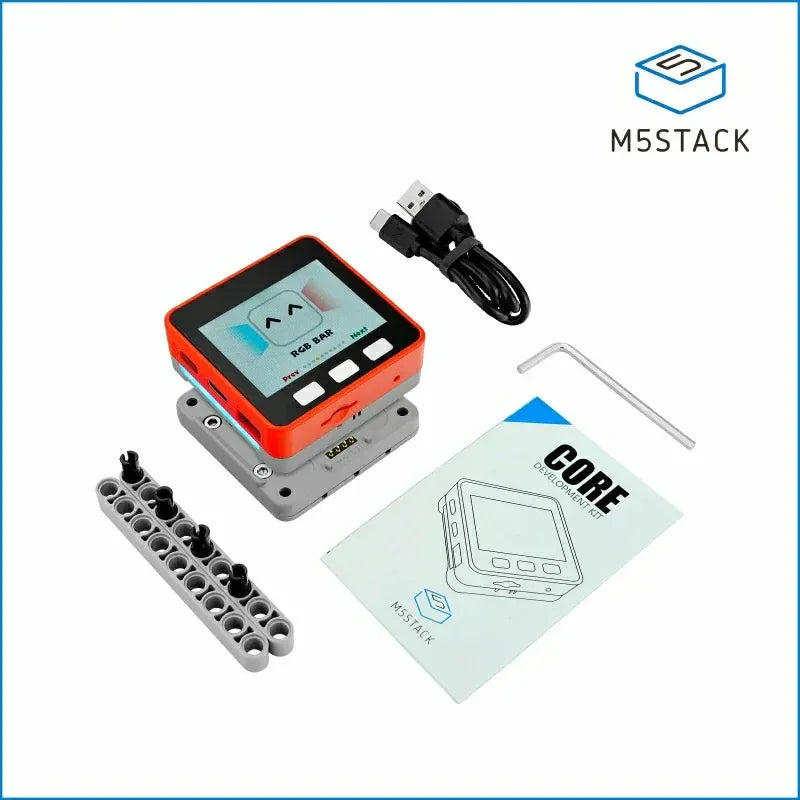

📦 Package Contents
-
1 × M5Stack FIRE V2.7
-
1 × M5GO Charging Base
-
2 × LEGO Building Blocks
-
5 × LEGO Connections
-
1 × M3 Hex Wrench
-
1 × Type-C USB Cable (50cm)
-
1 × User Manual
📌 Applications
-
IoT Controllers
-
DIY Maker Projects
-
Smart Home Automation
-
Industrial Prototyping
-
Smart Building Solutions
⚠️ Notes
-
GPIO 16/17 are connected to PSRAM by default. Avoid conflicts when stacking modules.
-
Power On: Single click red button (left side).
-
Power Off: Double-click red button quickly.
-
USB Power: Cannot be shut down while powered via USB.
📊 M5Stack FIRE V2.7 Specifications
| Specifications | Parameters |
|---|---|
| Main Control | ESP32-D0WDQ6-V3, 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 16MB |
| PSRAM | 8MB |
| Input Power | 5V @ 500mA |
| Interfaces | Type-C ×1, POGO PIN ×1, I2C ×1, GPIO ×1, UART ×1 |
| Keys | 3 × Custom Keys |
| LCD Screen | 2.0" IPS panel, 320×240 resolution (ILI9342C), max brightness 853nit |
| Speaker | 1W-0928 |
| Microphone | Analog BSE3729 Microphone |
| IMU | 6-axis MPU6886 |
| USB Chip | CH9102F |
| LEDs | 10 × SK6812 RGB LEDs |
| Antenna | 2.4G 3D antenna |
| Battery | 500mAh @ 3.7V |
| Operating Temperature | 0°C ~ 40°C |
| Net Weight | 62.3g |
| Gross Weight | 162g |
| Product Dimensions | 54 × 54 × 30.5mm |
| Package Size | 105 × 65 × 40mm |
| Cover Material | Plastic (PC) |
📐 Schematics & Model Resources
Datasheets
Softwares
Arduino
UiFlow1
UiFlow2
❓ FAQ
🔎 What is the specification of M5Stack FIRE?
The M5Stack FIRE is an advanced ESP32 development kit designed for IoT prototyping and smart applications. Key specifications include:
-
Main Control: Powered by the Espressif ESP32 chipset with dual‑core Xtensa® 32‑bit LX6 processors (240MHz).
-
Memory: 16MB Flash + 8MB PSRAM for complex projects.
-
Display: Built‑in 2.0-inch IPS LCD screen for clear visualization.
-
Connectivity: Integrated Wi‑Fi and Bluetooth for wireless communication.
-
Battery: Built‑in 500–600mAh lithium battery for portable use.
-
Interfaces: USB‑C port for programming and power, plus GPIO, I2C, UART, SPI expansion.
-
Development Compatibility: Supports UIFlow, MicroPython, Arduino, and .NET nanoFramework for multi‑platform development.
