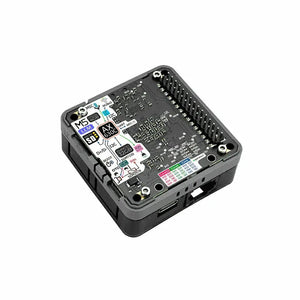

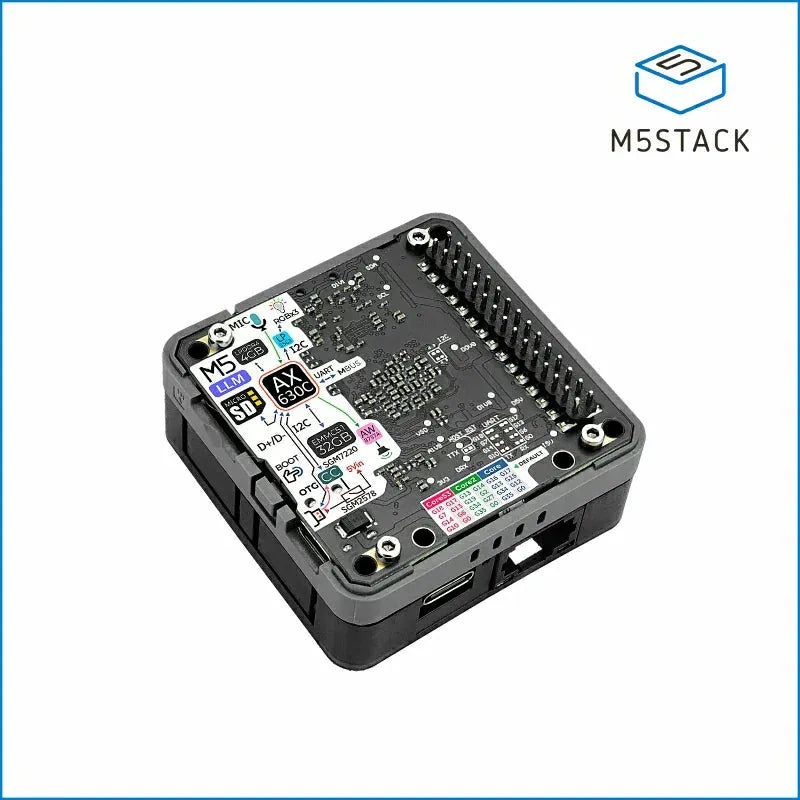

M5Stack LLM (large language model) Module Kit (AX630C)

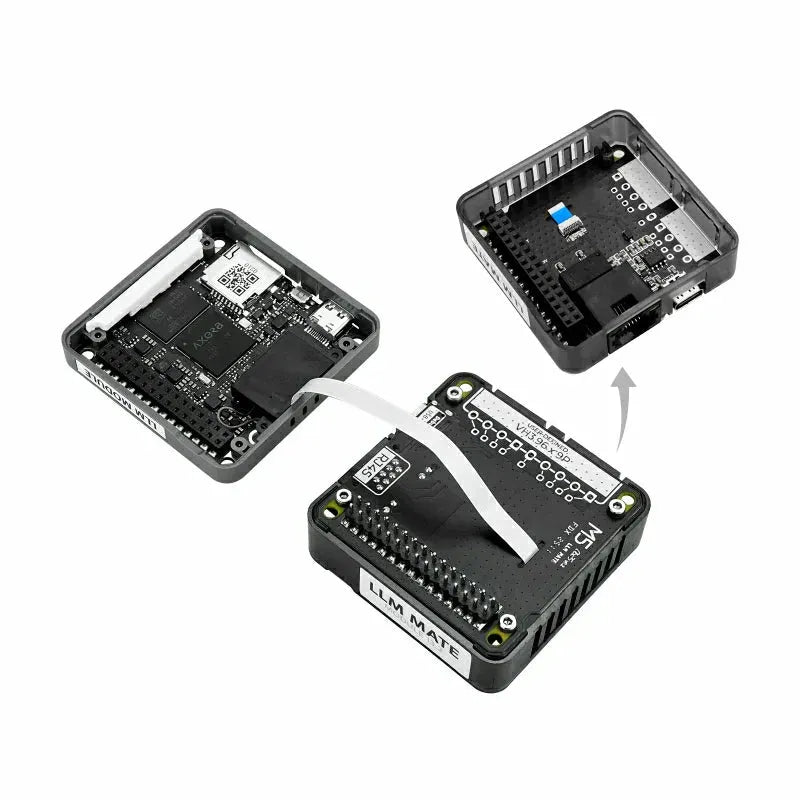

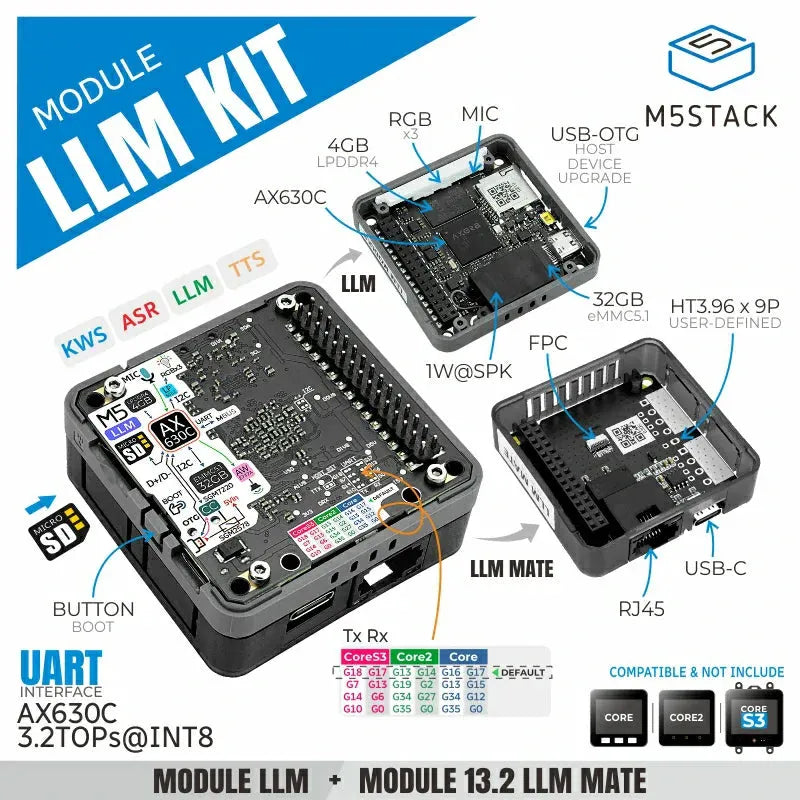

Module LLM Kit is a modular, intelligent kit designed for offline AI inference and data communication. Integrating the Module LLM and Module13.2 LLM Mate modules, it offers powerful local AI processing and versatile system interfacing for a range of scenarios.

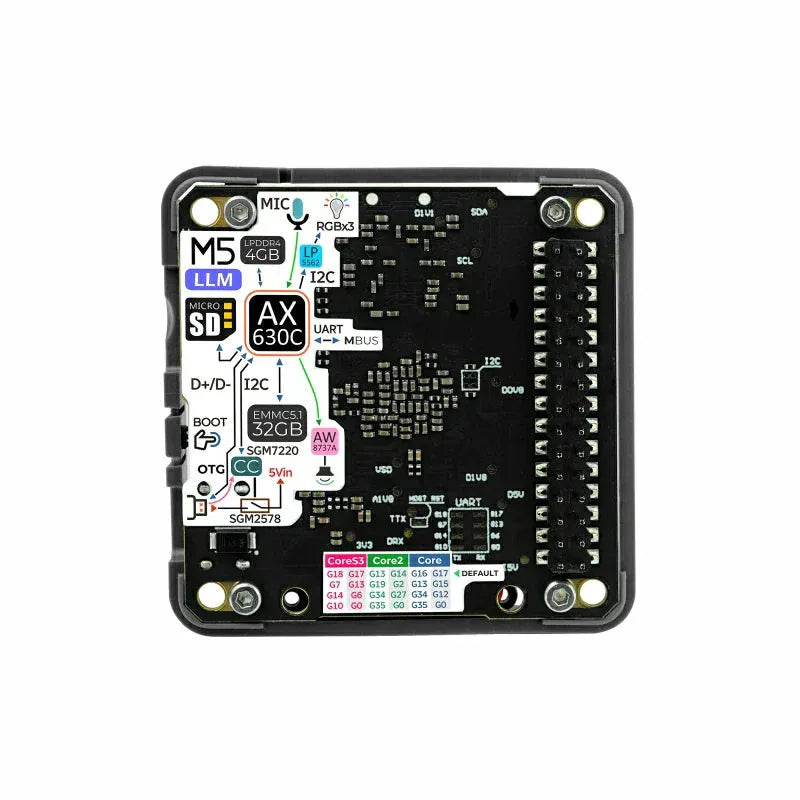

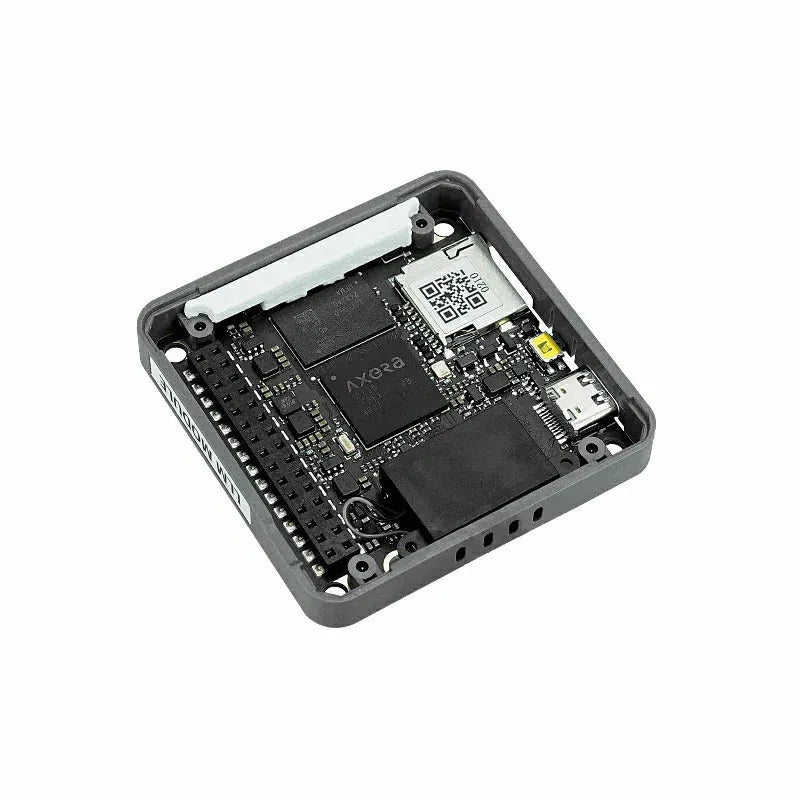

Module LLM is an all-in-one AI module for running large language models (LLM) offline, delivering natural, interactive experiences for smart home, voice assistants, and industrial control — all without cloud dependence for better privacy, security, and reliability.

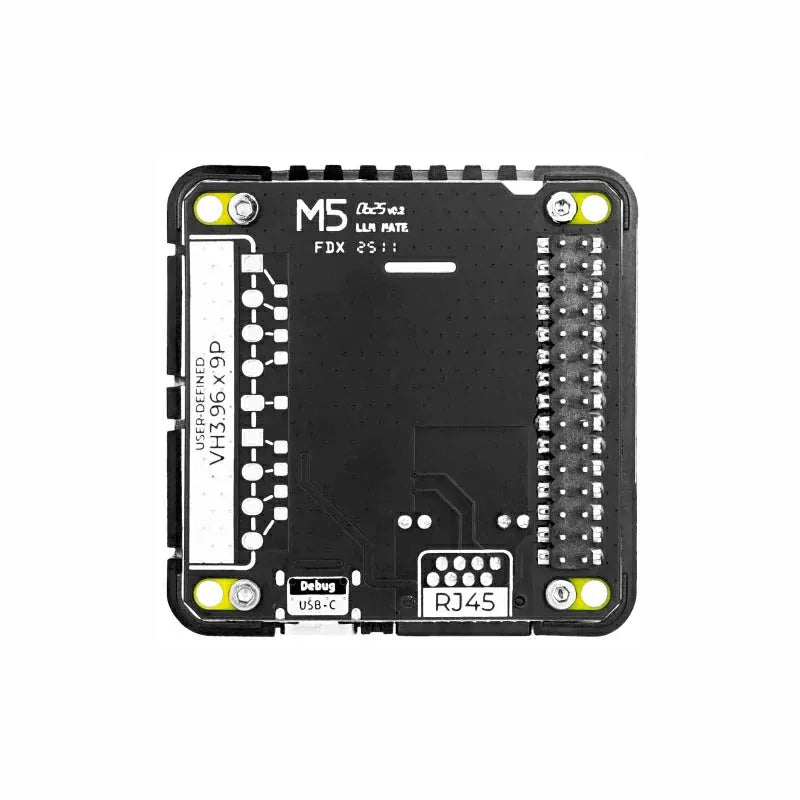

Module13.2 LLM Mate Module extends the kit’s connectivity: it supports stackable power with Module LLM through the M5BUS port and features a CH340N USB-to-serial chip for debugging, a Type-C port for log output, and an RJ45 port with an onboard transformer for 100 Mbps Ethernet and serial communications (SBC compatible). An FPC-8P port ensures reliable direct connection to Module LLM, complemented by an HT3.96*9P pad for DIY expansion.
Module LLM runs the StackFlow framework with Arduino/UiFlow libraries, so you can build edge intelligence with just a few lines of code. Powered by the advanced AiXin AX630C SoC and a 3.2 TOPS NPU (optimized for Transformer models), it can handle complex AI workloads efficiently. Its 4GB LPDDR4 RAM (1GB user, 3GB hardware acceleration) and 32GB eMMC enable fluid parallel model load and multitasking — at just 1.5W peak power, it’s ideal for always-on scenarios.
Pre-installed with Qwen2.5-0.5B, Module LLM supports KWS (wake word), ASR (speech recognition), LLM, and TTS. It allows fast software/model updates via apt, and with the openai-api plugin, provides full API compatibility with OpenAI for chat, conversation completion, speech-to-text, and text-to-speech. Access dozens of models — such as deepseek-r1-distill-qwen-1.5b, InternVL2_5-1B-MPO, Llama-3.2-1B, and more, as well as the latest in TTS (whisper-tiny, whisper-base, melotts) and visual AI (YOLO, SOTA models) — all maintained through the official repository.
Module LLM Kit is truly plug-and-play: connect to your M5 Host for instant AI functionality. It integrates easily into existing systems, delivering on-device intelligence to smart homes, robots, and voice-driven devices, with no complicated setup.
Features
- Offline AI inference, 3.2 TOPS at INT8
- Integrated KWS, ASR, LLM, and TTS
- Multi-model parallel processing
- Onboard 32GB eMMC and 4GB LPDDR4
- Built-in microphone and speaker
- Flexible serial communication
- Firmware upgrade via SD card
- Supports ADB debugging and OTG
- RGB status LED
- Runs Ubuntu OS

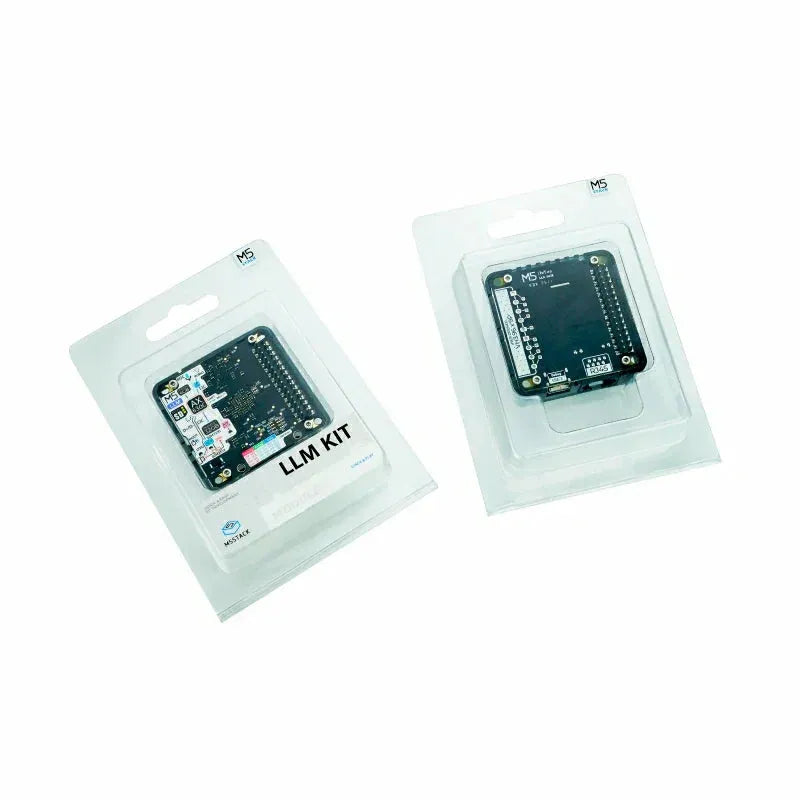

Includes
- 1 x Module LLM
- 1 x Module LLM Mate
- 2 x FPC-8P Cables
Applications
- Offline voice assistants
- Text-to-speech systems
- Smart home control
- Interactive robotics
Specifications
| Specification | Parameter |
|---|---|
| Processor SoC | AX630C, Dual Cortex A53 1.2GHz, up to 12.8 TOPS@INT4, 3.2 TOPS@INT8 |
| Memory | 4GB LPDDR4 (1GB for system, 3GB hardware acceleration) |
| Storage | 32GB eMMC 5.1 |
| Communication | Serial, default 115200@8N1 (configurable) |
| Microphone | MSM421A |
| Audio Driver | AW8737 |
| Speaker | 8Ω@1W, 2014 cavity speaker |
| Built-in Functions | KWS, ASR, LLM, TTS |
| RGB LED | 3x RGB LED@2020, LP5562 driver |
| Power Consumption | Idle: 5V@0.5W; Full load: 5V@1.5W |
| Button | Firmware download mode |
| Upgrade Interface | SD card, Type-C port |
| Conversion Chip | CH340N USB/serial |
| Ethernet Interface | RJ45 port with network transformer (11FB-05NL SOP-16) |
| Serial Interfaces | FPC-8P, Type-C, RJ45 |
| DIY Expansion | HT3.96*9P solder pad |
| Operating Temp. | 0–40°C |
| Product Size | LLM: 54.0 x 54.0 x 13.0mm Mate: 54 x 54 x 19.7mm |
| Package Size | LLM: 192.0 x 95.0 x 17.0mm Mate: 192.0 x 95.0 x 21.0mm |
| Product Weight | LLM: 17.4g Mate: 19.2g |
| Package Weight | LLM: 32.0g Mate: 34.8g |
