M5Stack M5Paper Color ESP32S3 Dev Kit (600x400, 4" SPECTRA 6 eInk)
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
M5Stack M5Paper Color ESP32S3 Dev Kit (600x400, 4" SPECTRA 6 eInk)
M5Stack PaperColor is a full-color ESP32-S3 e-paper development kit designed for low-power visual interfaces. It combines an ESP32-S3R8 controller with 16MB Flash, 8MB PSRAM, and a 4-inch Spectra 6 E Ink display with 400 x 600 resolution, making it a strong fit for information panels, desktop dashboards, smart signage, and other embedded display projects where readability and standby efficiency matter.
This M5Stack board also integrates a practical interaction stack: 3 user buttons, a power key, ES8311 audio codec, ES7210 MEMS microphone with AEC, a 1W speaker, SHT40 temperature and humidity sensing, RX8130CE RTC, microSD storage, IR transmission, 2 RGB LEDs, and an HY2.0-4P expansion port. Paired with the onboard M5PM1 power management system and a 1250mAh battery, M5Stack PaperColor is well suited to portable or always-on IoT display applications.
Features
- ESP32-S3R8 platform with dual-core Xtensa LX7, 16MB Flash, and 8MB PSRAM
- 4-inch Spectra 6 full-color e-paper display with 400 x 600 resolution
- Built-in 1250mAh battery with M5PM1 power management for low-power operation
- Integrated audio path with ES8311 codec, ES7210 MEMS microphone, AEC support, and 1W speaker
- Human-machine interaction through 3 programmable buttons, 1 power button, IR emitter, and 2 RGB LEDs
- Onboard sensing and timing with SHT40 temperature and humidity sensor plus RX8130CE RTC
- Expandable design with microSD card slot and HY2.0-4P Grove-compatible interface
- Arduino and PlatformIO friendly with official M5Unified, M5GFX, and M5PM1 resources
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3R8, Dual-core Xtensa LX7, up to 240MHz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless | 2.4 GHz Wi-Fi |
| Display | 4" E-Paper (E6 Full-Color) ED2208-DOA (EL040EF1), 400 x 600 |
| Input Power | USB Type-C, DC 5V |
| Battery | 1250mAh |
| Audio Codec | ES8311 |
| Microphone | MEMS microphone, ES7210 audio ADC, integrated AEC circuit |
| Speaker | 1W @ 8Ω 2520 speaker, AW8737A amplifier |
| Sensor | SHT40 temperature and humidity sensor |
| RTC | RX8130CE |
| Storage | microSD card slot |
| User Input | 3 user buttons + 1 power button (ON / OFF / RESET / BOOT) |
| Standby Current | 92.53uA |
| Full Load Current | 211.97mA |
| Product Size | 70.8 x 103.9 x 8.5mm |
| Product Weight | 73.3g |
| Package Size | 120.0 x 80.0 x 23.0mm |
| Gross Weight | 93.4g |
Applications
M5Stack PaperColor works especially well in projects that need a readable, colorful interface with low refresh demand and low standby power:
- Electronic signage for room labels, schedules, notices, and product tags

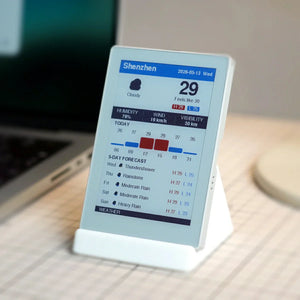

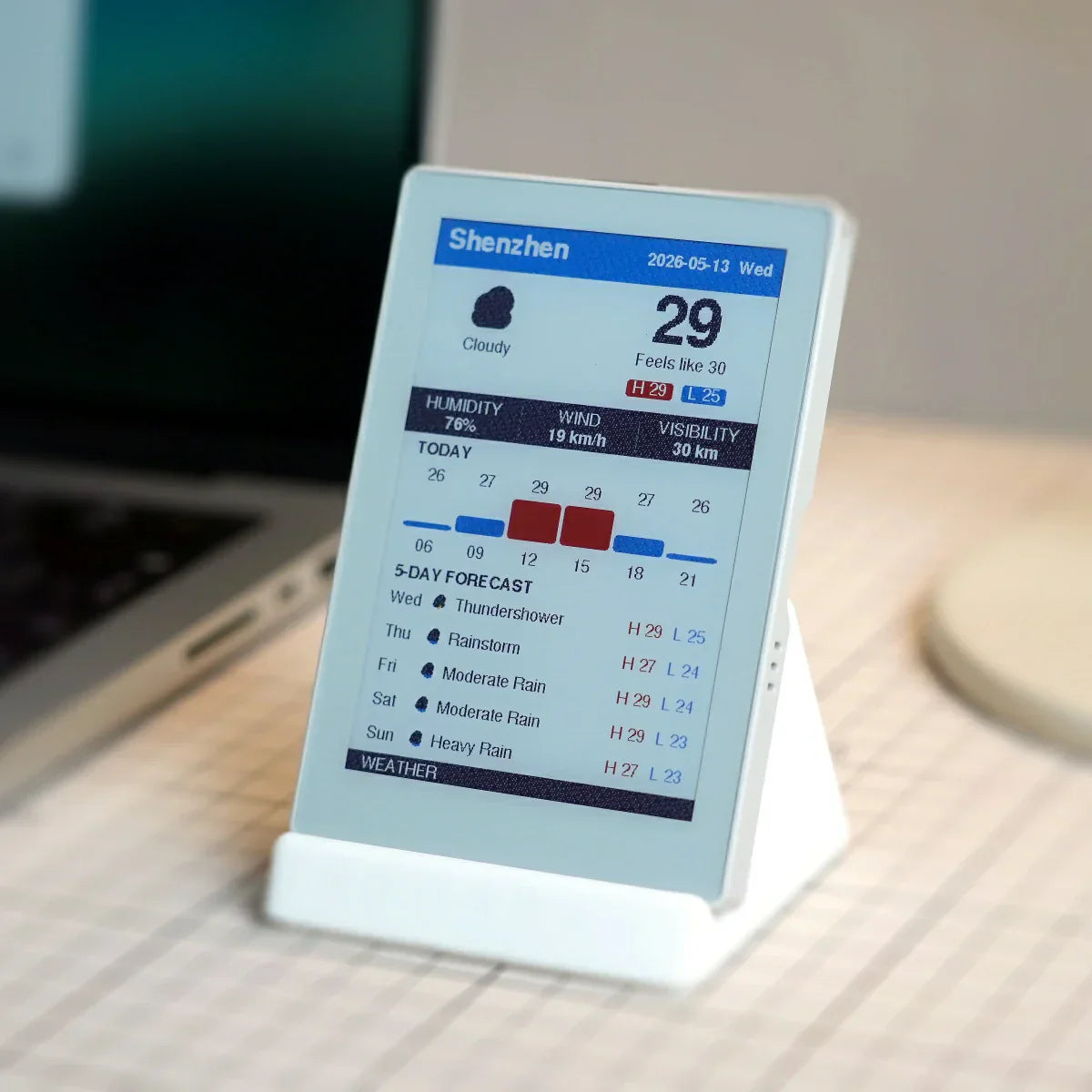

- Desktop information dashboards for weather, calendar, task status, or smart home summaries
- Voice interaction terminals that combine local display, microphone input, and speaker playback
- Environmental monitoring displays using onboard SHT40 data and Wi-Fi connectivity
- Creative installations and art displays where a full-color e-paper look is preferred over LCD
Product List
- 1 x PaperColor
Other Content
Power On/Off
- Power On / Restart: Press the power button once
- Power Off: Press the power button twice in quick succession

Download Mode
To flash firmware, connect the device to a computer via a USB Type-C cable, then press and hold the side reset button to enter download mode and wait for the flashing process to complete.

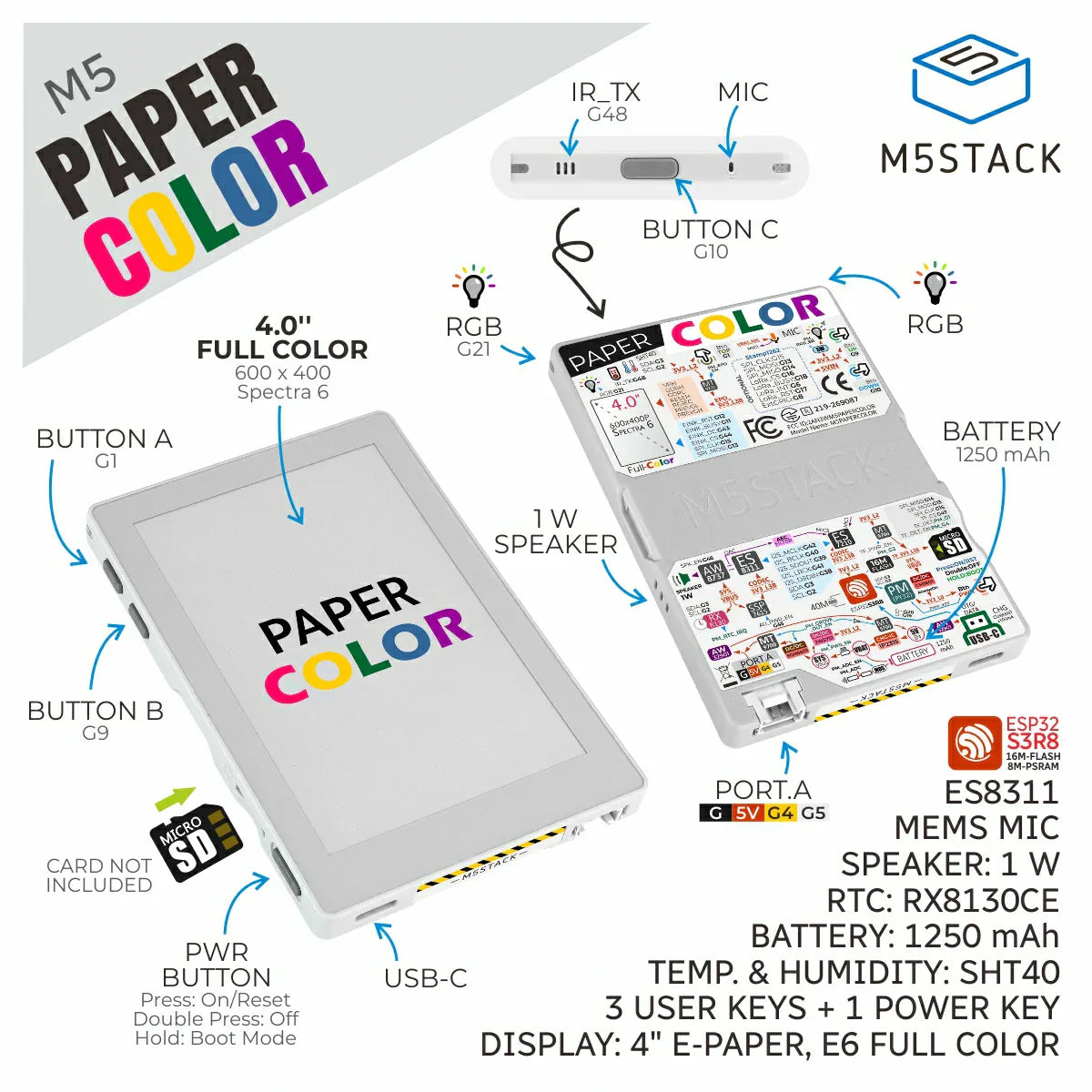

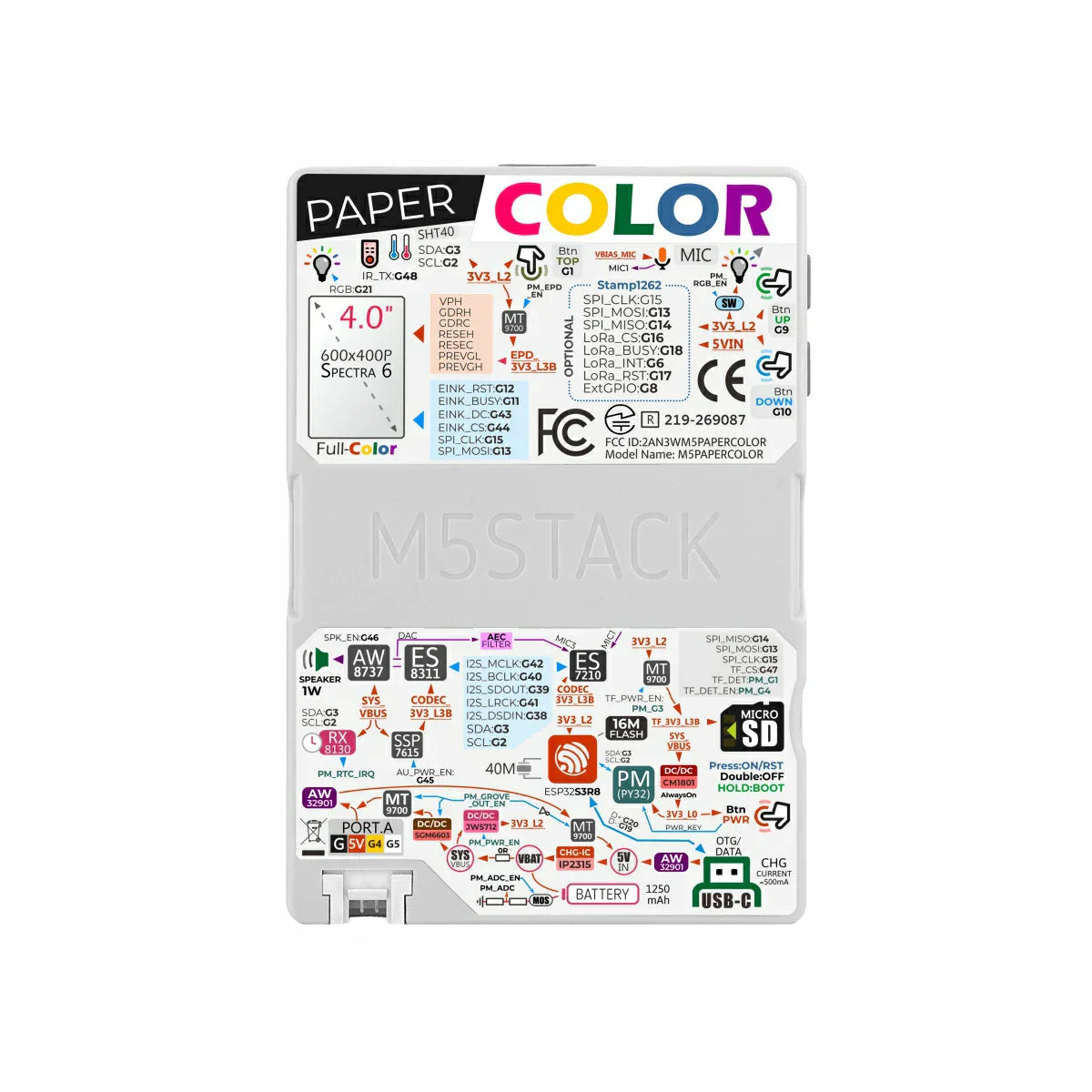

Hardware and Pin Map
| Function | Signal Mapping |
|---|---|
| E-Paper | G15 SPI_CLK, G13 SPI_MOSI, G44 EINK_CS, G43 EINK_DC, G11 EINK_BUSY, G12 EINK_RST, PYG0 PY_EPD_EN |
| User Keys | G1 USER_KEY1, G9 USER_KEY2, G10 USER_KEY3 |
| IR | G48 IR_TX |
| RGB LEDs | G21 RGB |
| Audio Control | G2/G3 I2C for ES8311 and ES7210, G42 MCLK, G41 LRCK, G40 BCLK, G39 I2S_SDOUT, G38 I2S_DSDIN, G45 AUDIO_PWR_EN, G46 SPK_EN |
| RTC | G7 RTC_IRQ, G3 SYS_SDA, G2 SYS_SCL |
| SHT40 | G3 SYS_SDA, G2 SYS_SCL |
| microSD | G47 CS, G15 SPI_CLK, G13 SPI_MOSI, G14 SPI_MISO |
| HY2.0-4P Port A | GND, 5V, G4, G5 |
Dimensions

Resources
- Official Documentation
- PaperColor Arduino Quick Start
- PaperColor M5PM1 Power Management Guide
- PaperColor Schematics PDF
- PaperColor Model Size PDF
- M5Unified Library
- M5GFX Library
- M5PM1 Library
- M5PM1 Datasheet
- ES8311 Datasheet
FAQ
What is the difference between M5Stack PaperColor and M5PaperS3?
M5Stack PaperColor focuses on a 4-inch full-color Spectra 6 e-paper experience, which is a better fit for low-power visual signage and colorful status panels. If you prefer a larger touch-capable e-paper development platform, you can also check the related M5PaperS3 product page.
Can I develop M5Stack PaperColor with Arduino or PlatformIO?
Yes. M5Stack provides an official Arduino quick start, and the documentation also includes a ready PlatformIO environment example. The official M5Unified, M5GFX, and M5PM1 libraries are the main software resources for getting started.
Is M5Stack PaperColor suitable for battery-powered always-on projects?
Yes, especially for projects with mostly static content. The official standby current is 92.53uA, which makes M5Stack PaperColor attractive for low-power dashboards, electronic signage, and portable display terminals. As with other e-paper products, refresh is slower than LCD, so it is best used for information that changes periodically rather than continuously.
How do I enter firmware download mode?
Connect the board through USB Type-C, then press and hold the side reset button while flashing firmware. The official product documentation includes the same operation guidance for download mode and power control.
