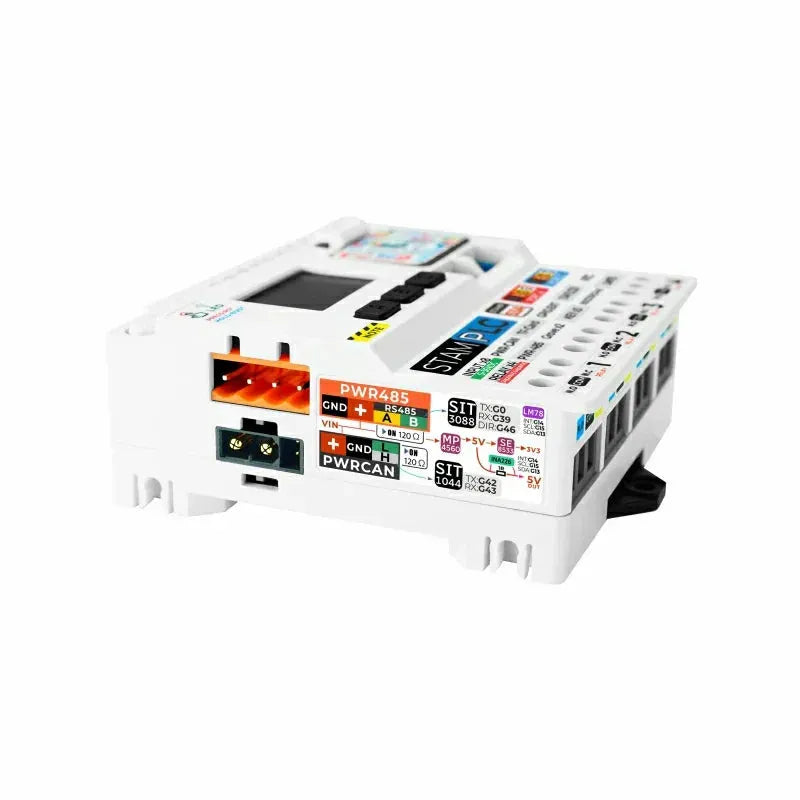

M5Stack M5Stamp PLC Controller with M5StampS3

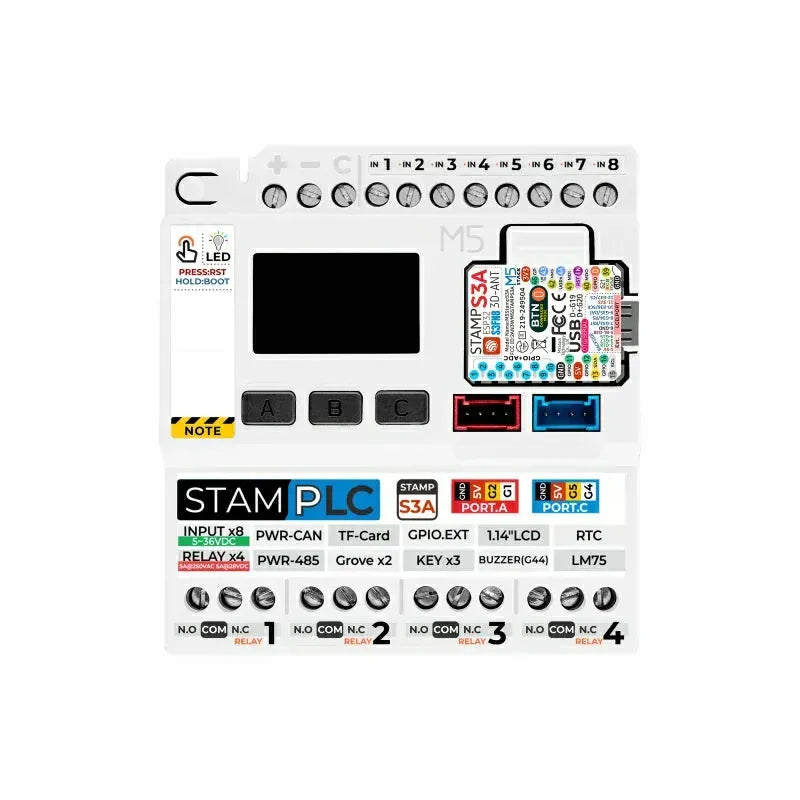

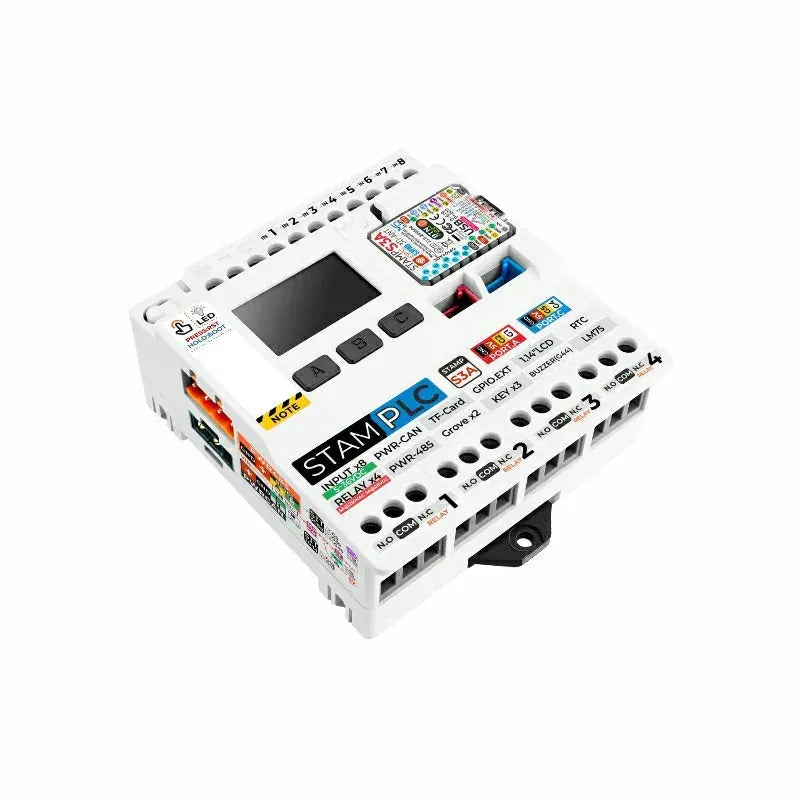

StamPLC is an IoT-enabled programmable logic controller specifically designed for industrial automation and remote monitoring tasks. At the core of this device lies the StampS3A control module, which provides strong processing power along with highly efficient wifi connectivity options. For control capabilities, StamPLC has 8 opto-isolated digital inputs and 4 relay outputs that can handle both AC and DC loads, as well as a GPIO.EXT port and two Grove interfaces to facilitate easy integration of various sensors and actuators. The device is equipped with PWR-CAN and PWR-485 interfaces, allowing it to connect seamlessly to industrial fieldbus networks for centralized control and remote data transmission.
On the human-machine interaction front, it includes a 1.14-inch color display, a RESET/BOOT button, three user buttons, and a buzzer, enabling real-time parameter adjustments and status updates while providing audible alerts for any unexpected issues. Built to endure tough industrial settings, StamPLC accommodates a wide voltage input range of DC 6–36V and is designed for DIN rail mounting for secure placement. It also includes a built-in Micro SD card slot for efficient data storage and firmware updates. Further enhancing its capabilities, the environmental monitoring system integrates an LM75BDP temperature sensor and an INA226AIDGSR voltage/current sensor for real-time operation monitoring. Additionally, the RTC (RX8130CE) module ensures precise time synchronization and log recording. The device automatically uploads data to M5’s EZDATA cloud platform, creating monitoring pages that offer users simple remote access and control through the cloud. This product is well-suited for various applications including industrial automation, remote monitoring, and smart manufacturing.

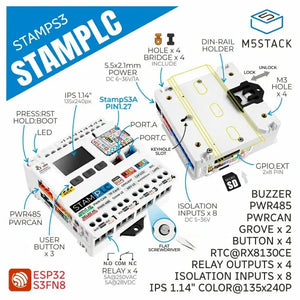

Features
- StampS3A Control Module (ESP32-S3FN8)
- EZData Cloud Monitoring
- 8 Opto-isolated Digital Inputs
- 4 Relay Outputs (AC/DC)
- 1.14-inch Color Display (ST7789v2)
- PWR-CAN & PWR-485 Interfaces
- Wide Voltage Input (DC 6–36V)
- Voltage/Current Sensor
- Internal Temperature Sensor
- User Buttons
- Micro SD Card Slot

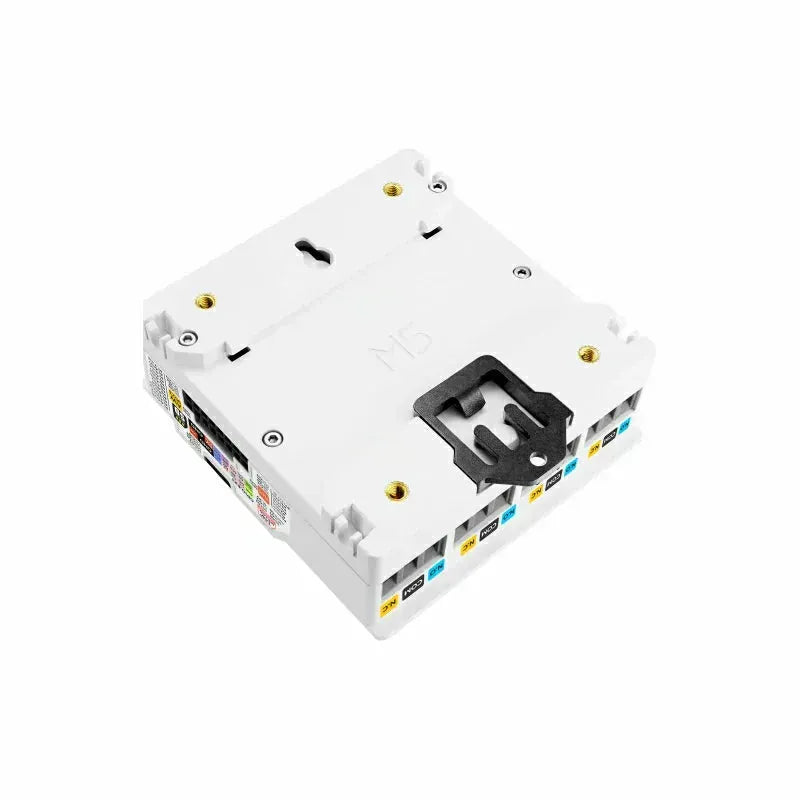

- DIN Rail Mounting
- Buzzer
- Grove Interface
- RTC Module
- Development Platform
UIFlow 2.0
Arduino IDE
ESP-IDF
Includes
- 1 x StamPLC
- 4 x Mounting Accessories
- 4 x Screw Clip Fasteners
Applications
- Industrial Automation and Remote Control
- Distributed Control Systems
- Smart Energy Management
- Smart Manufacturing
Specifications
| Specification | Parameter |
|---|---|
| Control Module | StampS3A Control Module, based on ESP32-S3FN8, with 8MB Flash, 2.4GHz Wi-Fi |
| FLASH | 8MB |
| Digital Inputs | 8 opto-isolated digital inputs, Input voltage range: DC 5~36V |
| Digital Outputs | 4 relay outputs |
| Relays | AC – 5A @ 250V DC – 5A @ 28V |
| DC Power Supply | Supports wide voltage input of DC 6–36V @ 1A DC Power Connector: DC5521 (female, 5.5 x 2.1mm, center positive, outer negative) |
| Expansion Interfaces | GPIO.EXT interface, 2 Grove interfaces |
| Communication Interfaces | Onboard PWR-CAN and PWR-485 interfaces |
| PWR-CAN Interface | XT30(2+2)PW-M |
| PWR-485 Interface | HT3.96-4P |
| Display | 1.14-inch color display (135×240 resolution), driven by ST7789v2 chip |
| Interactive Controls | 1 RESET/BOOT button, 3 user buttons, buzzer |
| Data Storage | Built-in Micro SD card slot |
| Sensors | LM75 temperature sensor, INA226 voltage/current sensor, RTC (RX8130CE) |
| IO Port Load Capacity | 2×8 connector maximum load: DC-4.76V @ 700mA Grove port load test: DC-4.81V @ 700mA |
| Power Consumption | Standby current: (5V supply) DC-5V @ 21.60mA, (12V supply) DC-12V @ 15.22mA Operating current: (5V supply) DC-5V @ 93.89mA, (12V supply) DC-12V @ 47.84mA |
| Installation Method | DIN rail mounting |
| Operating Temperature | 0–40°C |
| Product Size | 72.0 × 80.0 × 33.4mm |
| Product Weight | 139.4g |
| Packaging Size | 102.0 x 94.0 x 37.0mm |
| Gross Weight | 163.7g |
Schematics

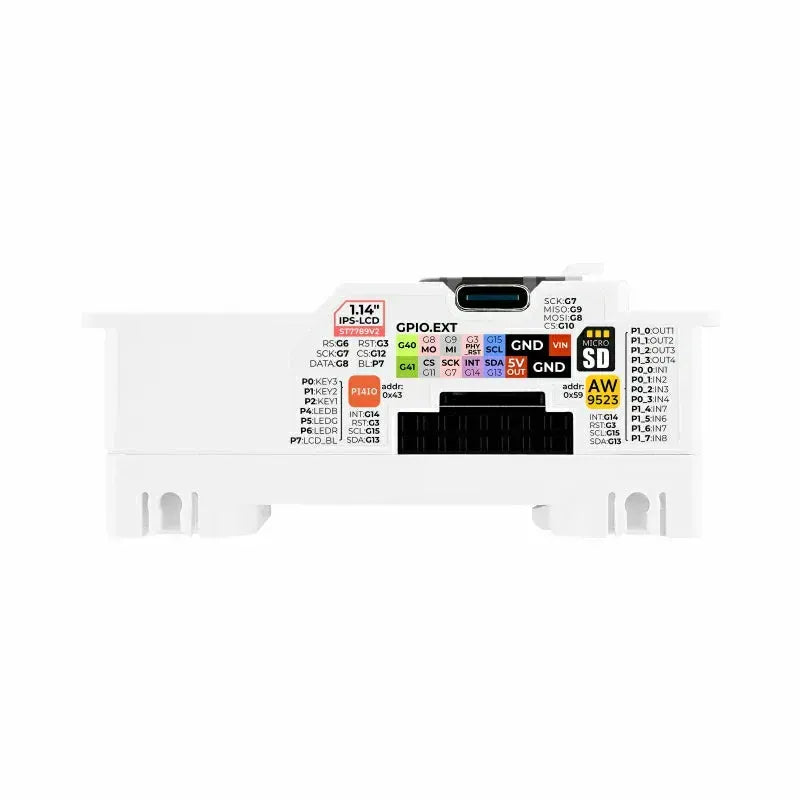

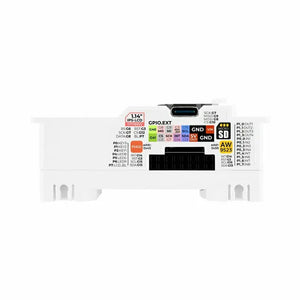

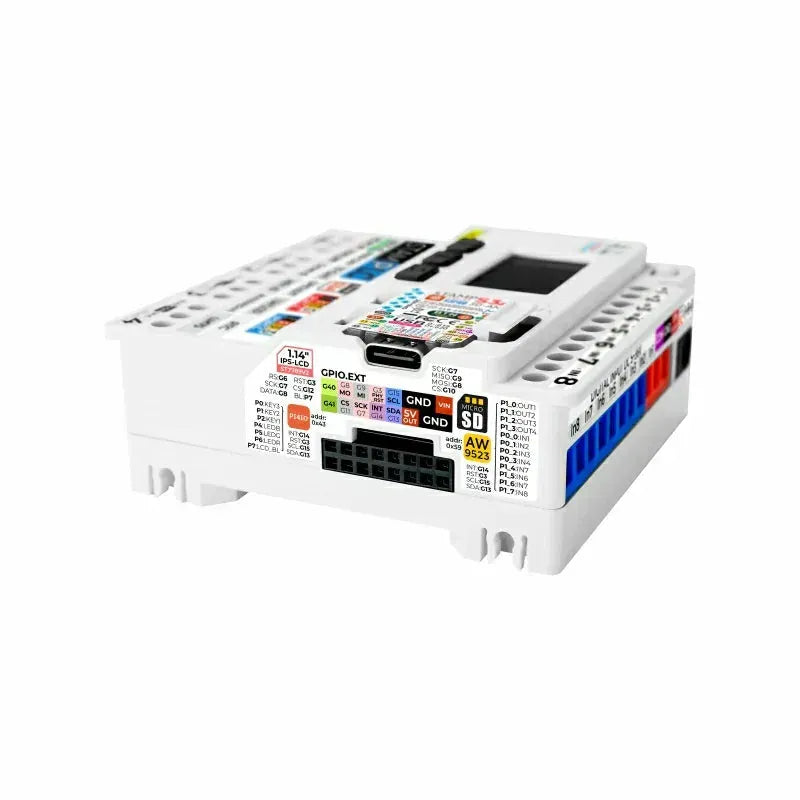

Pinmap

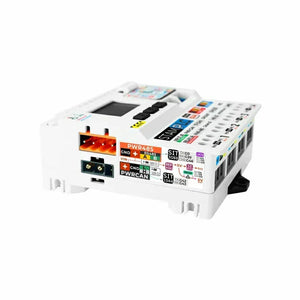

PWR-485 & PWR-CAN
| StampS3A | G42 | G43 | G0 | G39 | G46 |
|---|---|---|---|---|---|
| PWR-CAN | CAN_TX | CAN_RX | |||
| PWR-485 | RS485_TX/BOOT | RS485_RX | RS485_DIR |
RGB & User Buttons A/B/C
- Controlled via PI4IOE5V6408 (0x43)
| StampS3A | G15 | G13 | G14 | G3 |
|---|---|---|---|---|
| PI4IOE5V6408 | SCL | SDA | INT | RST |
| PI4IOE5V6408 | P6 | P5 | P4 | P2 | P1 | P0 |
|---|---|---|---|---|---|---|
| RGB | R | G | B | |||
| Button | KEYA | KEYB | KEYC |
Micro SD Card Slot
| StampS3A | G9 | G10 | G7 | G8 |
|---|---|---|---|---|
| Micro SD | MISO | CS | SCK | MOSI |
Sensor
| StampS3A | G15 | G13 | G14 |
|---|---|---|---|
| INA226AIDGSR | SCL | SDA | INT |
| LM75BDP | SCL | SDA | INT |
| RX8130CE | SCL | SDA | INT |
LCD
| StampS3A | G8 | G7 | G6 | G12 | G3 | PI4IOE5V6408_P7 |
|---|---|---|---|---|---|---|
| LCD | MOSI | SCK | RS | CS | RST | LCD_BL |
Buzzer
| StampS3A | G44 |
|---|---|
| Buzzer | BUZZER_PWM |
Relays and Optocouplers
- Controlled via AW9523B (0x59)
| StampS3A | G15 | G13 | G14 | G3 |
|---|---|---|---|---|
| AW9523B | SCL | SDA | INT | RST |

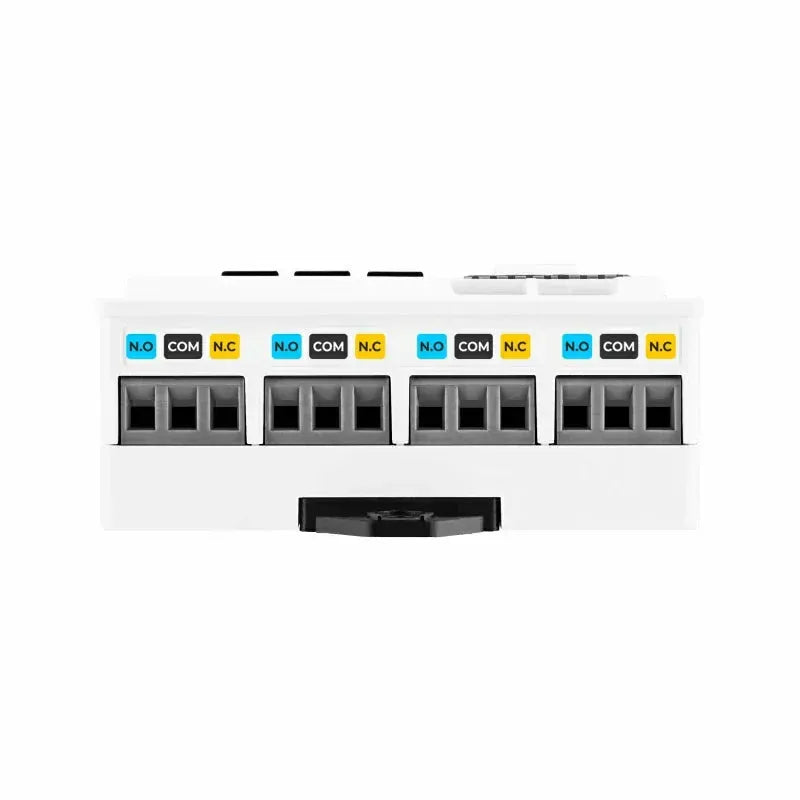

- Relay Control
| AW9523B | P0_0 | P0_1 | P0_2 | P0_3 |
|---|---|---|---|---|
| Relay | RLY_DRV1 | RLY_DRV2 | RLY_DRV3 | RLY_DRV4 |
- Optocoupler Output
| AW9523B | P0_4 | P0_5 | P0_6 | P0_7 | P1_4 | P1_5 | P1_6 | P1_7 |
|---|---|---|---|---|---|---|---|---|
| EL3H4 | SYS_IN1 | SYS_IN2 | SYS_IN3 | SYS_IN4 | SYS_IN5 | SYS_IN6 | SYS_IN7 | SYS_IN8 |
- Optocoupler Input
| EL3H4 | Description |
|---|---|
| EXCOM_IN1 | External Input Signal 1 |
| EXCOM_IN2 | External Input Signal 2 |
| EXCOM_IN3 | External Input Signal 3 |
| EXCOM_IN4 | External Input Signal 4 |
| EXCOM_IN5 | External Input Signal 5 |
| EXCOM_IN6 | External Input Signal 6 |
| EXCOM_IN7 | External Input Signal 7 |
| EXCOM_IN8 | External Input Signal 8 |
| EXCOM_COM | Common Terminal |
PORT.A & PORT.C
- PORT.A
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.A | GND | 5V | SDA | SCL |
| StampS3A | GND | 5V | G2 | G1 |
- PORT.C
| HY2.0-4P | Black | Red | Yellow | White |
|---|---|---|---|---|
| PORT.C | GND | 5V | UART_TX | UART_RX |
| StampS3A | GND | 5V | G5 | G4 |
Model Size
