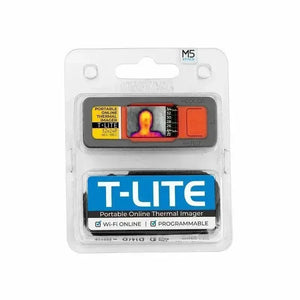

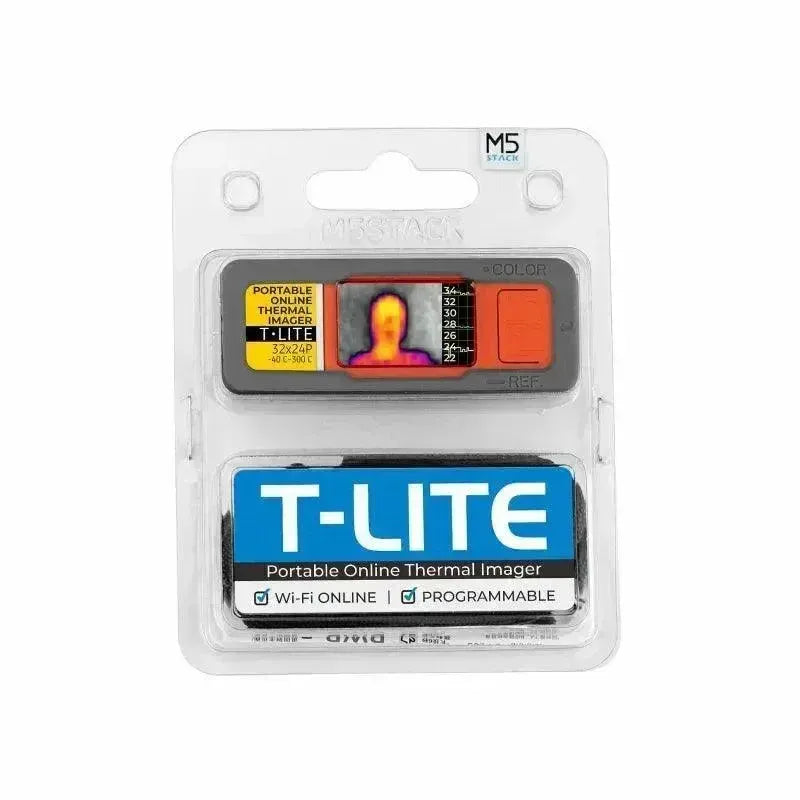

M5Stack M5Stick T-Lite Thermal Camera Dev Kit (MLX90640)
Introducing the M5Stack M5Stick T-Lite Thermal Camera, a compact and powerful infrared thermal imaging development kit. It's engineered for precise temperature detection and real-time monitoring, combining the M5StickC-PLUS microcontroller with the UNIT THERMAL module. This kit utilizes the advanced MLX90640-BAA infrared sensor, ensuring highly accurate thermal data capture.
Driven by the ESP32-PICO-D4 chip, the M5Stick T-Lite Thermal Camera features integrated Wi-Fi for seamless connectivity, a vibrant 135×240 resolution TFT display, and a rechargeable 160mAh battery. This combination creates a highly integrated and portable solution. The "T" in T-Lite signifies its robust temperature capabilities, while "Lite" emphasizes its compact and lightweight design, making it an ideal tool for engineers, developers, and makers alike.
With comprehensive support for online detection and real-time temperature visualization, users can configure high-temperature alerts and monitor thermal images from various locations via cloud platforms or local LAN. The device also facilitates remote access through the EZData API, allowing for effortless integration into IoT systems, industrial automation, and other engineering projects that demand remote temperature sensing.
Whether you're developing a smart temperature alert system or incorporating thermal vision into your product, the M5Stack M5Stick T-Lite Thermal Camera Dev Kit (MLX90640) offers a reliable and developer-friendly platform for advanced thermal image processing and cloud-based data analysis.
Core Functionality
- ESP32-PICO based with integrated Wi-Fi for versatile networking.
- Includes responsive buttons and a 1.14-inch LCD for user interaction and display.
- Powered by a built-in Lithium Polymer Battery for extended use.
- Features an integrated Passive Buzzer for audible alerts.
- Offers a wide Field of View: 110°×75° to capture broad thermal perspectives.
- Provides a broad Measurement Range: -40°C to 300°C for diverse applications.
What's in the Box
- 1 × T-Lite Camera Module.
- 1 × Hanging Wire for convenient carrying.
- 1 × Type-C USB Cable (20cm) for power and data transfer.
- 1 × User Manual for quick and easy setup.
Versatile Applications
- Advanced temperature anomaly detection and warning systems.
- Precise monitoring of circuit temperatures.
- High-accuracy non-contact temperature measurements.
- Effective intrusion and movement detection.
- Development of visual infrared thermometers.
Technical Specifications
| Resources | Parameters |
|---|---|
| MCU | ESP32-PICO, 240MHz dual core, 600 DMIPS, 520KB SRAM |
| Sensor | MLX90640 |
| Field of View | 110°×75° |
| Resolution | 32×24 |
| Flash Memory | 4MB Flash |
| Power Input | 5V @ 500mA |
| Port | TypeC |
| LCD screen | 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 |
| MIC | SPM1423 |
| Buzzer | Passive buzzer |
| PMU | AXP192 |
| Battery | 160 mAh @ 3.7V |
| Product Size | 69mm × 26.6mm × 6.35mm |
| Package Size | 110mm × 87mm × 25mm |
| Product Weight | 30.1g |
| Package Weight | 62.9g |
