M5Stack Midi Unit with DIN Connector (SAM2695)
📦 Location of the warehouse: US
If an item is currently unavailable, you can place a pre-order. We will ship it as soon as our stock is replenished.
Need it faster? Contact us via email or through our Live Chat Support, and we will arrange an expedited delivery for you.

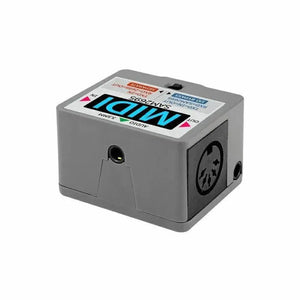

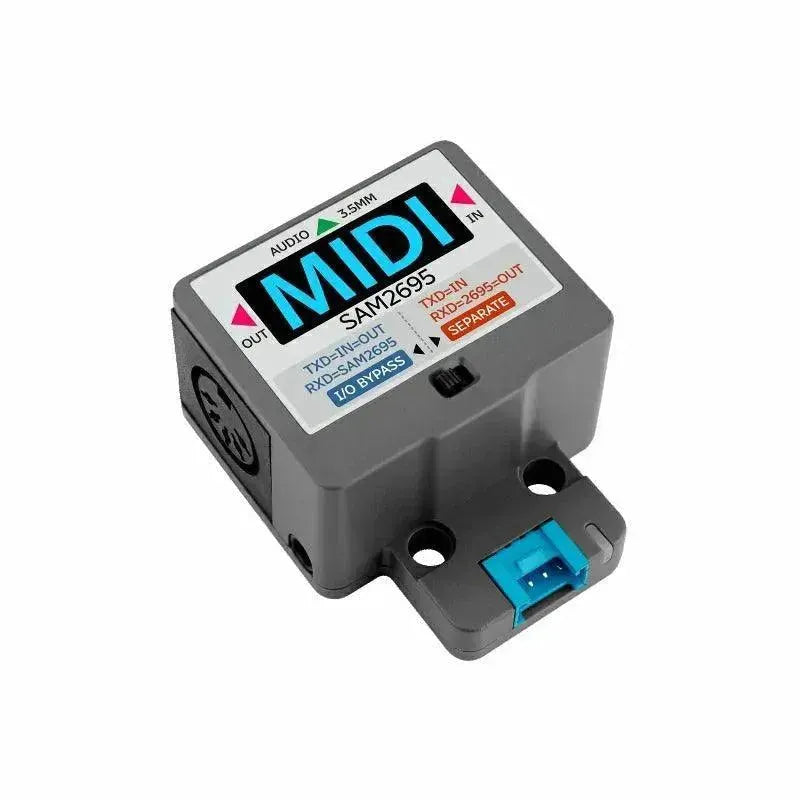

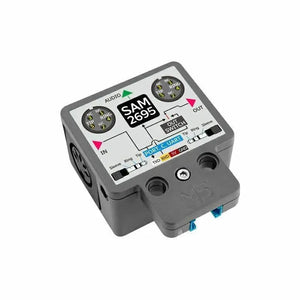

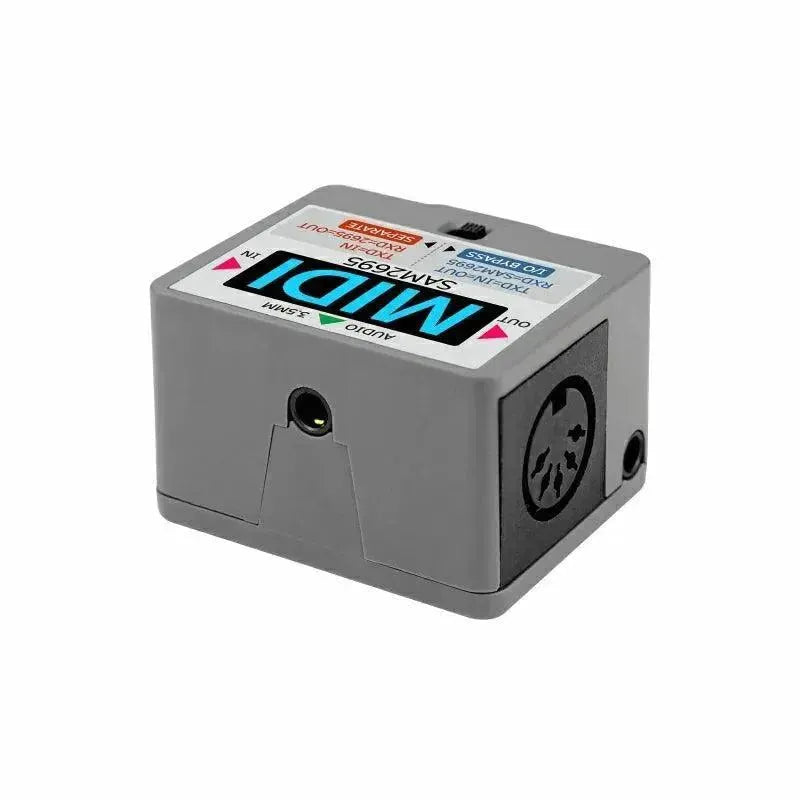

M5Stack Midi Unit with DIN Connector (SAM2695)
The MIDI Unit is an all-in-one solution for channel control, audio synthesis, and seamless MIDI interfacing. Tailored for real-time music performance, studio production, and interactive installations, this compact module brings together MIDI signal management, on-board sound generation, and adaptable connectivity, making it a valuable part of any MIDI-focused audio workflow.
Key Features of MIDI Unit
-
Integrated
SAM2695
Audio Synthesizer
Built around the powerful SAM2695 chip, this module handles direct MIDI-to-sound conversion, generating rich, expressive tones with no need for extra hardware devices. -
Full MIDI 1.0 Protocol and UART Support
The MIDI Unit ensures universal compatibility with all MIDI 1.0 devices, making communication with synthesizers, controllers, and other gear effortless and reliable. Easily connect to M5Stack or other systems using standard UART. -

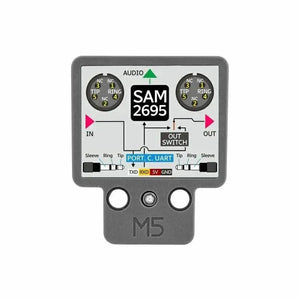

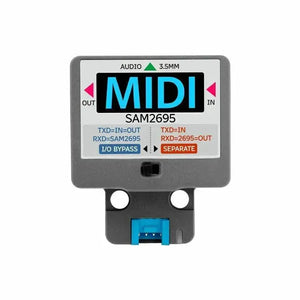

Dual Signal Routing Modes
Easily toggle between Bypass mode—direct left/right channel passthrough—and Separate mode, which allows each MIDI port to operate independently for complex signal flows. -

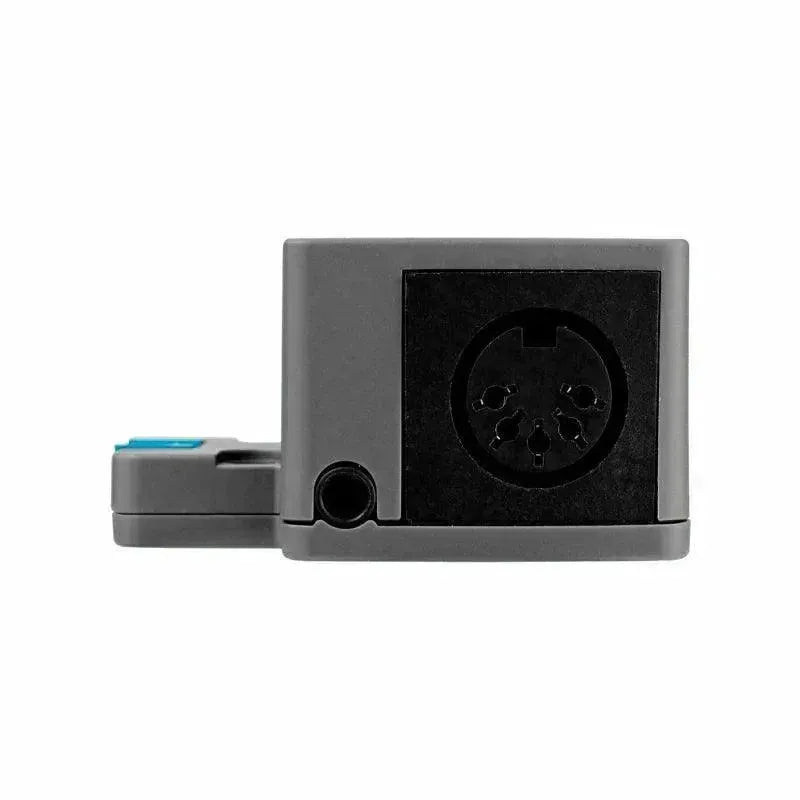

Versatile I/O Options

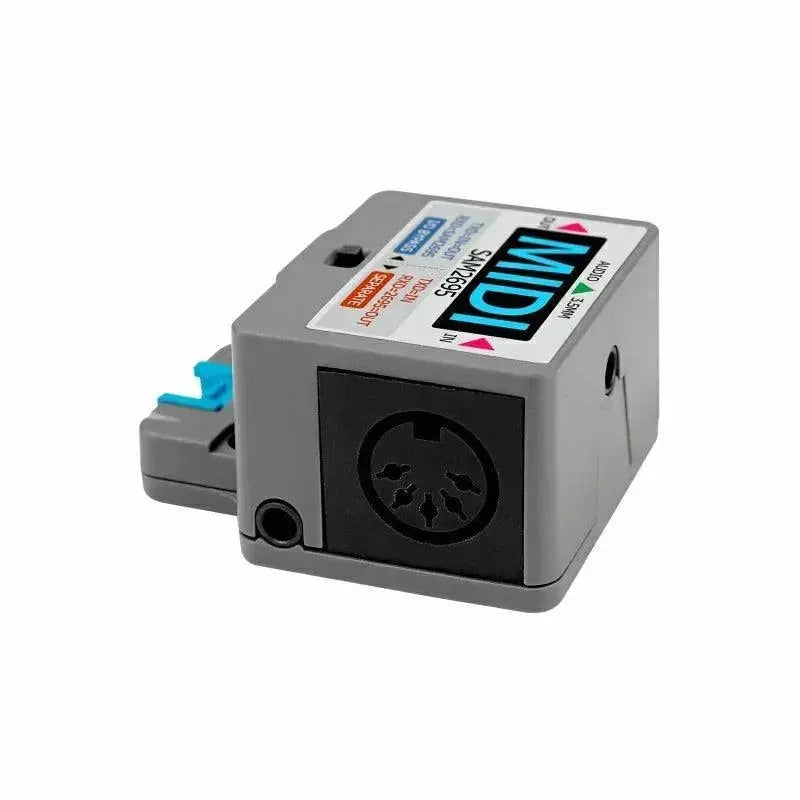

Both MIDI ports offer support for DIN 5-pin and 3.5mm TRS connections, guaranteeing broad compatibility with your instruments and DAWs. -

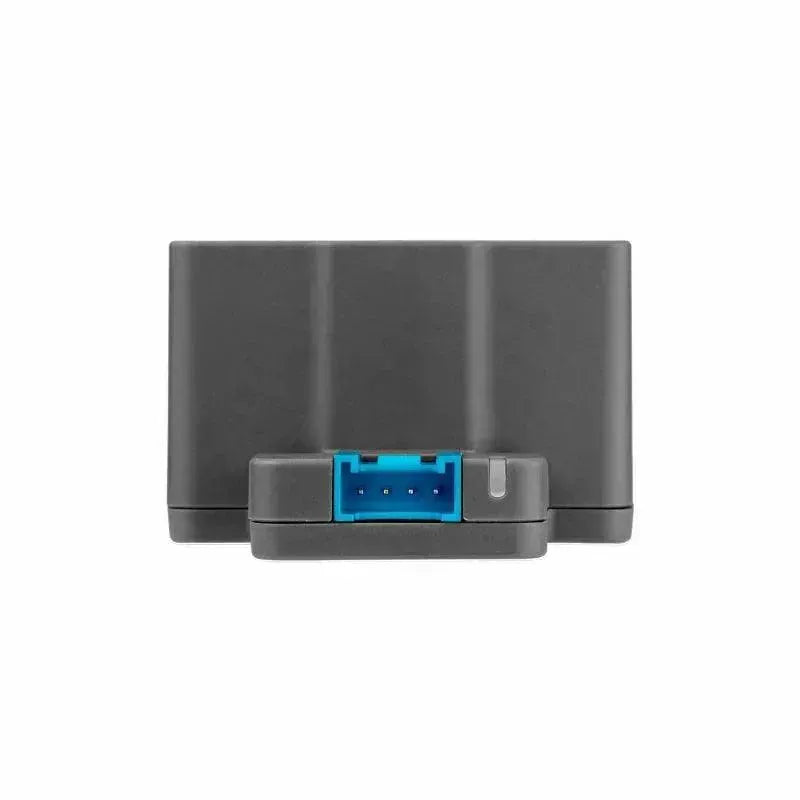

Grove Port for MIDI Monitoring and Output
The TXD (Grove) connects to the left MIDI port for monitoring or external control, while the RXD pin lets you trigger the built-in SAM2695 synth from an external controller or microcontroller host. -
Optocoupler Protection
Internal optocoupler isolation shields your workflow from interference and ensures signals stay clean and digitally accurate, even in complex setups. -

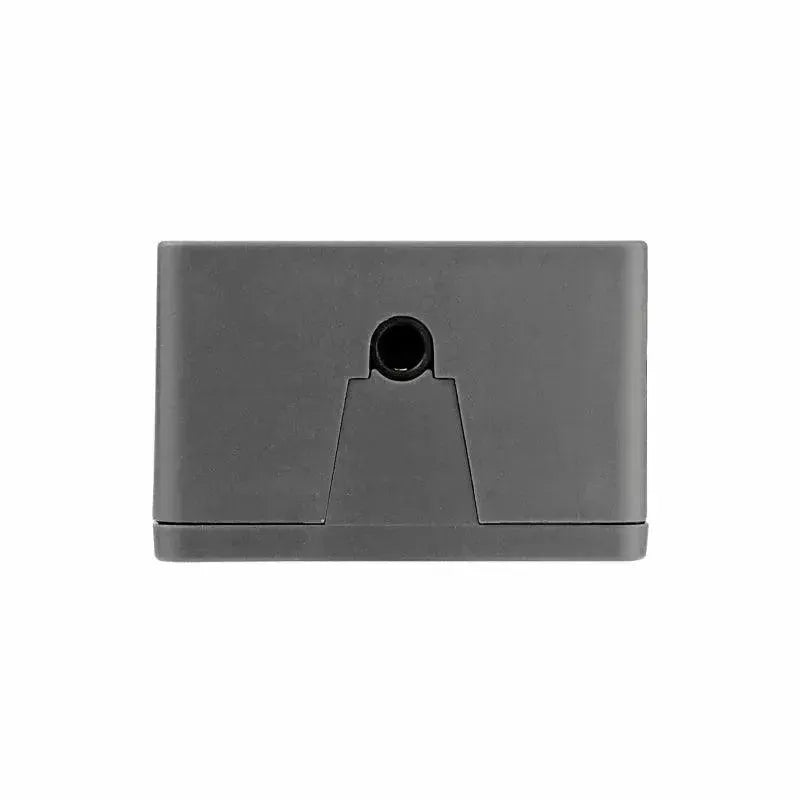

Direct 3.5mm Headphone Output
Instantly listen to your MIDI sequences through the 3.5mm audio output, with no other adapters needed for fast monitoring or stage output.
Includes
- 1x MIDI Unit
- 1x HY2.0-4P Grove cable (20cm)
Typical MIDI Unit Applications
- Music Creation – Seamless fit for MIDI gear, DAWs, and synth rigs—perfect for sound design or production.
- Stage Control – Ideal for performance automation, instrument switching, and complex live setups.
- Interactive Sound – Excellent for smart music installations, IoT sound systems, and creative audio projects.
Why MIDI Unit Stands Out
The MIDI Unit offers robust MIDI integration, flexible routing, and quality sound synthesis in a pocket-sized device. Whether you’re building elaborate stage rigs, composing in the studio, or designing digital installations, it empowers you to explore, control, and innovate without boundaries.
Specifications
| Specification | Parameter |
|---|---|
| MIDI Chip | SAM2695 |
| Communication Protocol | Standard MIDI 1.0 protocol |
| Communication Interface | UART (Baud rate: 31,520 bps) |
| Audio Output Interface | 3x3.5mm stereo headphone jack + 2xDIN 5-pin socket |
| Standby Current | DC5V@18.59mA |
| Operating Temperature | 0-40°C |
| Product Size | 48*40*25mm |
| Package Size | 136*92*26mm |
| Product Weight | 28.2g |
| Package Weight | 33.4g |
