M5Stack LoRa Module (915Mhz) v1.2
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
M5Stack LoRa Module (915Mhz) v1.2

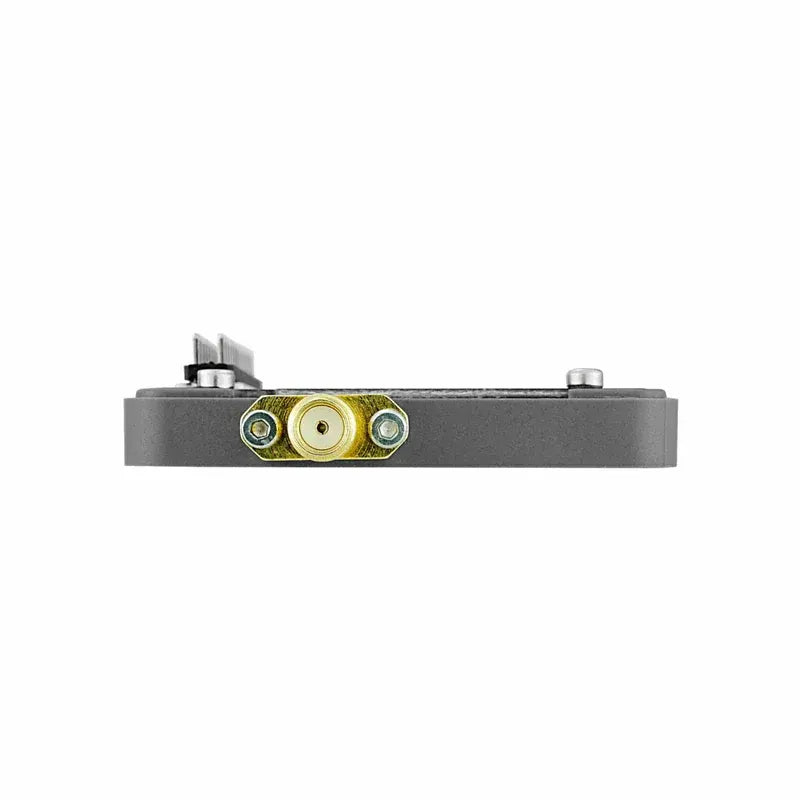

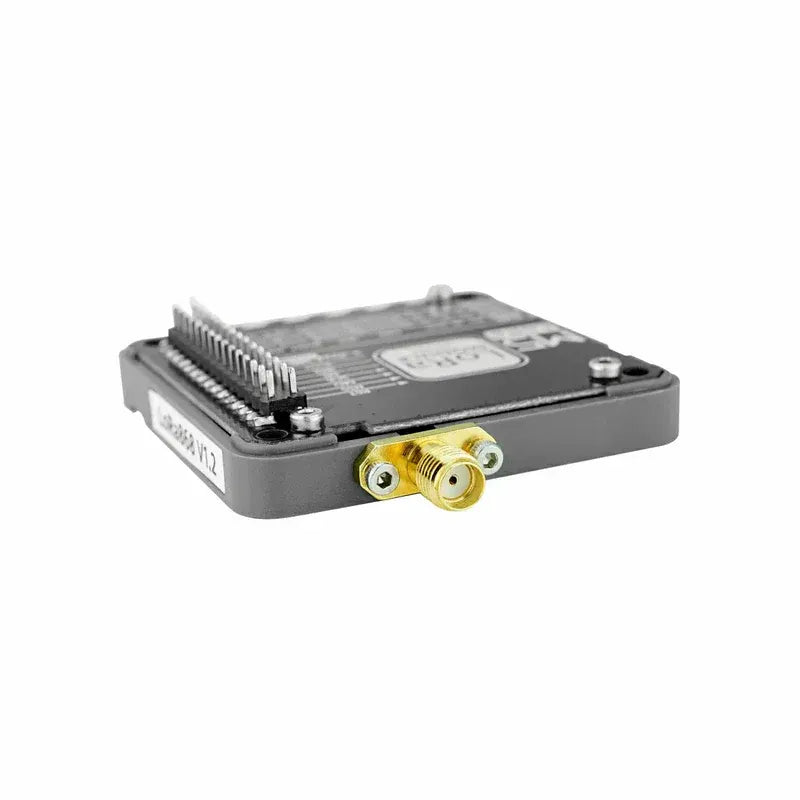

The M5Stack Module LoRa868 v1.1 is an advanced LoRa communication module designed for the M5Stack stackable series. Operating at 868MHz, this module integrates the powerful Ra-01H module, featuring the SX1276 chip. It provides exceptional flexibility with a built-in SMA antenna and two additional MCX antenna pad interfaces, allowing users to select the most suitable antenna for their specific application. A key feature is its integrated DIP switch, which enables dynamic switching of communication pins, facilitating the simultaneous use of multiple LoRa868 modules in a stacked configuration. This versatility makes it ideal for a wide range of applications, including remote monitoring, smart city infrastructure, home and industrial automation, and various Internet of Things (IoT) devices.
Key Features
- SPI Serial Communication for robust data transfer.
- Incorporates the reliable Ra-01H LoRa module.

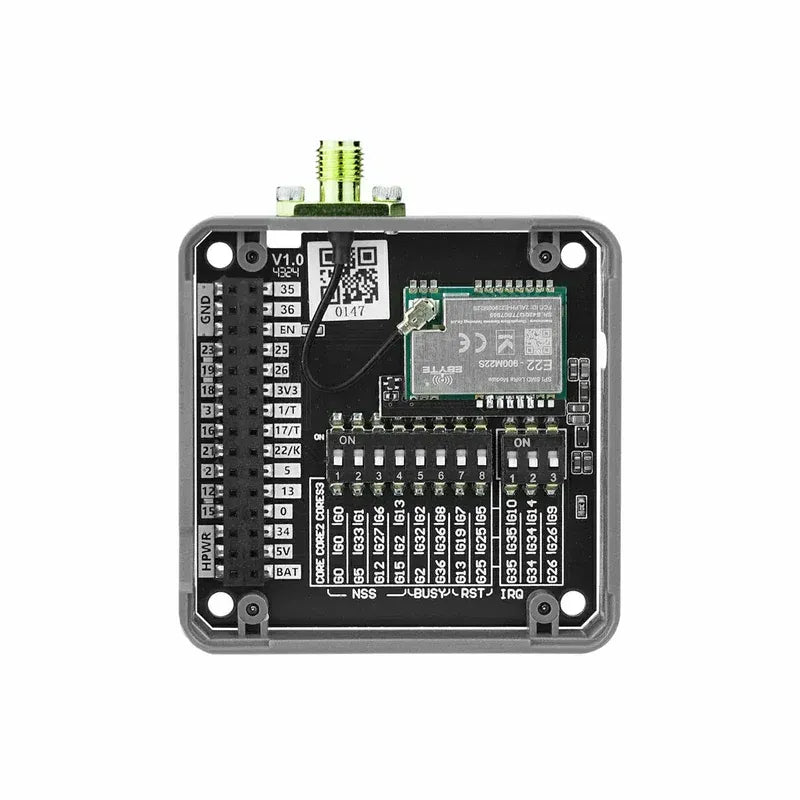

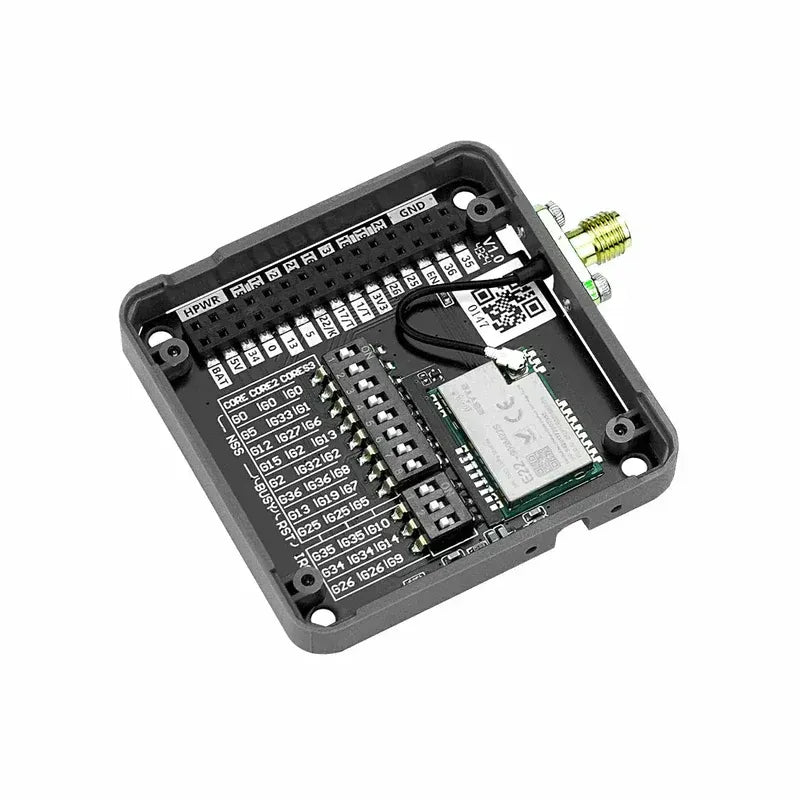

- DIP switch for flexible IO pin configuration.
- Supports multiple modules stacking for expanded capabilities.
- Wide operating frequency range: 803~930 MHz.
- Versatile modulation modes: FSK, GFSK, MSK, GMSK, LoRa™, and OOK.
- High receiver sensitivity, reaching as low as -140 dBm.
- Configurable bit rate up to 300Kbps.
- External antenna interface for optimized signal strength.
- Compatible with popular development platforms: Arduino, Micropython, and UIFlow (Blockly).
Applications
- Remote Data Monitoring
- Smart City Solutions
- Home and Industrial Automation Systems
- General Internet of Things (IoT) Devices
Technical Specifications
| Specification | Parameter |
|---|---|
| Frequency Range | 803~930MHz |
| Communication Interface | SPI |
| Programmable Bit Rate | Up to 300kbps |
| Antenna | Rubber antenna @2.5dBi |
| Standby Current | DC 5V/1.74mA |
| Operating Current | DC 5V/19.98mA |
| Operating Temperature | 0-40°C |
| Product Size | 54.0 x 54.0 x 13.1mm |
| Product Weight | 22.8g |
| Package Size | 95.0 x 66.0 x 26.0mm |
| Gross Weight | 41.9g |
What's Included
- 1 x M5Stack Module LoRa868 v1.1
- 1 x External SMA Antenna
Resources & Schematics
Module LoRa868 v1.1 Schematics PDF
