M5Stack Tab5 IoT Development Kit (ESP32-P4)

This product is currently out of stock and available for pre-order. The next batch will arrive in approximately 2–3 weeks.

M5Stack Tab5 is a versatile and portable smart IoT terminal ideal for development, featuring a dual-chip design and ample hardware capabilities. Its main processing unit is the RISC‑V–based ESP32‑P4 SoC, which comes with 16 MB of Flash memory and 32 MB of PSRAM. The device includes an ESP32‑C6‑MINI‑1U wireless module, supporting advanced Wi‑Fi 6. Its antenna system can seamlessly switch between a built-in 3D antenna and an external MMCX antenna port, effectively adapting to various deployment needs to ensure optimal data throughput and minimal latency.

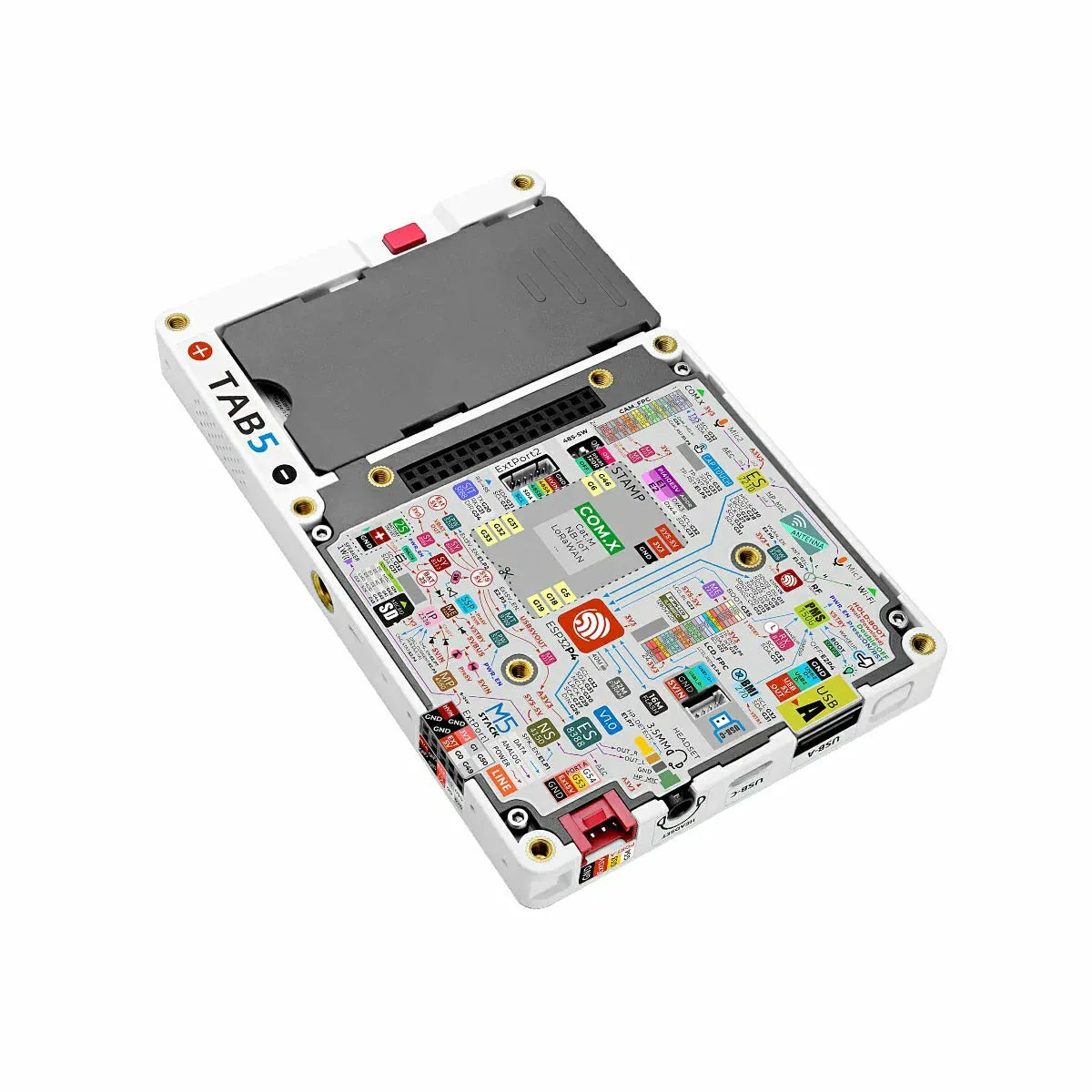

The M5Stack Tab5 IoT Development Kit (ESP32-P4) is equipped with a stunning 5″ 1280×720 IPS TFT display connected via a MIPI-DSI interface. It features the GT911 multi-point touch controller (I²C), delivering a smooth and responsive touch experience. The kit also includes an SC2356 2 MP camera (1600×1200) using a MIPI-CSI interface, ideal for high-definition video and image processing tasks, as well as edge AI applications such as face recognition and object tracking.

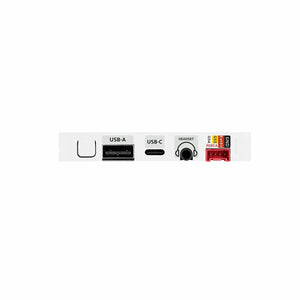

For connectivity, the Tab5 offers a USB-A (Host) port and a USB-C (USB 2.0 OTG) port, allowing users to attach standard peripherals like a mouse or keyboard. Its industrial applications can leverage the RS-485 communication interface (SIT3088) with selectable 120 Ω termination via a DIP switch. Users can expand functionality through Grove connectors, M5BUS, a GPIO_EXT header, and a Micro SD card slot. There are also reserved STAMP pads compatible with Cat.M, NB-IoT, and LoRaWAN modules. The product includes Reset and Boot buttons for easy resets and firmware downloads.

In audio and video, the Tab5 utilizes the ES8388 audio codec combined with an ES7210 AEC echo-cancellation front end. It features a dual-microphone array, a 3.5 mm headphone jack, and an integrated speaker for high-quality recording and playback, ensuring accurate voice recognition. The built-in BMI270 6-axis sensor (accelerometer + gyroscope) with interrupt wakeup enhances motion tracking and posture detection, allowing for better performance during low-power usage.

For managing time and power, the Tab5 integrates the RX8130CE real-time clock (supporting timed interrupt wakeup), a removable NP-F550 lithium battery, and includes power management with the MP4560 chip, as well as IP2326 for charge/discharge control and INA226 for real-time monitoring, ensuring reliable operation without external power.

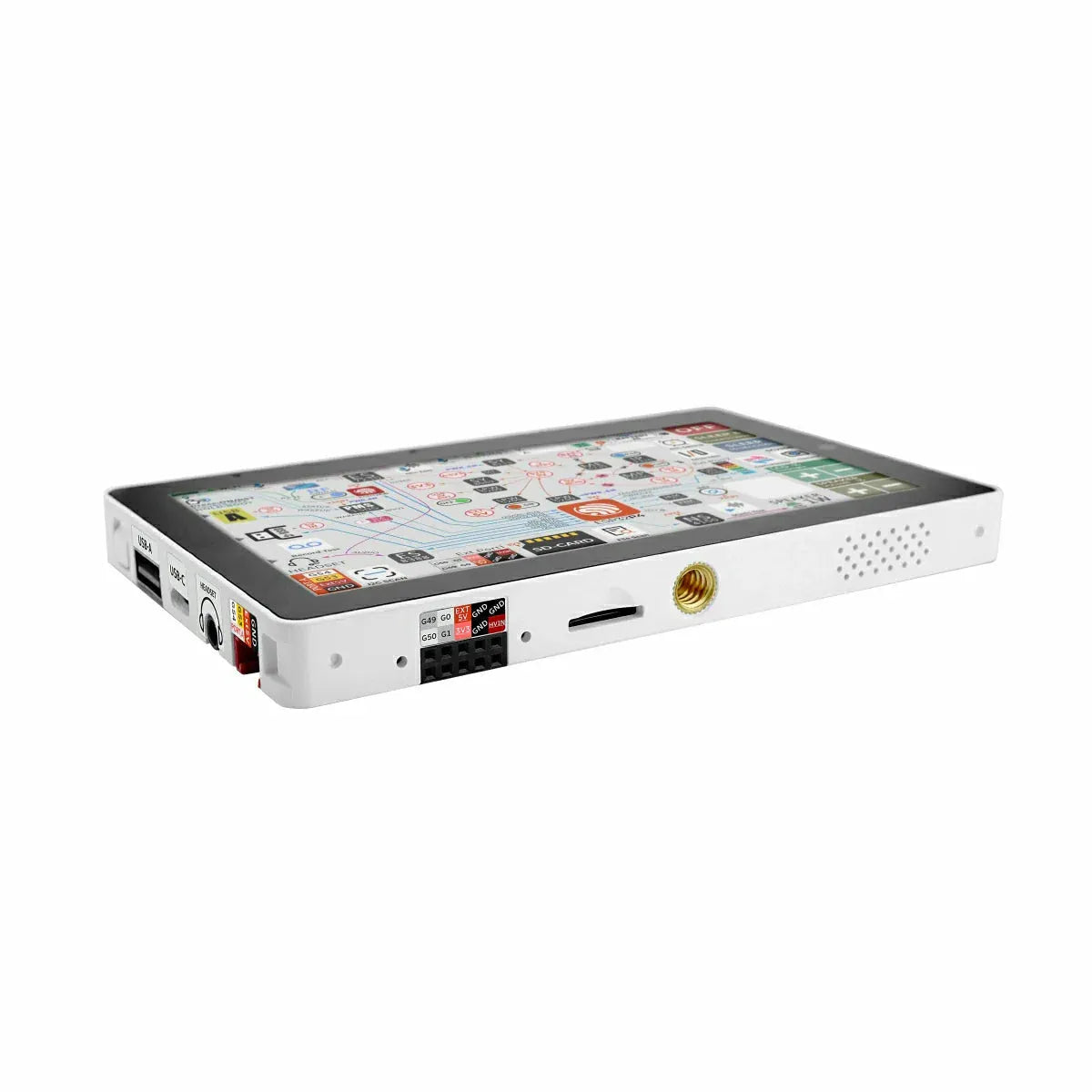

Structurally, the Tab5 features a standard 1/4″-20 tripod mount on its side, facilitating easy attachment to tripods or mounts for convenient shooting and deployment.

The Tab5 is well-suited for applications in smart home automation, remote monitoring, industrial processes, IoT prototyping, educational projects, and research. It offers developers and businesses a robust, extensible, and high-performance development platform.

For time and power management, Tab5 incorporates the RX8130CE real-time clock (with timed interrupt wakeup), supports a removable NP‑F550 lithium battery, and features MP4560 boost/buck management, IP2326 charge/discharge control, and INA226 real-time monitoring circuitry, ensuring stability without requiring external power.

Structurally, the Tab5 includes a standard 1/4″‑20 tripod mount on its side, allowing straightforward attachment to tripods or mounts for convenient shooting and deployment.

The Tab5 is perfect for applications in smart home control, remote monitoring, industrial automation, IoT prototyping, education, and research, providing developers and businesses with a comprehensive, extensible, high-performance development platform.

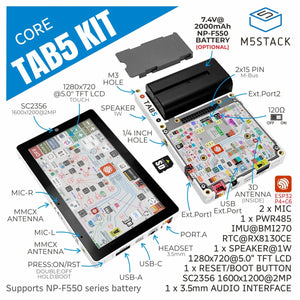

Features

ESP32‑P4 dual-core main controller
ESP32‑C6 wireless module
Wi‑Fi 6 capability
Built-in 3D antenna and MMCX external antenna port

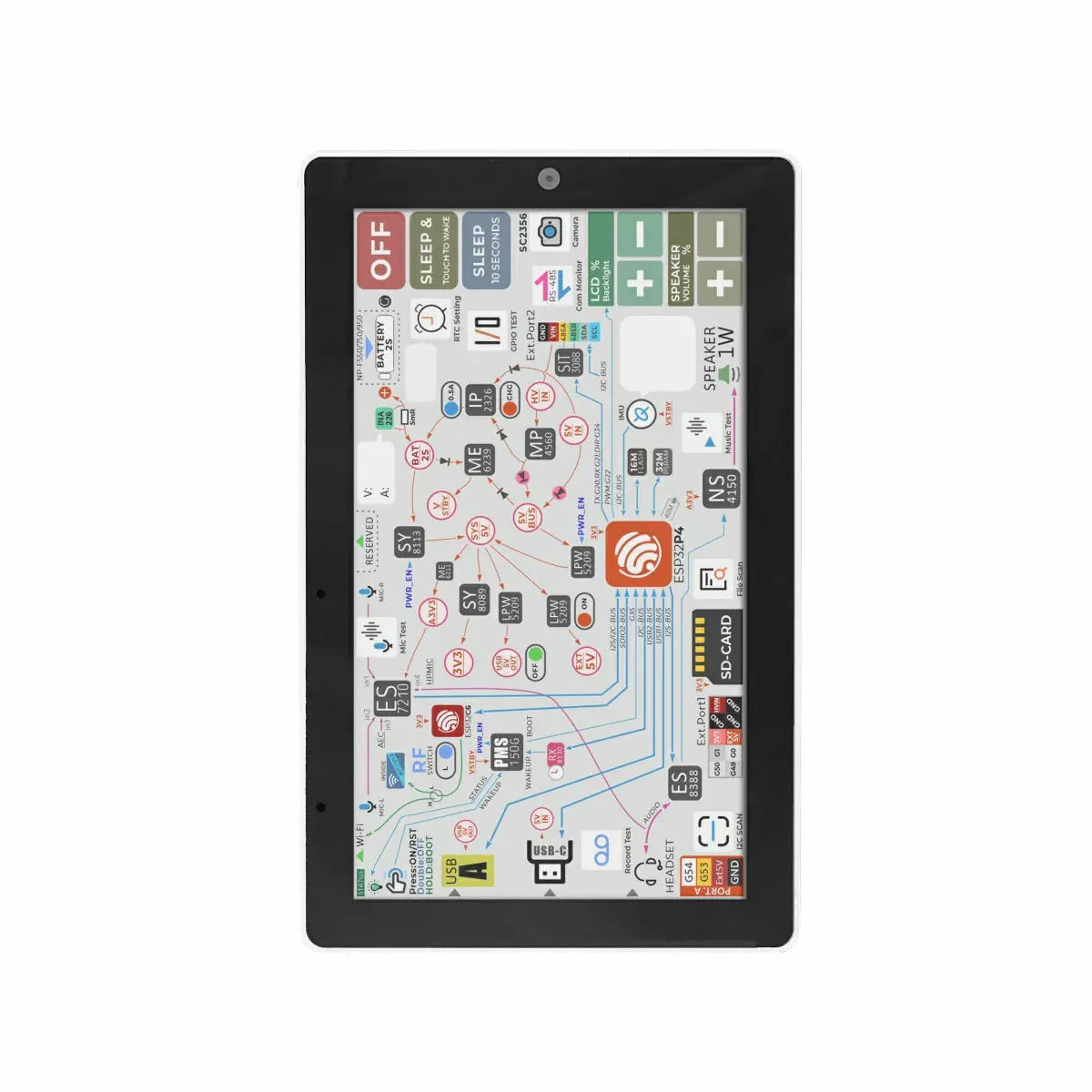

5″ 720P MIPI‑DSI display
GT911 multi-point touch technology
SC2356 2 MP camera
USB‑A Host and USB‑C OTG ports
RS‑485 industrial communication interface
Grove and M5BUS for expansion
Micro SD card slot for storage
STAMP expansion pads
ES8388 audio codec for enhanced sound
ES7210 AEC dual microphone for clearer audio
1 W speaker and a 3.5 mm headphone jack
BMI270 6-axis motion sensor
RX8130CE real-time clock for precise timekeeping
Reset and Boot buttons for easy access
NP‑F550 removable battery for portability
Standard 1/4″‑20 tripod mounting for camera use
Development platform:

ESP-IDF

Includes

Product Tip

Tab5 Kit is the complete kit with built-in removable NP‑F550 lithium battery, while the standard Tab5 ships without battery—you must supply external power or purchase a battery separately.

Tab5 Kit

1 × Tab5 Kit
1 × 1.25‑6P single‑end connector cable
1 × NP‑F550 2000 mAh removable battery

Applications

Smart home control systems
Remote monitoring applications
Development of IoT devices
Industrial automation projects

Specifications

Specification	Parameters
Main Controller SoC	ESP32‑P4NRW32 (RISC‑V 32‑bit, dual‑core/single‑core switchable, up to 400 MHz)
Wireless Module SoC	ESP32‑C6‑MINI‑1U (supports Wi‑Fi 6 @ 2.4 GHz / Thread / ZigBee)
Antenna	Built‑in 3D antenna and 2 x MMCX external antenna port
Flash	16 MB
PSRAM	32 MB
Display	5 Inch IPS TFT (1280×720)
Touch	GT911 multi-point touch controller (I²C)
Camera	SC2356 @ 2 MP (1600×1200), via MIPI‑CSI
Audio Chip	ES8388 codec; ES7210 AEC front end
Microphone	Dual-microphone system (AEC echo cancellation)
Speaker	1 W@8 Ω NS4150B
Headphone Jack	3.5 mm
USB Ports	USB‑A (Host), USB‑C (USB 2.0 OTG)
RS485 Port	SIT3088 (120 Ω selectable termination) Supply: 6 ~ 24 V
Expansion Interfaces	1 × Grove, 1 × M5BUS, GPIO_EXT header
Storage Expansion	Micro SD card slot
Stamp Expansion Pads	Supports Stamp Cat.M / NB‑IoT / LoRaWAN modules
Motion Sensor	BMI270 6-axis (accelerometer + gyroscope, interrupt wakeup support)
RTC	RX8130CE real-time clock (timed interrupt wakeup support)
Reset/Boot Buttons	1× button for power on/off and download mode entry
Charge Management	IP2326 charge management chip
Power Monitoring	INA226 (bus current/voltage monitoring)
Battery	NP‑F550 removable lithium battery, 7.4 V @ 2000 mAh (14.8 Wh)
Operating Temperature	0 ~ 40 °C
Product Size	Tab5: 128.0 × 80.0 × 12.0 mm Tab5 Kit: 128.0 × 80.0 × 26.7 mm
Product Weight	Tab5: 124.5 g Tab5 Kit: 277.4 g Battery: 97.9 g
Package Size	Tab5: 148.0 × 103.0 × 21 mm Tab5 Kit: 191.0 × 103.0 × 25.0 mm
Gross Weight	Tab5: 162.5 g Tab5 Kit: 277.4 g

Installing Battery

Pin Map

PI4IOE5V6408

ESP32-P4	G32	G31	CHIP_PU
PI4IOE5V6408	SCL	SDA	RST

CAM

ESP32‑P4	CAM
G32	CAM_SCL
G31	CAM_SDA
G36	CAM_MCLK
CSI_DATAP1 (dedicated)	CAM_D1P
CSI_DATAN1 (dedicated)	CAM_D1N
CSI_CLKP (dedicated)	CAM_CSI_CKP
CSI_CLKN (dedicated)	CAM_CSI_CKN
CSI_DATAP0 (dedicated)	CSI_DOP
CSI_DATAN0 (dedicated)	CSI_DON

PI4IOE5V6408	P6
CAM	CAM_RST

NS4150B

PI4IOE5V6408	P1
NS4150B	SPK_EN

ES8388

ESP32-P4	G30	G27	G26	G29	G32	G31
ES8388	MCLK	SCLK	DSDIN	LRCK	CCLK	CDATA

ES7210

ESP32-P4	G30	G27	G28	G29	G32	G31
ES7210	MCLK	SCLK	ASDOUT	LRCK	CCLK	CDATA

LCD

ESP32‑P4	ILI9881C
G22	LEDA
G23	TP_INT
G31	SDA
G32	SCL
DSI_CLKN (dedicated)	DSI_CK_N
DSI_CLKP (dedicated)	DSI_CK_P
DSI_DATAN1 (dedicated)	DSI_D1_N
DSI_DATAP1 (dedicated)	DSI_D1_P
DSI_DATAN0 (dedicated)	DSI_D0_N
DSI_DATAP0 (dedicated)	DSI_D0_P

PI4IOE5V6408	P5	P4
ILI9881C	TP_RST	LCD_RST

BMI270 & RTC (RX8130CE) & INA226

ESP32-P4	G32	G31
BMI270	SCL	SDA
RX8130CE	SCL	SDA
INA226	SCL	SDA

Interrupt Wakeup (PMS150G-U06 power management)

PMS150G-U06	PA6/CIN‑
BMI270	INT(E_TRG)
RX8130CE	INT(E_TRG)

ESP32-C6

ESP32-P4	G11	G10	G9	G8	G13	G12
ESP32-C6	SDIO2_D0	SDIO2_D1	SDIO2_D2	SDIO2_D3	SDIO2_CMD	SDIO2_CK

MicroSD

ESP32-P4	G39	G40	G41	G42	G43	G44
MicroSD SPI Mode	MISO			CS	SCK	MOSI
MicroSD SDIO Mode	DAT0	DAT1	DAT2	DAT3	CLK	CMD

RS485

ESP32-P4	G21	G20	G34
SIT3088	RX	TX	DIR

IP2326

PI4IOE5V6408	P7	P6
IP2326	CHG_EN	CHG_STAT
