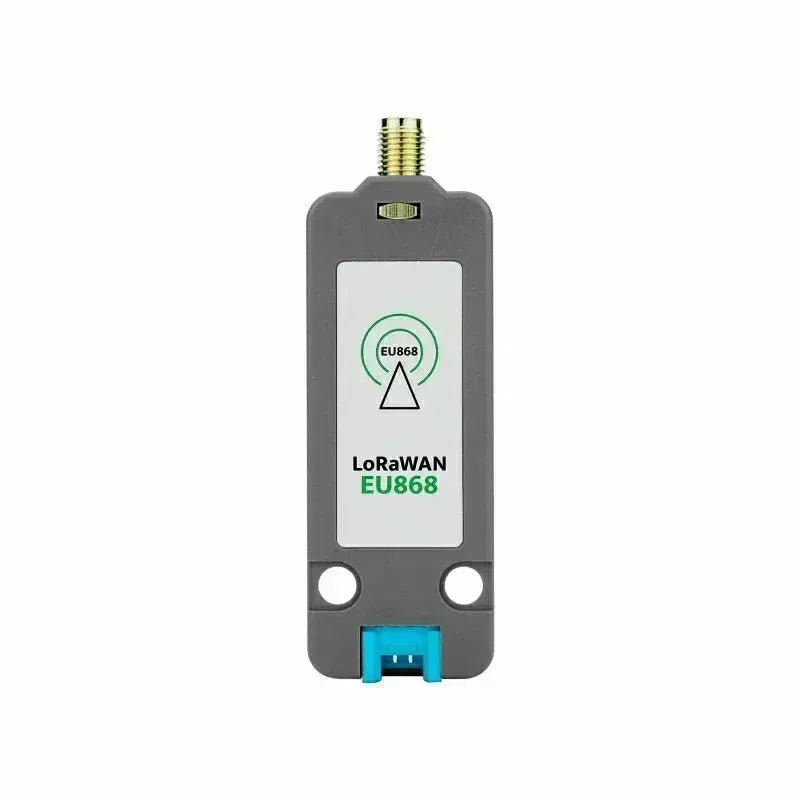

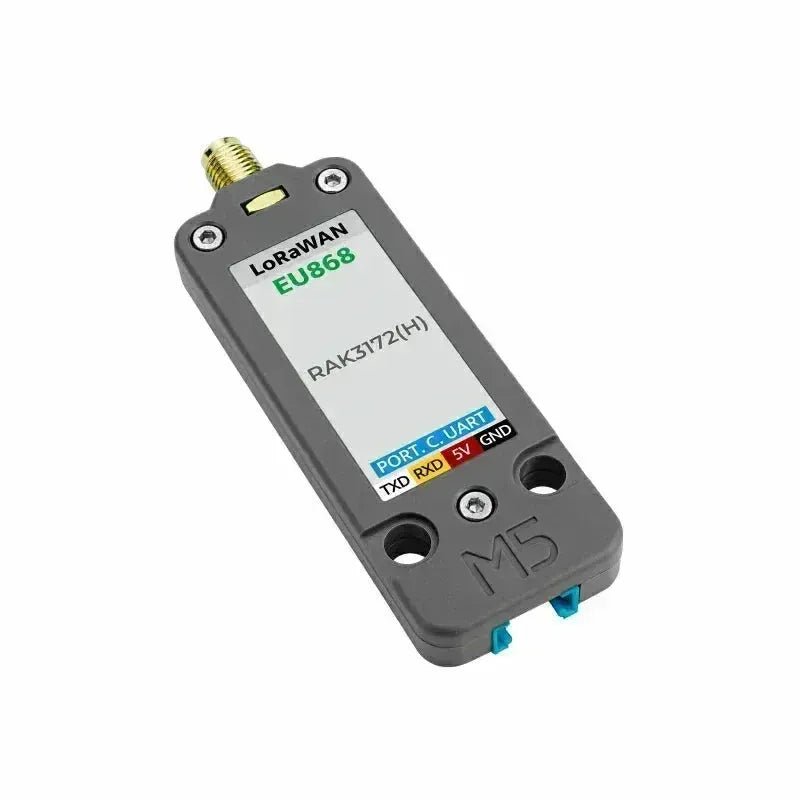

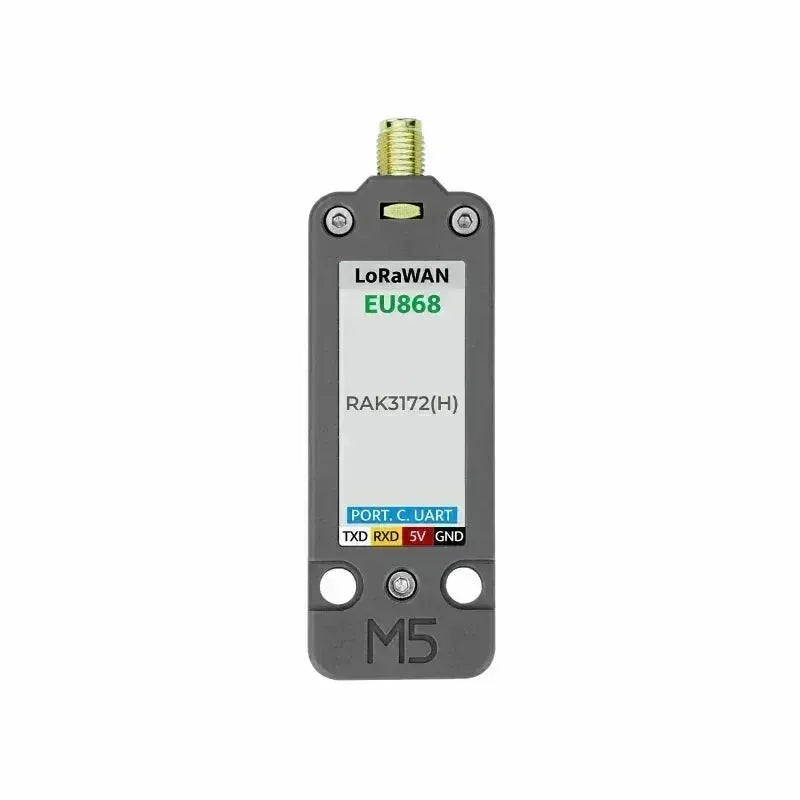

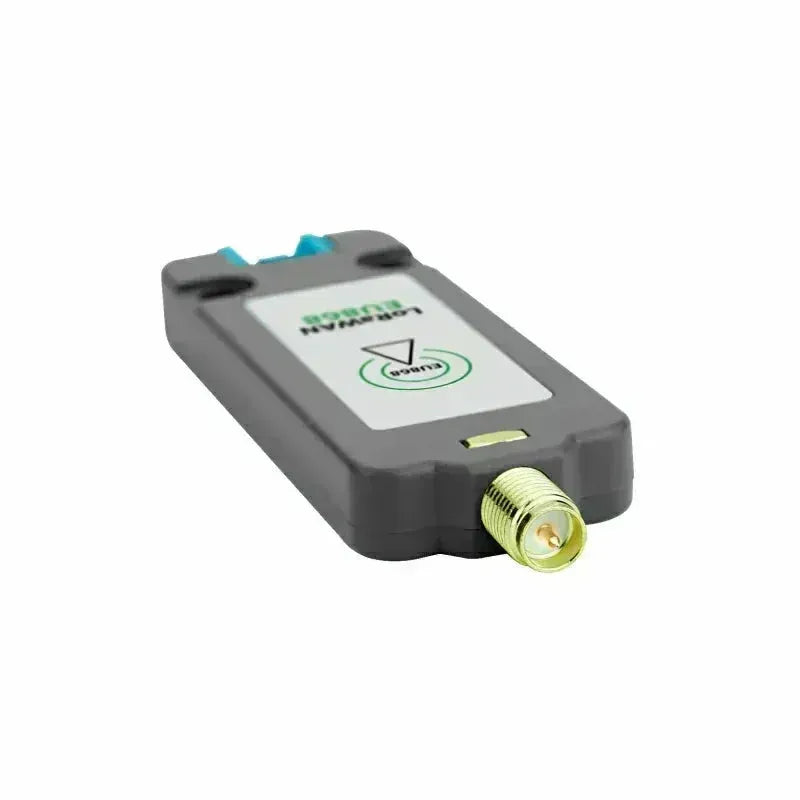

M5Stack LoRaWAN Unit EU868 (STM32WLE5) with Antenna
The Unit LoRaWAN-EU868 is a highly advanced communication module engineered for the EU868 frequency band, serving regions across Europe and beyond. This unit utilizes the powerful STM32WLE5 solution, ensuring robust, long-range communication capabilities coupled with exceptional low-power consumption and high sensitivity. It's a prime choice for developers seeking reliable wireless connectivity in their IoT projects.
Integrating a complete LoRaWAN protocol stack, this module supports all three critical operating modes: Class A, Class B, and Class C. It also offers flexible point-to-point (P2P) communication, allowing for direct device interaction. Configuration is streamlined via a UART interface using a simple AT command set. For enhanced signal integrity and extended range, the Unit LoRaWAN-EU868 includes a high-performance rubber antenna, meticulously optimized for stable signal coverage even in complex environmental conditions. This versatile module can serve as a data collection node, seamlessly connecting to gateways for data management, or facilitate direct device-to-device communication in gateway-free setups. It's perfectly suited for long-range, low-power IoT applications such as smart agriculture, industrial monitoring, and environmental sensing.
Key Features
-
Adheres to LoRaWAN® 1.0.3 protocol standards.
-
Optimized for the EU868 frequency band.
-
Supports LoRa® P2P (point-to-point) communication for direct device interaction.
-
Flexible LoRaWAN activation modes: OTAA and ABP.
-
Convenient serial communication via AT commands.
-
Equipped with a high-sensitivity stub antenna for enhanced signal performance.
-
Designed for ultra-low power consumption, extending device battery life.
-
Features LEGO-compatible holes for easy integration into modular projects.
-
Supports multiple development platforms:

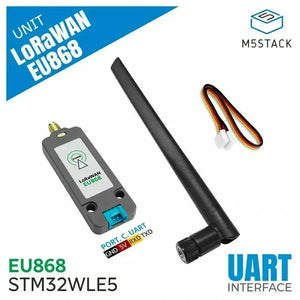

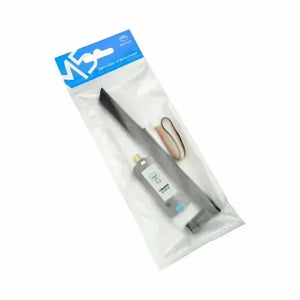

Included Components
-
1x Unit LoRaWAN-EU868 Module
-
1x HY2.0-4P Cable (20cm)
-
1x Stub Antenna (@2.8dBi, total length 195mm, SMA inner pin)
Typical Applications
-
Precision agriculture monitoring systems.
-
Industrial sensor and control networks.
-
Environmental data collection and monitoring.
Technical Specifications
| Specification | Parameter |
|---|---|
| LoRa Solution | STM32WLE5 @256 KB flash, 64 KB RAM |
| Supported Frequency | EU868 (868-870 MHz) |
| Protocol Support | LoRaWAN® 1.0.3 (Class A, Class B, Class C) |
| Reception Sensitivity | -137 dBm |
| LoRaWAN Activation | OTAA, ABP |
| Communication Mode | LoRaWAN and point-to-point (P2P) |
| Communication Distance (P2P) | 2300m (125Kbps), 1300m (500Kbps) |
| Interface Type | UART serial, supports AT commands |
| Antenna Type | High-performance stub antenna, 50 ohm impedance @2.8dBi, total length 195mm SMA inner pin |
| Standby Power | Idle state: DC5V/7.23mA Sleep state: DC5V/28.61uA |
| Operating Current | (500Kbps) Data reception: DC5V/9.20mA Data transmission: DC5V/11.36mA (125Kbps) Data reception: DC5V/8.43mA Data transmission: DC5V/117.16mA |
| Operating Temperature | 0-40°C |
| Product Size | 71.4 * 24 * 8(mm) |
| Product Weight | 31.9(g) |
| Package Size | 240 * 92 * 10(mm) |
| Package Weight | 33.4(g) |
