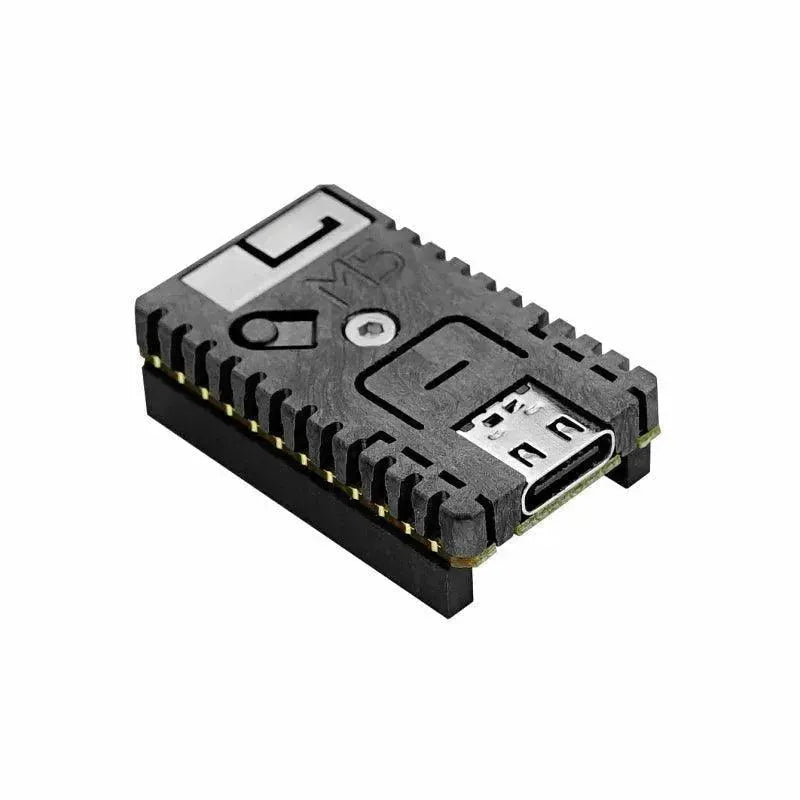

M5Stamp C3 Mate with Pin Headers
M5Stack has introduced the M5Stamp C3 Mate with Pin Headers, a powerful addition to its series of modules. This device features the ESPRESSIF ESP32-C3 RISC-V MCU, offering integrated Wi-Fi connectivity suited for IoT edge applications, such as home automation and industrial control systems. It benefits from RSA-3072 secure boot and AES-128-XTS flash encryption, making it ideal for securely gathering sensor data in industrial and building environments.
Powered by a 32-bit RISC-V microcontroller, the Stamp-C3 operates at a maximum frequency of 160 MHz, with 400 KB of RAM and 4 MB of Flash memory, supporting various connected device applications. The robust heat-resistant plastic casing allows for operation at higher temperatures.
Key Features

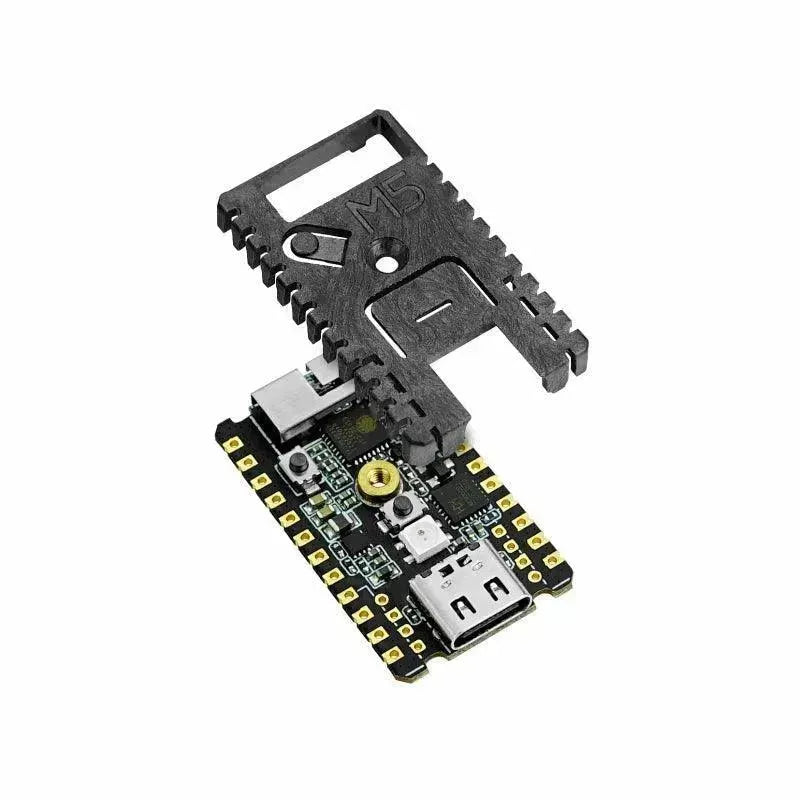

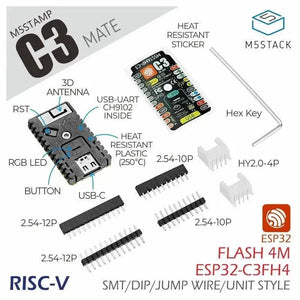

- Versatile Soldering Options: Available in SMT, DIP, and fly wire styles, with a heat-resistant plastic housing capable of withstanding peak temperatures up to 230°C.

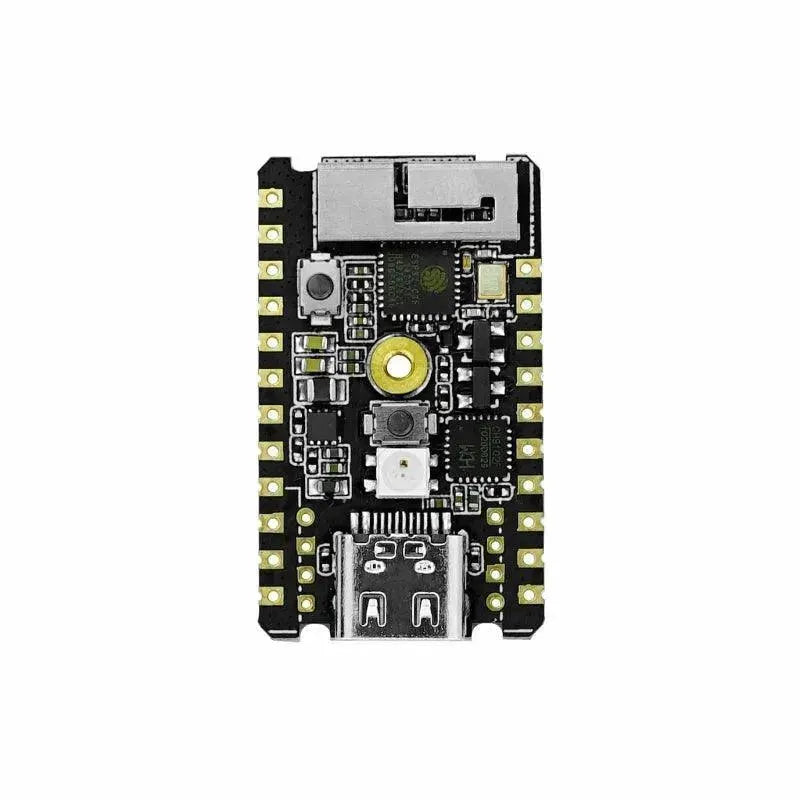

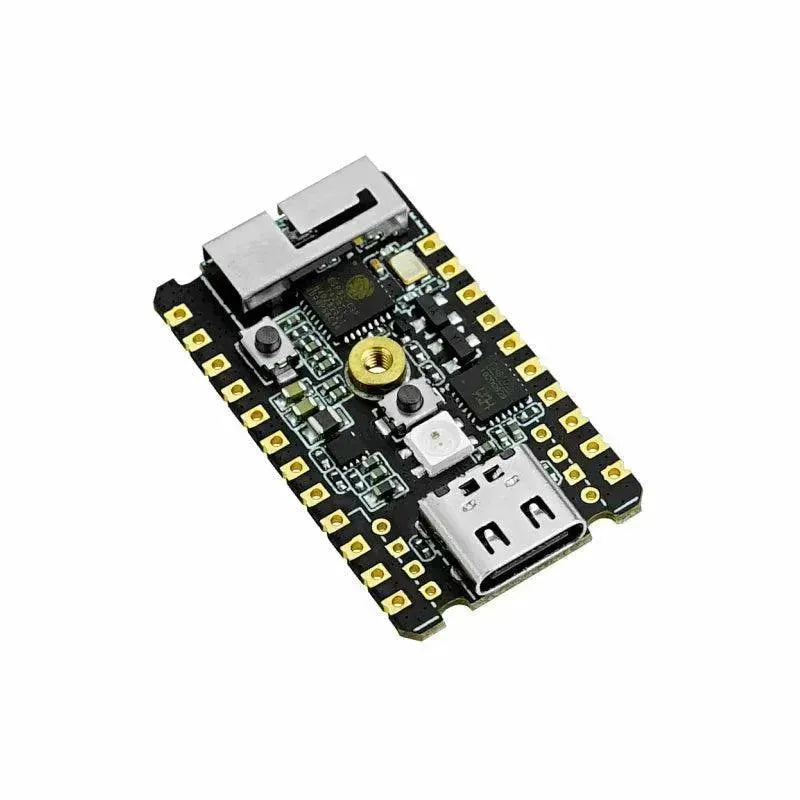

- High Integration: Includes a 5V to 3.3V DC/DC converter, 13 GPIO pins, 1 programmable RGB LED, and buttons for reset and user input, ensuring stable wireless communication.
- Low-Code Development: Fully compatible with Arduino, ESP32-IDF, and additional popular development platforms, enabling rapid application development (UIFlow support coming soon).
Applications
- DIY prototyping
- Smart home devices
- Industrial automation systems
Specifications
| Specifications | Parameters |
|---|---|
| ESP32-C3 | 32bit RISC-V single-core processor, clocked at 160 MHz |
| Storage | 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH |
| Wi-Fi | 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps |
| Input voltage | 5V @ 500mA |
| HMI | Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1 |
| USB interface | TypeC x1 |
| Antenna Type | 2.4G 3D Antenna |
| Module peripheral interface resources | ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI |

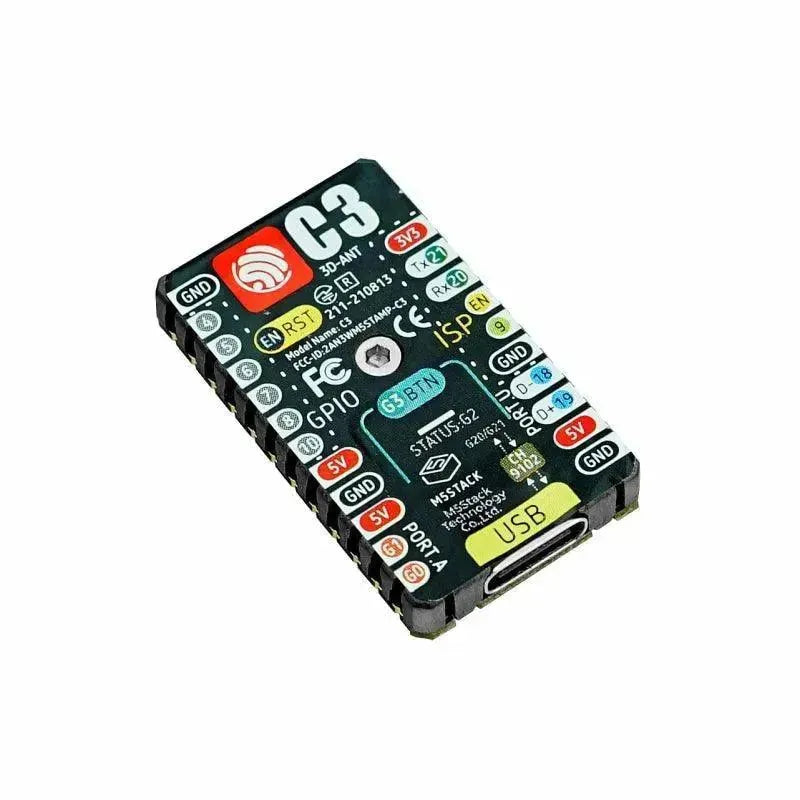

| IO interface x13 | G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4 |
| IO interface spacing | 2.54mm |
| Fixing screw specifications | M2*4 countersunk head hexagon socket mechanical teeth |
| Net weight | 3.8g |

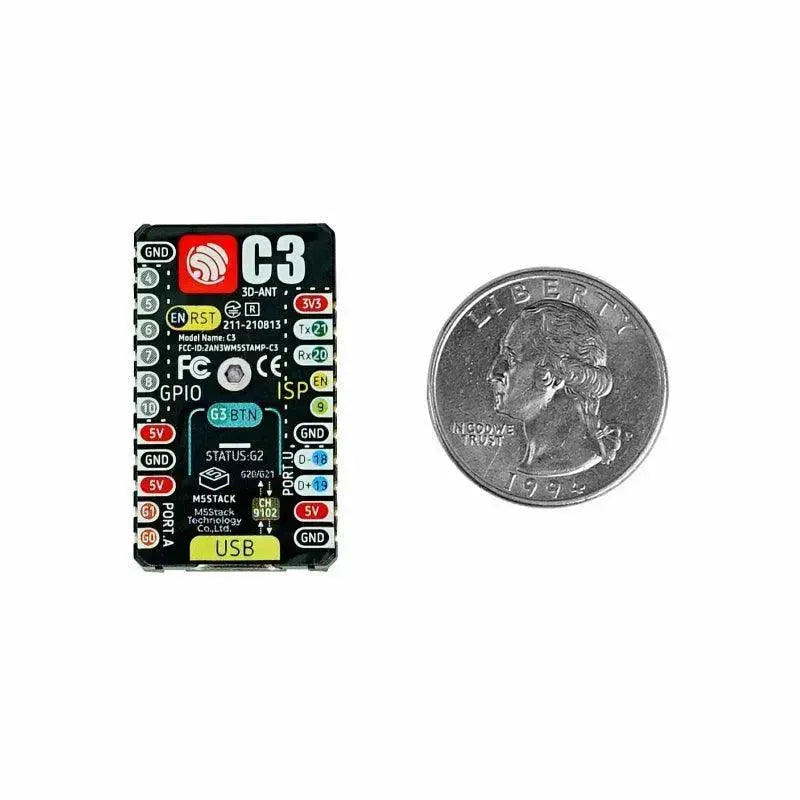

| Product size | 34 * 20 * 4.6mm |
| Packing size | 85*55mm sealing bag (translucent) |
