M5StickS3 ESP32S3 Mini IoT Dev Kit (Pre-sale back in 10 days)
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
M5StickS3 ESP32S3 Mini IoT Dev Kit (Pre-sale back in 10 days)

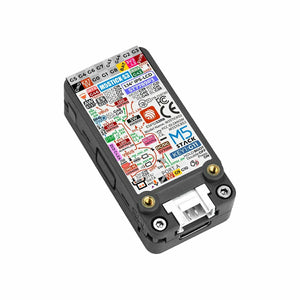

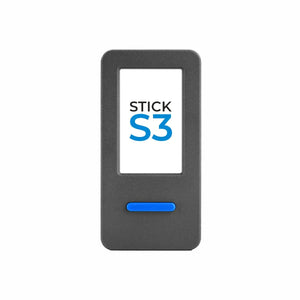

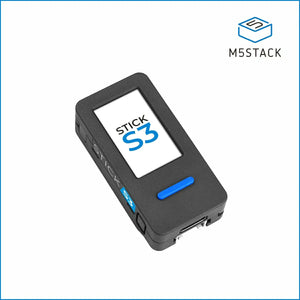

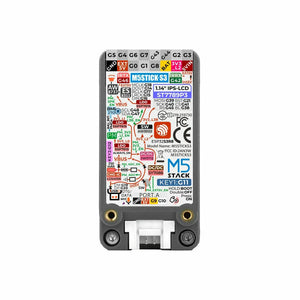

StickS3 is a miniature, high‑performance programmable controller built for remote operation and IoT development. At its core is the ESP32‑S3‑PICO‑1‑N8R8, delivering 2.4 GHz Wi‑Fi connectivity plus 8MB Flash and 8MB PSRAM for demanding applications—offering robust speed and room to scale.
For HMI tasks, it includes a 1.14" LCD, a 6‑axis IMU, and programmable buttons. Audio is powered by the ES8311 mono codec with a high‑sensitivity MEMS mic and AW8737 amplifier, enabling clean voice capture and rich playback—ideal for voice control and interactive UX.
It also integrates an IR transmitter/receiver and a 250mAh Li‑ion battery, making it a great fit for smart home control, AI voice assistants, and portable IoT prototypes.
Input Power Supply Notice
IR Reception Notice
Speaker Volume Notice

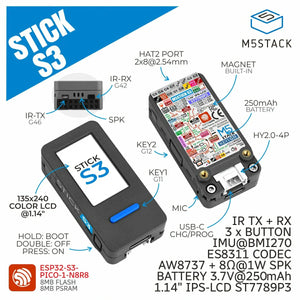

Features
- Integrated ESP32-S3-PICO-1-N8R8 main controller
- 8MB Flash and 8MB PSRAM
- ES8311 mono audio codec chip
- MEMS microphone + speaker
- Integrated IR transmitter + IR receiver
- Magnetic back design
- Expansion interfaces:

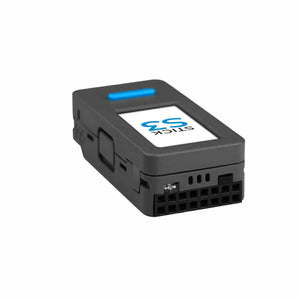

- Expandable Hat2 bus (2.54-16P)

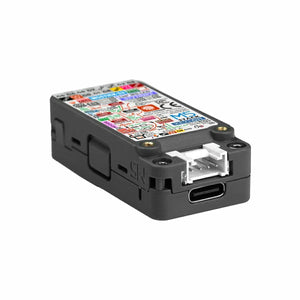

- HY2.0-4P interface
- Development Platform
- Arduino
- UiFlow2
- ESP-IDF
- PlatformIO
Includes

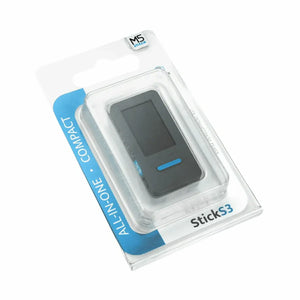

- 1 x StickS3
Applications
- Smart home control
- AI voice assistant
- IoT project development
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz |
| Flash | 8MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Display | Model: ST7789P3 Resolution: 135x240 |
| Input Power | USB Type-C DC 5V |
| Audio Codec | ES8311: 24-bit resolution, I2S protocol |
| Microphone | MEMS microphone, Signal-to-Noise Ratio (SNR): 65 dB |
| Speaker | AW8737 power amplifier + 8Ω@1W 2011 cavity speaker |
| Operating Temperature | 0 ~ 40°C |
| Battery Capacity | 250mAh |
| Grove Load Capacity | No load: 5V Max: 4.88V@0.38A |
| Power Consumption | Power off: 4.2V@14.02uA L1 state: 4.2V@52.47uA L2 state: 4.2V@102.40uA L3A state: 4.2V@36.69mA Full load: 4.2V@519.02mA |
| Product Size | 48.0 x 24.0 x 15.0mm |
| Product Weight | 20.0g |
| Package Size | 110.0 x 65.0 x 15.0mm |
| Gross Weight | 29.3g |
Compatibility Notes
