Waveshare ESP32-C6 Microcontroller WiFi 6 Dev Board

Waveshare ESP32-C6 Microcontroller WiFi 6 Dev Board

$10.19

High-performance RISC-V microcontroller development board with 160MHz single-core processor and ESP32-C6-MINI-1 module

Product Overview

The ESP32-C6-Pico is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compatible in size and interface with most of the Raspberry Pi Pico HATs. Easy to expand, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.

Adopts ESP32-C6-MINI-1 as the main chip, which is equipped with a RISC-V 32-bit single-core processor with 160MHz running frequency, built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.

You can choose ESP-IDF, Arduino or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key Features

  • Adopts ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz
  • Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Type-C connector, easier to use
  • Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
  • 20 multi-function GPIO pins and 7 expanded IO pins
  • Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly
  • Castellated module allows soldering directly to carrier boards
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
  • Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development

Pinheader Options


Development Environment Support

Comprehensive SDK, dev resources, tutorials to help you easily get started


ESP32-C6 Suitable for AIoT Applications

Powered by RISC-V 32-bit single-core processor with frequency up to 160 MHz
Powerful AI Computing Capability and Reliable security features


WiFi 6 and BLE 5 Support

Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

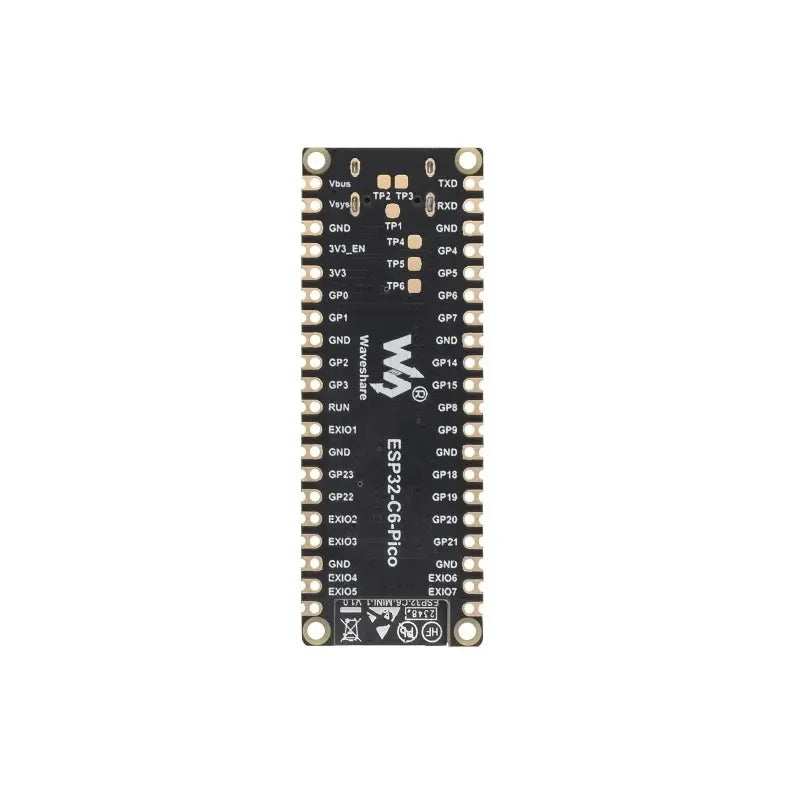

GPIO Pin Configuration

27 multi-function GPIO pins and 7 expanded IO pins
Configurable pin function, allows flexible development and integration


Note: SPI, I2C and other interfaces can be mapped to most GPIOs (not EXIO) through the GPIO Matrix and IO MUX, see the ESP32-C6 datasheet for details.

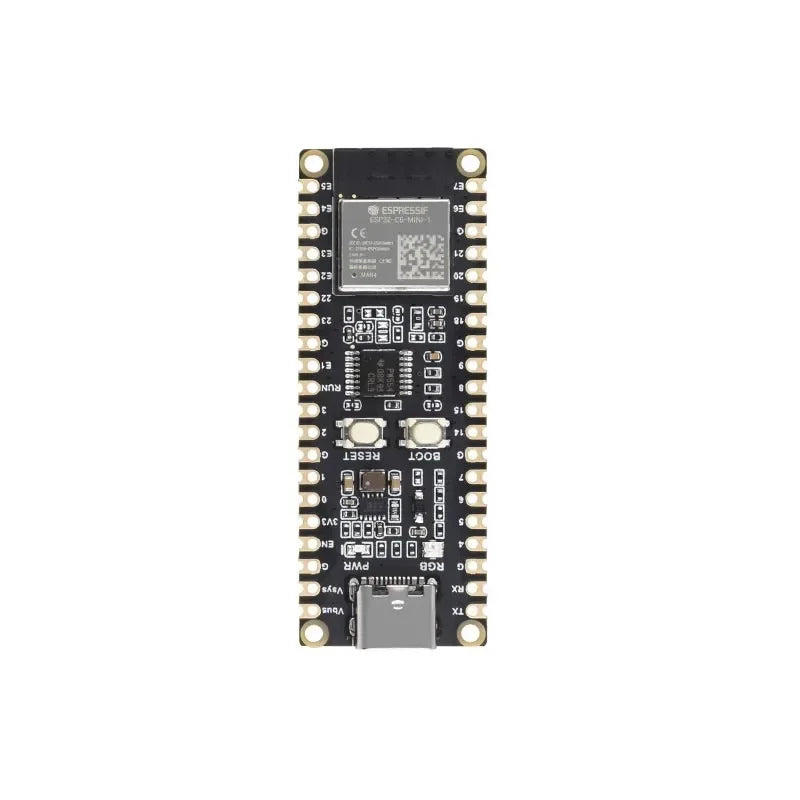

Board Components


1. ESP32-C6-MINI-1
RISC-V 32-bit single-core processor		 5. MP28164
High efficiency DC-DC buck-boost chip
2. BOOT button
Press it when resetting to enter download mode		 6. RGB LED
3. RESET button 7. Power indicator
4. TCA9554PWR
GPIO expander, extending 7 IO pins such as E1-E7		 8. USB Type-C port
For programme downloading and serial debugging

Compatible Pico Extension Modules


1.3″ OLED


1.44″ LCD


8-segment LED


2.66″ e-paper


RS232 Module


NB-IoT Module

Outline Dimensions
