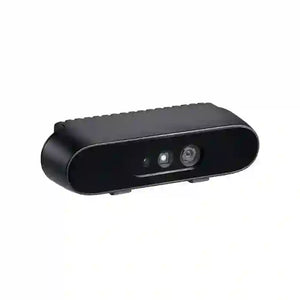

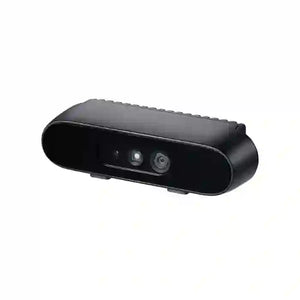

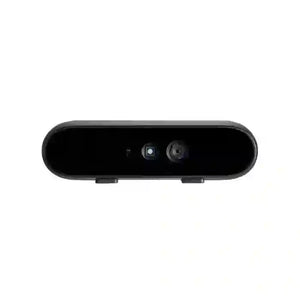

Orbbec Gemini 336 Stereo Vision Camera with Infrared Imaging
Gemini 336 introduces cutting-edge infrared enhancement technology to Orbbec's acclaimed Gemini 330 product family. Advancing beyond the proven foundation of the Gemini 335, the Gemini 336 incorporates specialized IR-Pass optical filtering that eliminates visible light interference, ensuring consistent and accurate depth measurement in complex lighting environments including indoor reflective floors, high-contrast shadowed areas, and intense outdoor illumination scenarios.
Product Resources
Orbbec SDK - ORBBEC - 3D Vision for a 3D World
Orbbec Gemini 330 Series Datasheet v1.1
Orbbec Gemini 330 series documentation
Core Innovations
- Enhanced Infrared Processing - Advanced depth sensing with visible light spectrum elimination
- Integrated Multi-Modal Detection - Simultaneous depth, RGB, and infrared data capture
- Space-Efficient Design - Optimized form factor for mobile platform integration
Building Upon Excellence: IR-Pass Filter Technology
The Gemini 336 maintains the proven architecture and superior performance characteristics of the Gemini 335 while introducing advanced IR-Pass optical filtering to significantly improve depth imaging reliability in specialized applications.
Infrared Optimization Advantage
Superior Depth Analysis in Complex Lighting Scenarios
Technical Specifications
Imaging System Parameters
| Parameter | Specification |
|---|---|
| Model | G40155 - 180 |
| Depth Technology | Stereo |
| Wavelength | 850nm |
| Depth Range | 0.10 - 20m+ (Optimal Range: 0.26 - 3m) |
| Depth Resolution/FPS | Up to 1280×800@30fps |
| Depth FOV | H90° V65° |
| RGB Resolution/FPS | Up to 1920×1080@30fps |
| RGB FOV | H86° V55° |
| Processing | Orbbec ASIC |
System Integration Specifications
| Parameter | Specification |
|---|---|
| Depth Filter | IR-Pass |
| IMU | Supported |

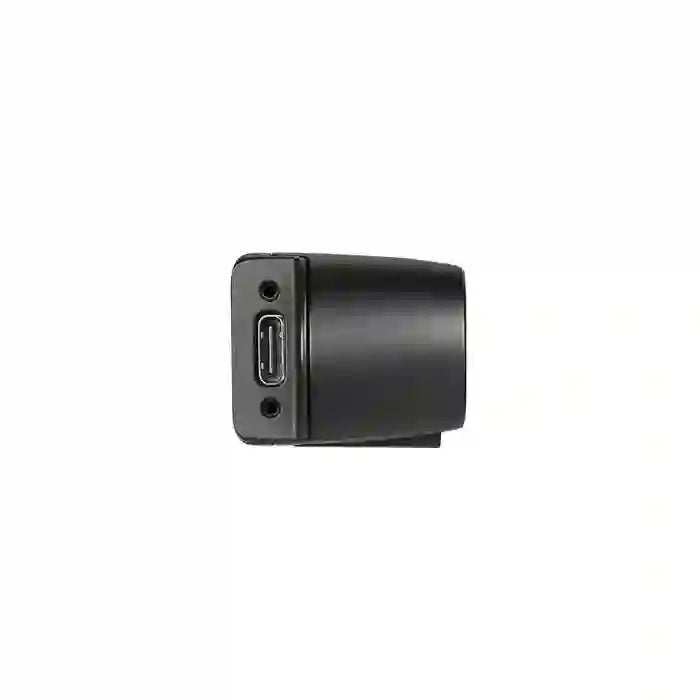

| Data Connection | USB 3.0 Type-C |
| Power Input | USB 3.0 Type-C |
| Trigger | Supported |
| Power Consumption | Average < 3.0W |
| Operating Environment | -10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing) |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR & RGB |
| Dimensions (W×H×D) | 90mm × 25mm × 30.7mm |
| Weight | 99g |

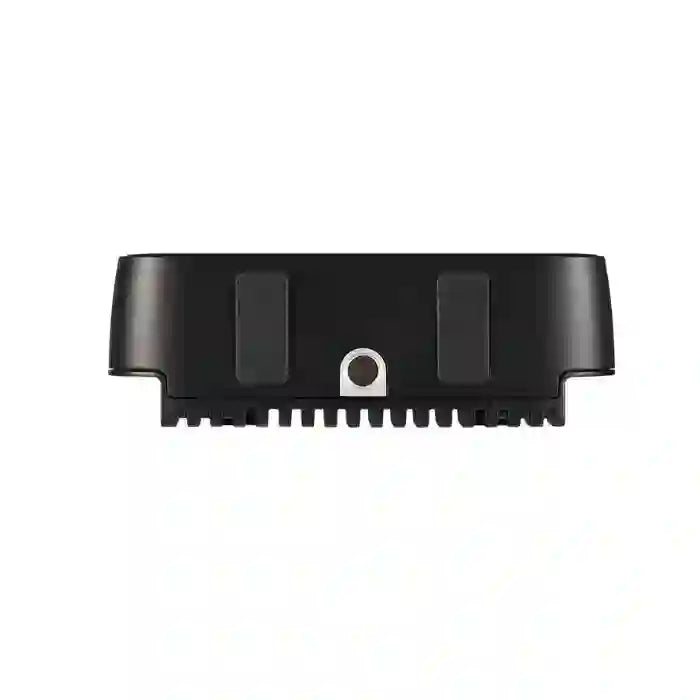

| Installation | Bottom: ¼-20UNC; Back: 2× M3 |
Target Applications
Autonomous Navigation Systems
- Specialized depth enhancement for mobile robots operating on highly reflective flooring materials including polished tiles, glossy epoxy coatings, and mirror-finish surfaces under artificial illumination, plus improved detection in shadow-contrast areas within high dynamic range outdoor environments.
Commercial Inventory Automation
- Optimized depth analysis performance in retail environments featuring mixed lighting conditions, including areas with both natural sunlight penetration and artificial overhead lighting creating complex shadow patterns.
Logistics and Delivery Robotics
- Enhanced depth measurement reliability for autonomous delivery vehicles operating in bright outdoor conditions, including direct sunlight exposure and high-albedo surface reflections.
Industrial Inspection Systems
- Improved 3D scanning accuracy in manufacturing environments with metallic surfaces, glossy components, and variable artificial lighting that can interfere with standard depth sensing technologies.
Smart Building Integration
- Advanced people counting and space monitoring in architectural environments featuring large windows, glass surfaces, and mixed indoor-outdoor lighting transitions.
