Scantech 3DeVOK MT Professional 3D Scanner All in One 3D Scanning Technology

Scantech 3DeVOK MT Professional 3D Scanner All in One 3D Scanning Technology

$10,107.40

The 3DeVOK MT is a high-performance 3D scanner designed for professionals who need precision and versatility. Built on advanced industrial-grade scanning technology, it integrates laser and speckle systems to deliver powerful results. With dedicated software, customizable parameters, user-friendly controls, and dependable accuracy, it streamlines workflows and boosts productivity. This scanner is suitable for a wide range of applications including product design, reverse engineering, measurement, visualization, 3D printing, education, and research.





Main Highlights

High-speed scanning with 34 blue laser lines

Laser modes enable scanning without markers

Combination of wide infrared speckle and fine-detail scanning

Hybrid alignment technology

Invisible light scanning capability

Handles black and reflective surfaces without spray

Outdoor scanning supported



Industrial & Automotive / Product Development

Marker Alignment using 34 blue lasers & 22 infrared lasers

  • Precision Data: Accuracy up to 0.04 mm, resolution 0.05 mm
  • Material Flexibility: Works with dark and reflective surfaces without spray
  • Rapid Capture: Frame rates up to 70 FPS, single-frame area 490 mm × 490 mm
  • Optimized Workflow: Marker spacing 10–12 cm reduces marker use
  • Live Monitoring: Real-time mesh display for immediate feedback
  • File Compatibility: Export formats such as .asc and .stl, compatible with CAD and reverse engineering tools
  • Recommended Object Size: 0.05–5 m
  • Applications: CAD, reverse engineering, automotive customization, 3D printing, simulation, and more



Artworks / Cultural Relics

Hybrid Alignment with 34 blue lasers & 22 infrared lasers

  • Markerless Scanning: Directly scan textured or geometric objects
  • Detail Capture: Resolution up to 0.1 mm
  • Material Adaptability: Handles dark and reflective surfaces easily
  • Lighting Stability: Works in low light or direct sunlight
  • Recommended Size: 0.1–4 m
  • Applications: Art design, cultural product creation, digital archiving, restoration, and preservation



Full-Color Mapping

    • Complete Workflow: Combine MT color scanning with texture mapping or advanced texturing software for vivid 3D color data
    • Best for Textured Items: Ideal for objects with complex textures and bright colors
    • Applications: 3D visualization, color 3D printing, cultural heritage archiving, and more
  • Enhanced 3D display with color scanning and texture mapping



Medium & Large Objects / Sculptures / Body Scans

Infrared Speckle + Fine Scanning with Three Light Sources

  • Strong Alignment: Infrared speckle covers up to 1,100 mm × 1,000 mm per frame
  • Fine Scanning: Seamless mode switching preserves detail (resolution up to 0.1 mm)
  • Depth of Field: Range 150–1,500 mm for versatile scanning
  • Max Size: Up to 5 m



Human Body Scanning

Infrared Speckle + Geometry / Hybrid Alignment

  • Body Mode: Supports no-light scanning, hair capture, and movement correction
  • Eye Safety: Class I laser compliant with IEC 60825
  • High Detail: Resolution up to 0.1 mm
  • Ease of Use: Scanning area up to 1,100 mm × 1,000 mm
  • Adaptability: No exposure adjustments needed, scans dark clothing easily
  • Applications: Medical rehab, art, customization, and more



Research & Education

  • Wide Coverage: Object sizes from 0.05 m to 5 m
  • Indoor/Outdoor Use: Works in varied environments
  • Cross-Disciplinary: Supports industrial design, mechanical design, art, archaeology, medical rehab, forensic science
  • Education-Friendly: Unlimited nodes in software, educational discounts available



Technical Specs

Product Brand & Model 3DeVOK MT

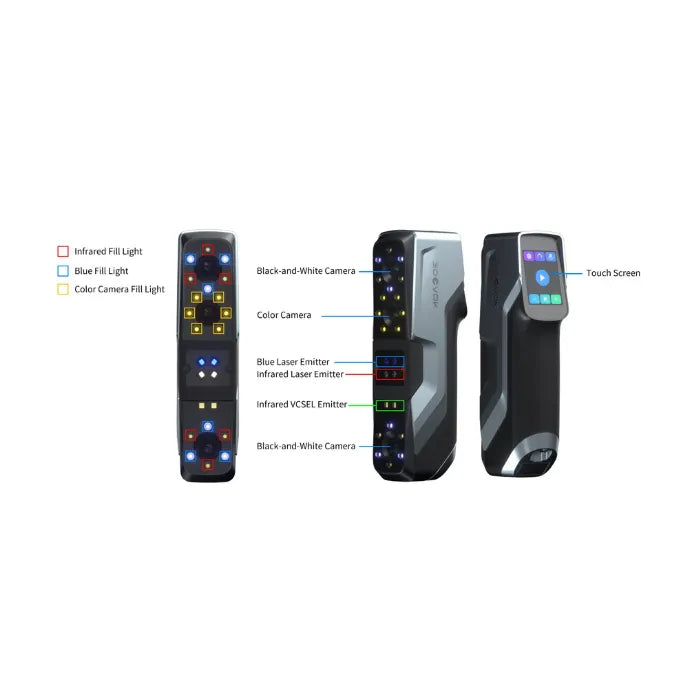

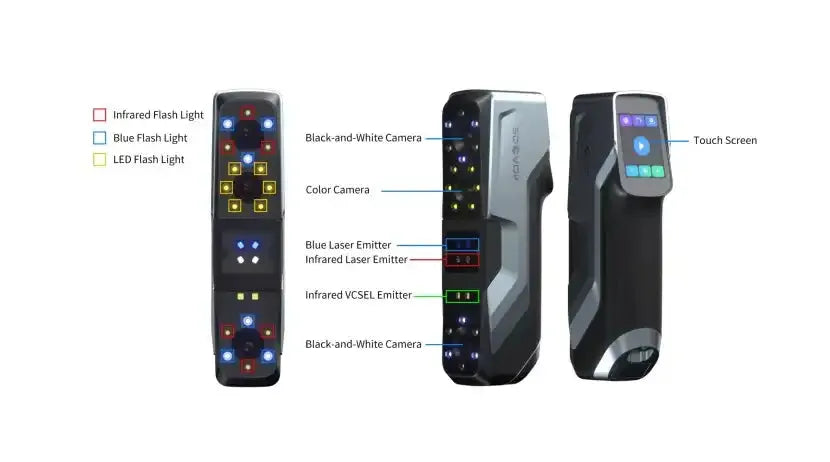

Light Sources 34 Blue Laser Lines 22 Infrared Laser Lines [invisible] Infrared VCSEL Structured Light [invisible]
Laser Class Class Ⅱ (Eye-safe) Class Ⅰ (Eye-safe)
Scan Modes Blue Laser
(Markerless scanning)		 Infrared Laser
(Markerless & invisible-light scanning)		 Infrared Structured Light-Speckle
(Markerless, invisible light, fine scanning, long-range, large FoV)
Basic Accuracy✱ Up to 0.04 mm
Volumetric Accuracy✱ Up to 0.04 mm + 0.06 mm/m
Point Distance 0.05 – 5 mm 0.1 – 5 mm Regular: 0.2–5 mm
Fine: 0.1–5 mm
Alignment Modes Hybrid (Marker, Texture, Geometry), Marker, Texture, Geometry Hybrid (Marker, Texture, Geometry), Texture, Geometry
Texture Capture Yes
Scanning Distance 150 – 1000 mm 150 – 1500 mm
Field of View 140 mm × 140 mm – 490 mm × 490 mm 50 mm × 75 mm – 1100 mm × 1000 mm
Speed Up to 3,300,000 Points/s Up to 2,450,000 Points/s Up to 4,500,000 Points/s
Output Formats *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
3D Printing Capability Supports .stl, .obj and other standard formats
Operating Temperature 0 – 40 ℃
Operating Humidity 10% – 90% RH (Non-condensing)
Interface USB 3.0
Dimensions & Weight Size: 215 mm × 73 mm × 53 mm; Weight: 640 g
Power Supply DC 12 V, 5.0 A
Certifications CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC
Recommended PC Specs OS: Windows 10/11 (64-bit); CPU: Intel i7-13650HX or higher; RAM: 32GB+;
GPU: NVIDIA RTX3060 or above with 6GB+ memory
✱ Accuracy values are based on laboratory testing and may vary in practice.
