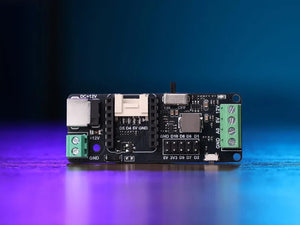

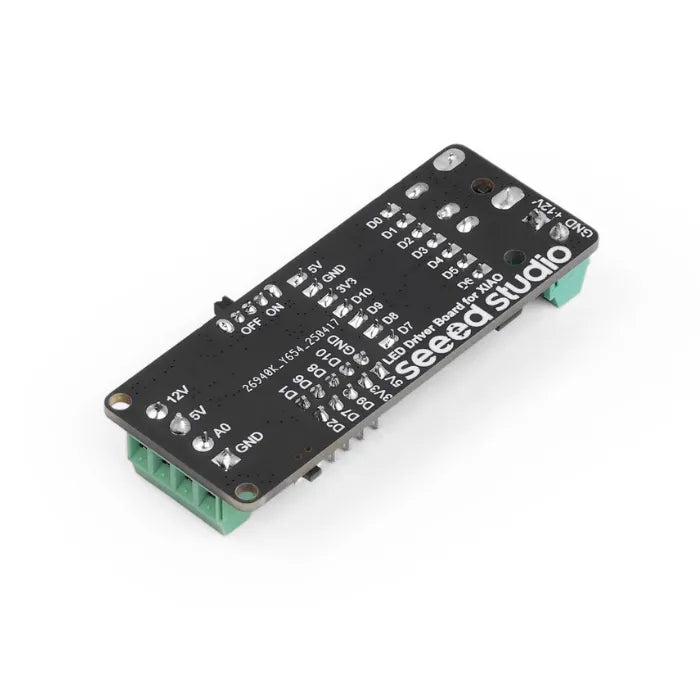

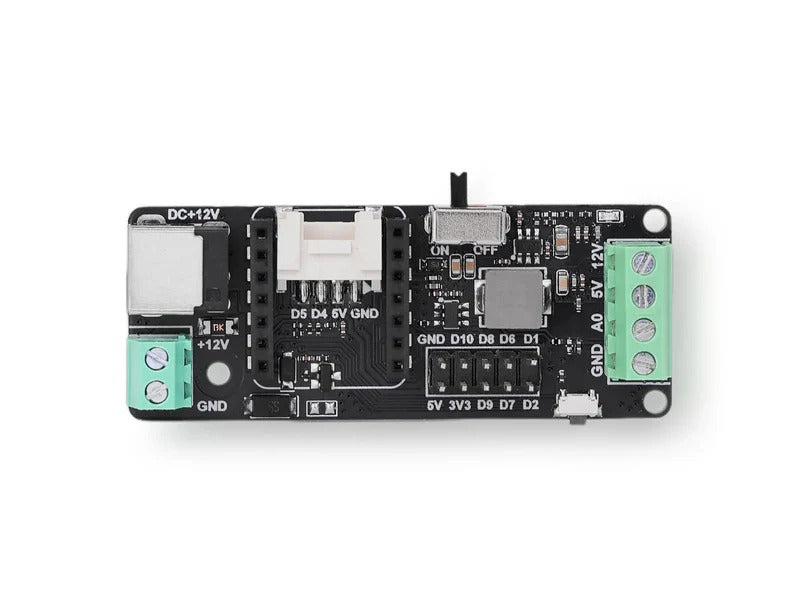

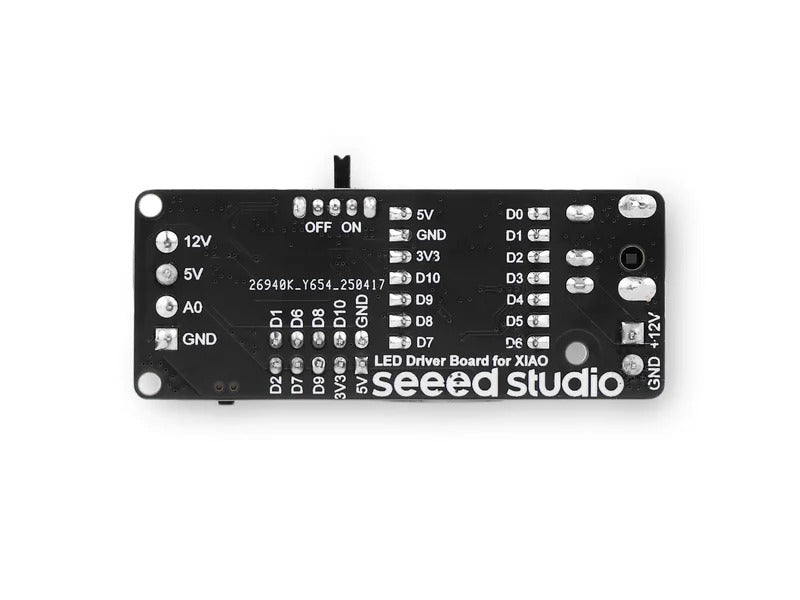

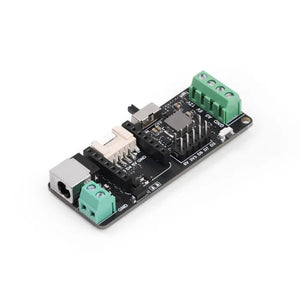

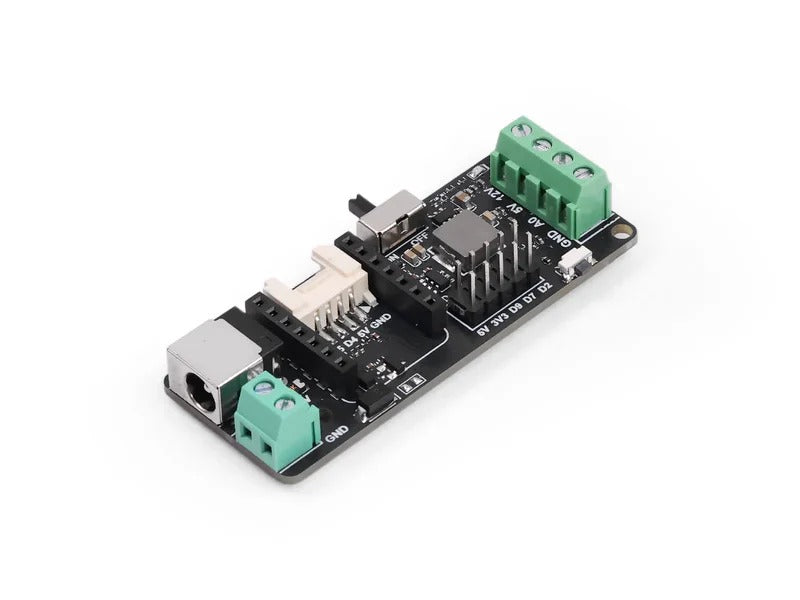

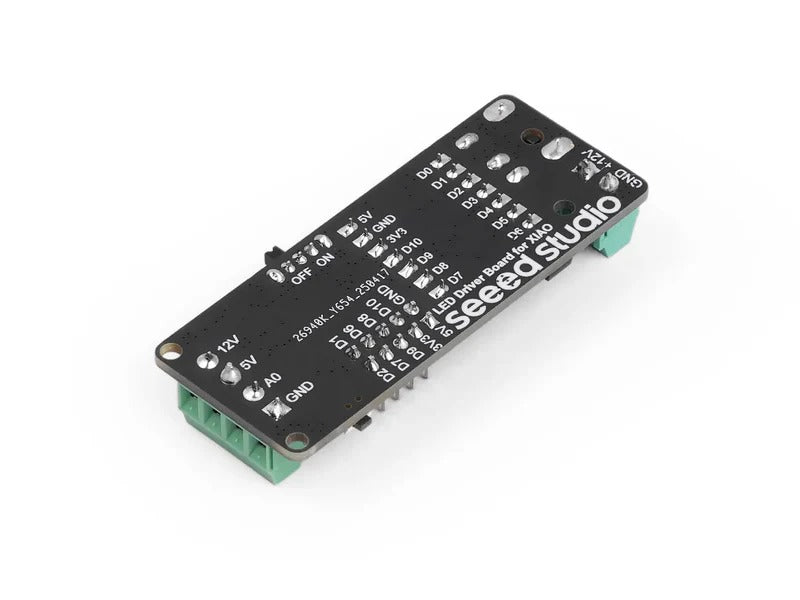

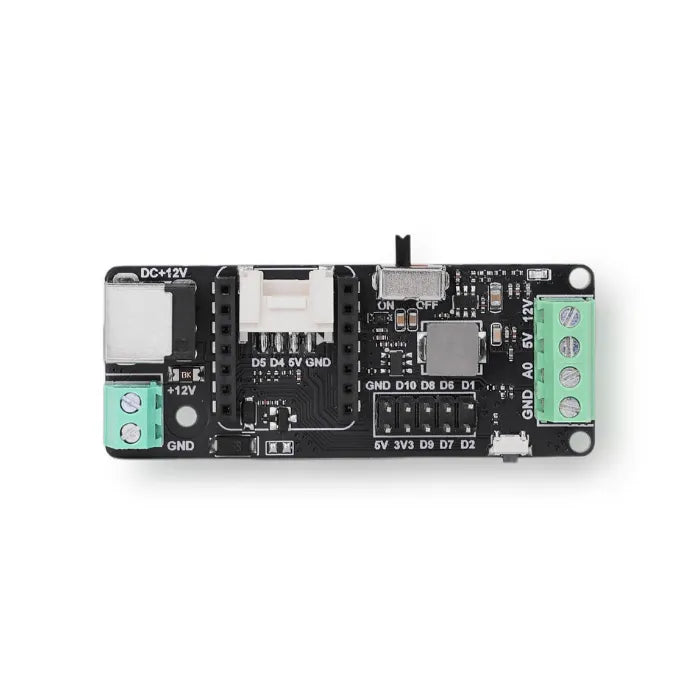

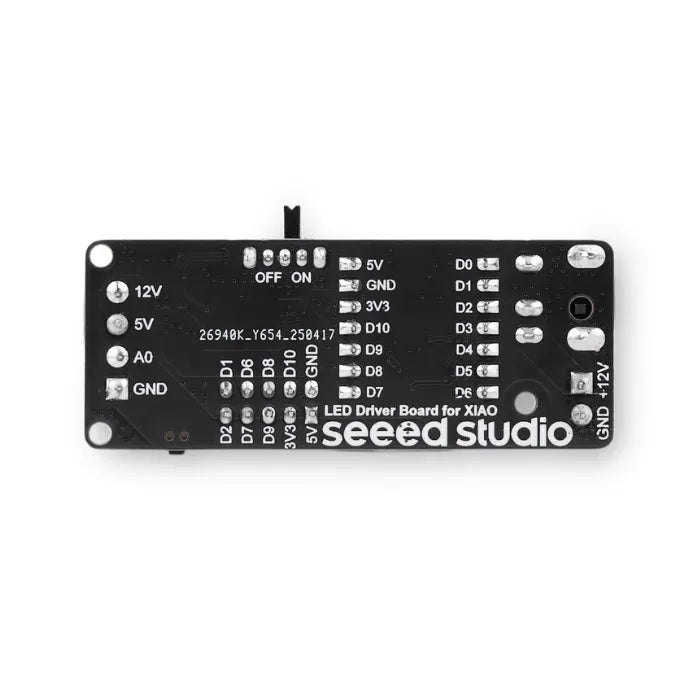

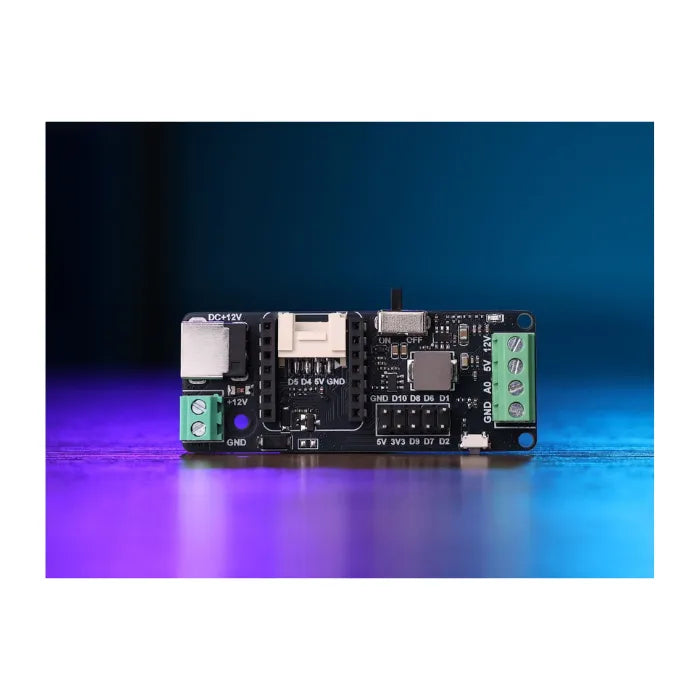

Seeed Studio LED Driver Board for Seeed Studio XIAO
This LED driver board offers a compact yet robust solution for controlling both 5V and 12V LED strips, including popular addressable RGB LEDs like NeoPixel WS2812, WS2813, and WS2815. Designed for seamless compatibility with all XIAO boards, it unlocks intelligent control and automation possibilities through WLED and Home Assistant when paired with the XIAO ESP32 Series. It also provides flexible power options and comprehensive protection features, ensuring safe and reliable operation for your lighting setups.
Key Features
- Extensive LED Compatibility: This versatile driver supports both 5V/3A and 12V/2A LED strips with integrated power regulation. It is compatible with a wide array of single-color and addressable RGB LEDs, including NeoPixel WS2811, WS2812(B), WS2813, WS2815, SK6812, and other 1-wire protocol LEDs, providing abundant lighting design possibilities.
-
XIAO Compatibility for Smart Control: Specifically designed for all Seeed Studio XIAO boards. When used with the XIAO ESP32 Series (ESP32-C3/S3/C6), it enables smart functionalities through:
- WLED app support: Control colors, effects, brightness, and create custom animations. (XIAO ESP32C3 is highly recommended).
- Home Assistant integration via ESPHome: Facilitates remote control, automation, and advanced smart home scenarios.
- Grove Ecosystem Integration: The onboard plug-and-play Grove interface is compatible with over 400 Seeed Studio modules, such as infrared sensors, temperature sensors, and accelerometers. This allows for effortless enhancement of lighting interactivity based on environmental conditions and motion, creating smarter, personalized effects.
- Flexible Power Input: Supports 12V/2A power via a standard DC adapter (available with EU/US plugs) or direct DC wiring, utilizing a universal 5.5mm x 2.1mm DC Barrel Jack connector. This makes it suitable for both temporary and permanent installations.
- Compact Design: Its space-efficient form factor allows for discreet placement near LED strips or within confined spaces, making it ideal for a wide range of lighting applications without compromising functionality.
- Comprehensive Protection: Equipped with integrated safety features including overcurrent, overvoltage, overtemperature, and short-circuit protection, ensuring reliable operation and extended component lifespan.
Specifications
| Item | Detail |
| Supported LED Models |
|
| LED Connector |
4 Pin 3.81mm Screw Terminal Block Connector:
|
| Power Input |
|
| LED Power Support | DC 12V / DC 5V |
| Operating Current | 12V/2A, 5V/3A |
| Onboard Components |
|
| User Pin Header | SPI x1, UART x1, Digital x2 |

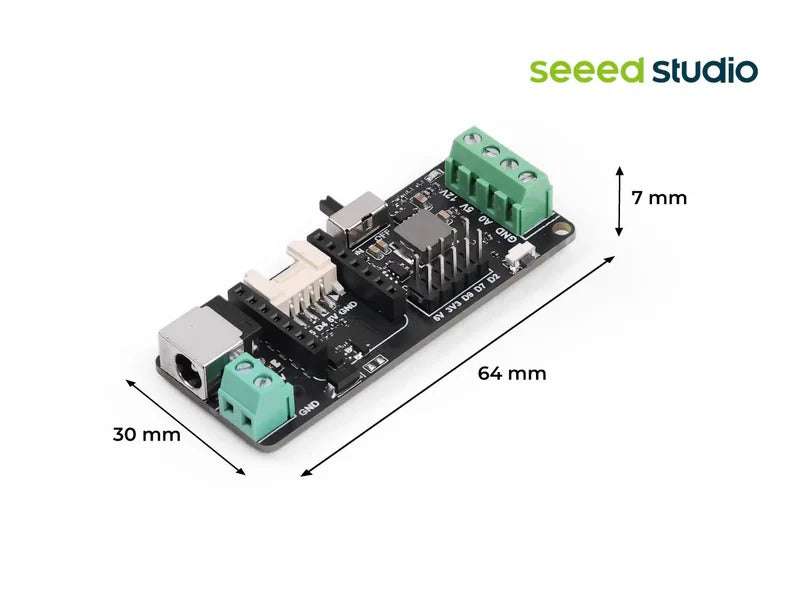

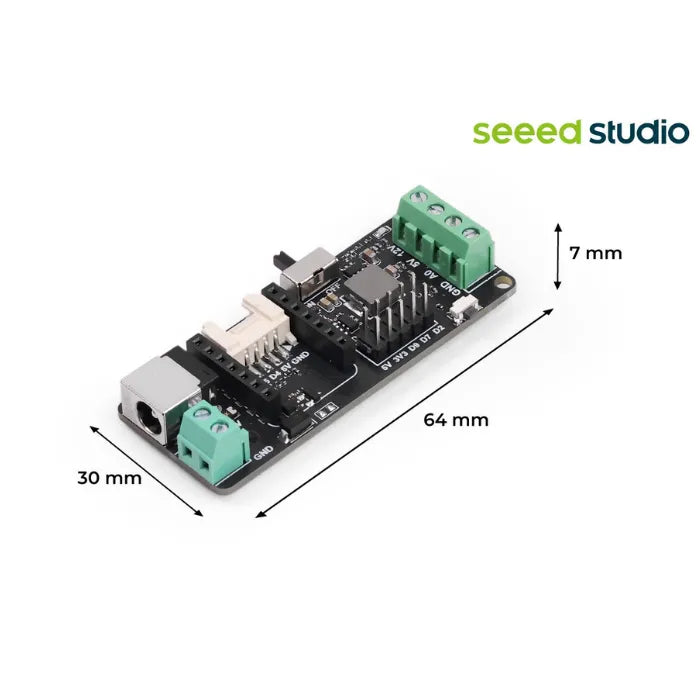

| Dimensions | 63mm x 30mm x 14.4mm (With a Seeed Studio XIAO) |
Applications
- Home Lighting & Decoration: Ideal for RGB strip lights, wall lights, and festive decorations.
- Educational & Science Experiments: Perfect for coding and microcontroller education, LED light design, and physical data visualization projects.
- Gaming & Interactive Installations: Suitable for PC case lighting, dynamic LED effects around screens, and interactive LED floors or walls.
- DIY Projects & Fun Uses: Great for LED name boards, LED clocks, DJ disco lights, and creating RGB mood lighting.
Documents
Part List
| LED Driver Board for Seeed Studio XIAO | x1 |
