Seeed Studio Expansion Board Base for XIAO with Grove IIC / Uart

Seeed Studio Expansion Board Base for XIAO with Grove IIC / Uart

$22.96

🔌 Seeed Studio XIAO Expansion Board – Compact Power for Infinite Possibilities

The Seeed Studio XIAO Expansion Board is a powerful functional add‑on for the XIAO series, designed at half the size of a Raspberry Pi 4. With rich peripherals, plug‑and‑play Grove connectors, and CircuitPython support, it enables rapid prototyping and wearable projects with ease.


✨ Features

  • Quick Prototyping Debug and reset effortlessly with the RESET button and SWD pin header. The 0.96” OLED display provides real‑time visual feedback without needing a PC serial monitor.

  • Rich Peripherals Includes OLED display, RTC chip, MicroSD slot, passive buzzer, user button, and battery management system. One board unlocks countless applications.

  • Mini Size Elegant and compact — only half the size of Raspberry Pi 4, perfect for tiny projects and wearables.

  • No Soldering Needed All pins are led out. Grove connectors support I²C, UART, Analog/Digital protocols for seamless plug‑and‑play expansion.

  • CircuitPython Supported Full support for CircuitPython, with expandable memory via MicroSD card slot, enabling larger libraries and complex projects.



🛠️ Onboard Peripherals

  • OLED Display – Debug visually, build sensor hubs or data monitors.

  • RESET Button – One‑click reset, no jumper wires needed.

  • SWD Debug Header – Easy debugger connection and firmware download.

  • High‑Precision RTC – Battery‑backed real‑time clock for accurate timing.

  • MicroSD Slot – Expand memory for CircuitPython libraries.

  • User Button – Customizable input for projects.

  • Passive Buzzer – Adjustable PWM frequency for sound effects or “buzzer music.”

  • Grove Connectors – Plug‑and‑play expansion with multiple protocols.

  • LiPo Battery Charging – JST 2.0mm connector with onboard management system.

  • 5V Servo Connector – Direct 5V output for servo motors and sensors.



⚙️ Specifications

Item Detail
Power Supply 5V / 3.7V Lithium Battery
RTC Chip PCF8563T/5
RTC Battery CR1220
Expandable Memory MicroSD Card
Screen 0.96” OLED display
External Equipment Passive buzzer, user button, 5V servo connector
Charging Current Max 460mA
Grove Interfaces Grove I²C ×2, Grove UART ×1, A0/D0 Grove ×1


Hardware Overview

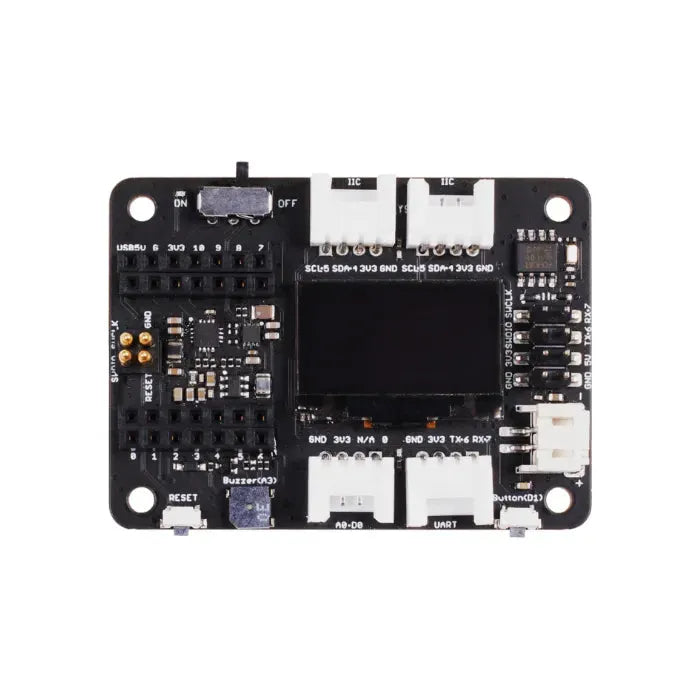

  • PinOut

  • Onboard


🌍 Applications

  • SMD Debugging

  • Rapid Prototyping

  • Data Display Systems

  • Mini Size Projects & Wearables




📦Part List

Seeeduino XIAO expansion board

X 1

Note:

Seeed Studio XIAO products and battery is not included in this product
