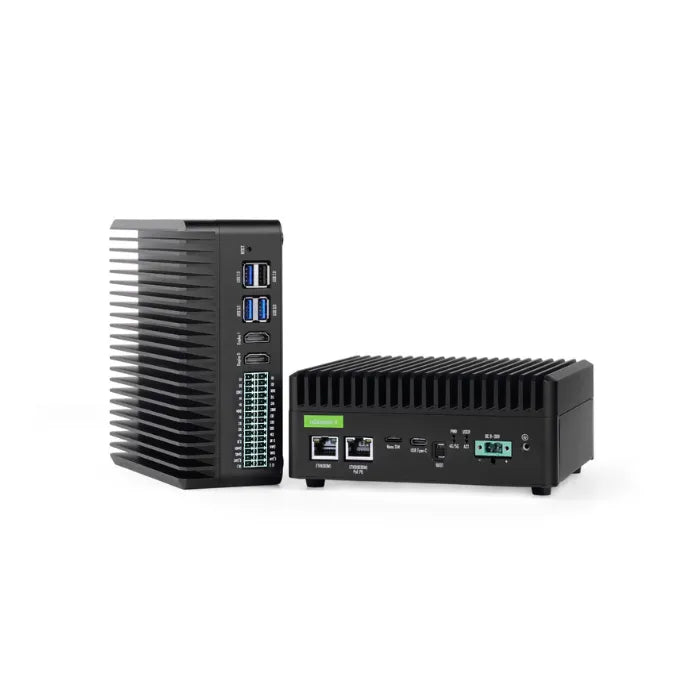

Seeed Studio reComputer Industrial R2135-10 Raspberry Pi Edge AI/IOT Controller
The reComputer Industrial R2135‑10 is a highly reliable and powerful industrial Edge AI/IoT controller built on the Raspberry Pi Compute Module 5 (CM5). It offers optional Hailo‑8 AI acceleration (26 TOPS), robust industrial interfaces, flexible wireless expansion, and a fanless thermal design engineered for 24/7 operation in demanding environments. With 8GB RAM, 32GB eMMC, wide‑temperature support (–20°C to 65°C), and long‑term production availability until 2036, it is ideal for industrial automation, AI vision, smart buildings, transportation, and edge computing applications.
Feature
- Powerful Performance with Raspberry Pi CM5: Broadcom BCM2712 quad-core Arm Cortex-A76 64-bit SoC @ 2.4GHz. Features up to 16GB RAM and 32GB eMMC.
- Robust Heat Dissipation: High-performance fanless cooling, engineered to handle the intense heat of AI workloads and ensure stable operation from -20°C to 65°C.
- Industrial-Grade Reliability: High Accuracy RTC, hardware watchdog and optional UPS supercapacitor. Optional TPM/ATECC608A. IP40, aluminum alloy enclosure provides industrial-grade protection. Supports DIN-rail and wall mounting. Guaranteed production until at least December 2036.
- AI-Optimized Computing: With the optional Hailo-8 AI accelerator, it delivers up to 26 TOPS, enabling real-time, high-performance AI vision processing across multiple channels.

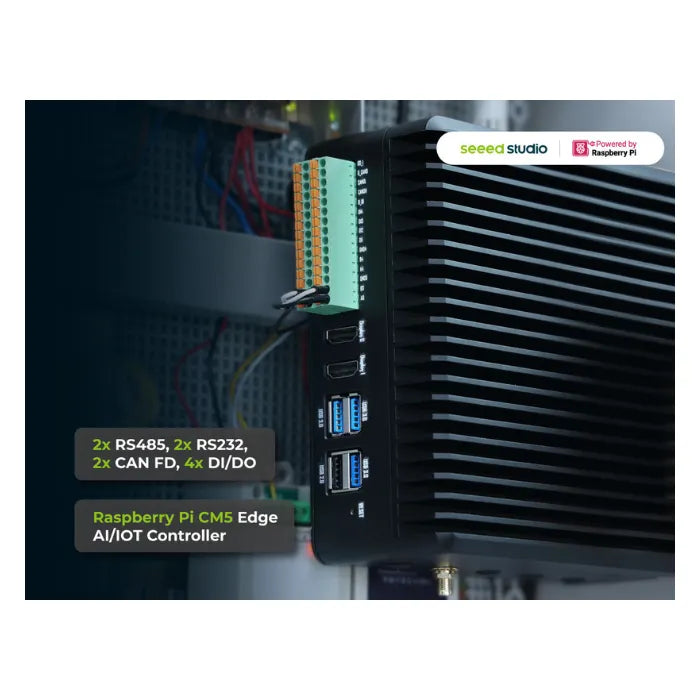

- Rich Industrial Connectivity: 2x RS485, 2x RS232, 2x CAN FD, 4x DI, 4x DO, all isolated. 1x 10M/100M/1000M Ethernet (PoE), 1x 10M/100M Ethernet. 2x HDMI 2.0. 3x Type-A USB3.0, 1x Type-A USB2.0, 1x Type-C USB2.0 (for OS update). 1x Nano SIM card slot.
- Versatile Wireless Connectivity: On chip Wi-Fi and BLE. Flexible expansion via Mini-PCIe for LTE, LoRa®, Zigbee. M.2 B-Key for 4G/5G.
Specification
|
Hardware Specification |
||
|
Product Series |
R21xx-12 |
R21xx-10 |
|
CPU |
Raspberry Pi Compute Module 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 |
|
|
AI Processor |
1x Pre-installed Hailo-8 M.2 AI Acceleration, 26TOPS |
* |
|
Operating System |
Raspbian, Debian |
|
|
Memory & Storage |
2GB/4GB/8GB/16GB RAM, 16GB/32GB/64GB eMMC |
|
|
System Specification |
||
|
Power Input |
DC 9V~36V, 2-pin Terminal Block |
|
|
PoE(as powered device) |
IEEE 802.3 at Standard 25.5W PoE |
|
|
Power Switch |
No |
|
|
Reboot Switch |
Yes |
|
|
Interface |
||
|
Ethernet & USB |
1x 10/100/1000 Mbps(supports PoE PD); 1x 10/100 Mbps IEEE 802.3/802.3u |
|
|
3x USB-A 3.0 Host; 1x USB-A 2.0 Host; 1x USB-C 2.0 (For flashing OS & Debug) |
||
|

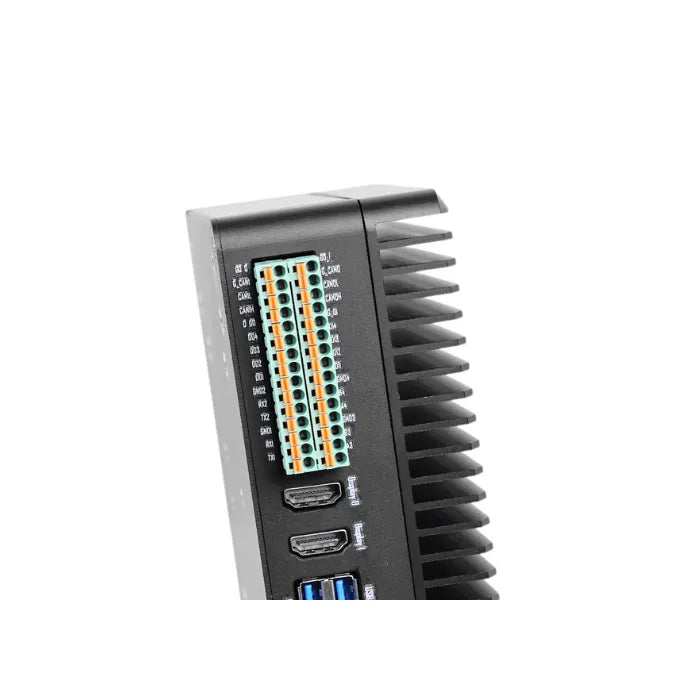

COM and I/O |
2x RS485(Isolated); 2x RS232(Isolated); 2x CAN FD(Isolated) |
|
|
4x DI Ports(Isolated), input Voltage: 5~24V DC; 4x DO Ports(Isolated), output Voltage: <60V DC |
||
|
SIM Card |
1x Nano SIM Card Slot |
|
|
M.2 Slot |
1x M.2 M-key 2280 Slot for NVMe SSD; 1x M.2 M-key 2280 Slot for AI Accelerator (pre-installed Hailo-8 M.2 AI Acceleration 26TOPS); 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
1x M.2 M-key 2280 Slot for NVMe SSD； 1x M.2 M-key 2280 Slot for AI Accelerator; 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
|
Mini-PCIe |
1x Mini-PCIe for LoRa module |
|
|
Control & Indication |
4x LEDs; 1x Buzzer; 1x Reset Button |
|
|
HDMI |
2 x HDMI 2.0 |
|
|
Wireless Communication |
Wi-Fi 2.4/5.0 GHz(On-chip); BLE 5.0(On-chip); |
|
|
USB LoRa®*/SPI LoRa®* |
||
|
4G LTE/5G* |
||
|
USB Zigbee* |
||
|
Standards |
||
|
EMC |
ESD: EN61000-4-2, Level 3; EFT: EN61000-4-4, Level 2; Surge: EN61000-4-5, Level 2 |
|
|
Certification |
CE, FCC, TELEC, RoHS, REACH |
|
|
Device Specification |
||
|
Ingress Protection |
IP40 |
|
|
Temperature |
Operating Temperature -20~65°C Storage Temperature -40~85°C |
|
|
Operating Humidity |
10~95% RH |
|
|
Reliability |
SuperCAP UPS LTC3350 Module* |
|
|
Hardware Watchdog: 1~255s |
||
|
High Accuracy RTC |
||
|
Security |
Encryption Chip TPM 2.0* |
|
|
ATECC608A* |
||
|
Heat Dissipation |
Fanless |
|
|
Warranty |
2 years |
|
|
Production Lifetime |
Until December 2036 |
|
|

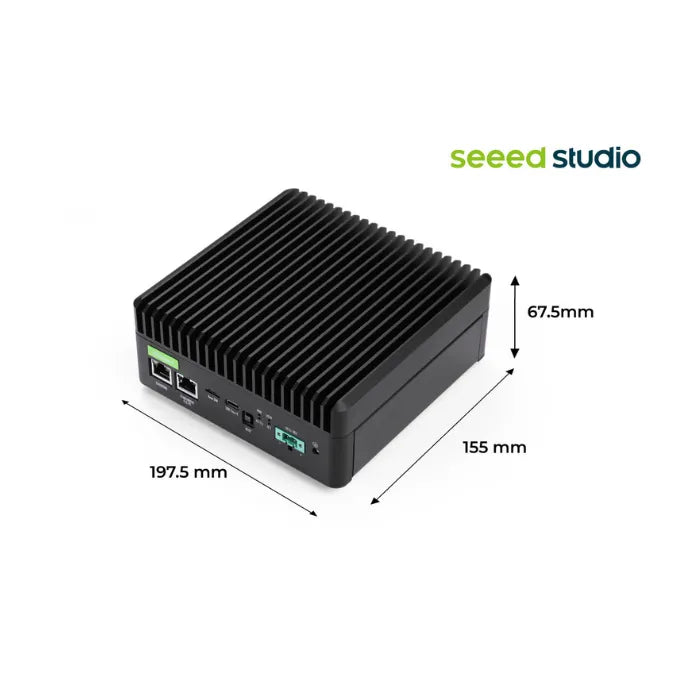

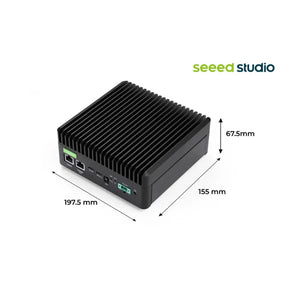

Dimension(W x H x D) & Weight(Net) |
197.5 mm x 155 mm x 67.5 mm, 1280g |
|
|
Enclosure |
6063 aluminum alloy heat sink, 5052 aluminum alloy enclosure |
|
|

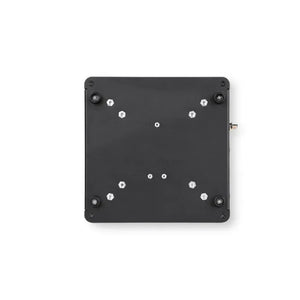

Mounting |
DIN-rail/Wall |
|
|
Statement |
Options marked with * require additional purchase according to the bundle. |
|
Application
With advanced features like object detection, object recognition, object tracking, OCR, and abnormal event detection with real-time alert triggers, this industrial-grade edge AI/IOT controller is designed to deliver exceptional performance in resource-constrained environments.
- Manufacturing & Industrial Automation
With rich industrial interfaces, the controller integrates seamlessly with different sensors, PLCs, and machinery, enabling efficient process monitoring and control. It supports multiple communication protocols for real-time data acquisition and remote equipment management, fostering a smarter and more efficient factory.
- AI-Powered Video Analytics & Surveillance
Integrated into NVR systems for real-time video analytics, including anomaly detection, object detection, crowd monitoring and behavior analysis, enhancing situational awareness and security efficiency.
- Smart Transportation
Acts as an AI/IoT gateway for real-time processing of visual data from multiple sensors and camera feeds at the edge, enabling intelligent traffic flow analysis and smart parking management to enhance transportation monitoring management capabilities.
- Smart Building
Integrates sensors and IoT devices to monitor and optimize building systems such as lighting, HVAC, and security. Uses AI for energy efficiency, predictive maintenance, and occupant comfort, enhancing building management.
- Smart Retail
Create innovative smart retail solutions using AI-driven features like real-time visual product recognition, personalized shopping experiences, and advanced customer behavior analytics for optimized store operations.
Documents
Certification
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |

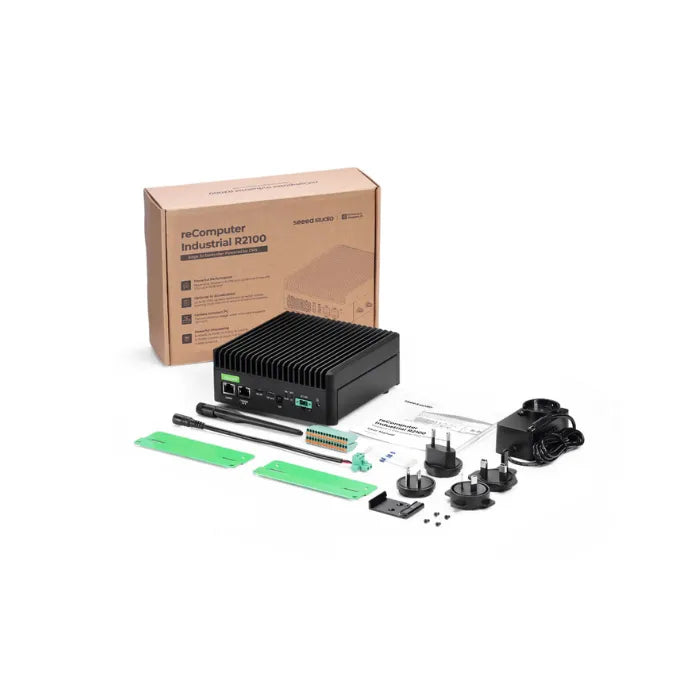

Part List
|
reComputer Industrial R2135-10 |
x 1 |
|
Mounting Bracket |
x 2 |
|
Bracket Screw |
x 4 |
|
DIN-rail Clip |
x 1 |
|
DC Power Female Jack to Screw Terminal Adapter |
x 1 |
|
12V/3A Power Adapter (with 4 interchangeable adapter plugs) |
x 1 |
|
15*2-pin Terminal Block Connector (Male) |
x 1 |
|
120Ω Resistor |
x 5 |
|
Wi-Fi/BLE Antenna |
x 1 |
|
User Manual |
x 1 |
FAQ
Does the R2135‑10 support AI acceleration?
Yes. It supports an optional Hailo‑8 AI accelerator (26 TOPS) for high‑performance AI vision tasks.
What is the operating temperature range?
It operates reliably from –20°C to 65°C with a fanless thermal design.
What wireless options are available?
On‑chip Wi‑Fi/BLE, plus optional LTE, 5G, LoRa, Zigbee via Mini‑PCIe and M.2 modules.
