Seeed Studio reComputer Mini J501 Carrier Board for Jetson AGX Orin™
Seeed Studio reComputer Mini J501 Carrier Board is a compact and versatile platform engineered for NVIDIA Jetson AGX Orin™ modules (32GB & 64GB). Built with extensive I/O connectivity including CAN, USB, Ethernet, RS-485, I2S, and GMSL expansion, it’s an excellent choice for humanoid robotics, AI prototyping, and rapid hardware development. When paired with Jetson AGX Orin™, the J501 becomes a strong alternative to the official NVIDIA® Jetson AGX Orin™ Developer Kit.
⚡ Key Features
- 🚀 High-Performance AI Platform – Works seamlessly with Jetson AGX Orin, delivering up to 275 TOPS for demanding AI workloads.
- 📏 Compact Footprint – Measures only 110mm x 110mm, perfect for robotics projects and humanoid designs with limited space.
- 🔋 Flexible Power Input – Supports 48V battery systems (up to 54V), ideal for mobile robotics and industrial environments.
- 🔌 Diverse I/O Options – Equipped with USB, 10G Ethernet, CAN, RS-485, I2S, and more, tailored for automation and robotics integration.
- 👁️ Advanced Vision AI – Provides 4x 4-lane CSI outputs and supports up to 8x GMSL2 cameras, enabling applications such as BEV, SLAM, and occupancy grid mapping.
📊 Specification
| 📦 Product | reComputer Mini J501 Carrier Board with GMSL Extension | |
| 💾 Storage | 1x M.2 Key M slot | |
| 📡 Networking | 1x M.2 Key E slot for WiFi/Bluetooth module | |
| 🔌 I/O |
USB: 2x USB 3.2 Type-A (10Gbps), 1x USB 3.0 Type-C (Recovery), 1x USB 2.0 Type-C (Debug) Ethernet: 1x 1G + 1x 10G RJ45 GMSL: 8x GMSL2 (MAX96712 deserializer) CAN: 2x CAN-FD supported RS-485: 1x I2S: 1x DI/DO: 4x DI, 4x DO (DO configurable as UART) Display: 1x HDMI 2.1 Fan: 1x 4-pin Fan Connector (12V PWM) Buttons: Reset + Recovery RTC: 1x RTC 2-pin |
|
| 🔋 Power | 1x XT30 Connector (19–48V DC) | |
| 📐 Mechanical |

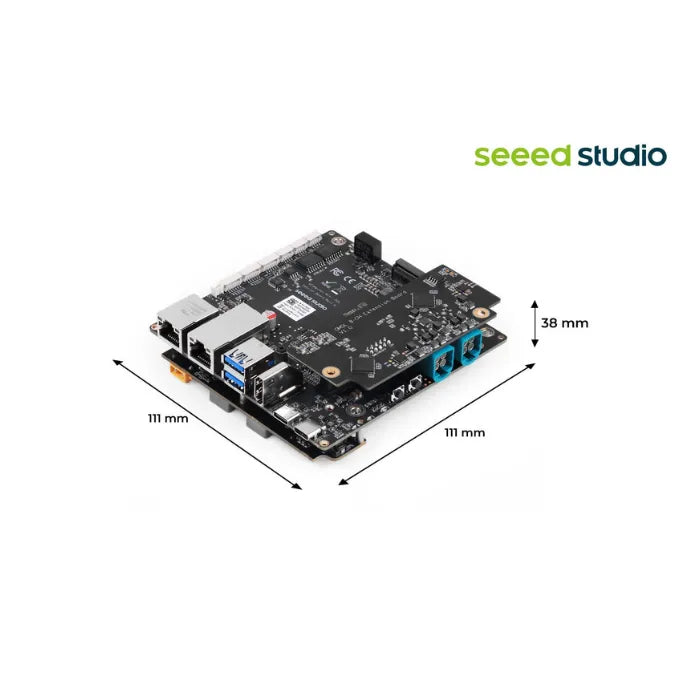

Dimensions: 110mm x 110mm x 38mm Weight: 90g Installation: Desk or wall-mount |
|
| 🌡️ Operating Temperature | -10℃ ~ 60℃ (thermal grease), -10℃ ~ 55℃ (thermal pad) | |
| 🛡️ Warranty | 2 Years | |
📷 Compatible GMSL Cameras (Jetpack Supported)
| Manufacturer | Model | Resolution |
| Sensing | SG3S-ISC031C-GMSL2F | 1920H*1536V |
| Sensing | SG2-AR0233C-5200-G2A | 1920H*1080V |
| Sensing | SG2-IMX390C-5200-G2A | 1920H*1080V |
| Sensing | SG8S-AR0820C-5300-G2A | 3840H*2160V |
| Orbbec | Orbbec Gemini 335Lg | 3D |
🛠️ Hardware Overview
🤖 Application
- Humanoid Robotics – Ideal for next-gen humanoid robot controllers.、
- AI Robot Development – Build advanced AI robots with NVIDIA Isaac platform.
With AGX Orin module, this powerful embedded AI system enables robotics and edge AI applications in manufacturing, logistics, and healthcare. The NVIDIA Isaac robotics platform provides accelerated libraries and generative AI models to enhance perception, manipulation, and simulation.
Learn more about Isaac here: Isaac - AI Robot Development Platform | NVIDIA Developer
- Multi-Sensor Fusion – Integrate LiDAR, cameras, GPS, and IMU for autonomous mapping & navigation.
The J501 supports sensor-rich autonomy by fusing data from LiDAR, 3D cameras, GPS, and IMU. Using AI algorithms like A-LOAM or Nav2, it performs real-time localization, path planning, and obstacle avoidance. Its compact design and wide voltage input make it perfect for mobile robotics.
Learn more about sensor options compatible with J501.
- Generative AI at the Edge – Deploy Vision-Language Models (VLM) like LLaVA for real-time video analysis.
Build AI agents with Vision-Language Models (VLM) like LLaVA, enabling industries to summarize, search, and extract insights from video using natural language.
- Computer Vision Deployment – Run YOLOv8, Llama3, Ollama, and other AI models with one-line deployment.
Seeed provides jetson-examples for one-line deployment of edge AI projects, including Ollama, Llama3, YOLOv8, and more.
📄 Documents
Access all the essential resources to get started with the reComputer Mini J501 Carrier Board:
- 📑 Datasheet
- 📐 Carrier Board Schematic
- 🔋 Power Board Schematic
- 📦 3D File
- 📚 Seeed Nvidia Jetson Product Catalog
- 🔎 Nvidia Jetson Comparison
- 📊 Nvidia Jetson Product Comparison
- 🏆 Seeed Nvidia Jetson Success Cases
- 📝 Seeed Jetson One Pager
📦 Part List

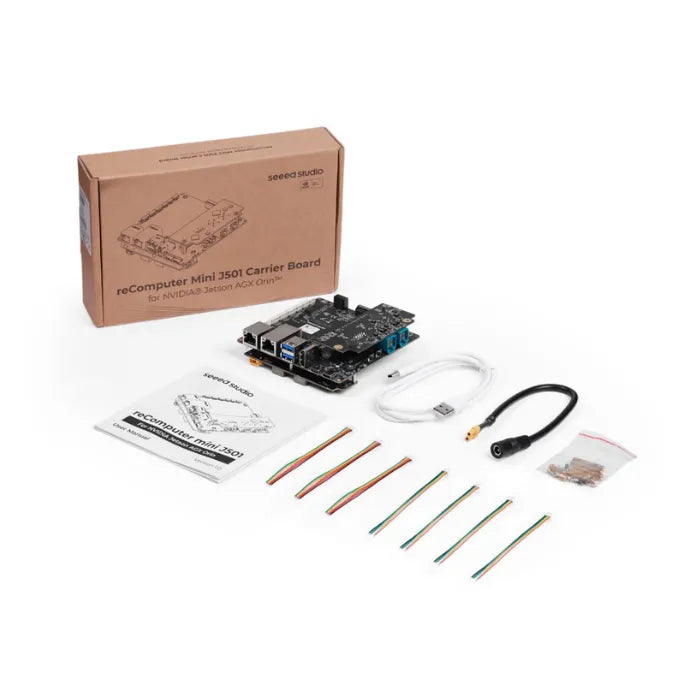

The reComputer Mini J501 Kit includes the following components:
| Seeed Carrier Board (reComputer Mini J501) | x1 |
| Power Board | x1 |
| GMSL Extension Board (GMSL x8) | x1 |
| XT30 to DC Power Cable | x1 |
| USB Type-C to Type-A Cable | x1 |
| GH-1.25 4-pin 100mm JST Cable | x3 |
| GH-1.25 6-pin 100mm JST Cable | x3 |
| M3*16 Stud (for GMSL Extension) | x2 |
| M2.5*4 Screw | x1 |
| M2*6 Screw | x3 |
| M2.5*25 Stud | x4 |
| M2.5*8 Screw | x4 |
