Seeed Studio reComputer Industrial R2245-12 Raspberry Pi Edge AI/IOT NVR with 26 TOPS
The reComputer Industrial R2245‑12 is a high‑performance industrial Edge AI/IoT NVR built on the Raspberry Pi Compute Module 5 (CM5) and equipped with a Hailo‑8 AI accelerator delivering up to 26 TOPS. This reComputer Industrial R2245‑12 features 4× Gigabit Ethernet ports with PoE PSE plus an additional 1× Gigabit Ethernet port, enabling high‑bandwidth video streaming and simplified PoE deployment for IP cameras. Its fanless thermal design, rich industrial I/O, and wide operating temperature range of –20 °C to 50 °C ensure stable 24/7 operation, making the reComputer Industrial R2245‑12 the ideal 26 TOPS solution for demanding industrial environments.
Features
- Powerful Performance Driven by Raspberry Pi CM5: Powered by the Raspberry Pi Compute Module 5 (CM5) with a quad-core Cortex-A76 processor, the reComputer Industrial R2245‑12 supports up to 16GB RAM for efficient multitasking and high-speed Edge AI workloads.

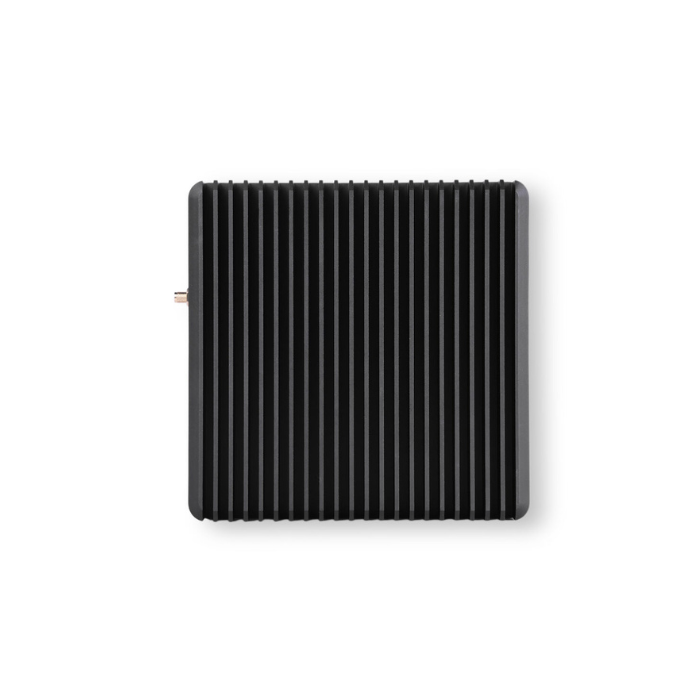

- Robust Heat Dissipation: The reComputer Industrial R2245‑12 utilizes a high-efficiency fanless cooling design optimized to dissipate heat from heavy 26 TOPS AI computing tasks, ensuring stable operation from -20°C to 50°C.
- Industrial-Grade Reliability: This reComputer Industrial R2245‑12 integrates a high-accuracy RTC, hardware watchdog, and an IP40-rated aluminum alloy enclosure. Guaranteed production support for the Raspberry Pi CM5 base extends until at least January 2036.
- AI-Optimized Computing with Hailo‑8: Features a pre-installed Hailo‑8 AI accelerator delivering up to 26 TOPS, enabling low-latency, high-performance real-time vision processing for the reComputer Industrial R2245‑12 across multiple camera channels.
- Rich Industrial Connectivity: The reComputer Industrial R2245‑12 offers 2x RS485, 1x RS232, 4x DI/4x DO (isolated), and 1x CAN FD; including 4x Gigabit Ethernet ports with PoE PSE support (12W max per port) plus 1x additional Gigabit port for seamless NVR deployment.
- Versatile Wireless Connectivity: Supports Wi-Fi and BLE; features a Mini-PCIe slot for LTE/LoRa® and an M.2 B-Key slot for 4G/5G modules, providing the reComputer Industrial R2245‑12 with diverse networking capabilities.
Seeed Studio Tutorial of Al Kit with Raspberry Pi: From Zero to Hero
Learn how to harness the 26 TOPS power of the Hailo‑8 on the Raspberry Pi CM5. This course guides you through setting up the reComputer Industrial R2245‑12 for object detection, image classification, and complex visual recognition in real-world IoT scenarios.
Specifications
|
Parameter |
Description |
|
Hardware Specification |
|
|
Product Series |
reComputer Industrial R22xx-12 |
|
CPU |
Raspberry Pi Compute Module 5 (CM5), 2.4GHz quad-core 64-bit Arm Cortex-A76 |
|
AI Processor |
Pre-installed Hailo‑8 M.2 AI Accelerator (26 TOPS) |
|
RAM |
8GB/16GB |
|
eMMC |
32GB |
|
System Specification |
|
|
Power Input |
DC 9V~36V, 2-pin Terminal Block |
|
PoE |

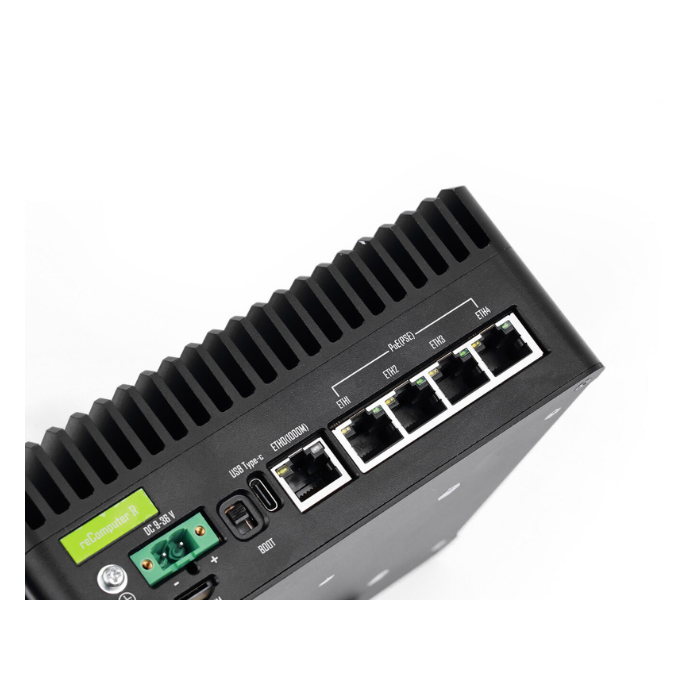

4 x PoE PSE Gigabit Ethernet |
|
Interface |
|
|
Ethernet |
4 x 10/100/1000 Mbps (supports PoE PSE) |
|
1 x 10/100/1000 Mbps IEEE 802.3/802.3u |
|
|
M.2 Slot |
1x M.2 M-key for Hailo‑8 26 TOPS AI Accelerator (Pre-installed) |
|
Operating Temperature |
-20~50 °C |
|
Production Lifetime |
Until January 2036 |
Hardware Overview
Applications
Equipped with the Hailo‑8 for advanced 26 TOPS AI capabilities, the reComputer Industrial R2245‑12 delivers exceptional performance for Edge AI scenarios.
- Manufacturing & Industrial Automation: Leveraging the Raspberry Pi CM5 and rich industrial interfaces, the reComputer Industrial R2245‑12 enables efficient process monitoring and automated control.
- AI-Powered Video Analytics & Surveillance: As a dedicated AI-NVR, the reComputer Industrial R2245‑12 excels in real-time video analytics. With 4x PoE PSE ports, it directly powers IP cameras for high-performance security.
- Smart Transportation: The reComputer Industrial R2245‑12 serves as an edge AI gateway for traffic flow analysis using 26 TOPS processing power.
Part List
|
reComputer Industrial R22xx |
x 1 |
|

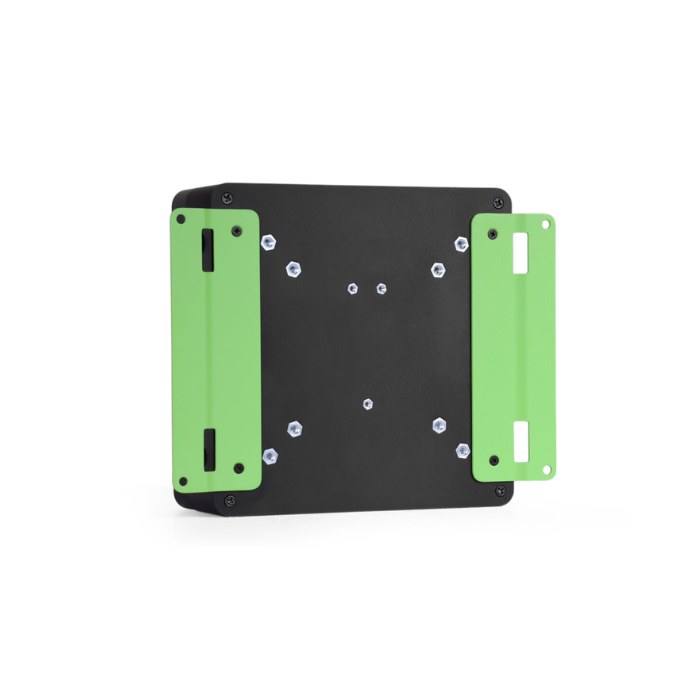

Mounting Bracket |
x 2 |
|
Bracket Screw |
x 4 |
|
DIN-rail Clip |
x 1 |
|
DC Power Female Jack to Screw Terminal Adapter |
x 1 |
|
19V/4.7A Power Adapter (with 1x US AC plugs + 1x EU plugs ) x1 |
x 1 |
|
11*2-pin Terminal Block Connector (Male) x1 |
x 1 |
|
120Ω Resistor |
x 5 |
|
Wi-Fi/BLE Antenna |
x 1 |
|
User Manual |
x 1 |
FAQ
What is the reComputer Industrial R2245‑12 mainly used for?
It is designed as an industrial Edge AI/IoT NVR, utilizing the Raspberry Pi CM5 and Hailo‑8 for 26 TOPS video analytics.
How many PoE ports are on the reComputer Industrial R2245‑12?
It includes 4× Gigabit Ethernet with PoE PSE for powering IP cameras directly.
What AI performance does the reComputer Industrial R2245‑12 offer?
It integrates the Hailo‑8 AI accelerator delivering up to 26 TOPS of inference performance.
