Seeed Studio reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

Seeed Studio reComputer Robotics J5011 with GMSL Ultra-Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

$3,176.99

The reComputer Robotics J5011 is a high-performance edge computing unit powered by the NVIDIA Jetson AGX Orin™ 32GB module. It offers an extensive set of I/O interfaces—including USB, Ethernet, CAN, RS-232/422/485, DI/DO, and GMSL—providing the critical connectivity required for advanced robotic systems.

With additional expansion through an M.2 Key E slot for Wi-Fi/Bluetooth and an M.2 Key B slot for 4G/5G modules, the J5011 serves as an ideal computing “brain” for sophisticated mobile robots (AMR) and autonomous vehicles, delivering both flexibility and scalability for real-world AI deployment.



Features

  • Powerful Embodied AI Platform: Compatible with the Jetson AGX Orin 32GB module, offering a massive computing capability of 200 TOPS. It is the perfect platform for embodied AI and AMR development.
  • Multi-Connectivity: Featuring 2x M.2 Key M slots for high-speed SSD storage, an M.2 Key E slot for Wi-Fi, and an M.2 Key B slot for 4G/5G cellular connectivity.
  • Wide Voltage Input Range: Designed for industrial reliability, it can be seamlessly integrated into 48V battery power systems.
  • Rich I/O Capabilities: Includes the most common interfaces used in robotics prototyping, such as USB, 10G Ethernet, CAN Bus, RS-232/422/485, I2C, SPI, and I2S.
  • Vision AI Support: Features 4x 4-lane CSI output and supports up to 8x GMSL2 cameras, making it ideal for Vision AI applications such as BEV (Bird's Eye View), Occupancy Grid, and SLAM.

Specifications

Product

reComputer Robotics J5011 with GMSL Extension

Storage

2x M.2 Key M slot (1x 128G SSD included)

Networking

1x M.2 Key E for WiFi/Bluetooth; 1x M.2 Key B for 4G/5G module

I/O

USB

3x USB 3.0 Type-A (5Gbps); 1x USB 3.0 Type-C (Recovery); 1x USB 2.0 Type-C (Debug)

Ethernet

4x 1G Ethernet; 1x 10G Ethernet

GMSL

8x GMSL2 (MAX96712 deserializer)

CAN

4x CAN (CAN-FD supported)

Serial

2x RS-232/422/485

DI/DO

4x DI / 4x DO

Other IO

1x SPI, 1x I2C, 1x I2S

Display

1x HDMI 2.1

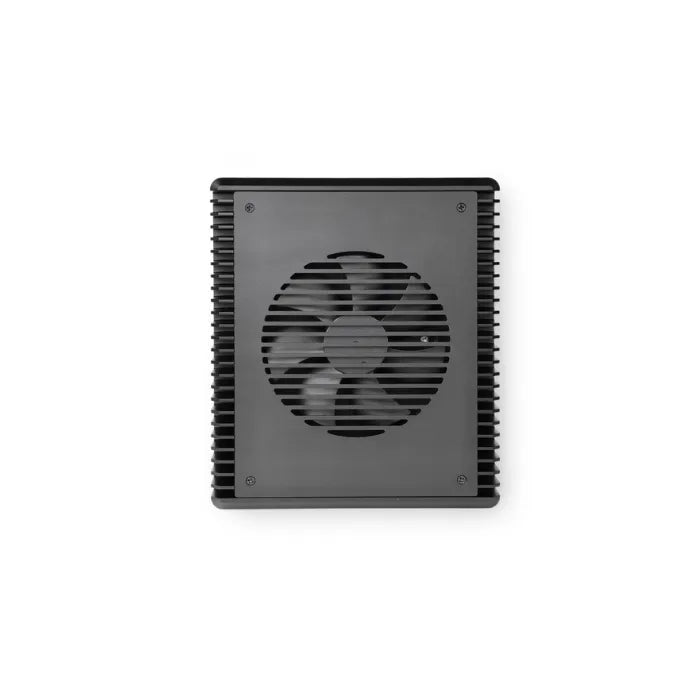

Cooling

1x 4-pin Fan Connector (12V PWM)

Buttons

Reset & Recovery Buttons

RTC

1x RTC 2-pin; 1x RTC socket

Power

DC 19V ~ 48V Terminal Block (2-pin)

Mechanical

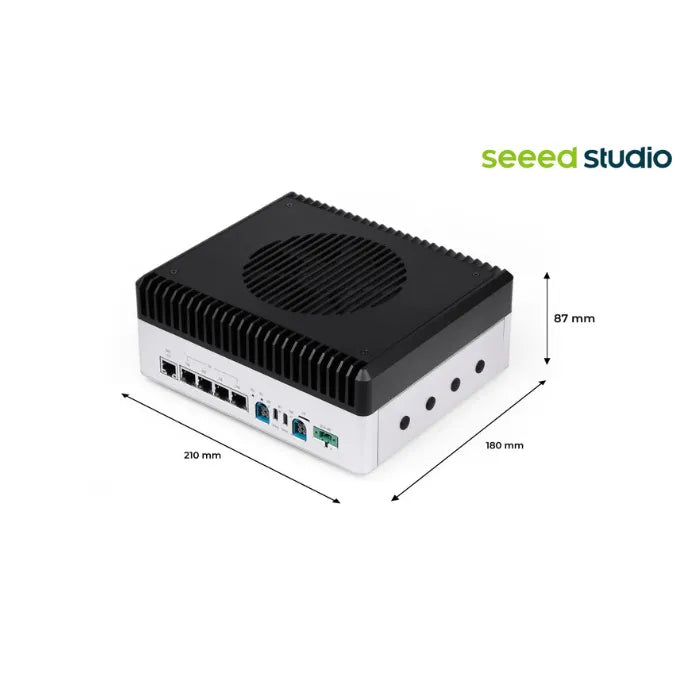

Dimensions

210mm*180mm*87mm (with stands)

Weight

2.95 kg

Installation

Desktop, Wall-mounting

Temperature

-10℃ ~ 60℃ operating range

Warranty

2 Years

Compatible GMSL Cameras Supported in Jetpack

Manufacturer

Model

Resolution

Sensing

SG3S-ISC031C-GMSL2F

1920H*1536V

SG2-AR0233C-5200-G2A

1920H*1080V

SG2-IMX390C-5200-G2A

1920H*1080V

SG8S-AR0820C-5300-G2A

3840H*2160V

Orbbec

Orbbec Gemini 335Lg

3D

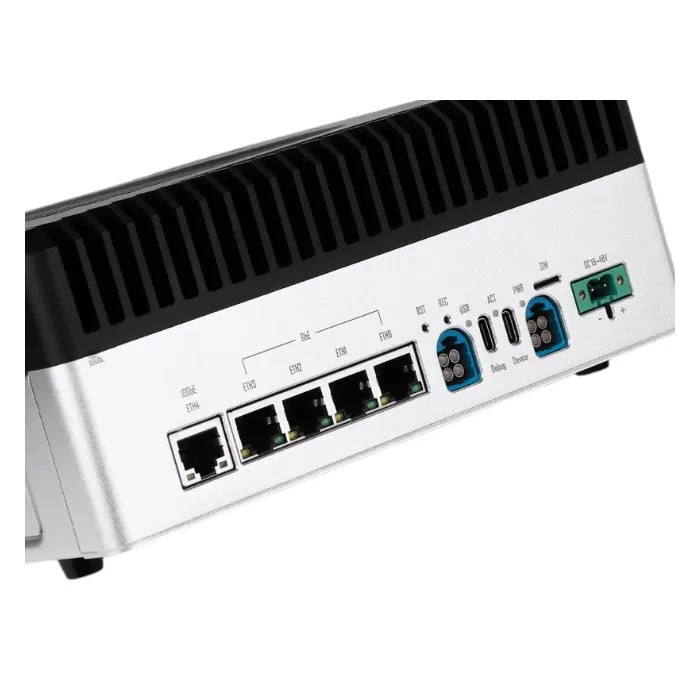

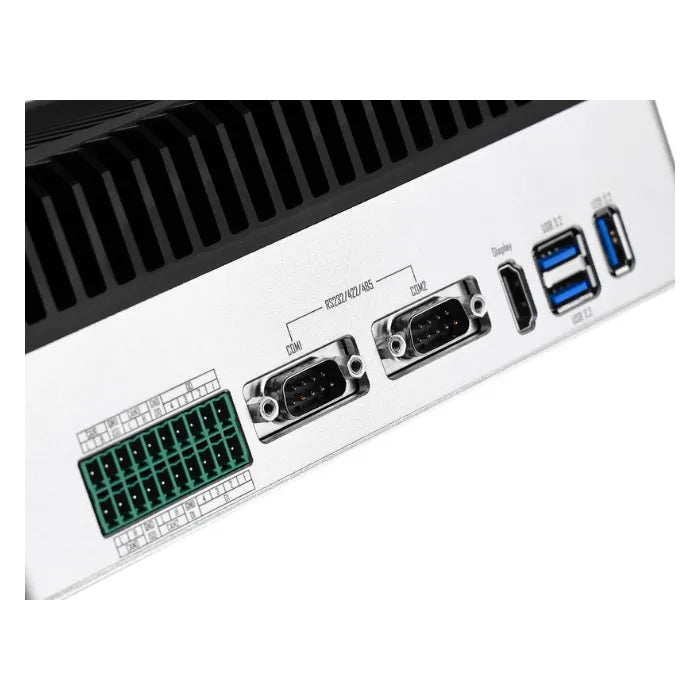

Hardware Interface Overview


Robotics and Edge AI Applications


Advanced Robotics and Edge AI Applications

  • Autonomous Mobile Robots (AMR)

  • AI Robot Development Ecosystem

Powered by the AGX Orin module, this high-performance embedded AI system enables the development of sophisticated robotics and edge AI applications across smart manufacturing, logistics automation, and digital healthcare. As one of the most powerful embedded systems available, it pushes the boundaries of AI-driven robotics. The NVIDIA Isaac™ platform provides an extensive suite of accelerated libraries, framework tools, and generative AI models to drastically improve AI perception, robotic manipulation, and high-fidelity simulation.

Discover the Isaac platform:

Isaac - AI Robot Development Platform | NVIDIA Developer

  • Multi-Sensor Fusion for Autonomous Mapping & Navigation

The reComputer Robotics J5011 supports sensor-rich autonomy by seamlessly integrating data from LiDAR (via Ethernet/CAN), 3D cameras (via USB/CSI), GPS, and IMU (via UART). Utilizing advanced AI models and algorithms such as ORB-SLAM, A-LOAM, NVBlox, or Nav2, it facilitates high-precision sensor fusion, real-time localization, path planning, and dynamic obstacle avoidance. The low-latency processing of the AGX Orin SoC allows autonomous systems to adjust to environmental changes instantly. Its wide voltage input and ruggedized form factor make it perfect for mobile edge deployment.

  • Designed for Demanding Edge AI Workloads:

Optimized for AMR, smart retail analytics, industrial IoT, and Intelligent Video Analytics (IVA) scenarios.

The NVIDIA Isaac™ Platform provides CUDA-accelerated libraries and AI application frameworks necessary to build next-generation humanoid robots, robotic arms, and autonomous manipulators.


Product Certifications & Customs Info

HSCODE 8471504090
USHSCODE 8517180050
EUHSCODE 8471707000
COO CHINA

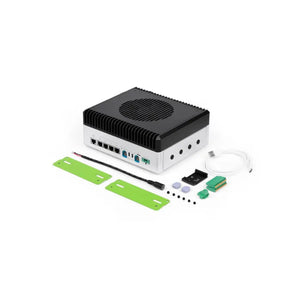

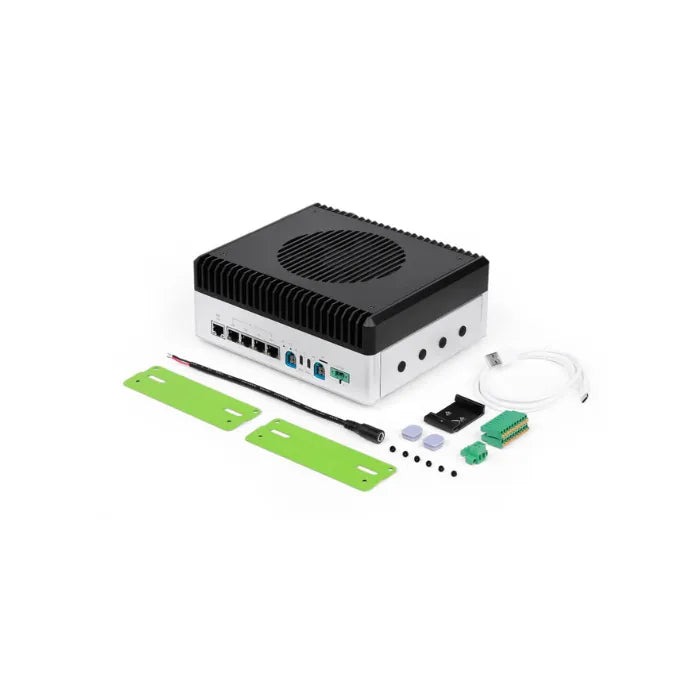

Package Contents (Part List)

reComputer Robotics J5011 Unit

x1

NVIDIA Jetson AGX Orin 32GB Module (Installed)

x1

128GB NVMe SSD (Installed)

x1

Terminal Block to DC Power Cable

x1

USB Type-C to Type-A Cable

x1

Panel Mount Brackets

x2

DIN Rail Mounting Kit

x1
