Seeed Studio reTerminal CM4104032 AI IoT IIoT Human Machine Interface All-in-one Board

Seeed Studio reTerminal CM4104032 AI IoT IIoT Human Machine Interface All-in-one Board

$353.89

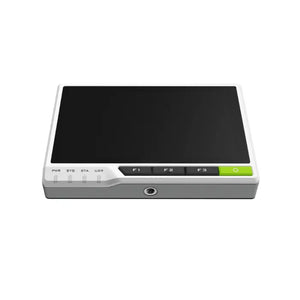

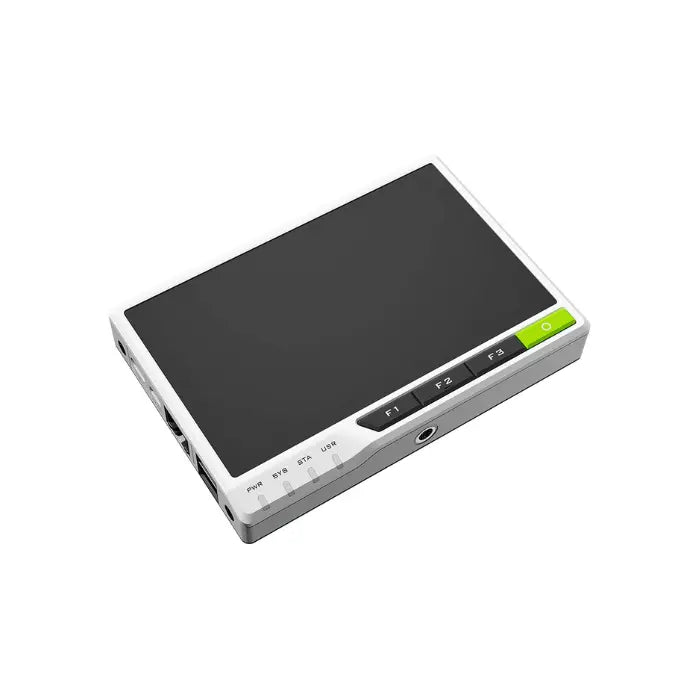

reTerminal Features

  • 🖥️ Raspberry Pi All-in-One Board: Powered by RPi CM4 32GB, integrated with IPS multi-touch screen, dual-band Wi-Fi & Bluetooth, pre-installed Linux system.

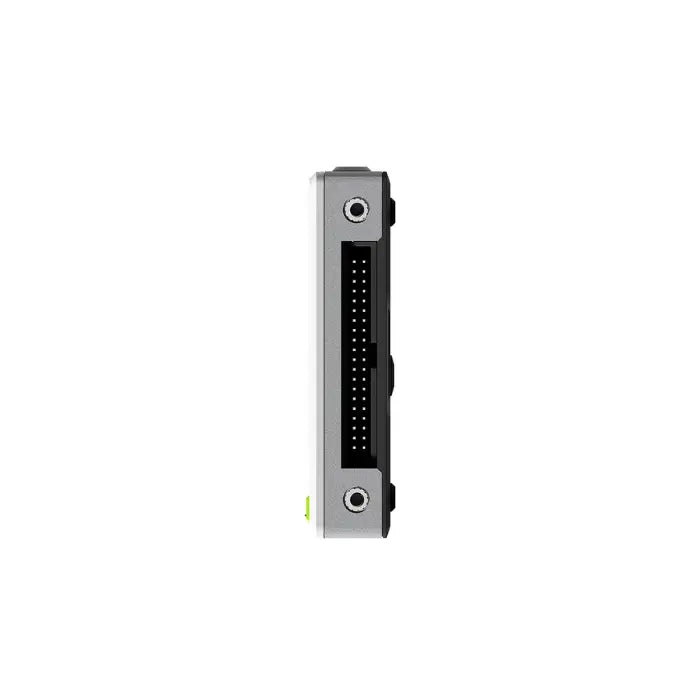

  • 🔧 Modular Design: Industrial high-speed expansion interface and 40-Pin Raspberry Pi compatible header.

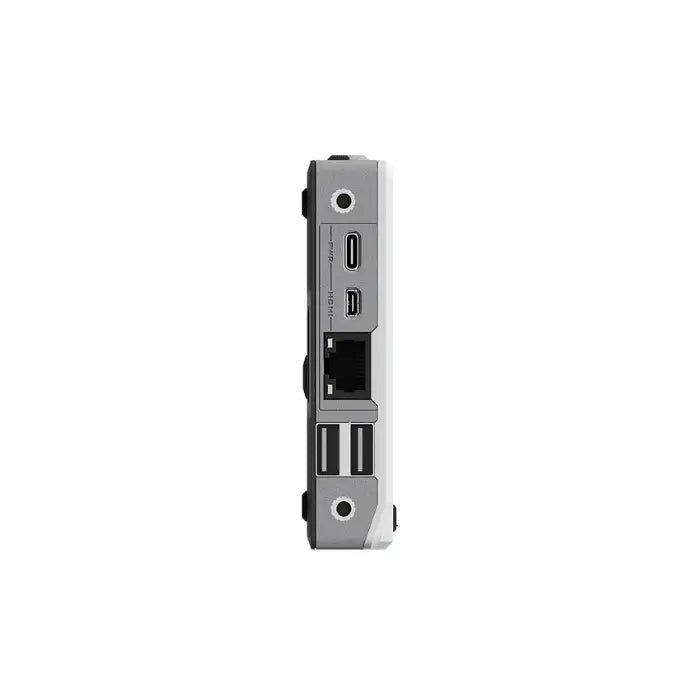

  • 🔌 Rich Interfaces & Components: Includes USB Type-A ports, Gigabit Ethernet, micro-HDMI, micro-SD slot, MIPI camera interface, light sensor, accelerometer, buzzer, RTC, and programmable buttons.
  • 🤖 Personal Assistance: Explore dashboards or AI projects using built-in sensors and components.
  • 🏭 Industrial Facility: Stable Raspberry Pi OS, industrial connectors, cryptographic co-processor, and official Seeed expansion board reTerminal E10-1 supporting DC Jack/PoE/UPS, Gigabit Ethernet, LTE/4G/5G/LoRaWAN, RS485/232, CAN, SATA 2.0.

📅 Note: Product Lifetime: at least until 2034 (Based on Raspberry Pi)

📊 Specifications

Platform Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8)
Frequency 64-bit SoC @ 1.5GHz
Memory Capacity 4GB
Technology LPDDR4 with on-die ECC
eMMC Capacity 32GB
Wireless Wi-Fi 2.4GHz & 5GHz IEEE 802.11b/g/n/ac
Bluetooth Bluetooth 5.0, BLE
Display LCD 5-inch 720x1280 LCD
Touch Panel Capacitive multi-touch panel
Video HDMI 1 × Micro HDMI output (up to 4Kp60)
CSI 1 × 2-lane MIPI CSI camera interface
Multimedia H.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode), OpenGL ES 3.0
Built-In Modules RTC NXP PCF8563T
Accelerometer ST LIS3DHTR, 16-bit ±2g/±4g/±8g/±16g
Encryption Microchip ATECC608A, Secure Key Storage
Light Sensor LTR-303ALS-01, Digital light sensor
Internal IO Expansion Microchip MCP23008-E
Buzzer ≥85dB @10cm, 2700±300Hz
External I/O GPIOs Up to 5× UART, 5× I2C, 5× SPI, SDIO, DPI, PCM, PWM, GPCLK
Vertical Expansion PCIe Gen2, USB 2.0, 26 GPIOs, PoE
Power Voltage 5V DC
Current 3A (Minimum)
Temperature Operating 0–70°C (LCD: 0–60°C)

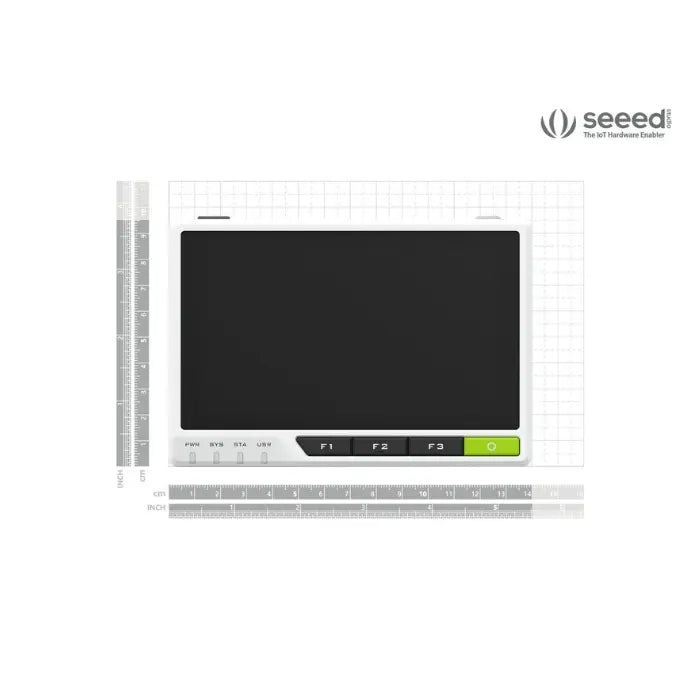

Mechanical Dimensions 140mm × 95mm × 21mm
Weight 285g
Certification Certificates CE, FCC, TELEC

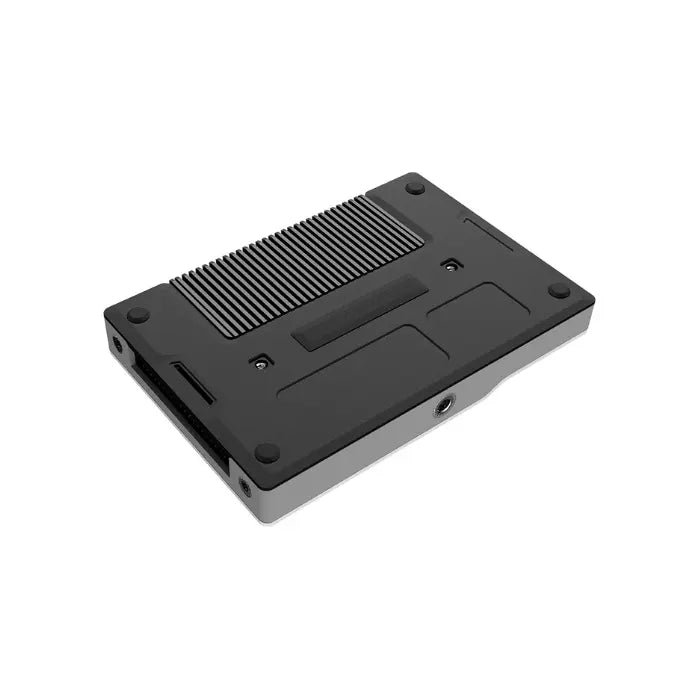

🖥️ Hardware Overview

Hardware Overview

📌 Note: Before attaching a camera with CSI 22-pin cable, ensure FFC contact pins face up.

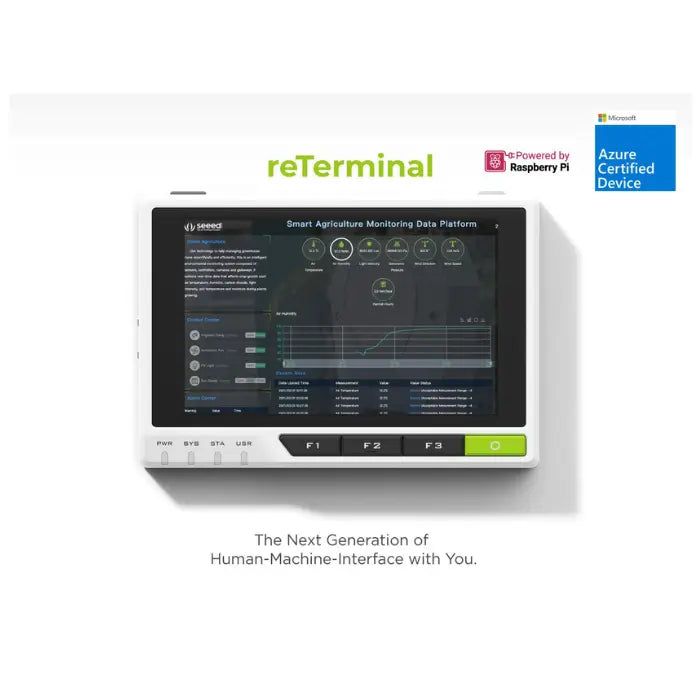

📦 Applications

The reTerminal is a versatile development board built around Raspberry Pi CM4. Its modular design and rich interfaces support numerous IoT & AI projects from Seeed and the community.

For Industrial IoT, the reTerminal includes a cryptographic co-processor, stable Linux OS, high-speed expansion connector, universal I/O, and hardware security—ideal for industrial monitoring and control.



    📦 Part List

    reTerminal CM4104032 x1
    Screwdriver x1
