Seeed Studio SO-ARM101 Low-Cost AI Arm Servo Motor Kit Pro for LeRobot

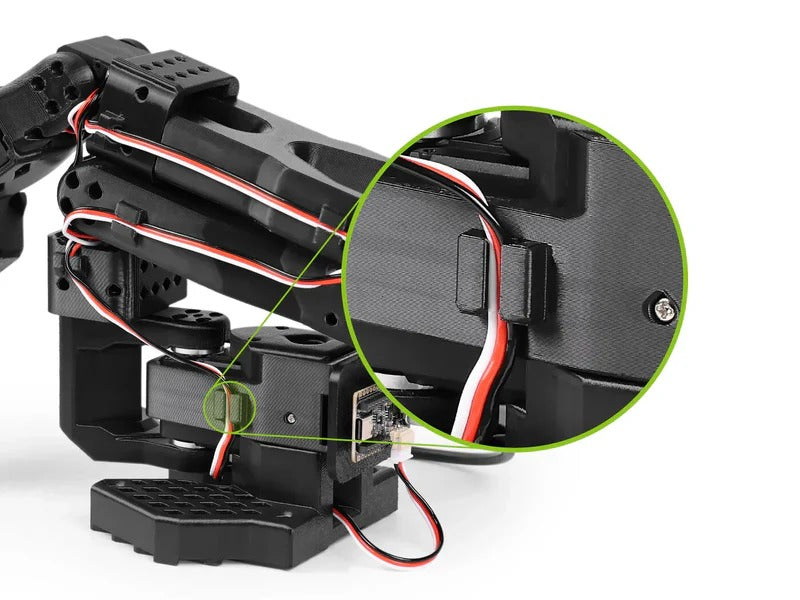

The Seeed Studio SO-ARM101 represents the next generation of cost-effective, open-source AI robotic arms, building upon the foundational SO-ARM100 with significant enhancements. This version features optimized wiring to eliminate previous disconnection issues at Joint 3 and ensure unrestricted range of motion. A key upgrade includes different gear ratios for the leader arm's motors, boosting performance and removing the need for external gearboxes.

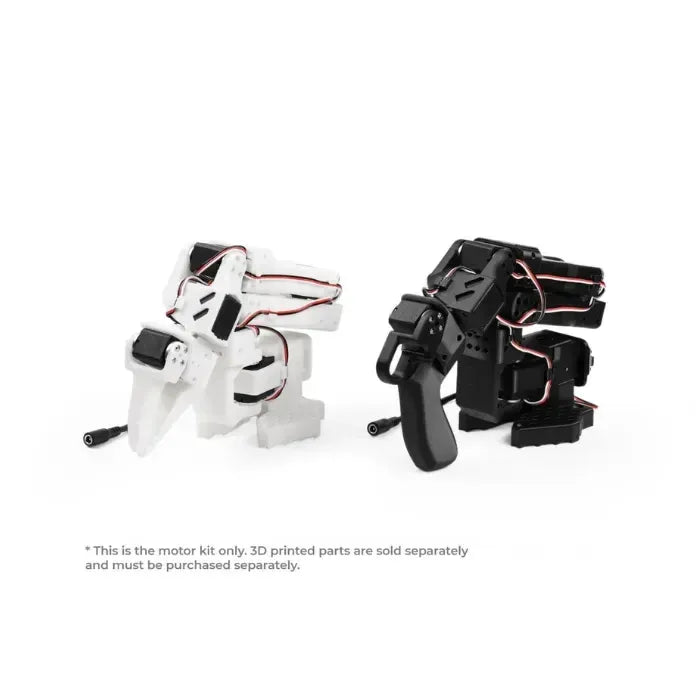

Crucially, the SO-ARM101 supports real-time leader-follower arm functionality, a vital feature for upcoming reinforcement learning (RL) applications where human intervention can correct robot actions. This robotic arm is designed for makers, educators, and AI enthusiasts seeking an affordable, yet powerful, platform for robotics and AI research.
Note: The SO-ARM101 requires a 3D printed skeleton for assembly, which is sold separately.
SO-ARM 10x Series Highlights
Open-Source & Cost-Effective
An accessible and open-source robotic arm solution from TheRobotStudio, perfect for learning and innovation in AI and robotics.
LeRobot Platform Integration
Seamlessly integrates with the LeRobot platform, providing PyTorch models, datasets, and tools for the entire robotics pipeline: Data Collection → Simulation → Training → Deployment.
Comprehensive Learning Resources
Gain access to a full suite of open-source educational materials, including assembly & calibration guides, testing workflows, and step-by-step tutorials for data collection, model training, and deployment.
NVIDIA-Ready Deployment
Optimized for edge AI, compatible with the reComputer Mini J4012 Orin NX 16GB for powerful, real-world applications. Note: Seeed Studio provides only the hardware for LeRobot; the 3D printed skeleton is sold separately.
Technical Specifications
|
SO-ARM10x Low-Cost AI Arm Kit and Arm Kit Pro Comparison |
||||
| Type |
SO-ARM100 |
SO-ARM101 |
||
|
Arm Kit |
Arm Kit Pro |
Arm Kit |
Arm Kit Pro |
|
| Leader Arm | 12x (7.4V) 1:345 gear ratio motors for all joints | 12x (12V) 1:345 gear ratio motors for all joints |
1x (7.4V) 1:345 gear ratio motor for No.2 joint |
|
|
2x (7.4V) 1:191 gear ratio motors for No.1 and No.3 joints |
||||
|
3x (7.4V) 1:145 gear ratio motors for No.4, No.5 joints and the No.6 gripper |
||||
| Follower Arm |
Same as SO-ARM100 |
Same as SO-ARM100 |
||
| Power Supply | 5.5mm*2.1mm DC 5V4A | 5.5mm*2.1mm DC 12V2A | 5.5mm*2.1mm DC 5V4A |
5.5mm*2.1mm DC 12V2A For Follower Arm |
|
5.5mm*2.1mm DC 5V4A For Leader Arm |
||||
| Angle Sensor |
12-bit magnetic encoder |
|||
| Operating Temperature Range |
0℃～40℃ |
|||
| Communication Method |
UART |
|||
| Control Method |
PC |
|||
Applications & LeRobot Integration
Imitation Learning and Reinforcement Learning
The LeRobot framework offers seamless compatibility with the SO-ARM10x robotic arm, providing a complete toolkit for intelligent control and training. It facilitates:
- Data collection, model training, and deployment for adaptive learning.
- A powerful simulation platform for testing grasp and placement behaviors.
- Seamless integration with NVIDIA Jetson devices for accelerated on-edge performance.
Leveraging LeRobot on Jetson, training a custom robotic arm for complex tasks like grasping and object placement becomes efficient, fast, and ready for hardware deployment.
For setup guides and advanced tutorials, visit: LeRobot - NVIDIA Jetson AI Lab
Documentation & Resources
- STS3215 Servo Motor Datasheet
- Finetuned 3D Printed Parts Files
- Original SO-ARM101 3D Printed Parts (GitHub)

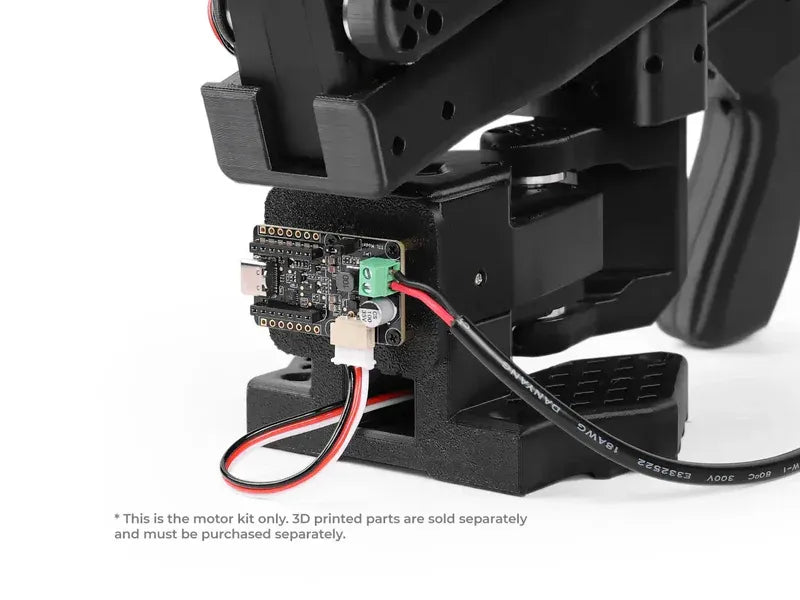

- Servo Adaptor Board for Seeed Studio XIAO Datasheet
- reComputer J301x Datasheet
- reComputer J401x Datasheet
