Seeed Studio XIAO ePaper 7.3 inch DIY Kit

Seeed Studio XIAO ePaper 7.3 inch DIY Kit

$70.71

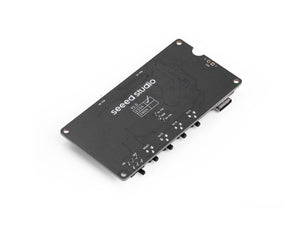

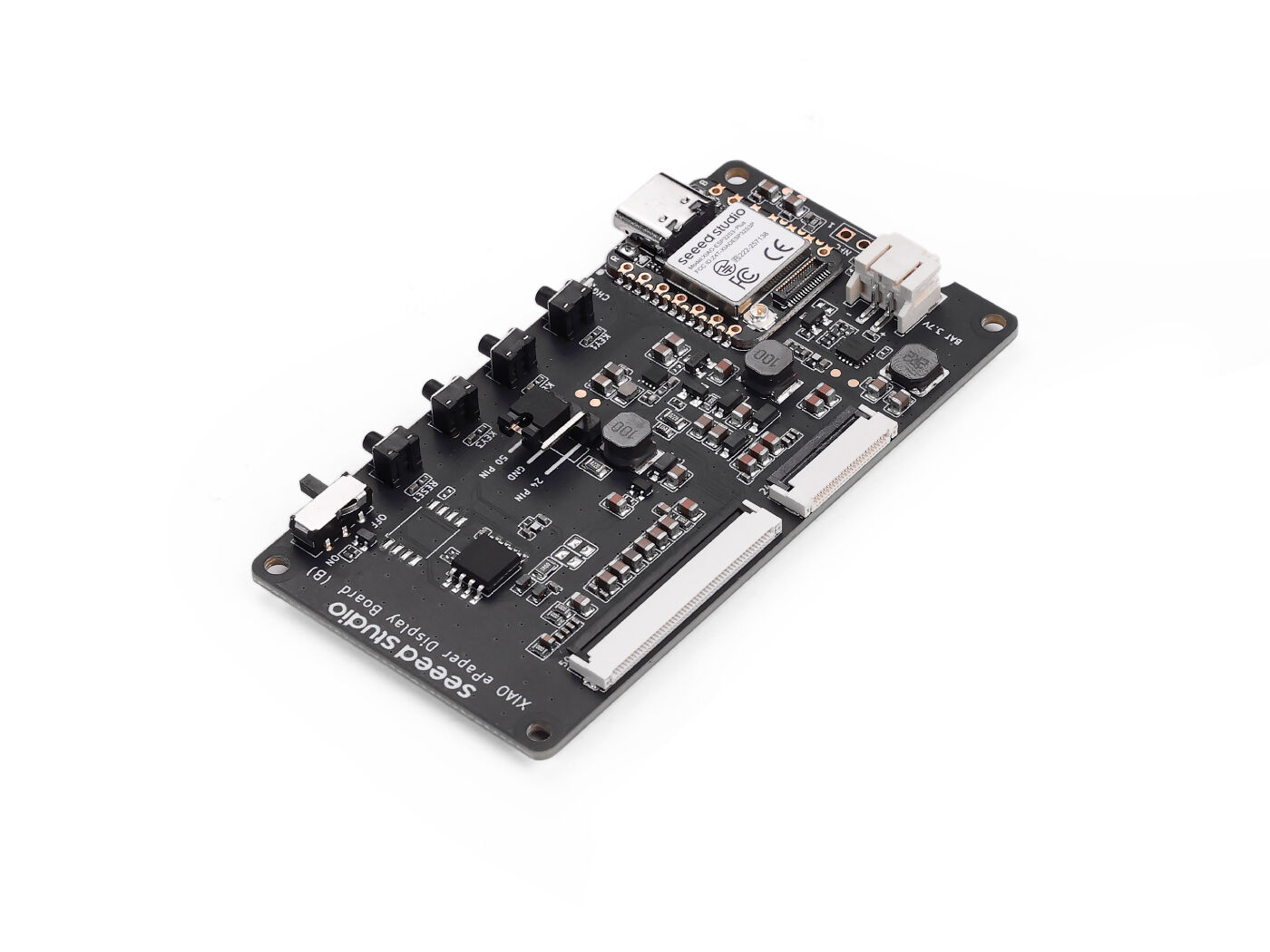

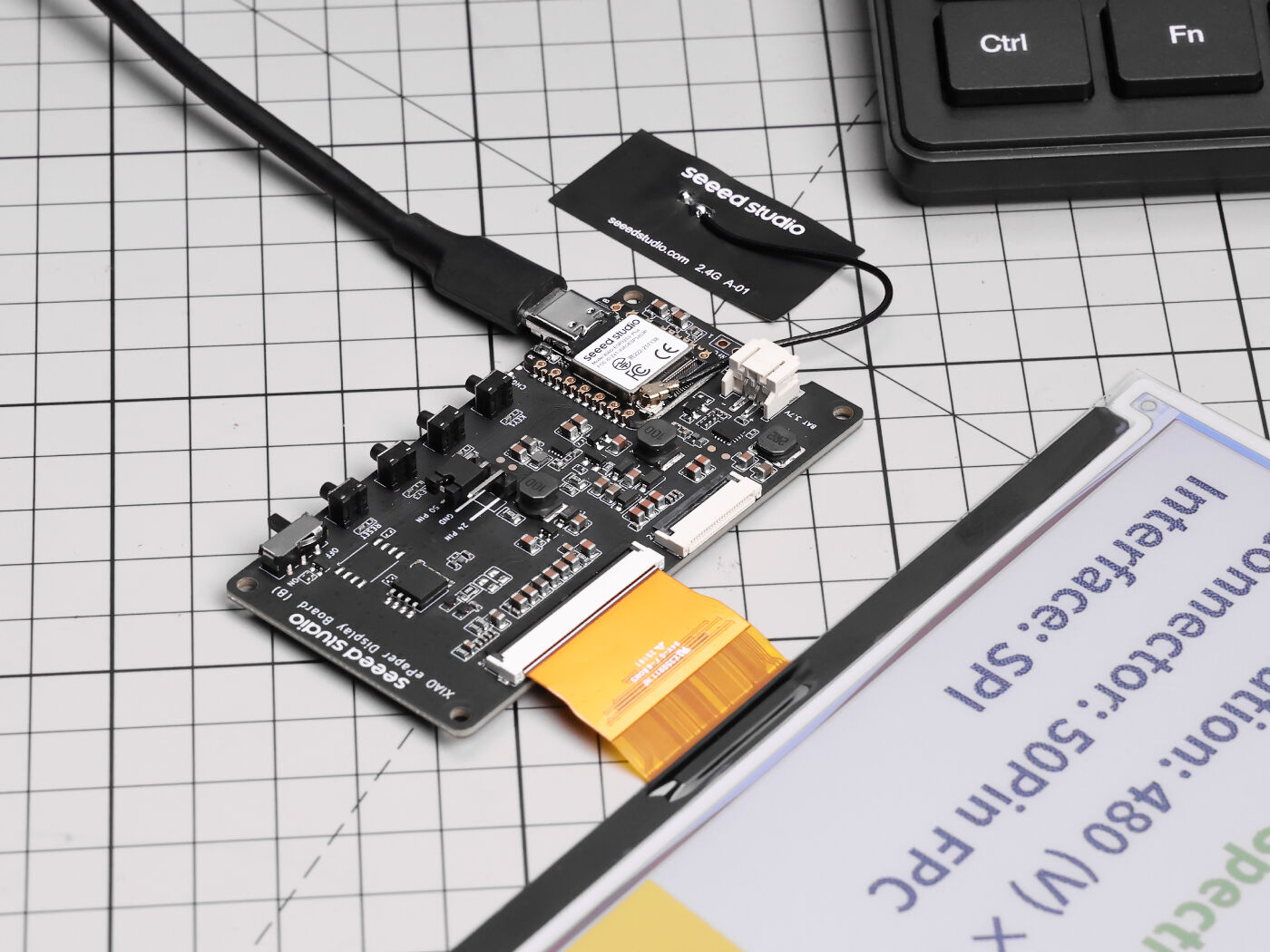

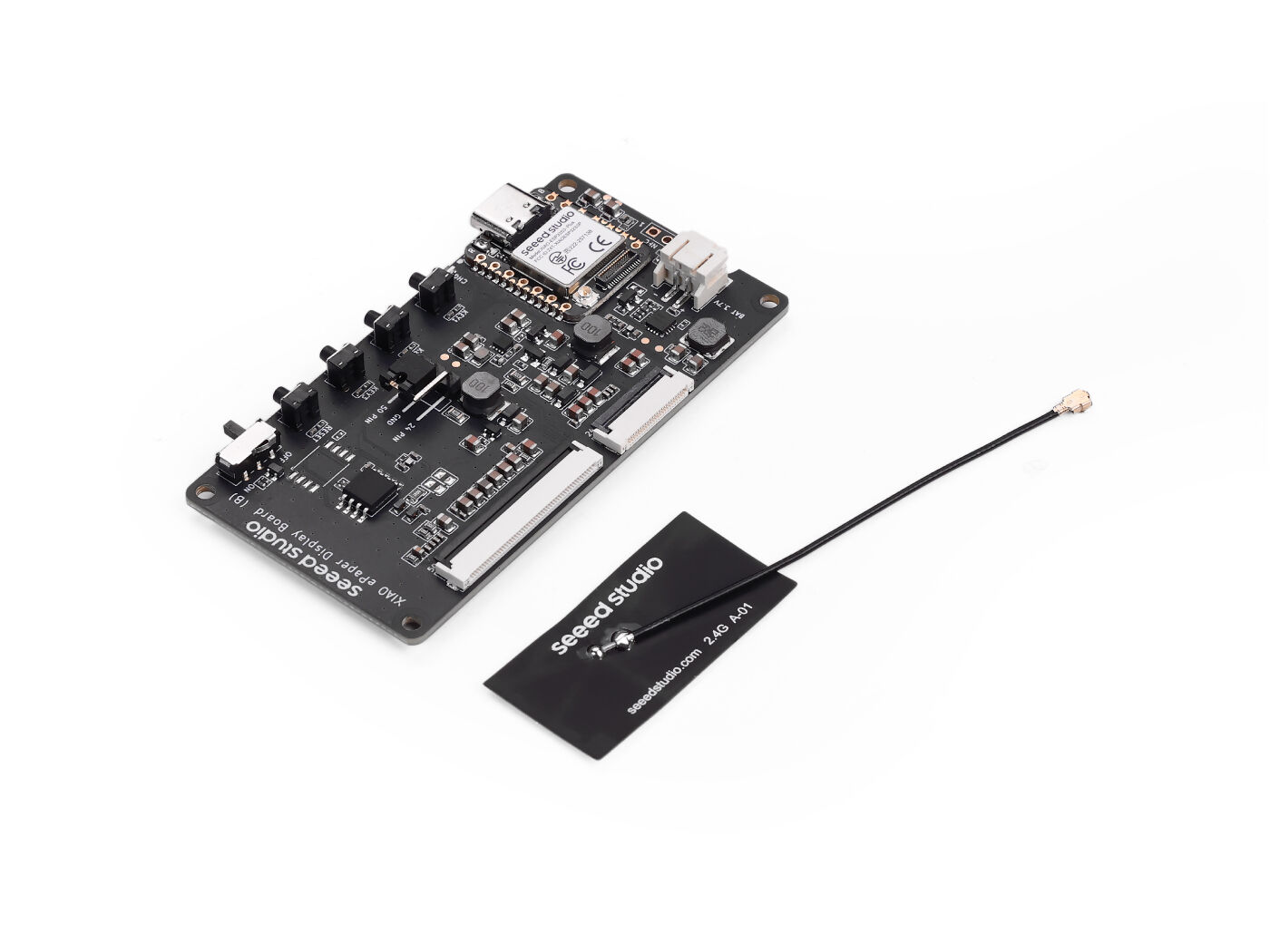

🖥️ EE04 Display Board – Powered by XIAO ESP32-S3 Plus ⚡

The EE04 Display Board is a compact and powerful solution for your ePaper projects. Powered by the 💪 XIAO ESP32-S3 Plus, it supports both 24-pin and 50-pin ePaper displays 🧩—giving you flexibility across formats.

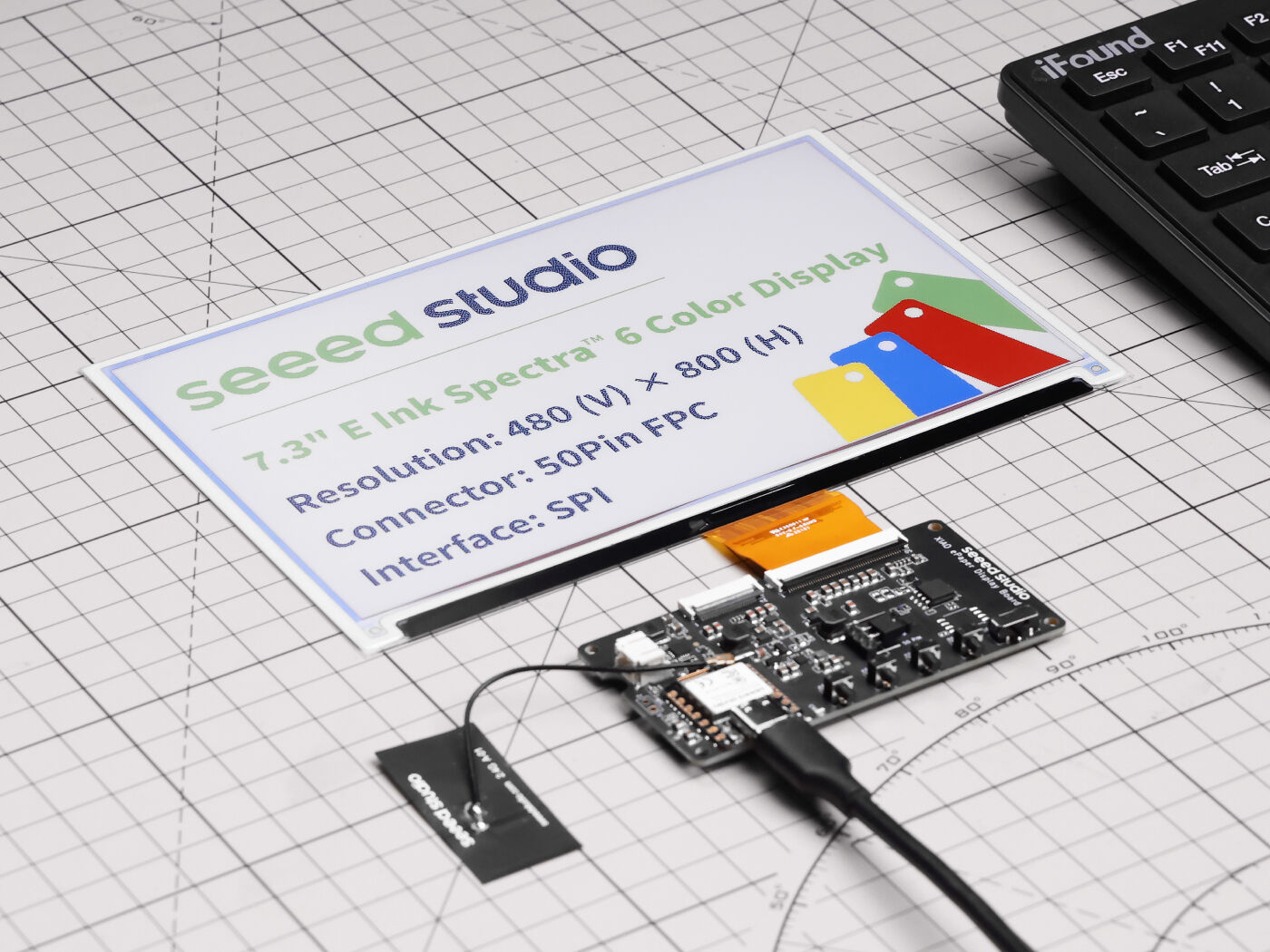

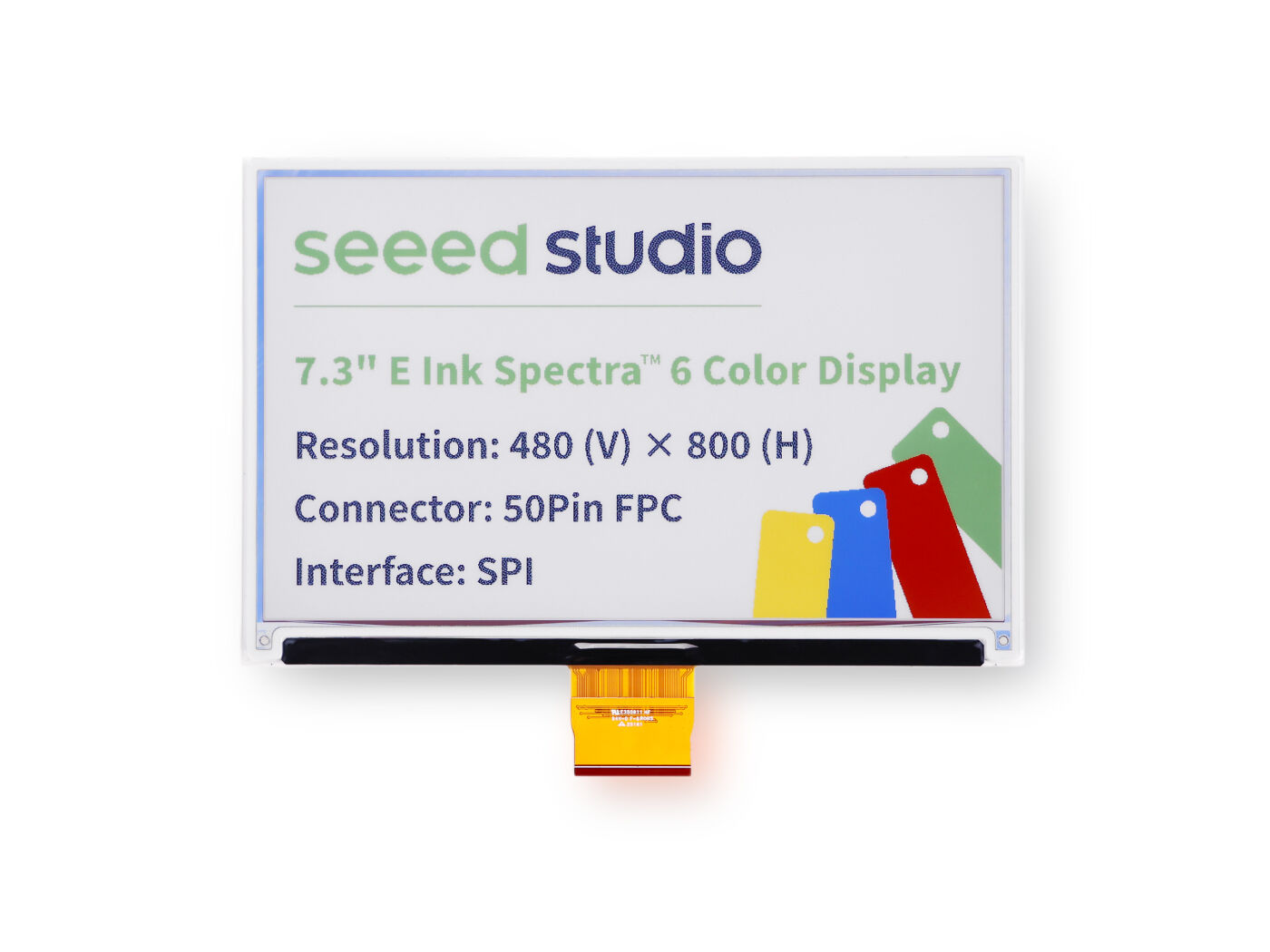

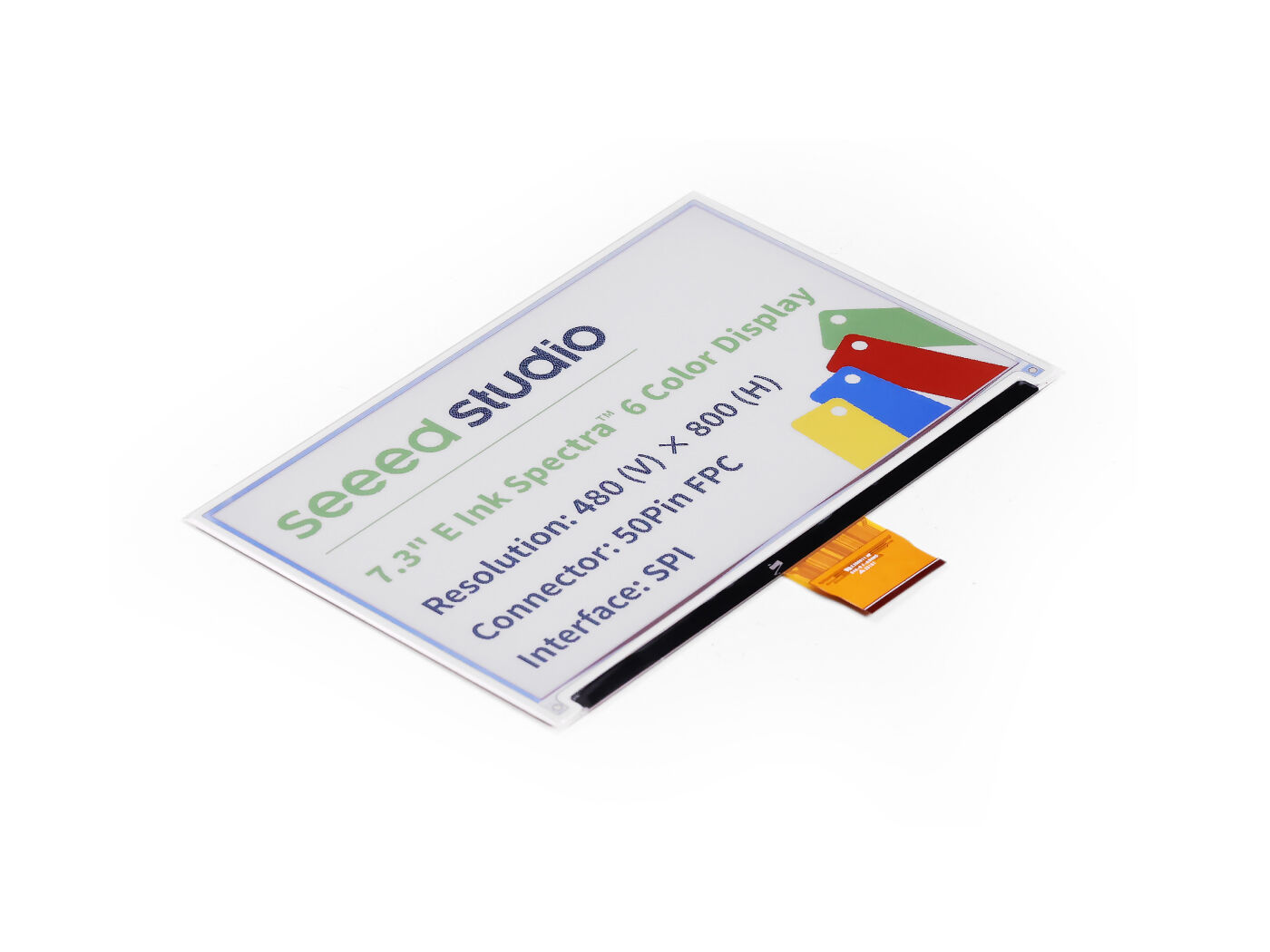

🖼️ 7.3" Spectra™ 6 ePaper Display – Vivid, Efficient, Versatile

The 7.3-inch Spectra™ 6 ePaper Display delivers a high-quality, low-power solution ⚡ for a wide range of applications—from smart wearables to digital signage.


🔋 Smart Power Features

  • JST 2.0 mm battery connector 🔌

  • Built-in power switch 🟢

  • Integrated charging IC 🔋

  • One reset 🔁 and three user buttons 🎛️ for easy control

📐 Display Specs

  • 📏 Size: 7.3" diagonal

  • 🖥️ Resolution: 800 × 480 pixels

  • 🎨 Colors: Black ⚫, White ⚪, Yellow 💛, Red ❤️, Green 💚, Blue 💙

⚡ Performance Highlights

  • 🚀 Fast refresh rate for smooth updates

  • 🌈 Excellent contrast for crisp visuals

  • 🔋 Ultra-low power consumption—perfect for battery-powered devices


🧠 Ideal for Low-Power Applications

  • 📚 E-readers

  • ⌚ Smart wearables

  • 🧳 Portable info panels

  • 🏷️ Electronic shelf labels



Features

🧠 EE04 Display Board – Smart, Simple, Seamless

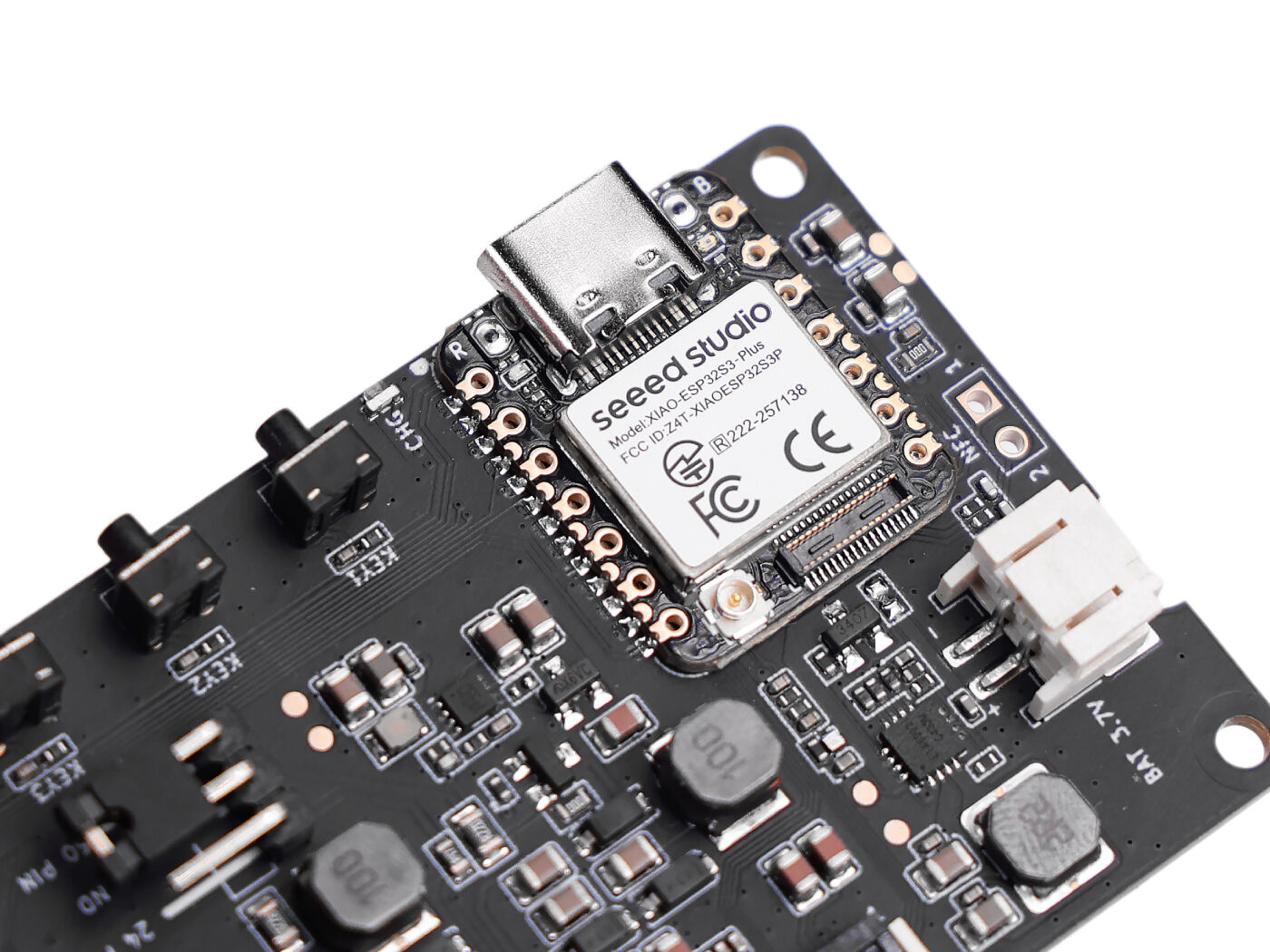

⚙️ Powered by XIAO ESP32-S3 Plus Plug it in and go! Instantly works with compatible ePaper displays—no setup fuss, just pure functionality.

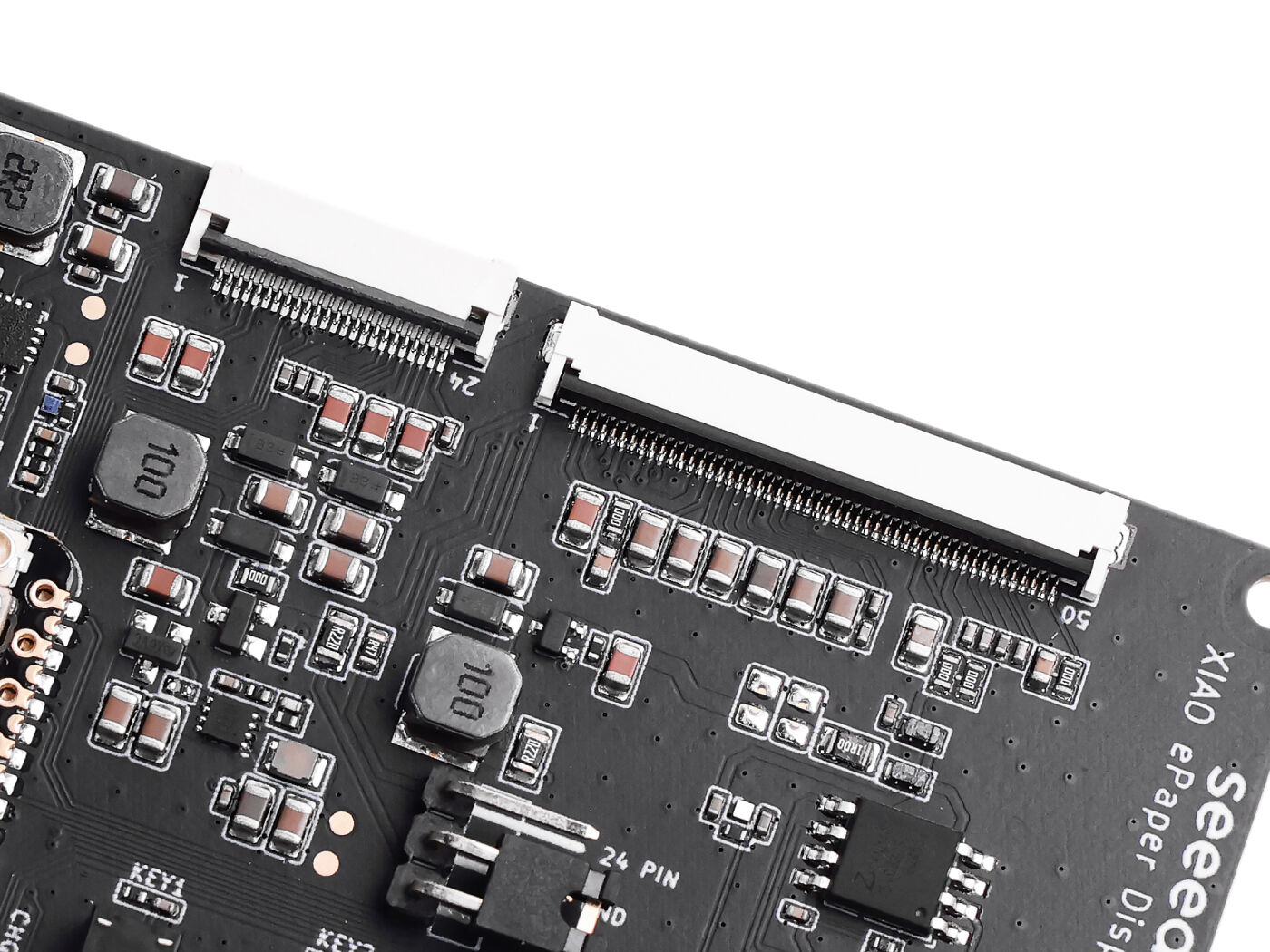

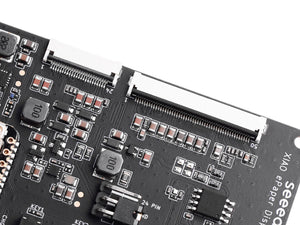

🖼️ Versatile Display Support Supports both 24-pin and 50-pin ePaper screens with effortless switching via jumper caps. One board, many possibilities.


🔋 Battery Connector with Power Switch Connect your battery in seconds! Integrated switch allows smart power control and energy-efficient operation.


🎛️ Intuitive Button Layout Includes 1 reset and 3 user-programmable buttons—ideal for rapid prototyping, custom functions, and interactive control.


🚀 No-Code UI Creation with SenseCraft HMI

Design stunning dashboards without writing a single line of code!

  • 🖱️ Drag-and-drop interface

  • 🎨 Rich template library

  • 🤖 AI-assisted layout suggestions

  • 🌐 Real-time data integration via web APIs

  • 📲 One-click deployment to your ePaper display

From concept to live display—all in one unified platform.



Specification

Parameter

ePaper Display Board EE04

ePaper Driver Board

ePaper Breakout Board

onBoard MCU

XIAO ESP32-S3 Plus

N/A but compatible with

all XIAO dev boards

N/A but

 compatible with all

 XIAO dev boards

Compatible ePaper Displays

-24 Pin ePaper

-50Pin epaper

24 Pin ePaper

24 Pin ePaper

ePaper Connector

-FPC 24 Pin, 0.5mm

-FCP 50 Pin, 0.5mm

FPC 24 Pin 0.5mm

FPC 24 Pin 0.5mm

Battery Connector

JST 2.0mm

JST 2.0mm

/

Switch

Battery Power ON/OFF

Battery Power ON/OFF

/

Power Supply

- 3.7V Li-Battery

- USB Type-C

- 3.7V Li-Battery

- USB Type-C

- USB Type-C



Button

-1x Reset button

-3x User button

/

/

Extension IO Port

/

connection of additional sensors

connection of others controller

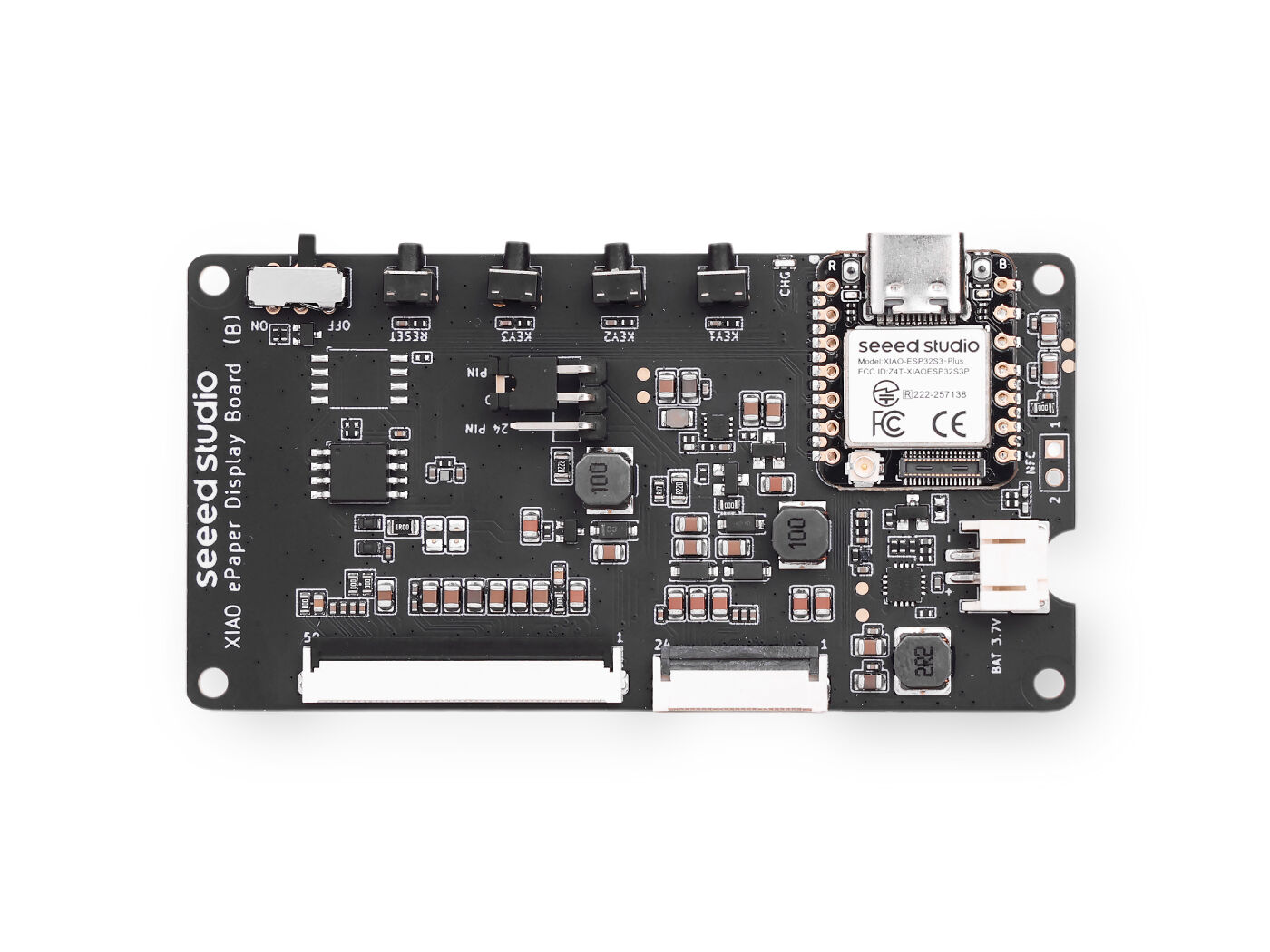

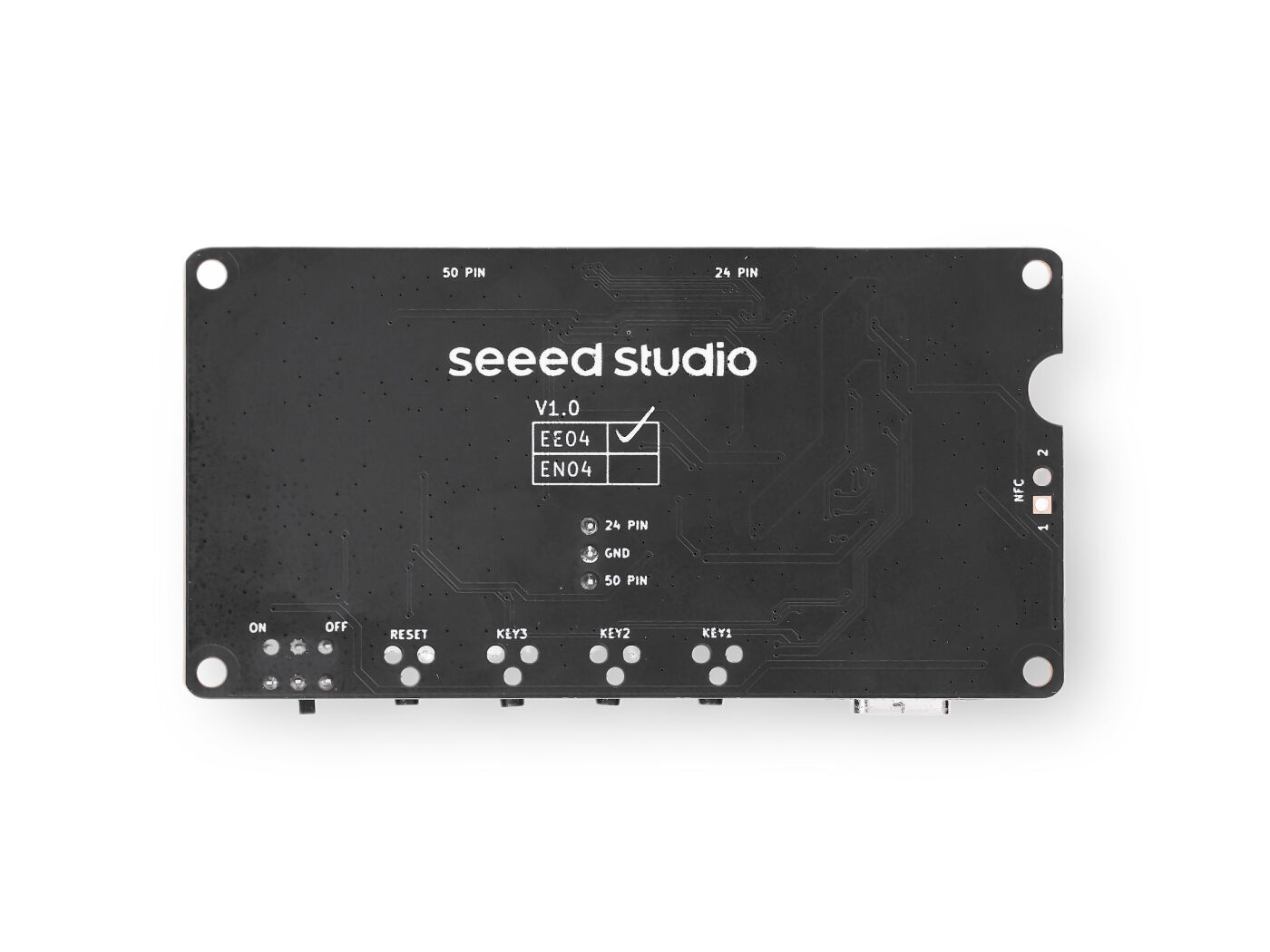

Hardware Overview

  • NFC Antenna Pins not applicable to this board.

Application
  • Smart Home Dashboard: Display real-time information such as weather updates, calendar events, and notifications from various smart home devices.
  • Energy Monitoring: Show energy consumption data from smart meters, helping homeowners track and manage their energy usage more efficiently.
  • Security Alerts: Display alerts and notifications about security events, such as motion detection or door/window sensor activation.
  • Digital Photo Frame: Create a WiFi-enabled digital photo frame that can display images from your smart home network.
