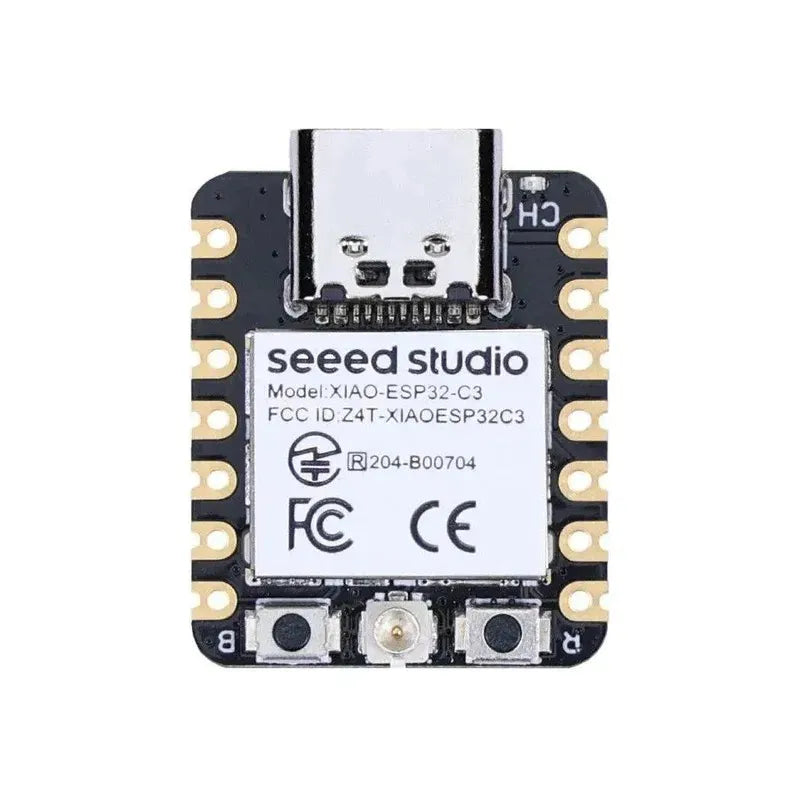

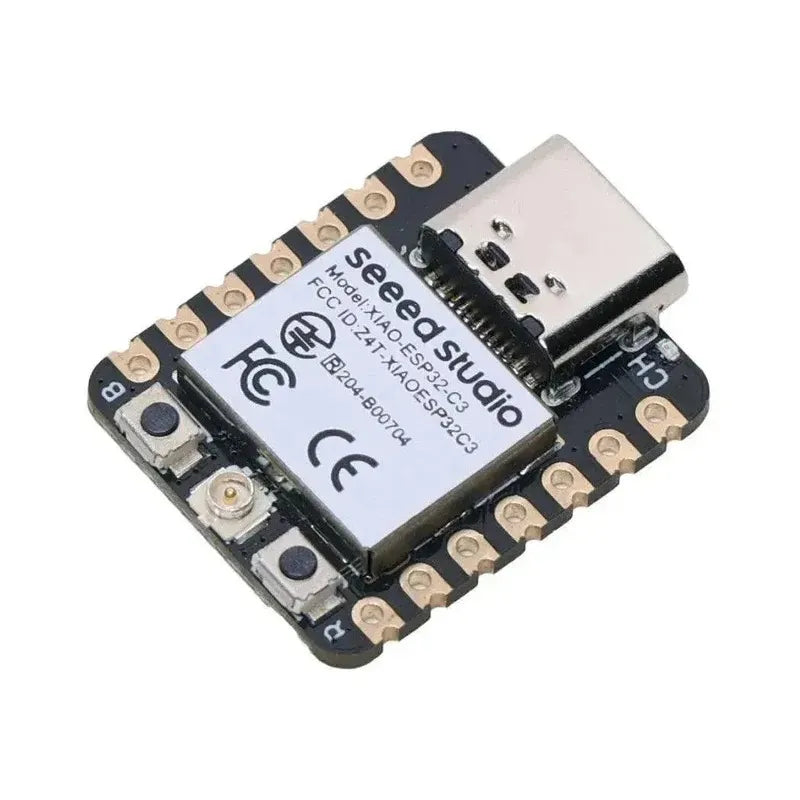

Seeed Studio XIAO ESP32C3 RISC-V Wi-Fi BLE 5.0 Battery Charge Supported
The Seeed Studio XIAO ESP32C3 is a compact IoT development board featuring the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. This board integrates a strong 32-bit RISC-V CPU, providing impressive computational capabilities thanks to its efficient design. It boasts excellent radio frequency performance, supporting both IEEE 802.11 b/g/n WiFi and Bluetooth 5 (BLE) protocols. An external antenna is included to boost the signal strength for various wireless applications. The board features a compact and elegant form-factor, along with a single-sided surface-mountable design. It offers an array of interfaces with 11 digital I/O that can function as PWM pins and 3 analog I/O that serve as ADC pins. The device supports four serial interfaces, including UART, I2C, and SPI. Additionally, there are small buttons for reset and bootloader mode integrated on the board.
Features
- Powerful CPU: The ESP32-C3 has a 32-bit RISC-V single-core processor that operates at speeds of up to 160 MHz.
- Complete Wi-Fi subsystem: Complies with the IEEE 802.11b/g/n protocol and supports various modes including Station mode, SoftAP mode, SoftAP + Station mode, and promiscuous mode.
- Bluetooth LE subsystem: Offers support for features provided by Bluetooth 5 and Bluetooth mesh.
- Ultra-Low Power: Achieves deep sleep power consumption levels around 43μA.

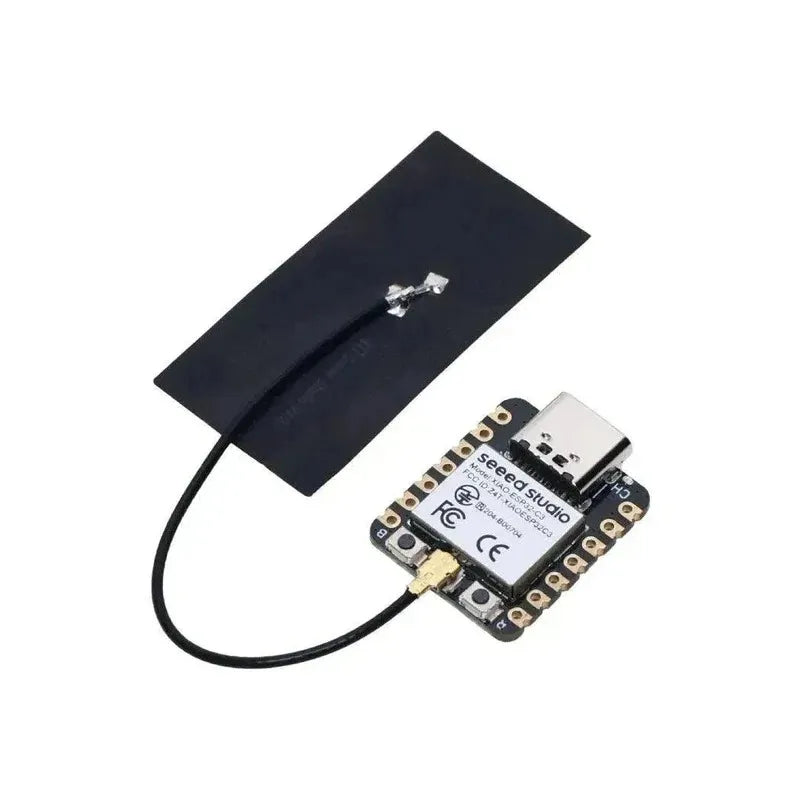

- Better RF performance: Comes with an external RF antenna to enhance signal performance.
- Battery charging chip: Enables lithium battery charge and discharge management.
- Rich on-chip resources: Includes 400KB of SRAM and 4MB of onboard flash memory.

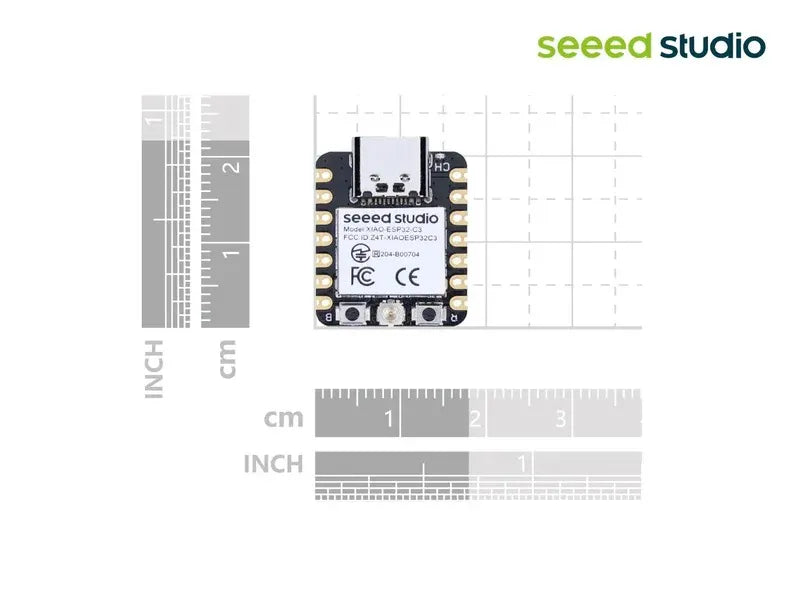

- Compact size: Measures just 21x17.8mm, making it suitable for wearable devices and small projects.
- Reliable security features: Utilizes cryptographic hardware accelerators supporting AES-128/256, Hash, RSA, HMAC, digital signatures, and secure boot.
- Versatile interfaces: Features 1x I2C, 1x SPI, 2x UART, 11x GPIO (PWM), 4x ADC, and 1x JTAG bonding pad interface.
- Components are single-sided and designed for surface mounting.
Specifications
|
Parameter |
Description |
|
Processor |
ESP32-C3 SoC |
|
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz |
|
|
Wireless |
Complete 2.4GHz Wi-Fi subsystem |
|
Bluetooth 5.0/ Bluetooth mesh |
|
|
On-chip Memory |
400KB SRAM & 4MB Flash |
|
Interface |
1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC |
|
1x Reset button, 1x Boot button |
|
|
Dimensions |
21 x 17.5mm |
|
Power |
Circuit operating voltage: 3.3V@200mA |
|
Charging current: 350mA/100mA |
|
|
Input voltage (VIN): 5V |
|
|
Deep Sleep Power Consumption |
Deep Sleep Model: >44 μA |
|
Wi-Fi Enabled Power Consumption |
Active Model: <75 mA |
|
Modem-sleep Model: <25 mA |
|
|
Light-sleep Model: <4 mA |
|
|
BLE Enabled Power Consumption |
Modem-sleep Model: <27 mA |
|
Light-sleep Model: <10 mA |
|
|
Operating Temperature |
-40°C ~ 85°C |
| Item | Seeed Studio XIAO ESP32C3 | Seeeduino XIAO | Seeed XIAO RP2040 | Seeed XIAO nRF52840 | Seeed XIAO nRF52840 Sense |
|---|---|---|---|---|---|
| Processor | ESP32-C3 32-bit RISC-V @160MHz | SAMD21 M0+@48MHz | RP2040 Dual-core M0+@133Mhz | nRF52840 M4F@64MHz | nRF52840 M4F@64MHz |
| Wireless Connectivity | WiFi and Bluetooth 5 (BLE) | N/A | N/A | Bluetooth 5.0/BLE/NFC | Bluetooth 5.0/BLE/NFC |
| Memory | 400KB SRAM, 4MB onboard Flash | 32KB SRAM 256KB FLASH | 264KB SRAM 2MB onboard Flash | 256KB RAM, 1MB Flash 2MB onboard Flash | 256KB RAM,1MB Flash 2MB onboard Flash |
| Built-in Sensors | N/A | N/A | N/A | N/A | 6 DOF IMU (LSM6DS3TR-C), PDM Microphone |
| Interfaces | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI |
| PWM/Analog Pins | 11/4 | 11/11 | 11/4 | 11/6 | 11/6 |
| Onboard Buttons | Reset/ Boot Button | N/A | Reset/ Boot Button | Reset Button | Reset Button |
| Onboard LEDs | Charge LED | N/A | Full-color RGB/ 3-in-one LED | 3-in-one LED/ Charge LED | 3-in-one LED/ Charge LED |
| Battery Charge Chip | ETA4054S2F | N/A | N/A | BQ25101 | BQ25101 |
| Programming Languages | Arduino/ MicroPython | Arduino/ CircuitPython | Arduino/ MicroPython/ CircuitPython | ||
The XIAO SoM User Manual offers open-source hardware and software resources for the XIAO platform, providing comprehensive product design guidelines that assist in accelerating project development, streamlining design processes, and facilitating a smooth transition from module selection to full-scale production. You can find additional information here.

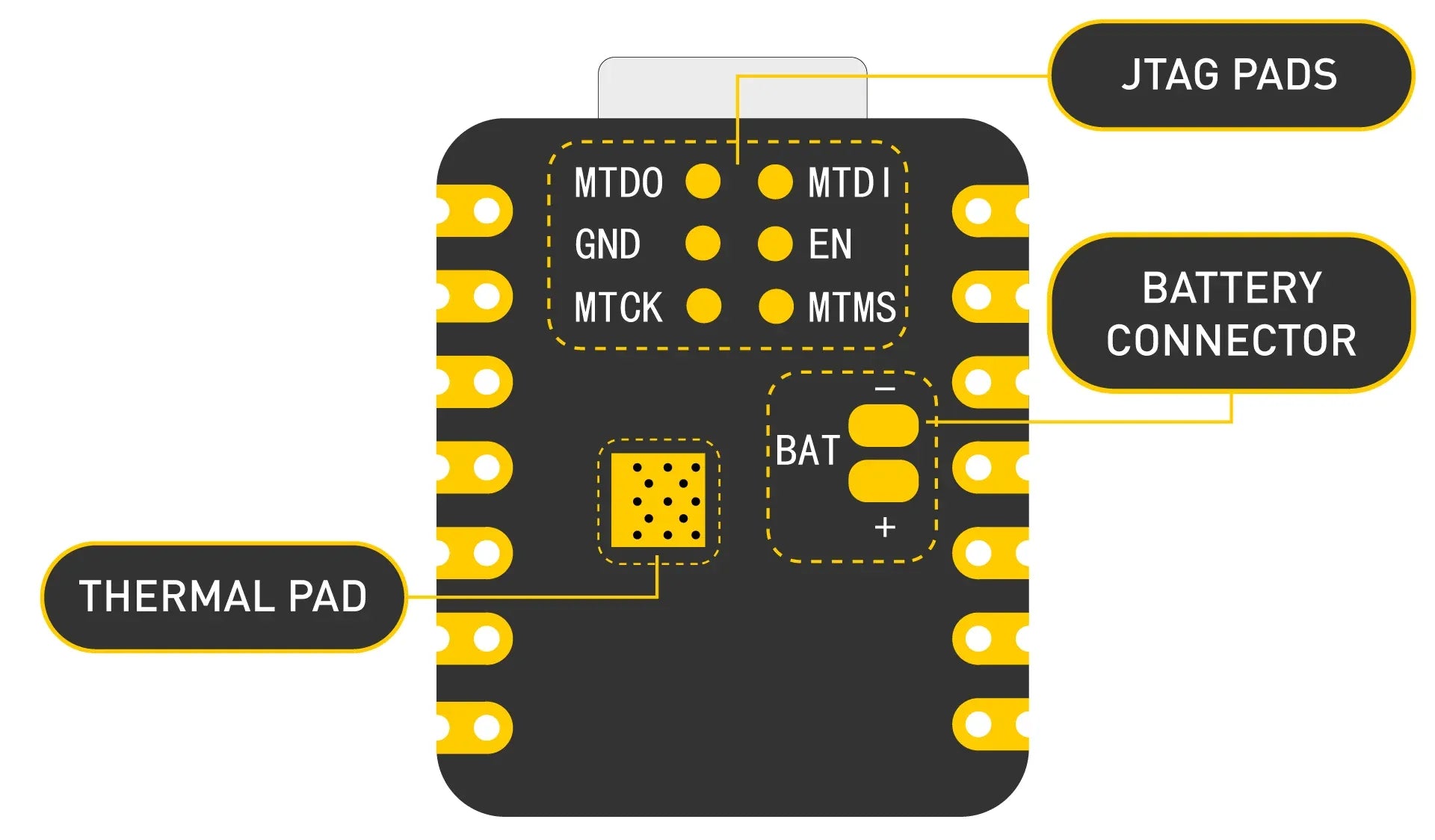

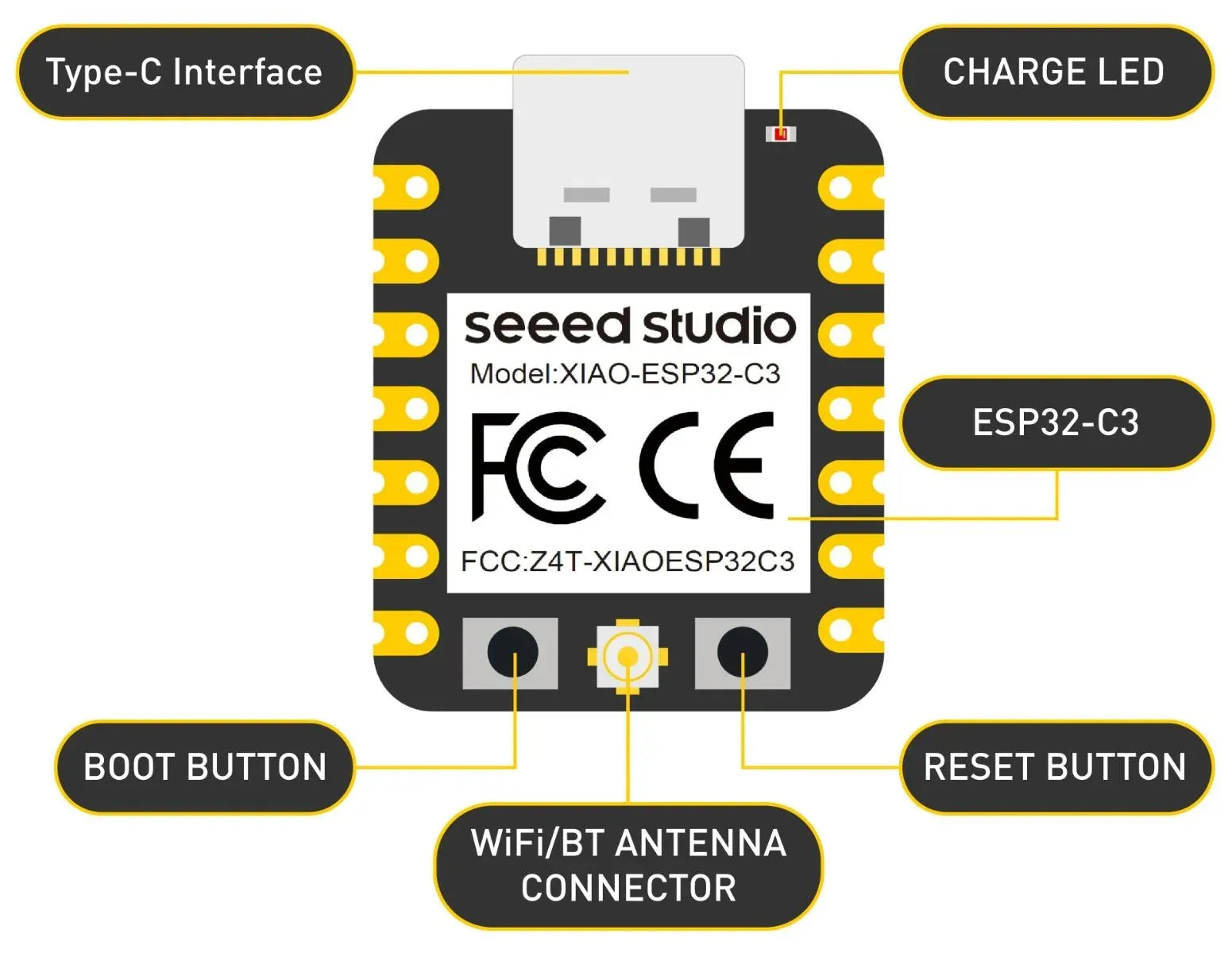

Hardware Overview

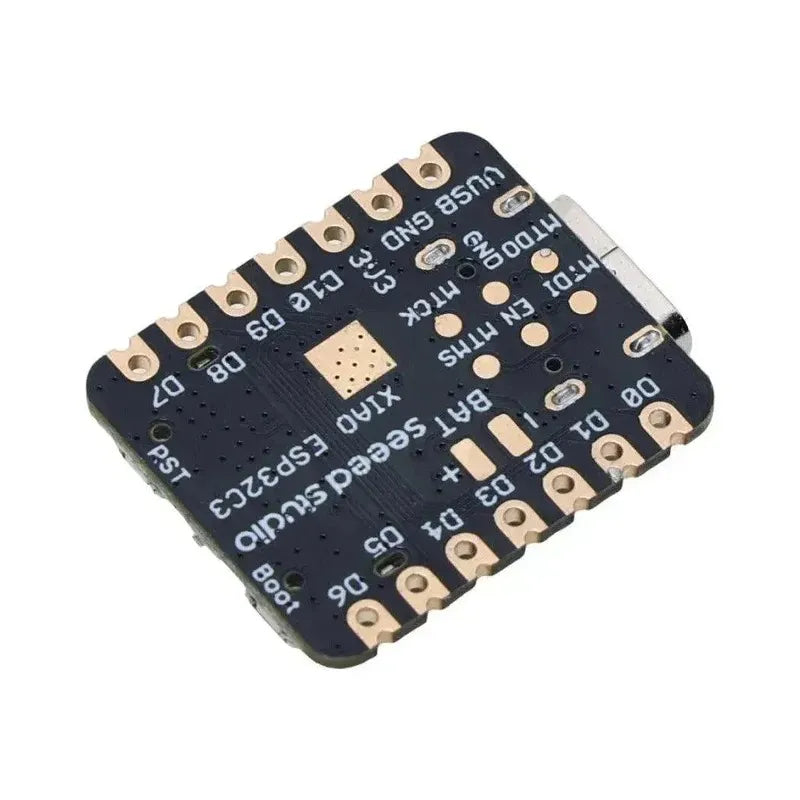

Pinout
Application
- Internet of Things
- Wearable devices
- Health monitoring
- Education
- Low-Power (LP) networking
- Rapid prototyping
Documents
Note
The XIAO SoM User Manual provides open-source resources for hardware and software related to the XIAO platform, featuring complete product design guidelines that assist in expediting project development, streamlining design processes, and ensuring a smooth transition from module selection to mass production. You can find more information here.
Part List
|
Seeed Studio XIAO ESP32C3 |
x1 |
|
Antenna |
x1 |
|
7 Pin Header |
x2 |
