Seeed Studio XIAO ESP32S3 chip 2.4GHz WiFi BLE 5.0 BT Dev Board

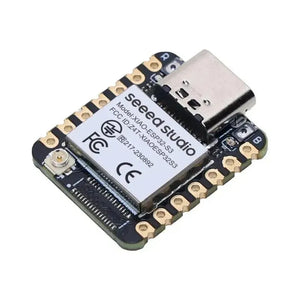

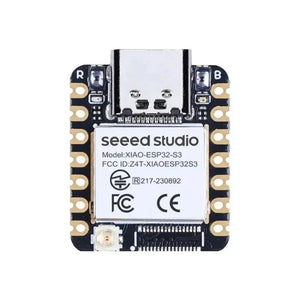

The Seeed Studio XIAO ESP32S3 is a compact yet powerful development board tailored for various projects such as robotics, IoT, and embedded machine learning. Featuring a dual-core Xtensa LX7 processor that operates at speeds of up to 240 MHz, this board is designed with a tiny form factor of only 21 x 17.5 mm.
Key Features:
-
Wireless Connectivity: Features 2.4GHz Wi-Fi and Bluetooth 5.0 (BLE), allowing for effortless wireless interactions across various scenarios.
-
Memory: Equipped with 8MB of PSRAM and 8MB of Flash memory, offering sufficient storage for advanced applications and data handling.
-
Interfaces: Provides a comprehensive set of interfaces, featuring UART, I2C, IIS, SPI, 11 GPIOs (PWM), 9 ADC channels, plus user and charge LEDs and buttons for reset and boot.
-
Power Management: Features lithium battery charging management and various power modes, including a deep sleep mode consuming as little as 14 μA, perfect for projects relying on batteries.
-
Compatibility: Fully compatible with Arduino and MicroPython, enabling developers to select their preferred programming platform.
Specifications
|
Parameter |
Seeed Studio XIAO ESP32S3 |
|
|
Processor |
ESP32-S3R8 |
ESP32-C3 SoC |
|
Xtensa LX7 dual-core, 32-bit processor operating up to 240 MHz |
RISC-V single-core 32-bit processor with a four-stage pipeline running at up to 160 MHz |
|
|
Wireless |
Comprehensive 2.4GHz WiFi subsystem |
|
|
BLE: Bluetooth 5.0, Bluetooth mesh |
||
|
On-chip Memory |
8M PSRAM & 8MB Flash |
400KB SRAM & 4MB Flash |
|
Interface |
1x UART, 1x IIC, 1x IIS, 1x SPI, 11x GPIO (PWM), 9x ADC, 1x User LED, 1x Charge LED |
1x UART, 1x IIC, 1x SPI, 11x GPIO (PWM), 4x ADC |
|
1x Reset button, 1x Boot button |
||
|
Dimensions |
21 x 17.5mm |
|
|
Power |
Input voltage (Type-C): 5V |
Input voltage (Type-C): 5V |
|
Circuit operating Voltage (ready to operate): |
Circuit operating Voltage (ready to operate): |
|
|
Charging battery current: 100mA |
Charging battery current: 350mA |
|
|
Low Power Consumption Model (Supply Power: 3.8V) |
Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 μA |
Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA |
|
WiFi Enabled Power Consumption |
Active Model: ~ 100 mA |
Active Model: <75 mA |
|
BLE Enabled Power Consumption |
Active Model: ~ 85 mA |
Modem-sleep Model: <27 mA |
|
Operating Temperature |
-40°C ~ 65°C |
-40°C ~ 85°C |
Hardware Overview
- Onboard
- PinOut
Applications
- IoT Solutions
- Wearable Tech
- Smart Home Devices
- Robotics Innovations
- Health Monitoring Systems
- Educational Projects
- Low-Power Networking
- Rapid Prototyping
| HSCODE | 8517180050 |
| USHSCODE | 8471500150 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |

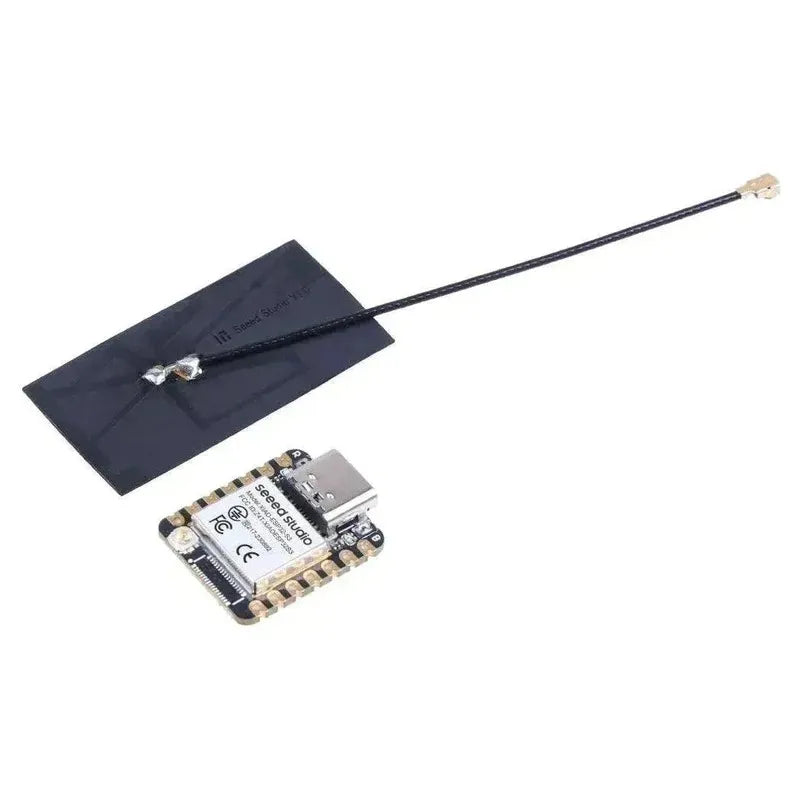

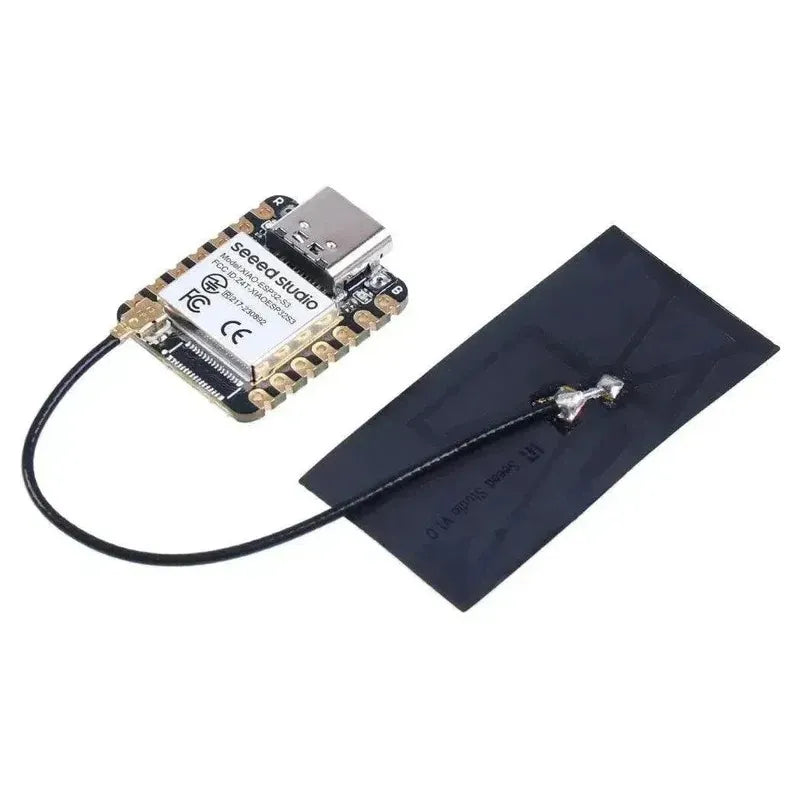

Parts List
|
XIAO ESP32S3 |
x1 |
|
Antenna |
x1 |
|
7 Pin Header |
x2 |
