Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic

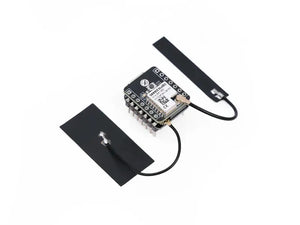

This compact LoRa development kit—equipped with the XIAO ESP32S3 and Wio-SX1262 module—serves as a perfect introduction to Meshtastic mesh networking and LoRa/LoRaWAN applications. Featuring integrated power management and support for Wi-Fi, BLE, and LoRa, it allows for expansion through I²C, UART, and GPIO connections, making it fully compatible with Arduino-based Meshtastic nodes. As a sleek, single-channel LoRaWAN module, it provides excellent performance for prolonged, low-power, low-data-rate communications. It's ideal for Meshtastic sensor applications, supporting connectivity for over 30 nodes depending on payload and interval configurations.
Seeed offers three use cases for this XIAO ESP32S3 & Wio-SX1262 Kit.
- Utilizing Meshtastic for network communications
- Setting up as a LoRaWAN node
- Configuring as a LoRaWAN gateway
Features
⚙️ Ready to use with Meshtastic：Pre-loaded with firmware—simply plug it in and connect 🔌✨
📡 Impressive RF capabilities：Supports LoRa (862–930MHz), 2.4GHz Wi-Fi, and BLE 5.0 for dual wireless communication. Achieves LoRa ranges of 2–5 km and over 100m for Wi-Fi/BLE with the U.FL antenna 🚀
📏 Compact design：Measures only 21×18mm, retaining the XIAO format—ideal for portable and space-constrained projects 👕🔩
🧠 Robust MCU onboard：Powered by the ESP32S3 (dual-core @240MHz), it supports Arduino and MicroPython, plus various I/O ports for developers 🛠️🐍
🔋 Intelligent power management：Includes a Type-C port along with built-in lithium battery charging and management for portable power solutions 🔌🔋
Specification
| Feature | Details |
|---|---|
| ESP32S3 | ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running at up to 240 MHz |
| LoRa | Utilizes Semtech SX1262, supporting 862-930MHz |
| BLE | Bluetooth 5.0, Bluetooth mesh capabilities |
| Wi-Fi | Comprehensive 2.4GHz Wi-Fi subsystem |
| Interface (ESP32S3) | 1x UART, 1x IIC, 1x IIS, 1x SPI (for SX1262), 11x GPIO (PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button |
| Interface (Wio-SX1262) | 1x User button, 1x SPI (for connecting to ESP32S3) |
| Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Battery charging current: 100mA |
| Operating Temperature | -40°C ~ 65°C |
| Dimensions | 21 x 17.8mm |
Hardware Preparation
Part List
| Item | Quantity |
|---|---|
| XIAO ESP32S3 | x1 |
| Wio-SX1262 extension board | x1 |
| Wi-Fi antenna | x1 |
| LoRa antenna | x1 |

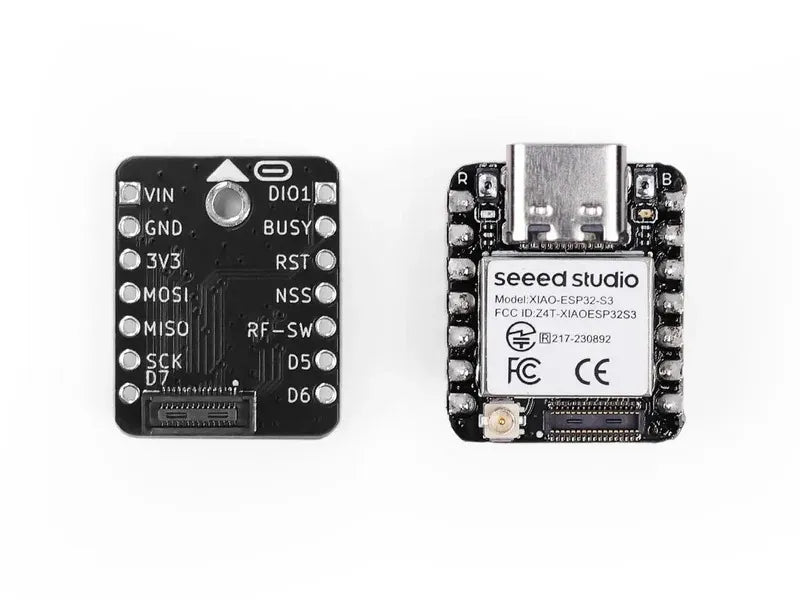

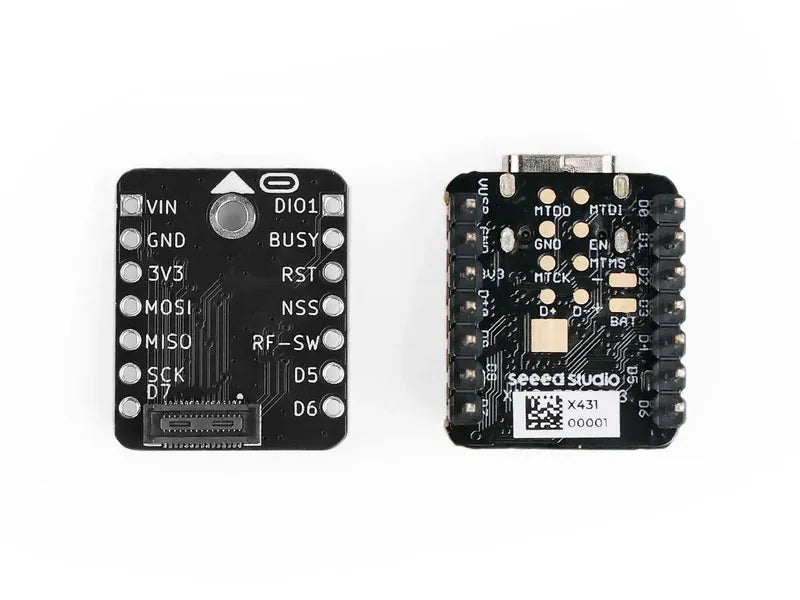

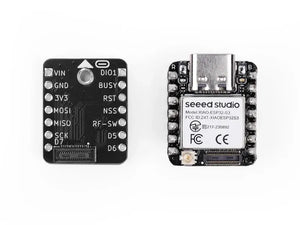

Hardware Overview
Application
🔌 Meshtastic Node & Router A tiny node that can act as a mobile device or a fixed router to enhance your Meshtastic mesh coverage 📡🌐
🌿 LoRa/LoRaWAN Sensor A user-friendly mini LoRaWAN sensor, perfect for experimenting with wireless sensor networks. Compatible with XIAO extension boards and Grove sensors for speedy prototyping 🧪🔧
🚪 LoRaWAN Single-Channel Gateway An affordable single-channel gateway, perfect for linking multiple LoRaWAN devices and sending data to The Things Network, ChirpStack, or other LNS platforms 🌍📶
Documents
📦 Unboxing & First Impressions

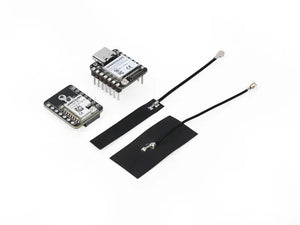

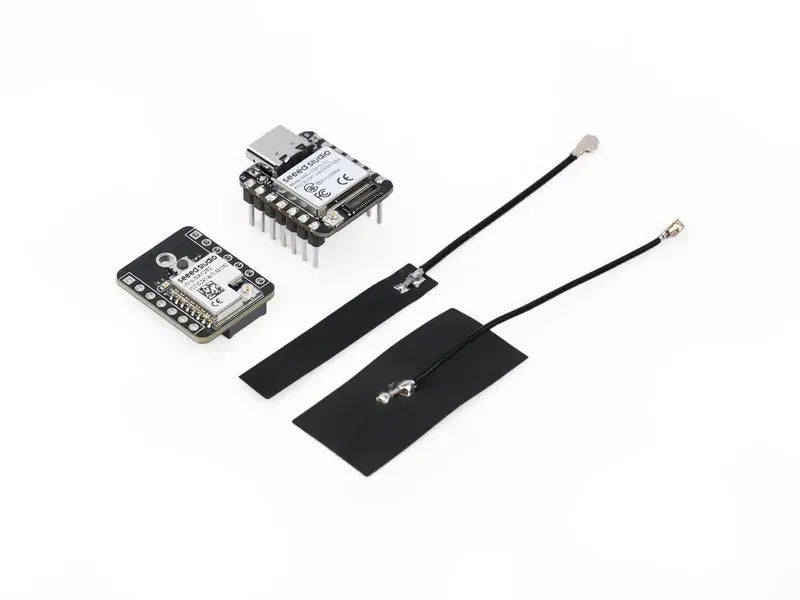

Unpacking the kit was a delightful experience—the board is incredibly compact! Everything arrives in a simple plastic pouch, containing:
-
🧠 XIAO ESP32S3
-
📡 Wio-SX1262 LoRa extension board
-
📶 Wi-Fi antenna
-
📻 LoRa antenna
🛠️ Setup Tips & Insights
-
Antenna identification is crucial: The narrow antenna is designated for LoRa, while the broader one is for Wi-Fi. Take care when connecting them—U.FL connectors can be delicate.
-

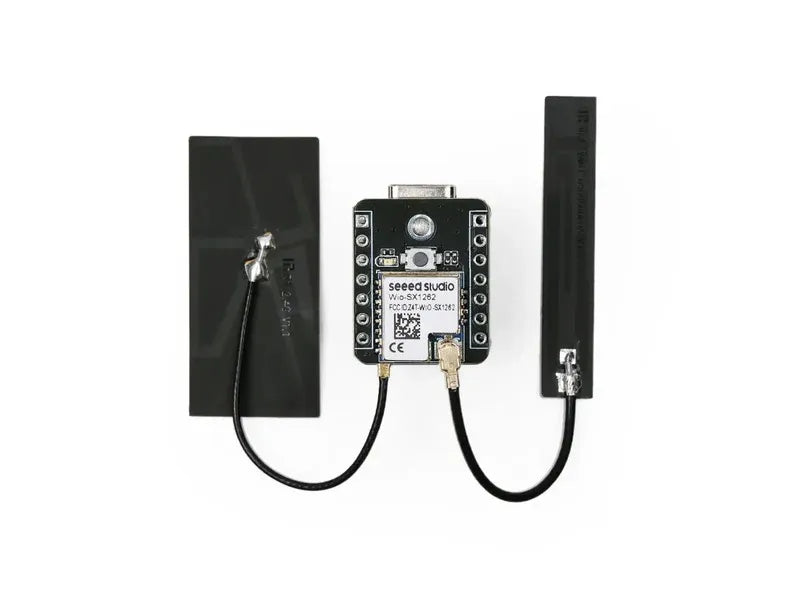

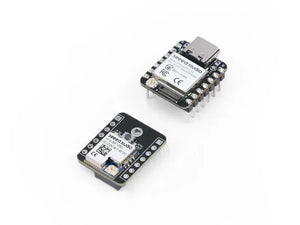

Connection method for the board: Initially, it might seem that soldering is required, but that's not the case. The Wio-SX1262 securely attaches to the XIAO using a custom connector. Ensure to remove the protective tape underneath before connecting; this adhesive will keep it secure over time.
-
USB-C cable not included: Please ensure you have a Type-C cable that supports both data and power.
Once these components are ready, the setup process is straightforward.
🔥 Flashing Meshtastic Firmware onto the XIAO ESP32S3
Preparing your node for Meshtastic takes only a few minutes:
-
Connect It: Link the XIAO to your PC using a USB-C cable capable of data transmission.
-
Open the Flasher: Access the Meshtastic Flasher.
-
Select Your Device: Choose “Seeed XIAO ESP32-S3” from the device list.
-
Choose Firmware Version: Select a version (the latest stable release is recommended) and click Flash.
-
Review and Proceed: Look through the changelog, then continue.
-
Full Erase and Install: For optimal results, opt for Full Erase and Install, then click Update.
-
All Set! Your node will restart, refreshed and ready for use.
📲 Pairing with the Meshtastic App
Connecting the device is equally effortless:
-
Download the App: Available on the App Store (iOS) or Google Play (Android).
-
Locate Your Node: Go to the Bluetooth section and wait for your new node to show up. It will display a Node ID and other information.
-
Input the Pairing Code: Default is
123456—check the terminal log after flashing for a different code if applicable. -
Select the Correct Region: Choose the relevant LoRa region (such as EU868, US915, etc.). The device will restart with your selected settings.
