Seeed Studio XIAO ESP32-C6 RISC-V 2.4GHz WIFI 6 BLE 5 Dev Board 160MHz

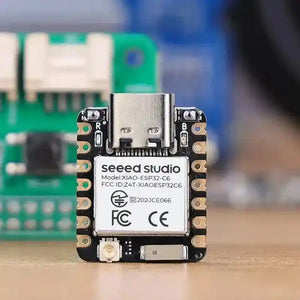

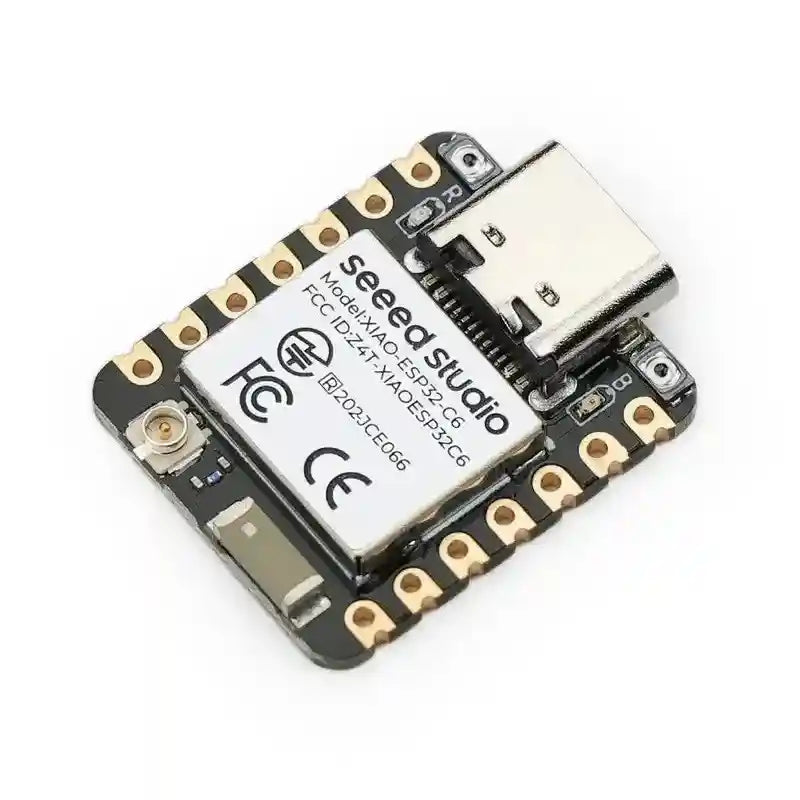

Seeed Studio XIAO ESP32C6 is a cost-effective microcontroller unit (MCU) based on Espressif’s ESP32-C6. This small-sized device is perfect for smart home applications compliant with Matter, providing excellent wireless connectivity options like 2.4GHz Wi-Fi 6, BLE 5.0, Zigbee, and Thread. Its compact design and single-sided mounting make it an excellent choice for projects where space is limited. The XIAO ESP32C6 is equipped with on-chip encryption, enhancing the security of your developments and expediting the time to market. Additionally, it integrates smoothly with key IoT cloud platforms, facilitating a more efficient deployment process.
Features
- Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 (LE), and IEEE 802.15.4 radio connectivity, enabling applications of the Thread and Zigbee protocols.

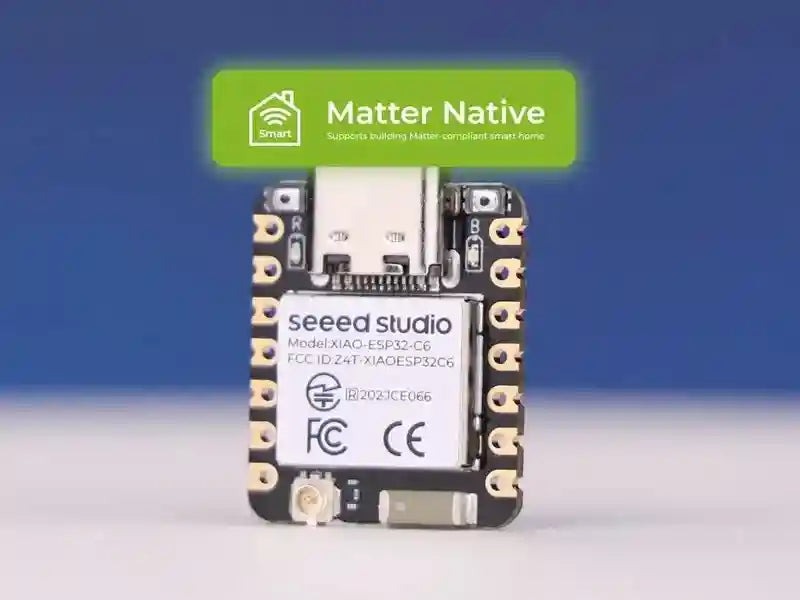

- Matter Native: Supports the development of Matter-compliant smart home solutions, ensuring greater interoperability.
- On-Chip Security: Powered by ESP32-C6, it offers enhanced security features like secure boot, encryption, and Trusted Execution Environment (TEE) for your smart home applications.
- Excellent RF Performance: Equipped with an integrated antenna that provides up to 80m range for BLE/Wi-Fi, while also allowing for an external UFL antenna connection.
- Optimized Power Consumption: Features four operational modes, with deep sleep mode consuming as little as 15 μA, and supports lithium battery charging management.
- Dual RISC-V Processors: Contains two 32-bit RISC-V processors: a high-performance processor running at up to 160 MHz and a low-power processor operating up to 20 MHz.

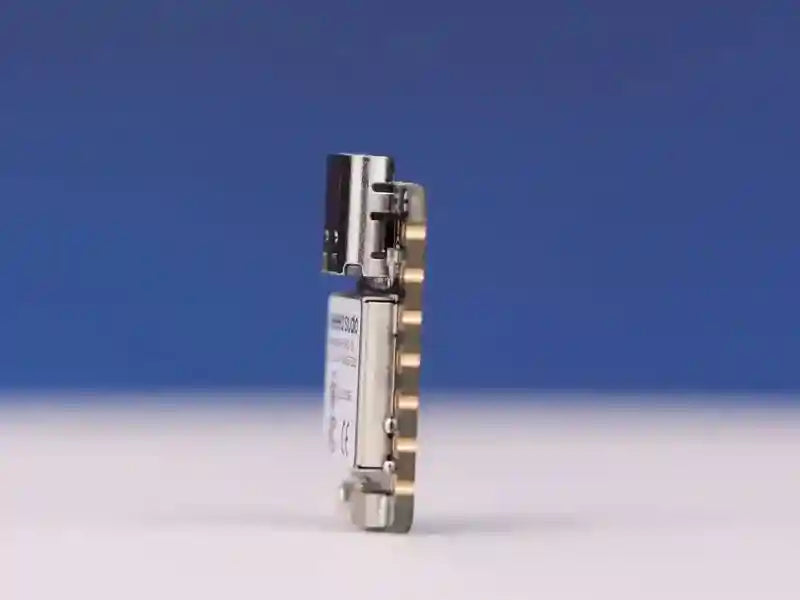

- Classic XIAO Design: Maintains the traditional XIAO form factor of 21 x 17.5mm with single-sided mounting, making it suitable for space-constrained applications like wearables.
- Seamless Integration with Cloud Platforms: Compatible with ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud.
As the eighth member of the Seeed Studio XIAO family, the XIAO ESP32C6 maintains the classic XIAO aesthetics. Its features make it suitable for space-constrained applications like wearables or as a production-ready solution for your PCBA designs.
The XIAO SoM User Manual provides open-source hardware and software resources for XIAO, offering professional design guidelines that help accelerate your ideas, streamline product design, and ensure a smooth journey from module selection to mass production. For additional information, please refer to the Seeed Studio XIAO ESP32C6 Datasheet .
Specifications
|
Product |
XIAO ESP32C6 |
||
|
Processor |
Espressif ESP32-C6 |
Espressif ESP32-C3 |
Espressif ESP32-S3R8 |
|
Features two 32-bit RISC-V processors, one running at up to 160 MHz, while the other operates at up to 20 MHz. |
RISC-V single-core 32-bit processor with a four-stage pipeline operating at up to 160 MHz. |
Xtensa LX7 dual-core, 32-bit processor running at a max of 240 MHz.
|
|
|
Wireless |
Complete 2.4GHz Wi-Fi 6 subsystem |
Complete 2.4GHz Wi-Fi subsystem |
Complete 2.4GHz Wi-Fi subsystem |
|
BLE: Bluetooth 5.0, Bluetooth mesh |
|||
|
Zigbee, Thread, IEEE 802.15.4 |
/ |
/ |
|
|
On-chip Memory |
512KB SRAM & 4MB Flash |
400KB SRAM & 4MB Flash |
8MB PSRAM & 8MB Flash |
|
Interface |
1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI, 11x GPIO(PWM), 7x ADC, 1x SDIO |
1x UART, 1x IIC, 1x SPI, 11x GPIO(PWM), 4x ADC |
1x UART, 1x IIC, 1x IIS, 1x SPI, 11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |
|
1x Reset button, 1x Boot button |
|||
|

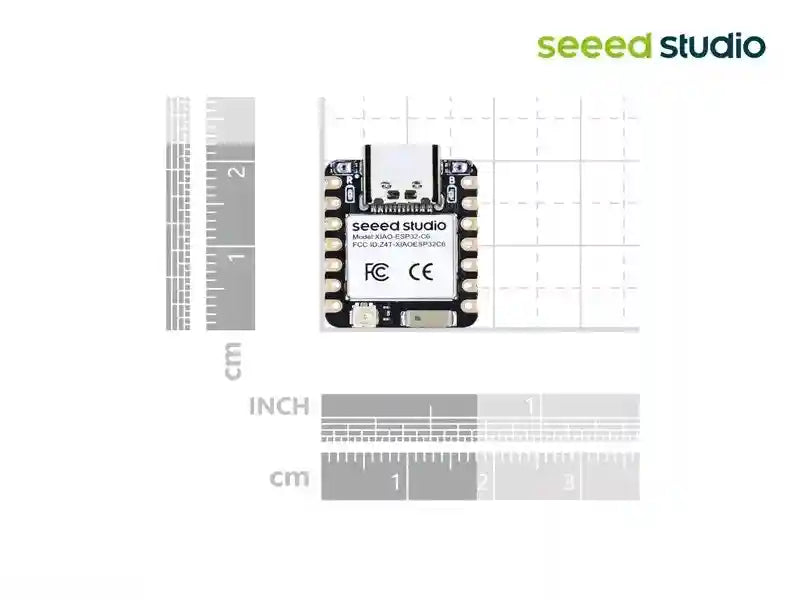

Dimensions |
21 x 17.8mm |
||
|
Power |
Input voltage (Type-C): 5V; Input voltage (BAT): 4.2V |
||
|
Circuit operating Voltage (ready to operate): - USB: 5V@ 9mA - BAT: 3.8V@ 9mA |
|||
|
Charging battery current: 100mA |
|||
|
Power Consumption Model (Supply Power: 3.8V) |
Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA |
Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA |
Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2 mA Deep Sleep Model: ~ 14 μA |
|
Operating Temperature |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°C ~ 65°C |
Hardware Overview
Onboard

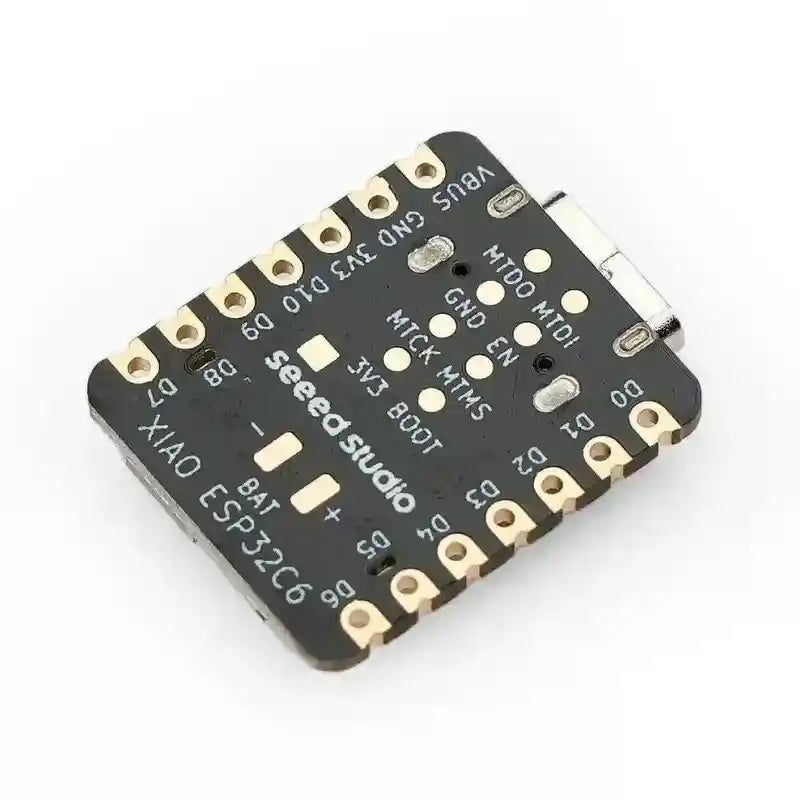

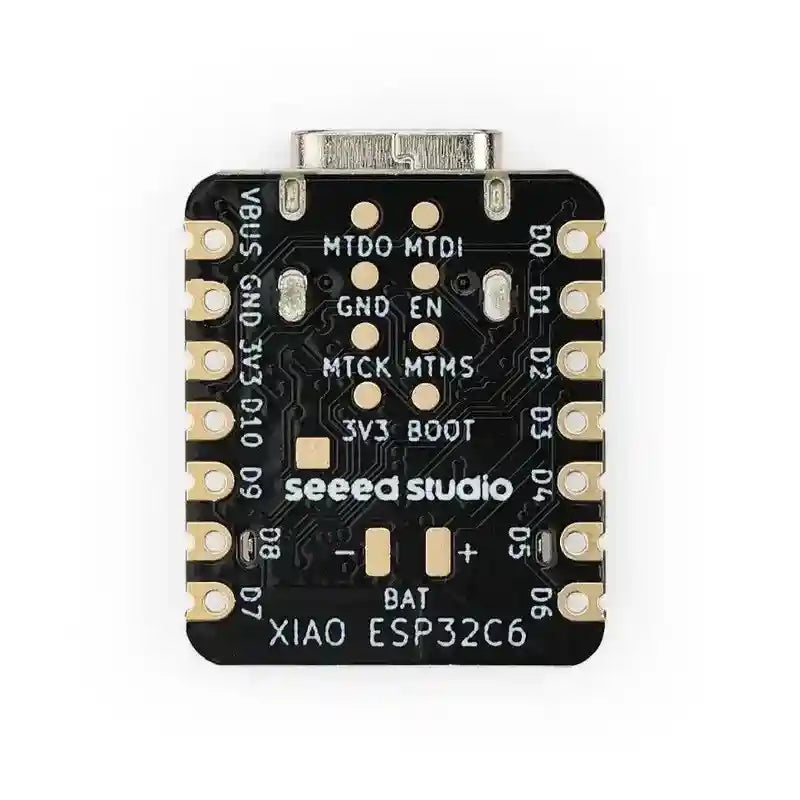

Pinout
Applications
Smart Home Solutions, enhancing daily life through automation and remote management
Compact Battery-Powered Wearables, ideal due to their small size and low energy use
Wireless IoT Applications, enabling swift and dependable data transmission
Included Parts
|
Seeed Studio XIAO ESP32C6 |
x1 |
|
7 Pin Header |
x2 |
