SteadyWin GIM6010-8 Planetary Gearmotor Robot Joint Reduction Motor

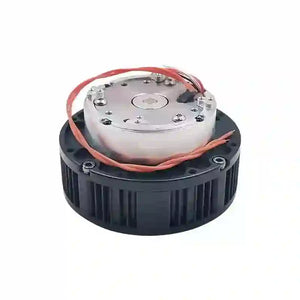

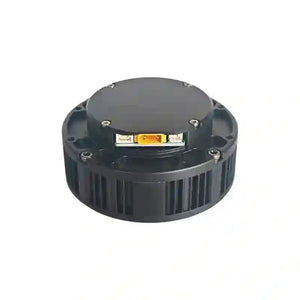

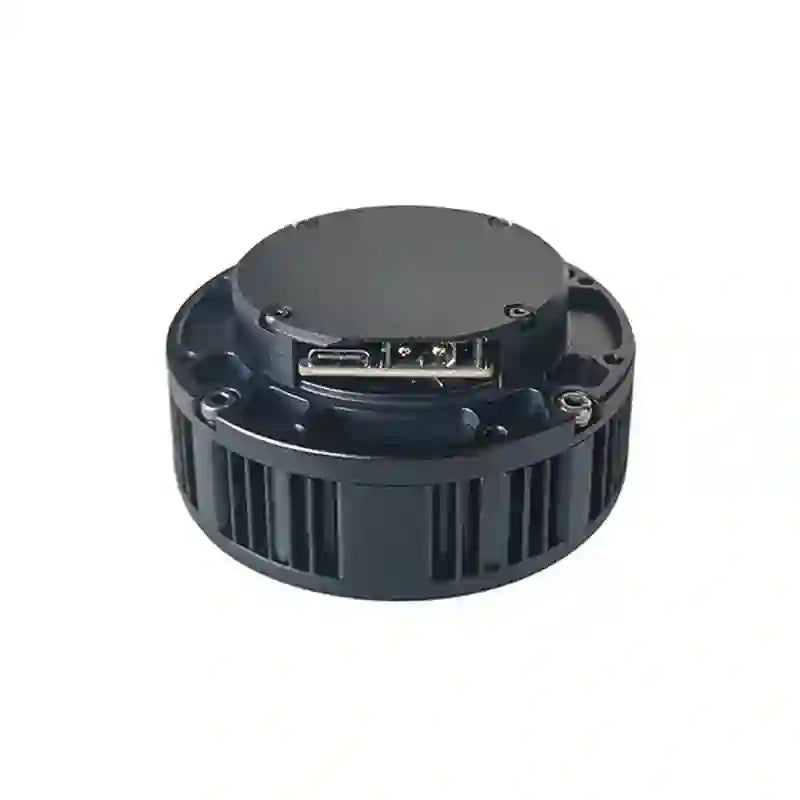

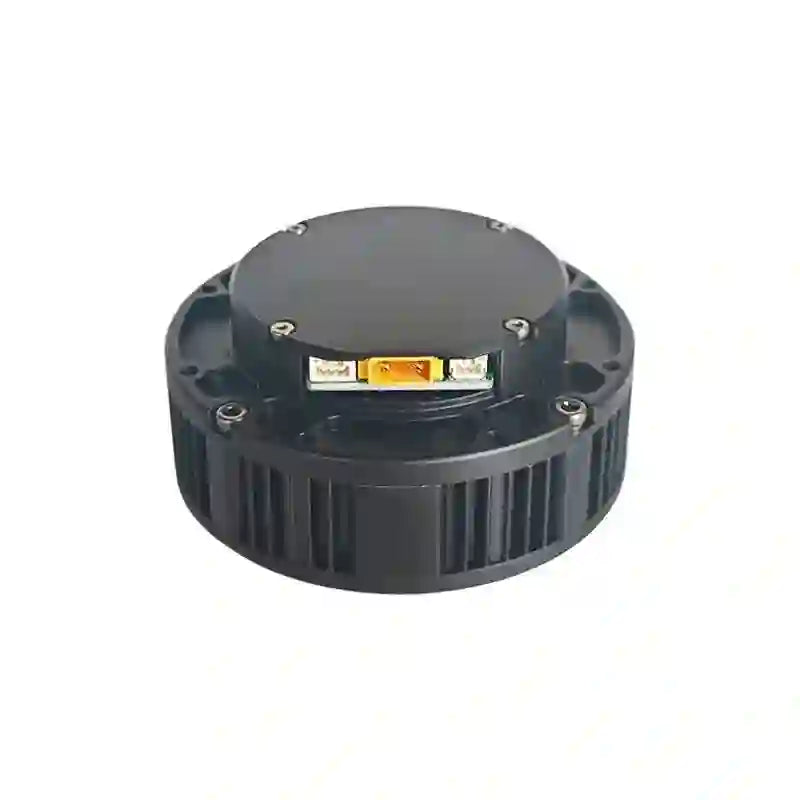

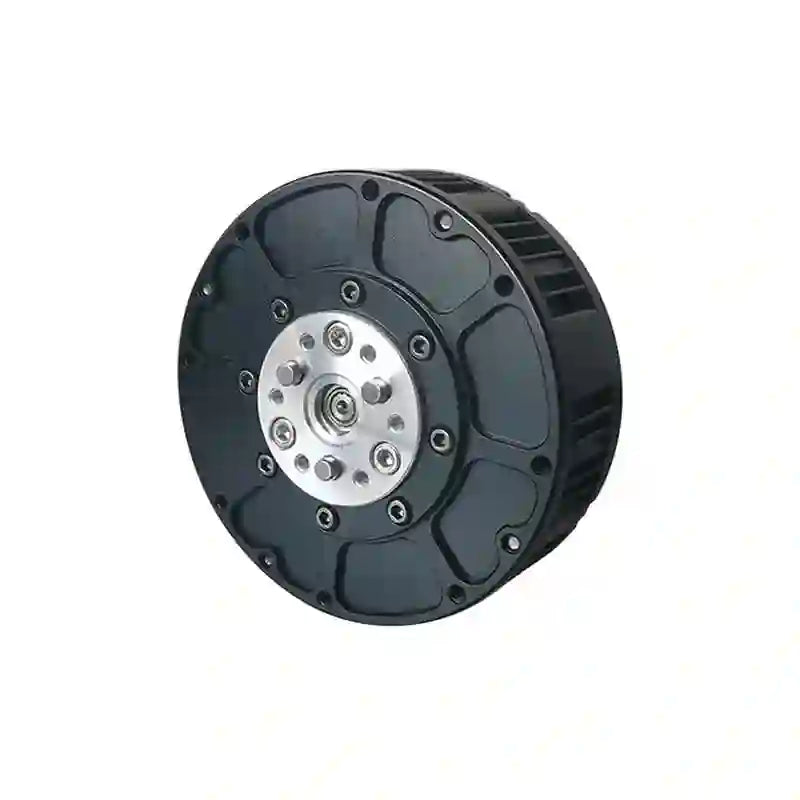

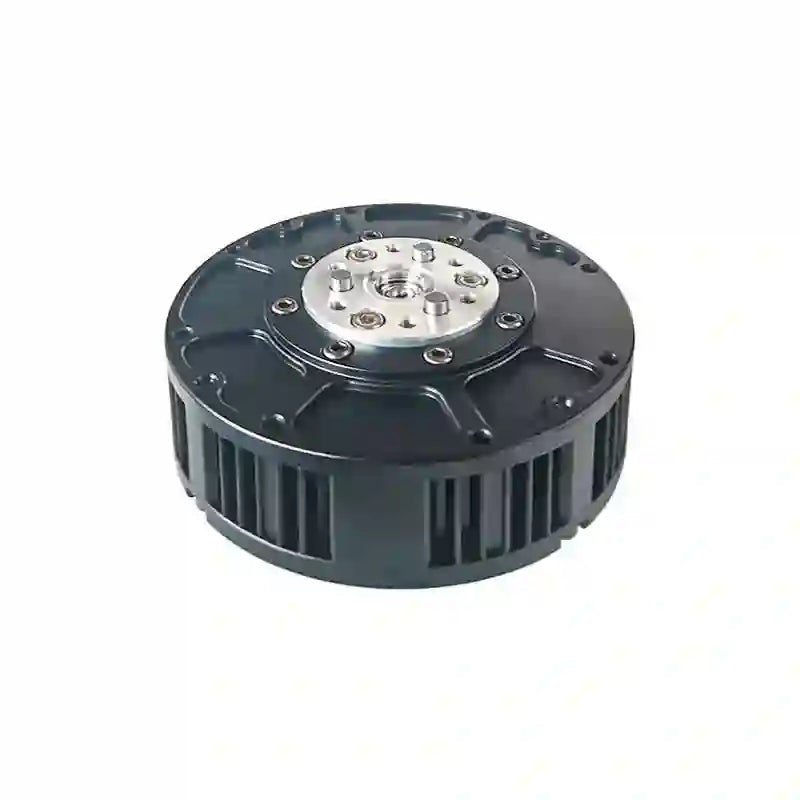

SteadyWin GIM6010-8 – Compact Brushless Planetary Gearmotor for Robotics & Automation
The SteadyWin GIM6010-8 is a high-performance 24V 252W brushless planetary gearmotor engineered for precision in robotic joints, industrial automation systems, and space-constrained mechatronic applications. Delivering powerful motion control, it boasts a rated torque of 5 N·m and a peak stall torque of 11 N·m within a compact Ø80 mm form factor, weighing only 388 g.
Product Features
- Brushless DC Motor: Integrated with a planetary gearbox for robust and efficient operation.
- Power Output: 24V / 252W for consistent torque delivery.
- Torque Capabilities: 5 N·m rated torque and 11 N·m stall torque for dynamic load handling.
- Environmental Protection: IP54 rating ensures protection against dust and splashes.
- Connectivity: CAN bus & USB Type-C for flexible control system integration.
- Safety & Precision: Optional custom brake module for enhanced stopping power and positional accuracy.
- Compact Design: Ø80 mm diameter with a low-profile housing for tight spaces.
- Lightweight: Weighs only 388 g, making it ideal for mobile and articulated systems.
Detailed Specifications
| Parameter | Value |
|---|---|
| Driver Model | SDC104 |
| Nominal Voltage | 24 V |
| Voltage Range | 12–56 V |
| Power Output | 252 W |
| Nominal Torque | 5 N·m |
| Stall Torque | 11 N·m |
| Nominal Speed (Reduced) | 120 RPM |
| Max Speed (Reduced) | 420 RPM |
| Nominal Current | 10.5 A |
| Stall Current | 23.4 A |
| Phase Resistance | 0.42 Ω |
| Phase Inductance | 0.34 mH |
| Speed Constant | 17.5 rpm/V |
| Torque Constant | 0.47 N·m/A |
| Pole Pairs | 14 |
| Gear Ratio | 8:1 |
| Gear Type | Planetary |
| Gear Material | Steel |
| Gear Backlash | 15 arcmin |
| Motor Weight (No Driver) | 370 g |
| Motor Weight (With Driver) | 388 g |
| Size (No Driver) | Ø80 × 29.5 mm |
| Size (With Driver) | Ø80 × 40 mm |
| Max Axial Load | 200 N |
| Max Radial Load | 800 N |
| Noise Level | ＜60 dB |
| Communication | CAN & Type-C |
| Second Encoder | Yes |
| Protection Grade | IP54 |
| Operating Temperature | -20 °C ~ +80 °C |
| Encoder Resolution | 16-bit |
| Separate Encoder | No |
| Custom Brake Option | Yes |
Downloads
SteadyWin GIM6010-8 Variant Comparison
| Variant Name | Driver Included | Encoder Type | Brake Module | Shaft Type | Price Range (€) | Weight (g) | Notes |
|---|---|---|---|---|---|---|---|

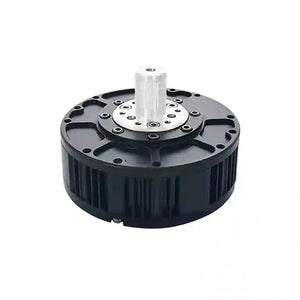

| Standard | No | None | No | Solid Shaft | €58.00–132.99 | 388 g | Base model, compact and lightweight |
| Through-Shaft Motor | No | None | No | Through Shaft | €65.00–143.99 | 388 g | Allows pass-through mounting |
| Motor with Brake | No | None | Yes | Solid Shaft | €107.00–185.99 | ~400 g | Ideal for vertical or load-holding |
| Motor + DS6 Driver | DS6 | None | No | Solid Shaft | Varies | ~400 g | Plug-and-play with DS6 controller |
| Motor + S68 Driver | S68 | None | No | Solid Shaft | Varies | ~400 g | Higher-end driver option |
| Motor + Encoder + GDS6 | GDS6 | Magnetic | No | Solid Shaft | Varies | ~400 g | For closed-loop control |
| Motor + Encoder + GDZ46 | GDZ46 | Magnetic | No | Solid Shaft | Varies | ~400 g | Enhanced encoder resolution |
Notes on Variants
- All variants share the same core motor: 24V, 252W brushless, 5 N·m rated torque, 11 N·m stall torque, and IP54 protection.
- Encoder-equipped versions are ideal for SLAM, inverse kinematics, and precise feedback.
- Brake-equipped versions are recommended for vertical joints or safety-critical applications.
- Driver modules (DS6/S68) simplify integration with CAN bus or USB Type-C control systems.
What is the SteadyWin GIM6010-8?
The SteadyWin GIM6010-8 is a high-performance brushless planetary gearmotor engineered for precise motion control in robotics, industrial automation, and mechatronic platforms. It integrates a 24V 252W brushless DC motor with an 8:1 reduction gearbox, delivering significant torque in a compact and lightweight form factor.
What Makes it Unique?
- Compact & Lightweight: At just 388 g and 80 mm diameter, it’s optimally sized for space-constrained robotic joints and mobile platforms.
- High Torque Density: Provides robust torque within a minimal footprint—perfect for articulated arms, wheeled robots, and precision actuators.
- Smart Connectivity: Supports CAN bus and USB Type-C, ensuring easy integration into modern control systems.
- Modular Options: Available with or without brake, encoder, and driver, offering unparalleled flexibility for diverse applications.
How to Use the SteadyWin GIM6010-8
1. Power & Communication Setup
- Connect the motor to a 24V DC power supply.
- Utilize CAN bus or USB Type-C for communication with your controller or PC.
- If using a driver (e.g., DS6 or S68), configure it via the provided software or SDK.
2. Encoder Integration
- The built-in 16-bit encoder offers precise positional feedback.
- Ideal for closed-loop control, inverse kinematics, and trajectory planning.
3. Brake Module (Optional)
- For applications requiring vertical holding or enhanced safety, install the custom brake module.
- This prevents back-driving and improves safety during power loss or idle states.
4. Application Scenarios
- Robotic Arms: Integrate into shoulder, elbow, or wrist joints for smooth motion and precise torque control.
- Mobile Robots: Suitable for wheel hubs or steering mechanisms.
- Automation Systems: Perfect for conveyor drives, pick-and-place units, or collaborative robots (cobots).
Deployment Tips
- Leverage the IP54 protection for reliable operation in dusty or lightly moist industrial environments.
- Ensure secure mounting using the provided flange or through-shaft options.
- Monitor temperature and current during high-load operations to prevent overheating and ensure longevity.
- For optimal responsiveness in closed-loop control, fine-tune PID parameters.
Conclusion
The SteadyWin GIM6010-8 is a versatile, compact, and powerful gearmotor designed for modern robotics and automation. Its high torque output, intelligent connectivity options, and modular design make it an indispensable solution for engineers, makers, and developers creating advanced motion systems.
