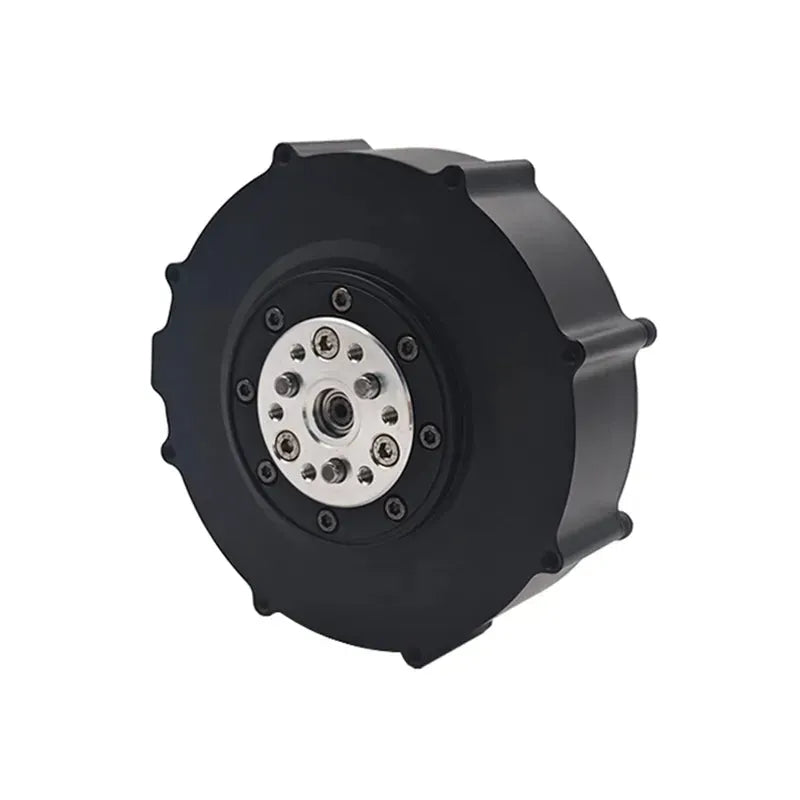

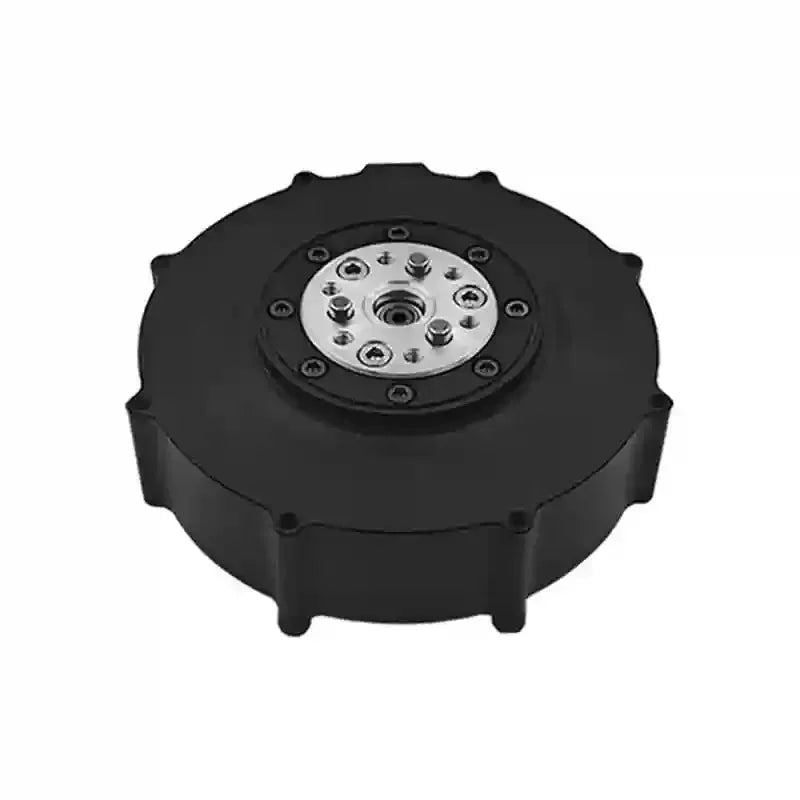

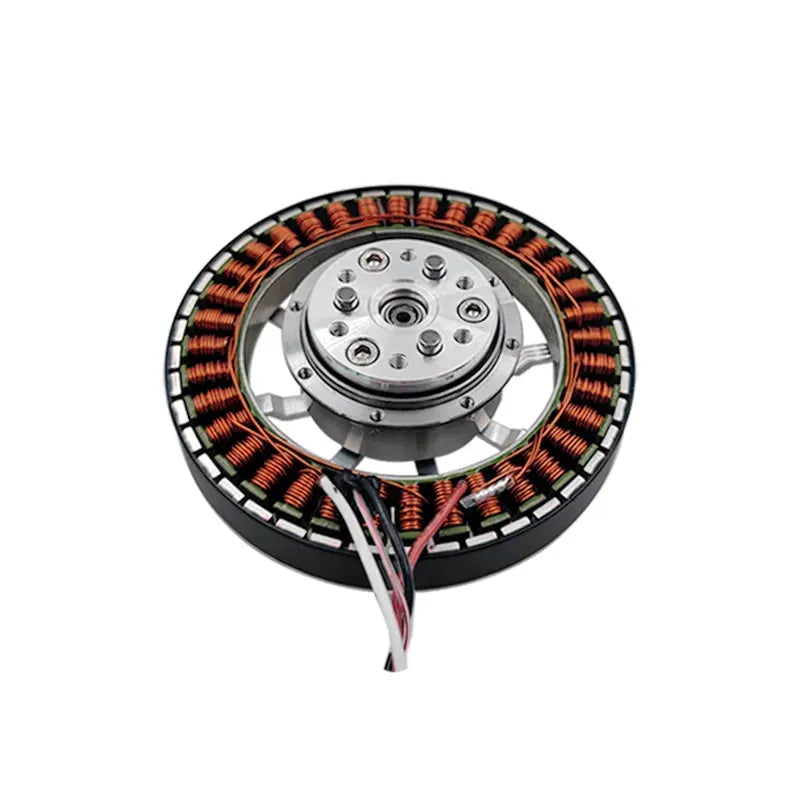

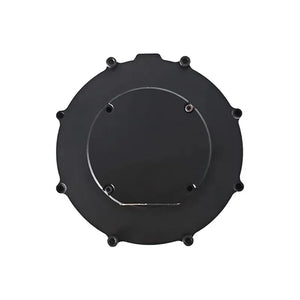

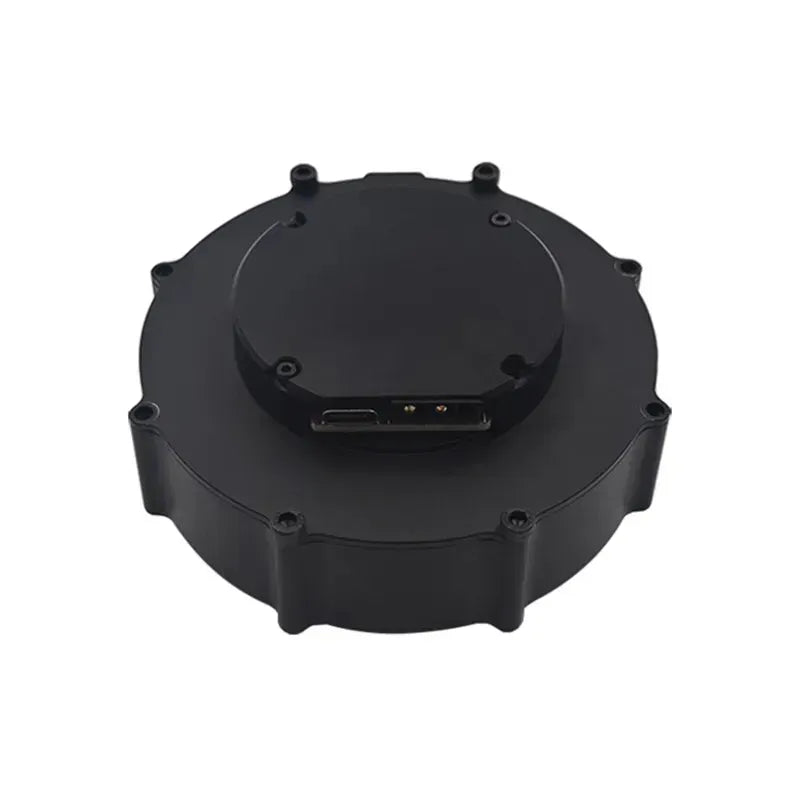

SteadyWin GIM8108-8 Planetary Gearmotor 375g Robot Joint Reduction Motor

SteadyWin GIM8108-8 Planetary Gearmotor 375g Robot Joint Reduction Motor

The SteadyWin GIM8108-8 is a robust 48V brushless gearmotor engineered for demanding applications requiring high torque and precise control. This powerful solution integrates an 8:1 planetary gearbox, delivering an impressive 7.5 N·m rated torque and a substantial 22 N·m stall torque. It's the ideal choice for advanced robotics, industrial automation, and intricate motion systems where reliability and accuracy are paramount.

Housed within a compact Ø92 × 55mm IP54-rated enclosure, this gearmotor is built to perform in challenging environments. It operates at a nominal speed of 110 RPM and provides critical real-time feedback through a high-resolution 16-bit encoder, ensuring exceptional positional accuracy and control.



Key Advantages for Advanced Robotics and Actuation

  • Superior Load Handling: Boasts a dual load capacity with 225N axial and 900N radial support, making it suitable for heavy-duty tasks.

  • Versatile Connectivity: Features CAN and Type-C interfaces for seamless integration into diverse control architectures.

  • Enhanced Safety and Control: Offers optional custom brakes for superior holding power and operational safety.

  • Optimized for Mobility: Its lightweight design, weighing just 396g with the driver, is perfect for mobile robotic platforms and space-constrained applications.



Technical Specifications

GIM8108-8
Driver Model / SDC104
Nominal Voltage V 48
Voltage Range V 12~56
Power W 336
Nominal Torque N.M 7.5
Stall Torque N.M 22
Nominal Speed after Reduce RPM 110
Max Speed after Reduce RPM 320
Nominal Current A 7
Stall Current A 22
Phase Resistance Ω 0.67
Phase Inductance mH 0.45
Speed Constant rpm/v 6.67
Torque Constant N.M/A 1
Number of Pole Pairs Pairs 21
Gear Rate / 8:1
Gear Type / Planetary
Reducer Gear Material / STEEL
Reducer Gear Backlash arcmin 15
Motor Weight without Driver g 378
Motor Weight with Driver g 396
Size without Driver mm Ø92*44
Size with Driver mm Ø92*55
Max Axial Load N 225
Max Radial Load N 900
Noise dB <60
Communication / CAN & Type-C
Second Encoder / YES
Motor Protection Grade / IP54
Working Temperature -20~+80
Resolution of Encoder on Driver Bit 16
Separate Encoder / NO
Custom Brake / YES





SteadyWin GIM8108-8 Gearmotor — Variant Comparison

Variant Name Model Code Driver Included Price (EUR) Weight Stock Qty Notes
Motor Only SW-GIM8108-8 No €74.00 ~375g 199 Bare motor, no driver
Motor + GDZ468 Driver SW-GIM8108-81Z GDZ468 €129.00 ~396g 199 Standard driver configuration
Motor + GDS68 Driver SW-GIM8108-82S GDS68 €104.00 ~396g 193 Lightweight driver option
Motor + GDS68 + 2ES68 Drivers SW-GIM8108-83SE GDS68 + 2ES68 €111.00 ~396g 197 Enhanced control, dual encoder


Explore Driver Options

  • GDZ468: A full-featured driver offering comprehensive CAN/Type-C support for maximum compatibility and control.

  • GDS68: A compact driver solution designed for seamless integration into applications with limited space.

  • 2ES68: An optional secondary encoder module providing advanced feedback capabilities for enhanced precision.

  • All variants maintain the core motor specifications: 48V, 336W, 7.5N·m torque, an 8:1 gearbox, and an IP54-rated housing.



SteadyWin GIM8108-8 Planetary Gearmotor – Complete Technical Overview

Core Specifications

  • Voltage Range: 12V–56V DC

  • Nominal Voltage: 48V

  • Power Output: 336W

  • Rated Torque: 7.5 N·m

  • Stall Torque: 22 N·m

  • Nominal Speed (after 8:1 reduction): 110 RPM

  • Max Speed (after reduction): 320 RPM

  • Nominal Current: 7 A

  • Stall Current: 22 A

Precision & Control

  • Encoder Resolution: 16-bit onboard

  • Communication Protocols: CAN & Type-C

  • Pole Pairs: 21

  • Speed Constant: 6.67 rpm/V

  • Torque Constant: 1 N·m/A

  • Phase Resistance: 0.67 Ω

  • Phase Inductance: 0.45 mH

Gearbox & Mechanics

  • Gear Ratio: 8:1

  • Gear Type: Planetary

  • Gear Material: Steel

  • Backlash: ≤15 arcmin

  • Max Axial Load: 225 N

  • Max Radial Load: 900 N

  • Noise Level: <60 dB

Form Factor

  • Motor Dimensions (with driver): Ø92 × 55 mm

  • Weight (with driver): 396 g

  • IP Rating: IP54 (dust and splash resistant)

  • Operating Temperature: -20°C to +80°C

  • Custom Brake Support: Yes

  • Second Encoder Support: Yes

  • Separate Encoder Support: No

Ideal Applications

  • Robotic Joints: Delivers smooth motion, high torque, and a compact footprint for articulated systems.

  • Exoskeletons & Humanoids: Lightweight and responsive, perfect for advanced human-machine interfaces.

  • Automation Systems: Provides reliable performance under load with precise feedback for industrial processes.

  • Custom Mechatronics: Flexible CAN/Type-C integration simplifies development for bespoke mechanical and electronic designs.
