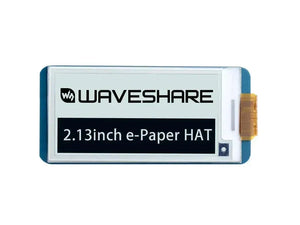

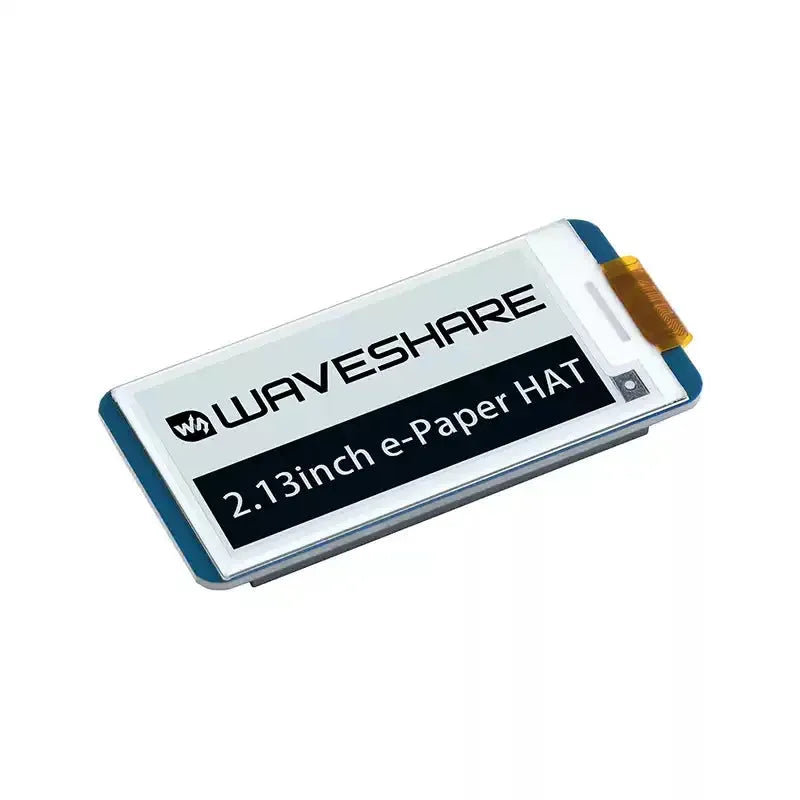

Waveshare 2.13 inch E-Ink Display 250x122 E-Paper

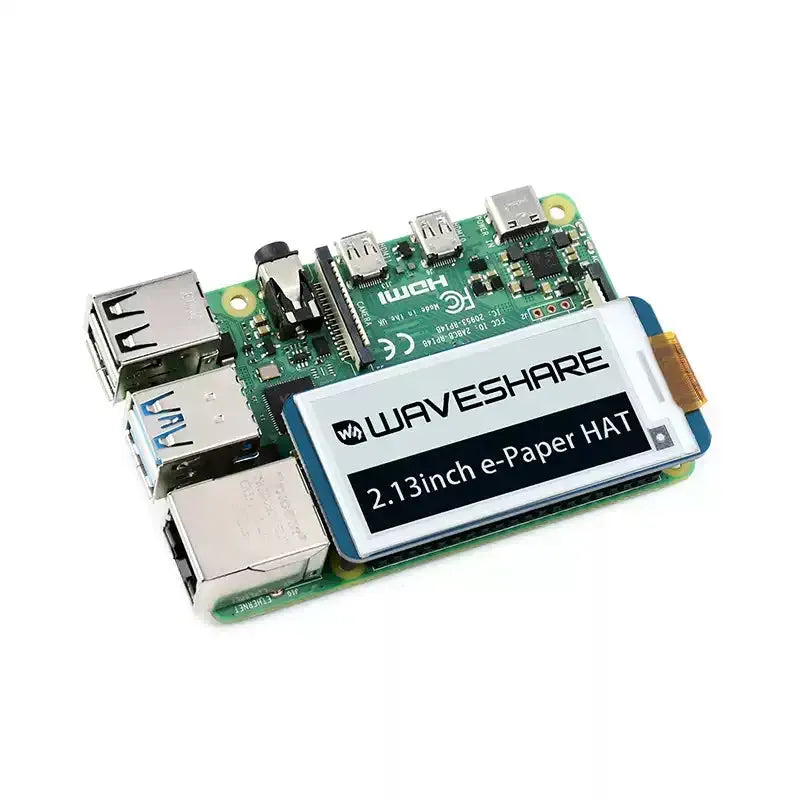

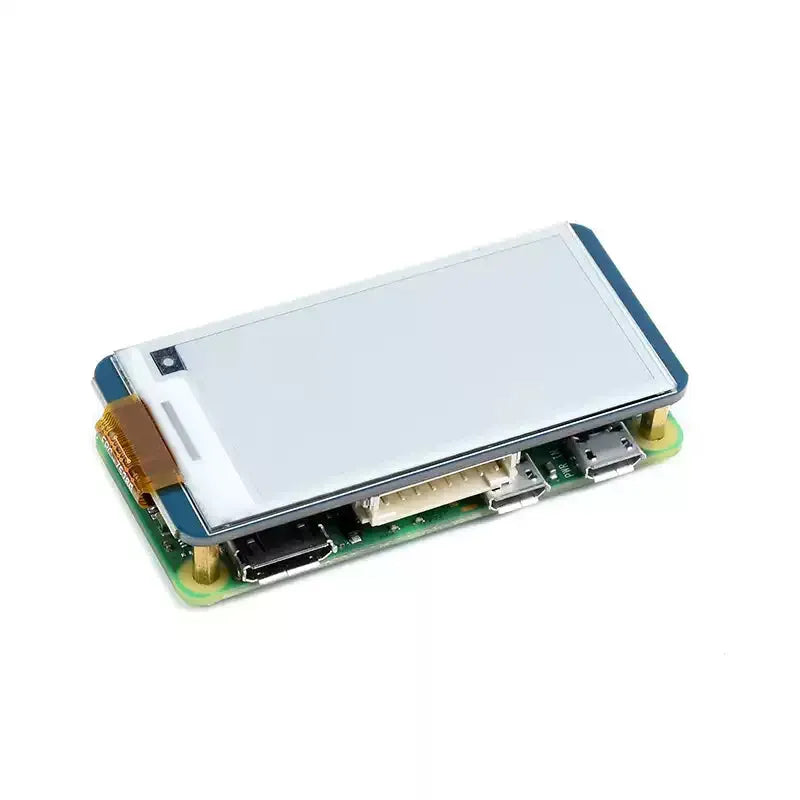

Elevate your Raspberry Pi projects with the Waveshare 2.13-inch E-Paper HAT, an advanced E-Ink display engineered for superior readability and ultra-low power consumption. This high-contrast module boasts a crisp 250×122 resolution and seamless SPI interface, making it a perfect fit for dynamic display applications where power efficiency and clear visibility in varying light conditions are paramount. Its distinctive partial refresh capability and an impressive >170° viewing angle deliver a paper-like visual experience, ideal for a multitude of embedded systems.
Outstanding Features
- Zero Backlight Requirement: Displays content persistently without power, preserving information for extended periods.
- True E-Paper Technology: Provides a sharp, paper-like visual with expansive viewing angles.
- Minimal Power Consumption: Energy is utilized exclusively during screen updates, ensuring remarkable efficiency.
- Rapid Partial Refresh: Achieves quicker content updates in just 0.3 seconds.
- Broad Compatibility: Fully supports Raspberry Pi, Jetson Nano, Arduino, STM32, and other development platforms.
- Universal Connectivity: Features a standard 40PIN GPIO header, accommodating both 3.3V and 5V logic levels through an onboard voltage translator.
- Flexible SPI Communication: Compatible with both 3-wire and 4-wire SPI configurations.
- Passive Reflective Display: Guarantees excellent visibility under natural or ambient light conditions.
- Diverse Applications: Perfectly suited for digital price tags, asset tracking labels, industrial HMIs, professional conference badges, and electronic shelf labeling systems.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Size | 2.13 inch |
| Resolution | 250 × 122 pixels |
| Display Type | E-Ink (electrophoretic) |
| Viewing Angle | >170° |
| Display Color | Black and White |
| Greyscale | 2 shades |
| Partial Refresh Time | 0.3s |
| Full Refresh Time | 2s |
| Refresh Power | 26.4mW (typical) |
| Standby Current | <0.01uA |
| Operating Voltage | 3.3V / 5V |
| Interface | 3-wire & 4-wire SPI |
| Outline Dimensions | 65 × 30.2 mm |
| Display Area | 48.55 × 23.71 mm |
| Dot Pitch | 0.194 × 0.194 mm |

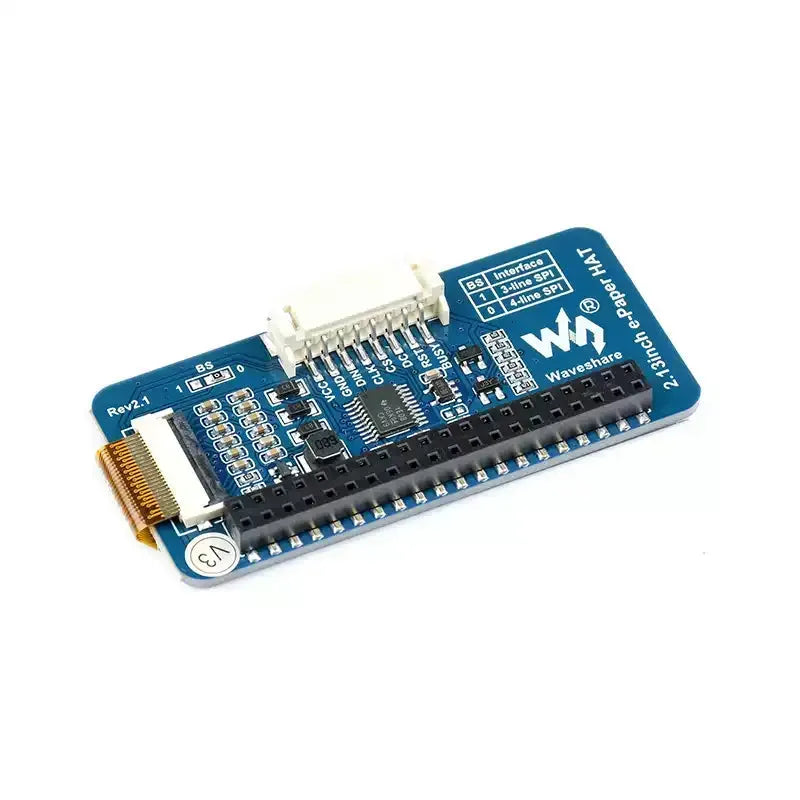

Pin Configuration
| Pin | Description |
|---|---|
| VCC | 3.3V / 5V Power Supply |
| GND | Ground Connection |
| DIN | SPI Master Out Slave In (MOSI) |
| CLK | SPI Serial Clock (SCK) |
| CS | SPI Chip Select (active low) |
| DC | Data/Command Select Pin |
| RST | External Reset (active low) |
| BUSY | Busy Status Output (active high when busy) |
Package Contents
- 1 × 2.13-inch E-Ink Display HAT
- 1 × RPi Screws Pack (2 pcs)
- 1 × PH2.0 8-Pin Cable (20cm)
The E-Ink Advantage
- Utilizes advanced microcapsule electrophoretic technology, mirroring the appearance of printed paper.
- Eliminates the need for a backlight, offering clear visibility under natural or ambient light sources.
- Optimally designed for displaying static content with unparalleled low power consumption.
- Provides an ultra-wide, nearly 180° viewing angle, making it perfect for various labeling and display needs.
