Waveshare PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5

Waveshare PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5

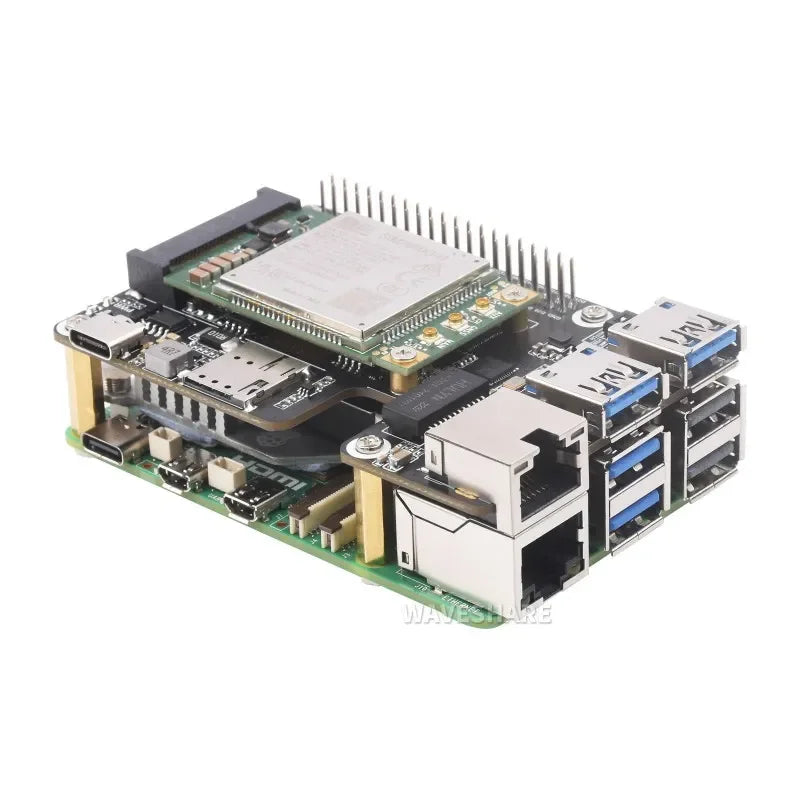

This HAT for Raspberry Pi 5 extends a MiniPCIe slot, a Gigabit Ethernet port, and USB 3.2 Gen1 ports. It supports MiniPCIe interface 4G modules, offering high-speed networking and broad OS compatibility. Driver-free, plug and play for seamless integration.

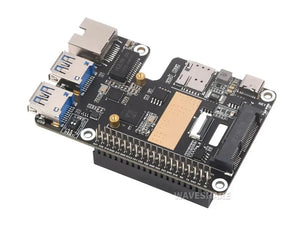

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, front view New HAT+ Standard

Version Options

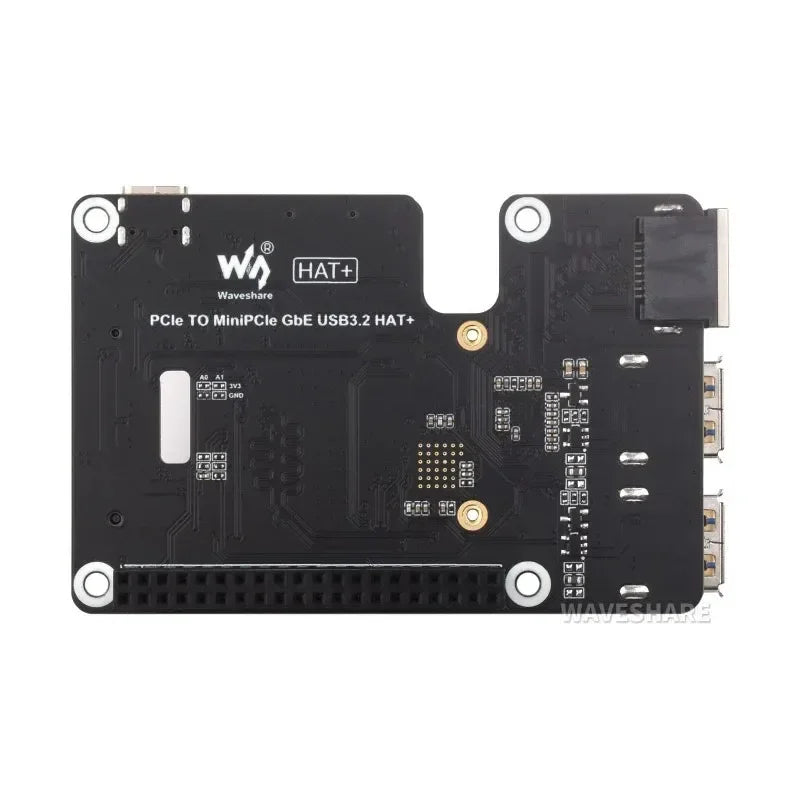

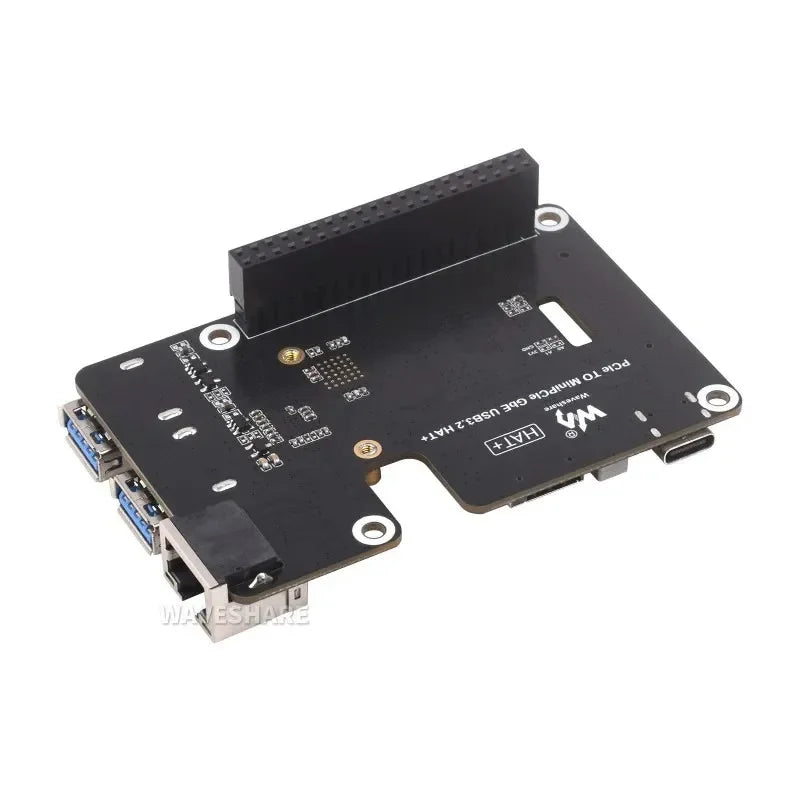

PCIe TO MiniPCIe GbE USB3.2 HAT+

PCIe TO MiniPCIe GbE USB3.2 HAT+
The PCIe HAT + accessories

SIM7600G-H 4G GbE USB3.2 HAT+

SIM7600G-H 4G GbE USB3.2 HAT+

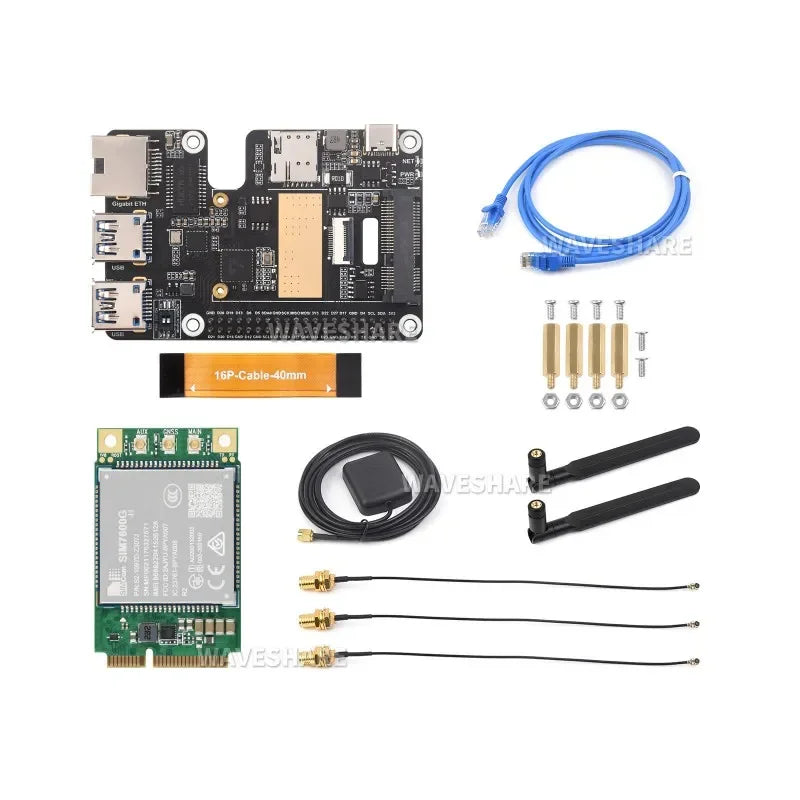

PCIe HAT + SIM7600G-H-PCIE module + accessories

EG25-G 4G GbE USB3.2 HAT+

EG25-G 4G GbE USB3.2 HAT+
PCIe HAT + EG25-G mPCIe module + accessories

Module Parameters Comparison

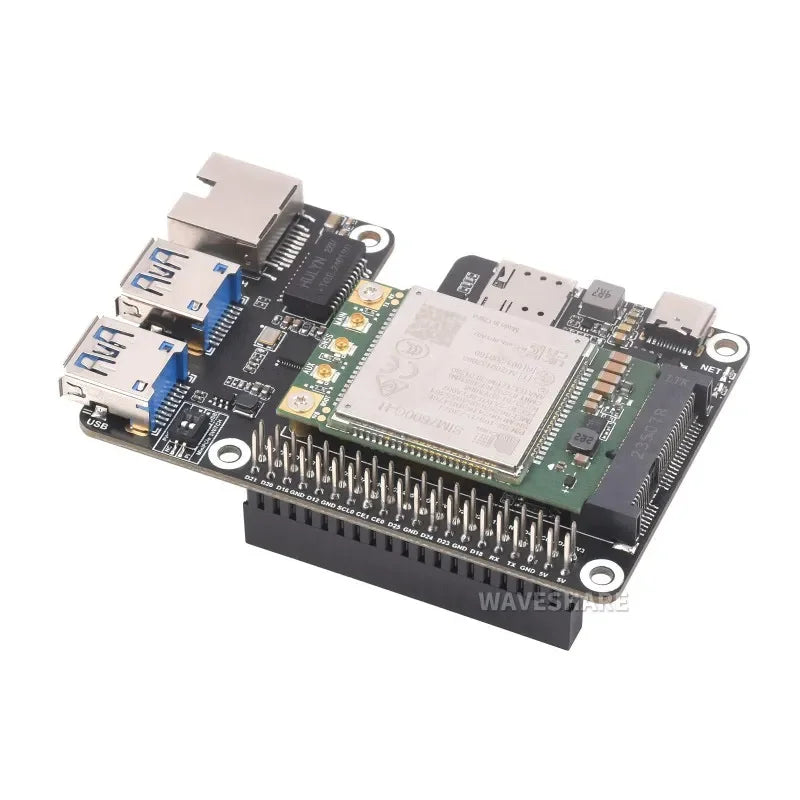

Onboard MiniPCIe slot, compatible with SIM7600G-H-PCIE / EG25-G mPCIe series 4G modules.

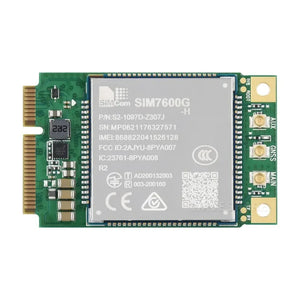

4G module SIM7600G-H-PCIE EG25-G mPCIe
SIM7600G-H-PCIE EG25-G mPCIe
Frequency band
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE-TDD B34, B38, B39, B40, B41 B38, B39, B40, B41
WCDMA B1, B2, B4, B5, B6, B8, B19
GSM 850, 900, 1800, 1900 MHz
GNSS GPS, Beidou, GLONASS, GALILEO, QZSS
Data Transfer
LTE-FDD 150 Mbps (DL) / 50 Mbps (UL)
LTE-TDD 130 Mbps(DL) / 35 Mbps(UL) 130 Mbps(DL) / 30 Mbps(UL)
HSPA+ 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA 384 Kbps (DL) / 384 Kbps (UL)
EDGE 236.8 Kbps (DL) / 236.8 Kbps (UL) 296 Kbps (DL) / 236.8 Kbps (UL)
GPRS 85.6 Kbps (DL) / 85.6 Kbps (UL) 107 Kbps (DL) / 85.6 Kbps (UL)
Software Features
Operating system Windows / Linux / Android
Communication protocols TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade USB/FOTA USB/DFOTA
Hardware Specifications
SIM card 1.8V / 3.0V
Antenna interface IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)
Power supply 3V ~ 3.6V
Form factor Mini-PCIe
Dimensions 50.8 ร— 31.0 ร— 5.5 mm 51.0 ร— 30.0 ร— 4.9 mm
Operating temperature -40โ„ƒ ~ +80โ„ƒ
Applications
Applicable regions global coverage
Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module.

Designed for Raspberry Pi 5, HAT+ Standard

Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5

For reference only, please refer to the Package Content for detailed part list.

More USB Capability For Raspberry Pi 5

Extends the PCIe interface to two high-speed USB 3.2 Gen1 ports for connecting more peripherals.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, extends 2x high speed USB 3.2 Gen1 ports

For reference only, please refer to the Package Content for detailed part list.

Extends 1x Gigabit Ethernet Port

Equipped with an RTL8153B high-performance Gigabit ETH chip and a sinking design network port for neat and beautiful integration.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, extends 1x Gigabit Ethernet port

Network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., providing stable and reliable network speeds.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, network speed measurement

Multi-System Support

Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, multi-system support

Global Band 4G / 3G / 2G Support

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)
2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink)

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, global band 4G / 3G / 2G support

Note: A 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function.

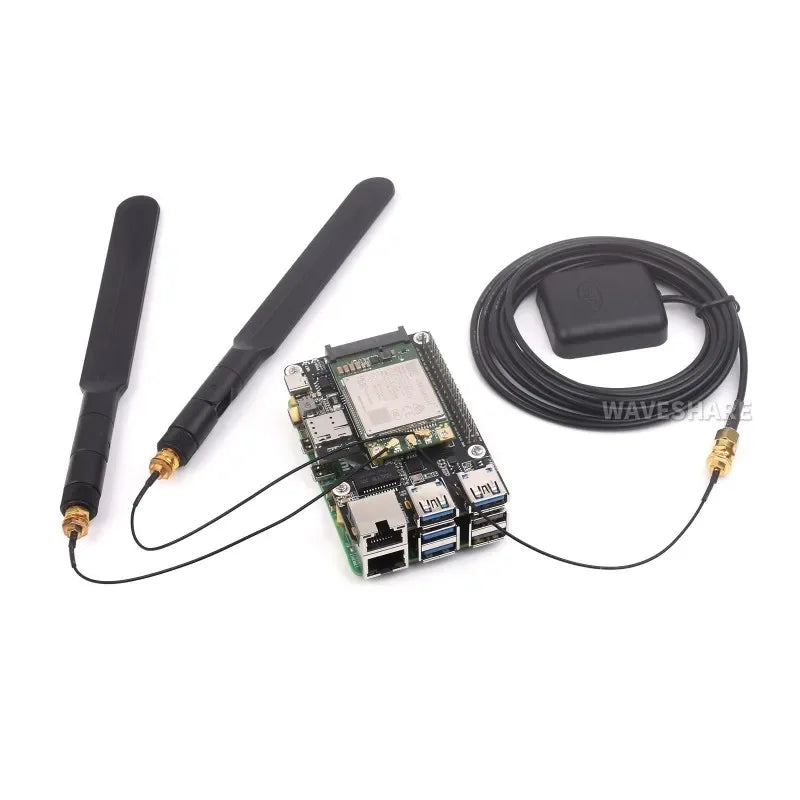

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, supports GNSS positioning

Note: A 4G module such as SIM7600G-H-PCIE or EG25-G mPCIe is required to enable this function.

Onboard Power Monitoring Chip and EEPROM

Real-time monitoring of power status, supports USB port power control via software.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM

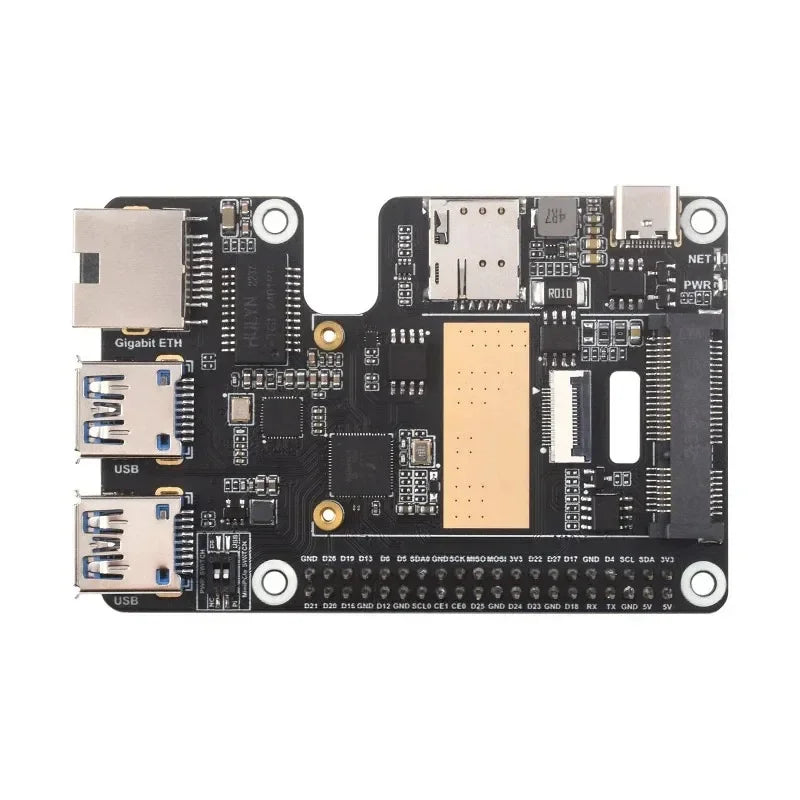

What's On Board

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT, onboard components

  1. RTL8153B: USB to Gigabit ETH
  2. VL805: PCIe to USB 3.2 Gen1 HUB chip
  3. INA219: Power monitoring chip
  4. EEPROM: For saving HAT ID and product information
  5. Raspberry Pi GPIO header: For connecting Raspberry Pi 5
  6. MiniPCIe slot: For connecting the 4G module with MiniPCIe interface
  7. 16PIN PCIe interface: For connecting to the PCIe interface of Raspberry Pi 5
  1. Type-C interface: For 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
  2. Nano SIM card slot: For installing Nano-SIM card
  3. Gigabit Ethernet port: Up to 1000Mbps data rate, compatible with 100Mbps
  4. USB 3.2 Gen1 expanded ports: USB1~USB2
  5. DIP switches: For switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
  6. NET indicator: Module Network status indicator
  7. PWR indicator: Power indicator

Pinout Definition

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, pinout definition

How to Install

how to install PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5

For reference only, the Raspberry Pi 5 and Active Cooler are not included.

Application Scenarios

Ideal for Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, and Digital Signage.

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, application scenarios

Outline Dimensions

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, outline dimensions
