Waveshare PCIe to SIMCom/Quectel 5G/4G/3G HAT for Raspberry Pi 5 RM530N-GL

Waveshare PCIe to SIMCom/Quectel 5G/4G/3G HAT for Raspberry Pi 5 RM530N-GL

$423.99

Details

Prohibited by the module manufacturer SIMCOM/QUECTEL, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

The RM530N-GL is currently certified only by T-Mobile and has not yet obtained certification from carriers such as Verizon or AT&T. If you require these certifications, please choose the RM520N-GL.

PCIe to 5G/4G/3G HAT designed for Raspberry Pi 5, High-speed Networking, Compatible with 3042/3052 packages SIMCom/Quectel 5G modules, Multi-OS Support, Raspberry Pi 5 HAT, Options For 5G Module

PCIe To 5G HAT for Raspberry Pi 5

PCIe protocol, supports 5G high-speed networking

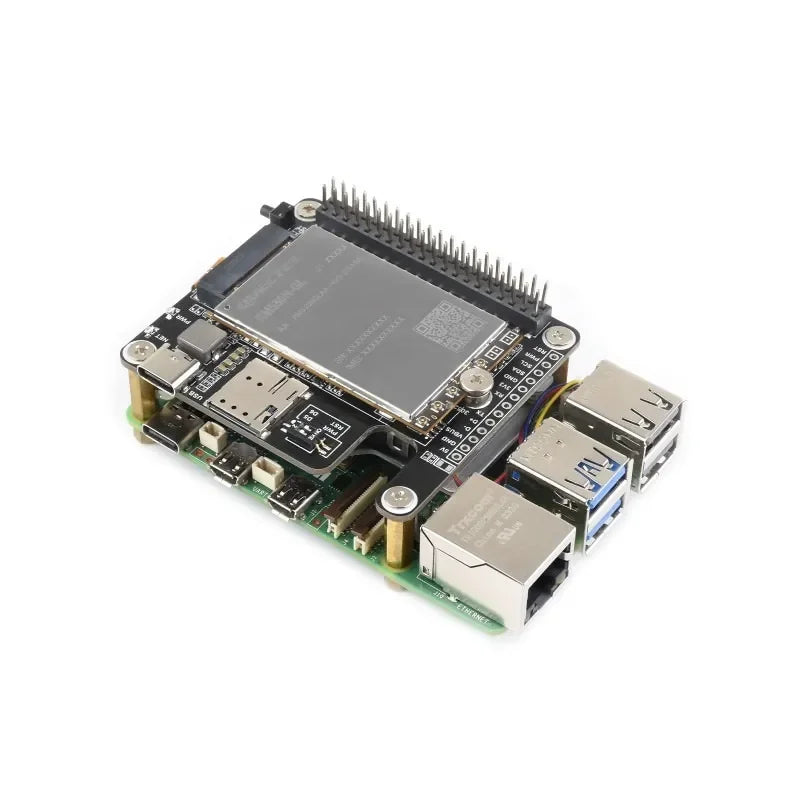

PCIe To 5G HAT for Raspberry Pi 5, front view, connecting with Raspberry Pi 5

for reference only, the Raspberry Pi 5 is NOT included.


Features at a glance

  • Comes with PCIe TO 5G HAT+
    • Onboard M.2(NGFF) Key B slot, supports SIM82XX and RM5XX series 5G modules and is compatible with 3042/3052 packages
    • Onboard PCIE connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking, supports Raspberry Pi OS and OpenWRT
    • Onboard Type-C port for 5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
    • HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
    • Onboard power monitoring chip for real-time measurement of voltage, current and power
    • Onboard SIM card slot for NANO SIM card
    • Onboard Reset button, power and network indicators for easy debugging and monitoring the operating status
  • Provides options for 5G module, please refer to the module specifications and applicable region below to choose your 5G HAT kit before placing order
  • Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation


Options for SIMCom/Quectel 5G module

Tested to support multiple SIMCom/Quectel Qualcomm 5G modules
compatible with 3042 / 3052 size 5G M.2 modules

Model RM502Q-AE 5G HAT+ RM520N-GL 5G HAT+ RM530N-GL 5G HAT+ SIM8262E-M2 5G HAT+ SIM8262A-M2 5G HAT+
RM502Q-AE 5G HAT+ RM520N-GL 5G HAT+ RM530N-GL 5G HAT+ SIM8262E-M2 5G HAT+ SIM8262A-M2 5G HAT+
5G Module RM502Q-AE
RM502Q-AE
RM520N-GL
RM520N-GL
RM530N-GL
RM530N-GL
SIM8262E-M2
SIM8262E-M2
SIM8262A-M2
SIM8262A-M2
5G Standard 3GPP R15 3GPP R16
5G Sub-6 GHz Sub-6G & mmWave Sub-6 GHz
Applicable Region Global (except China) Global except Americas Americas
Dimensions 30.0 × 52.0 × 2.3 (mm) 30.0 × 42.0 × 2.3 (mm)
Frequency band
5G 5G NR - n257, n258, n260, n261 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
5G NR NSA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
5G NR SA n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B41, B46, B48
LAA B46 -
UMTS WCDMA B1, B2, B3, B4, B5, B6, B8, B19 B1, B2, B4, B5, B8, B19 B1, B5, B8 B2, B4, B5
GNSS GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) GPS / GLONASS / BeiDou / Galileo / QZSS
Data rate
5G mmWave - downlink 4 Gbps;
uplink 1.4 Gbps
-
5G SA Sub-6 downlink 4.2 Gbps;
uplink 450 Mbps
downlink 2.4 Gbps;
uplink 900 Mbps
downlink 2.4 Gbps;
uplink 500 Mbps
5G NSA Sub-6 downlink 5 Gbps;
uplink 650 Mbps
downlink 3.4 Gbps;
uplink 550 Mbps
LTE downlink 2 Gbps;
uplink 200 Mbps
downlink 1.6 Gbps;
uplink 200 Mbps
downlink 1.0 Gbps;
uplink 200 Mbps
UMTS downlink 42 Mbps;
uplink 5.76 Mbps
Note: The above are the supported 5G modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

Supports 5G/4G/3G Networking

Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking); Supports 4G/3G Internet

PCIe To 5G HAT for Raspberry Pi 5, supports 5G/4G/3G Networking

the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.



Connecting To PI5 Via PCIe Interface

Onboard PCIe connector, can be directly connected to Raspberry Pi 5 PCIe interface for 5G networking via 16PIN cable

PCIe To 5G HAT for Raspberry Pi 5, connecting to PI5 via PCIe interface

for reference only, please refer to the Package Content for detailed part list


PCIe MHI driver porting

The Raspberry Pi 5 can load the module via PCIe MHI driver
compatible with the latest Raspberry Pi OS and OpenWRT system

Raspberry Pi OS

PCIe To 5G HAT for Raspberry Pi 5, supports Raspberry Pi OS

OpenWRT

PCIe To 5G HAT for Raspberry Pi 5, supports OpenWRT

PCIe To 5G HAT for Raspberry Pi 5, networking other devices via network cable

Networking other devices via network cable

PCIe To 5G HAT for Raspberry Pi 5, individually powered and sharing WIFI

Individually powered and sharing WIFI



Connecting to Windows/Linux Host via USB

Onboard Type-C port, supports connecting to Windows/Linux host via USB cable for 5G networking, firmware updating or debugging

PCIe To 5G HAT for Raspberry Pi 5, connecting to the Raspberry Pi 4B

Connecting to the Raspberry Pi 4B

PCIe To 5G HAT for Raspberry Pi 5, connecting to the Raspberry Pi PC

Connecting to the PC


supports Windows/Linux systems via USB port

PCIe To 5G HAT for Raspberry Pi 5, supports Windows/Linux systems via USB port

Comes with 5G-4IN1-PCB Antenna

Supports top and bottom mounting, easy to install, good communication effect

PCIe To 5G HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the bottom

Install on the Bottom

PCIe To 5G HAT for Raspberry Pi 5 with 5G-4IN1-PCB Antenna on the top

Install on the Top


Onboard power monitoring chip and EEPROM

for real-time monitoring voltage, current and power of module Via I2C
supports saving HAT+ ID and product information, compatible with HAT+ standard

PCIe To 5G HAT for Raspberry Pi 5 with onboard power monitoring chip and EEPROM

How to Install

how to install PCIe To 5G HAT for Raspberry Pi 5

Pinout definition

PCIe To 5G HAT for Raspberry Pi 5, pinout definition

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

PCIe To 5G HAT for Raspberry Pi 5, application scenarios

Outline dimensions

PCIe To 5G HAT for Raspberry Pi 5, outline dimensions
