Waveshare SIM7600G-H-PCIE SIMCom Original 4G LTE Cat-4 Module
The SIM7600G-H-PCIE series is a high-performance LTE Cat 4 wireless communication module. It supports comprehensive multi-band wireless modes, including LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, delivering robust data transmission with a maximum 150Mbps downlink and 50Mbps uplink rate.
Adopting a versatile Mini PCIe form factor, the series integrates a SIM7600-H module with a Mini PCIe adapter board, ensuring streamlined integration for hardware developers. The module features high-accuracy GNSS positioning (GPS, Beidou, GLONASS, GALILEO, QZSS) and supports a wide array of network protocols and software drivers for Windows, Linux, and Android. With AT command compatibility for the SIM7500/SIM7600 series and standard industrial interfaces (UART, USB, GPIO), it is an ideal solution for telematics, surveillance, CPE, industrial routers, and remote diagnostics.
Features
-
Global Connectivity: Supports extensive LTE/WCDMA/GSM frequency bands for worldwide coverage.
-
High-Speed Data: LTE Cat 4 performance (150 Mbps DL / 50 Mbps UL).
-
Precise Positioning: Integrated multi-constellation GNSS system.
-
Ease of Integration: Mini PCIe form factor with M.2 B KEY interface.
-
Robust Software Support: Embedded TCP, IP, IPV4, IPV6, FTP, FTPS, HTTP, HTTPS, and DNS protocols.
-
Industrial Grade: Operating temperature range from -40°C to +85°C.
Specifications
| Category | Details |
| LTE-FDD Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
| LTE-TDD Bands | B34, B38, B39, B40, B41 |
| WCDMA Bands | B1, B2, B4, B5, B6, B8, B19 |
| GSM Bands | 850, 900, 1800, 1900MHz |
| GNSS Support | GPS, Beidou, GLONASS, GALILEO, QZSS |
| Data Rates | LTE: 150Mbps(DL)/50Mbps(UL) | HSPA+: 42Mbps(DL)/5.76Mbps(UL) | WCDMA: 384Kbps(DL/UL) | EDGE/GPRS: Up to 236.8/85.6 Kbps |
| Operating Systems | Windows, Linux, Android |
| Network Protocols | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS |
| SMS Features | Supports MT, MO, CB, Text, PDU |
| Firmware Upgrade | USB / FOTA (Firmware Over-The-Air) |
| SIM Interface | 1.8V / 3.0V |
| Antenna Interface | IPEX-4 connector (LTE Main + LTE Diversity + GNSS) |
| Power Supply | 3V ~ 4.2V |
| Form Factor | M.2 B KEY |
| Dimensions | 42.0 × 31.4 × 3.8mm |
| Operating Temp | -40℃ ~ +85℃ |
Applications
-
Healthcare & Smart Payment: Remote patient monitoring and secure POS terminals.
-
Industrial IoT: Environmental/Energy monitoring, fleet management, and smart agriculture.
-
Networking: Industrial routers, CPE, and intelligent surveillance.
Indicator Status Definition
| STA | NET | Status |
| OFF | OFF | Module is turning off or turning on |
| ON | OFF | Operating (No network) |
| ON | ON | SIM card not inserted or weak signal |
| ON | Blink | Networking; working normally |
| OFF | Blink/ON | Shutting down |
Notices
Warning:
Hot-Plugging Prohibited: DO NOT plug or unplug the module while the power is connected.
Voltage Requirement: The recommended supply voltage is 4.0V for stable operation.
Interface Compatibility: Carefully check the interface before use. M.2 B Key is NOT compatible with standard MINI-PCIE slots.
Pre-Configuration: Ensure the module is correctly connected and powered before attempting AT command configuration.

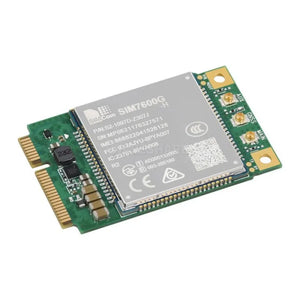

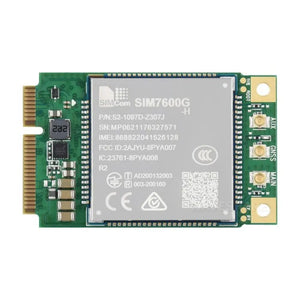

SIM7600G-H-PCIE
LTE Cat-4 module, Mini-PCIe
The SIM7600G-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
The SIM7600G-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7600G-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
Mean while the SIM7600G-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
- Mini-PCIE interface with strong compatibility
- Multi-constellation GNSS receiver support
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules
Specifications
| Frequency Band | ||||||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | |||||
| LTE-TDD | B34, B38, B39, B40, B41 | |||||
| WCDMA | B1, B2, B4, B5, B6, B8, B19 | |||||
| GSM | 850, 900, 1800, 1900MHz | |||||
| GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS | |||||
| Data Transfer | ||||||
| LTE | 150 Mbps (DL) / 50 Mbps (UL) | |||||
| HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |||||
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) | |||||
| EDGE | 236.8 Kbps (DL) / 236.8 Kbps (UL) | |||||
| GPRS | 85.6 Kbps (DL) / 85.6 Kbps (UL) | |||||
| Software Features | ||||||
| Operating system | Windows/Linux/Android | |||||
| Protocol | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS | |||||
| SMS | Supports MT, MO, CB, Text, PDU | |||||
| Firmware upgrade | USB/FOTA | |||||
| Hardware Specifications | ||||||
| SIM card | 1.8V/3.0V | |||||
| Antenna interface | IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) | |||||
| Power supply | 3V ~ 3.6V | |||||
| Form factor | Mini-PCIe | |||||
| Dimensions | 50.8 × 31.0 × 5.5mm | |||||
| Operating temperature | -40℃ ~ +85℃ | |||||
| Applications | ||||||
| Applicable regions | global coverage | |||||
| Examples | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. | |||||
