Waveshare SIM8200EA-M2 5G HAT for Raspberry Pi 5G/4G/3G Support
Unleash High-Speed 5G Connectivity with Multi-Mode, Multi-Band Support
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
The SIM8200EA-M2 5G HAT empowers your Raspberry Pi with cutting-edge 5G/4G/3G communication capabilities. Featuring the powerful Snapdragon X55 onboard, this HAT supports both 5G SA and NSA networking, delivering ultra-fast data rates. It's engineered for regions with extensive 5G Sub-6G signal coverage (excluding the Americas), making it a versatile solution for advanced wireless projects.
Designed with an M.2 connector, this HAT is compatible with various 4G or 5G communication modules, offering flexibility for your specific needs. It integrates essential features like a USB 3.1 port for seamless PC or Raspberry Pi connection, an audio jack with a decoder, and a convenient SIM card slot. With comprehensive configuration scripts and development resources, integrating high-speed 5G into your Raspberry Pi or computer becomes effortless. This 5G HAT is perfect for rapid 5G module evaluation and integration into applications demanding robust 5G connectivity.
Key Features
- Standard Raspberry Pi 40PIN GPIO extension header, supporting Raspberry Pi series boards and Jetson Nano.
- Equipped with the SIM8200EA-M2 core module, built on the Qualcomm Snapdragon X55 platform, offering multi-mode and multi-band support.
- Comprehensive 5G/4G/3G communication support.
- USB 3.1 port for AT command testing, messaging, cloud communication, phone calls, and GNSS positioning.
- SIM card slot for 1.8V / 3V SIM cards.
- Dual LED indicators for easy monitoring of module status.
- Supports AT commands based on 3GPP TS 27.007, 27.005, and V.25TER command sets.
- Onboard audio jack and audio decoder for voice operations, including phone calls.
- Multi-constellation dual-band positioning: GPS, GLONASS, BeiDou, Galileo, and QZSS.
- Wide operating system compatibility: Windows/Linux/Android.

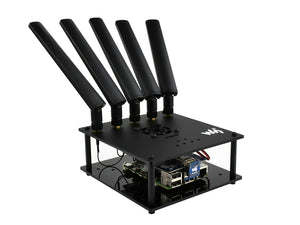

- Includes a high-quality acrylic case and cooling fan for a sleek appearance and superior heat dissipation.
Technical Specifications
| SIM8200EA-M2 | SIM8202G-M2 | RM520N-GL | |
|---|---|---|---|
| Frequency band | |||
| Sub-6G | SA: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2) | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |
| NSA: n41, n77, n78, n79 (n79 is only available for SIM8202G-M2) | |||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | ||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | ||
| WCDMA | B1, B2, B3, B4, B5, B8 | B1, B2, B4, B5, B8, B19 | |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | ||
| Data rate | |||
| Sub-6G | 2.4 Gbps (DL) / 500 Mbps (UL) | SA: 2.4 Gbps (DL) / 900 Mbps (UL) NSA: 3.4 Gbps (DL) / 550 Mbps (UL) |
|
| LTE | 1 Gbps (DL) / 200 Mbps (UL) | 1.6 Gbps (DL) / 200 Mbps (UL) | |
| HSPA | 42 Mbps (DL) / 5.76 Mbps (UL) | ||
| Hardware info | |||
| SIM card | 1.8V/3.0V | ||
| Power supply | 5V 3A | ||
| Antenna connector | 6x IPEX-4 connector | 4x IPEX-4 connector | |
| Module dimensions | 52.0×30.0×2.3mm | 42.0×30.0×2.3mm | 52.0×30.0×2.3mm |
| Applications | |||
| Applicable regions | Regions with 5G Sub-6G signal coverage except the Americas | Global | |
| Application examples | CPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security | ||
5G Module Comparison
Compatible Hardware Interface

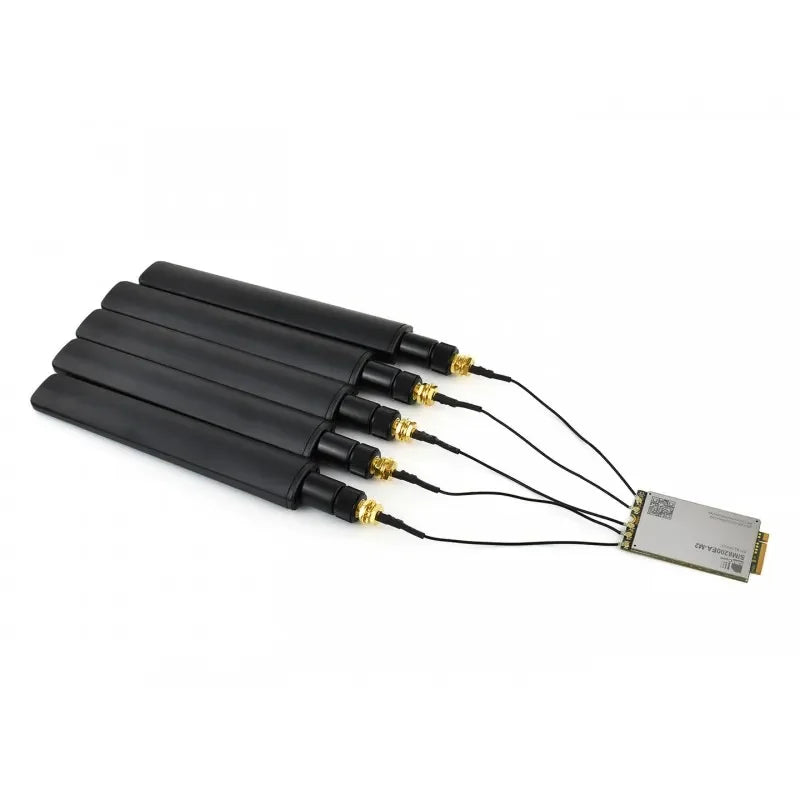

SIM8200EA-M2
6x antennas version
SIM8202G-M2
4x antennas version
RM520N-GL
4x antennas version
Multi-Mode, Multi-Band Connectivity
Applicable for most countries and regions worldwide.
Built on the Qualcomm Snapdragon X55 platform, this HAT supports diverse modes and bands. It's designed for areas with 5G Sub-6G signal coverage (excluding the Americas), offering both 5G NSA (4G+5G common networking) and SA (5G standalone networking) capabilities.
* The frequency band diagram above is for reference only; please confirm supported bands with your local service provider.
Extensive System Support
Compatible with Windows, Android, and Linux operating systems.
Simply plug it into a USB port, complete a straightforward driver installation and basic configuration, and your high-speed 5G network connection will be ready to use.

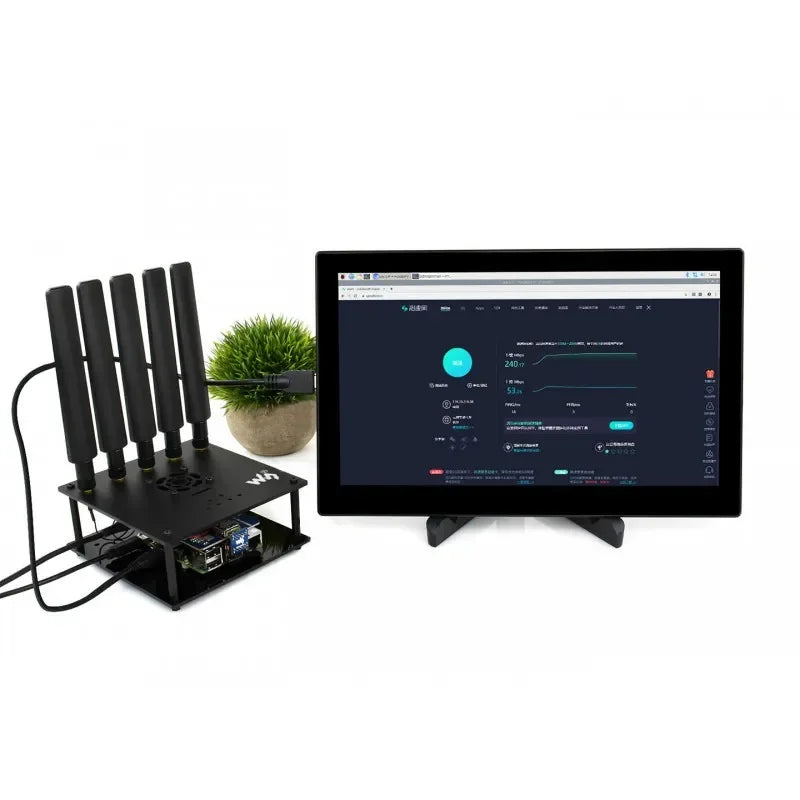

Versatile Host Support
Enabling high-speed 5G connectivity for Raspberry Pi and Windows computers.
- Sub-6G: Up to 2.4 Gbps (downlink) / Up to 500 Mbps (uplink)*
- LTE: Up to 1 Gbps (downlink) / Up to 200 Mbps (uplink)*
- HSPA+: Up to 42 Mbps (downlink) / Up to 5.76 Mbps (uplink)*
* Idealized data rates; actual performance depends on factors like network coverage, traffic, and base station conditions.
Robust Cloud Communication
Supports a wide array of communication protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
Phone Call & SMS Functionality
Facilitates phone calls and SMS messaging using AT commands.
Setup Introduction

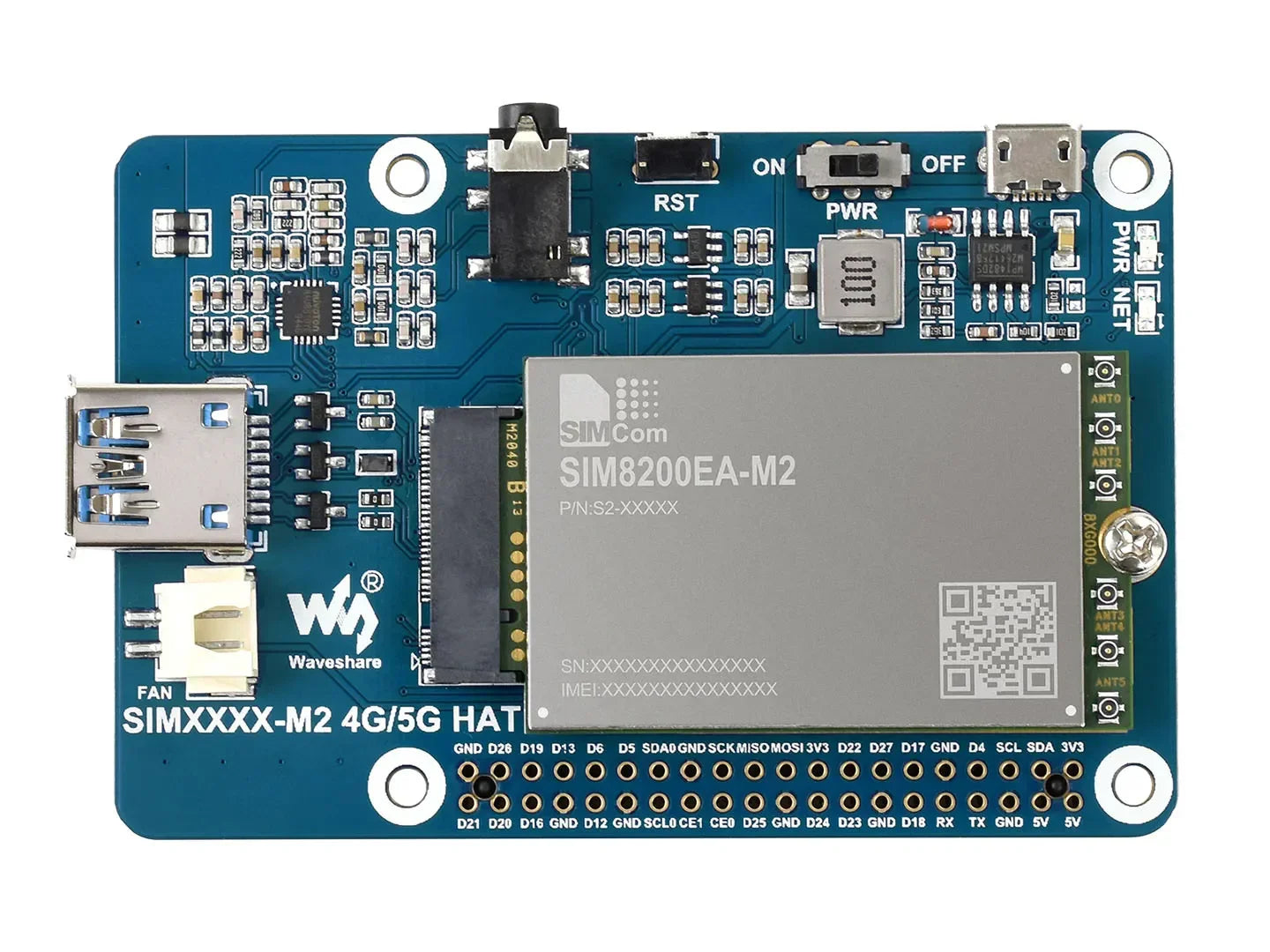

Onboard Components
- Raspberry Pi GPIO header
- USB 3.1 port
- Audio drive circuit
- Audio jack
- Reset button
- Power switch
- 5V 3A input
- 5V to 3.3V translator
- 5V to 1.8V translator
- 5V to 4.3V translator
- Power indicator LED
- Network indicator LED
- M.2 connector
- SIM8200EA-M2 module
- Antenna connectors
- Fan connector
- SIM card slot
Outline Dimensions
