Waveshare Wireless AX200 NIC Wi-Fi 6 Bluetooth 5.2
The Intel Wi-Fi 6 Wireless NIC leverages Intel's sixth-generation wireless protocol AX standard. Compared to the previous 802.11AC protocol, this module significantly enhances performance and compatibility while reducing power consumption and extending the overall service life of the hardware.
Utilizing the latest generation of MU-MIMO wireless technology, the NIC improves network quality substantially—increasing internet speeds by more than three times and ensuring higher efficiency for both data transmission and downloads.
Features
-
Next-Gen Standard: Adopts the Intel 6th Gen wireless protocol AX standard for superior performance and longevity.
-
Dual-Band Coexistence: Supports 2.4G/5GHz/6GHz bands.
-
2.4GHz: Rates up to 574Mbps.
-
5G/6GHz: Rates up to 2400Mbps.
-
-
Advanced Bluetooth: Supports Bluetooth 5.2 standard, offering longer transmission distances and improved stability.
-
Industrial Interface: Adopts the NGFF (M.2 A/E Key) interface for broad compatibility.
-
MU-MIMO Technology: Dramatically improves network throughput and multi-user efficiency.
-
Multi-OS Support: Compatible with Linux and Windows 10/8.1/8/7.
Specifications
| Category | Details |
| Wireless Protocol | Intel 6th Gen AX Standard (Backwards compatible with 802.11AC) |
| Frequency Bands | 2.4GHz / 5GHz / 6GHz |
| Max Speed (2.4GHz) | 574 Mbps |
| Max Speed (5G/6GHz) | 2400 Mbps |
| Bluetooth Version | Bluetooth 5.2 |
| Interface Type | NGFF (M.2 A/E Key) |
| WIFI Connection | PCIe |
| Bluetooth Connection | USB |
| Wireless Technology | MU-MIMO |
| Hardware Version | v006 (Default); v005 for versions before 20230926 |
| Supported OS | Linux, Windows 10, Windows 8.1, Windows 8, Windows 7 |
Important Notes
Kernel Requirements (Linux):
For full functionality (WIFI + Bluetooth), a Linux kernel version ≥ 5.11 is required.
If only WIFI is required (without Bluetooth), the 5.10 kernel is supported.
Raspberry Pi Compatibility:
The native system of the Raspberry Pi CM4 is not supported out-of-the-box. The kernel must be recompiled to enable functionality.
Hardware Iteration:
The current default hardware version is 006. Units produced before September 26, 2023 (20230926) are version 005.
Connection Architecture:
Please note that the WIFI component communicates via the PCIe bus, while the Bluetooth component utilizes the USB bus within the M.2 interface.
Wi-Fi 6 Wireless AX200 NIC
Dual-Band
Bluetooth 5.2
MU-MIMO
Features at a glance
- Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life
- Supports 2.4G/5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
- Support Bluetooth 5.2 standard, longer transmission distance and better stability
- Adopts NGFF (M.2 A/E Key) interface
- Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency
- Support Linux, Windows 10/11, etc.
Parameters Comparison
| Model |
 AX210 |
 AX200 |
 BE200 |
|||||
|---|---|---|---|---|---|---|---|---|
| Wi-Fi Version | Wi-Fi 6E | Wi-Fi 6 | Wi-Fi 7 | |||||
| Wi-Fi Band | 2.4GHz | 5GHz | 6GHz | 2.4GHz | 5GHz | 2.4GHz | 5GHz | 6GHz |
| Wi-Fi Rate | 574Mbps | 2400Mbps | 2400Mbps | 574Mbps | 2400Mbps | 574Mbps | 2400Mbps | 5800Mbps |
| Interface | NGFF (M.2 A/E Key) | NGFF (M.2 E Key) | ||||||
| Bluetooth Version | 5.3 | 5.2 | 5.4 | |||||
| Technical Support | MU-MIMO | |||||||
| Antenna Connector | IPEX-4 Connector | |||||||
| System Support | Linux, Windows 10/11 | |||||||
| Dimensions | 22.0 × 30.0 × 2.4mm | |||||||
Compatible With the following Products
DUAL ETH WIFI6
JETSON-IO-BASE-B
MINI BASE A *
MINI BASE B *
MINI BASE C *
TOUCH SCREEN *
BINOCULAR CAMERA *
5″ ALL-IN-ONE *
7″ ALL-IN-ONE *
AX200 High Performance Wi-Fi 6
Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance
and compatibility than the previous generation 802.11AC, lower power consumption
and longer service life
Dual-band Wi-Fi
Supports 2.4G/5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
Bluetooth 5.2, More Stable Connection
Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepad, etc. for wireless connection and transmission
Support MU-MIMO Technology
Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster Internet speed (more than three times), and higher transmission and download efficiency

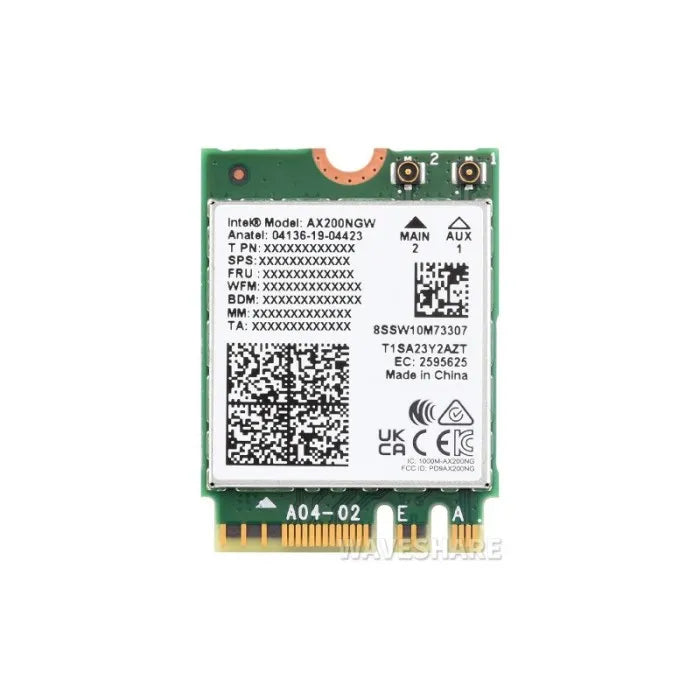

Interface Introduction

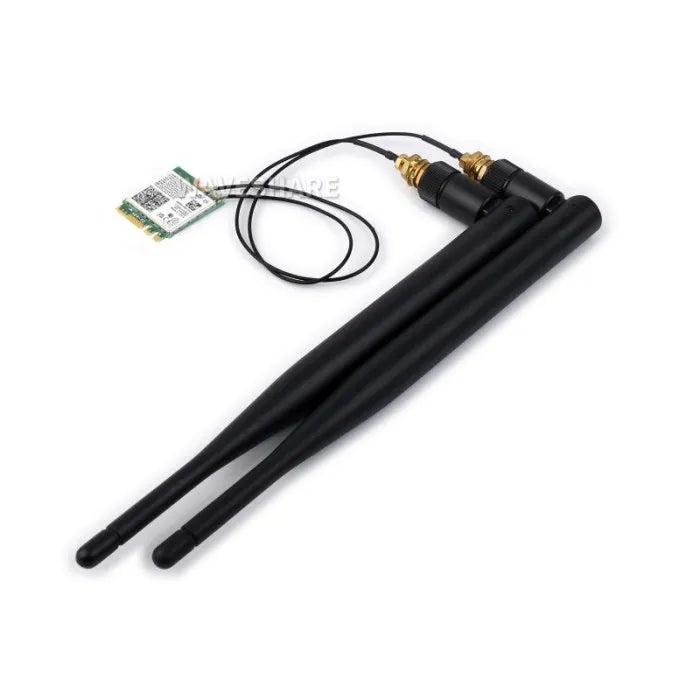

Access to antenna via IPEX connector

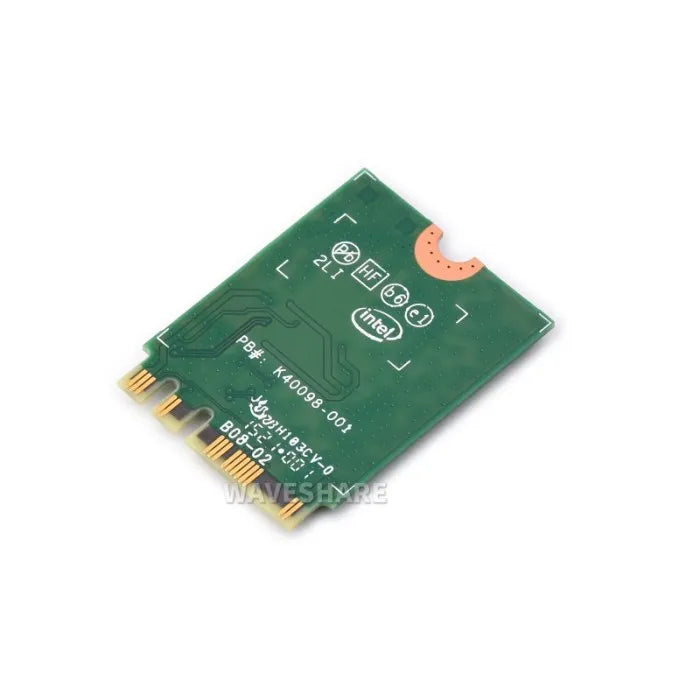

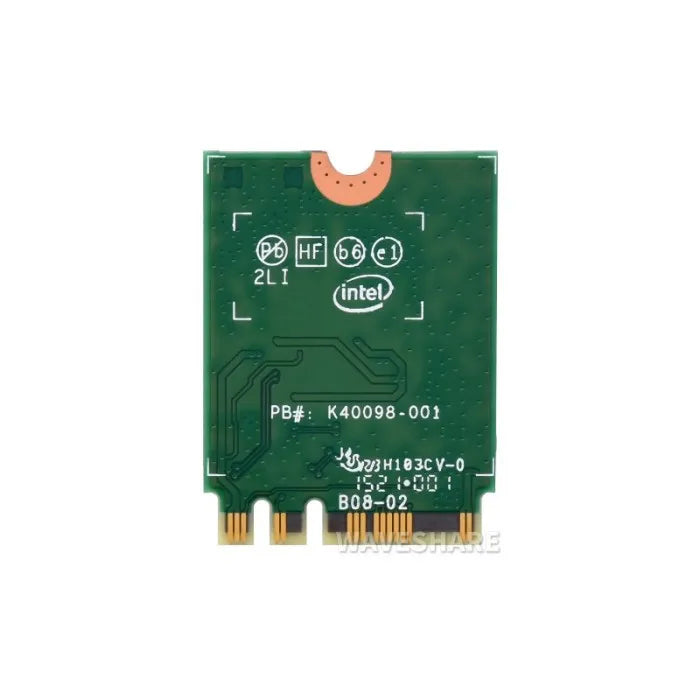

Product Show
Outline dimensions
