Waveshare ZED-F9P GPS-RTK HAT for Raspberry Pi Centimeter Level Accuracy

Waveshare ZED-F9P GPS-RTK HAT for Raspberry Pi Centimeter Level Accuracy

$370.99

Unlock unparalleled positioning accuracy with the ZED-F9P GPS-RTK HAT, a centimeter-level GNSS module designed for Raspberry Pi. Based on the advanced ZED-F9P, this HAT delivers multi-band RTK capabilities with rapid convergence times and a high update rate, making it ideal for demanding applications.

Prohibited by the module manufacturer, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

Key Features at a Glance

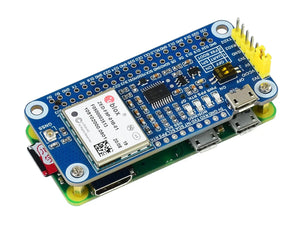

This precise centimeter-level Raspberry Pi GNSS HAT, powered by ZED-F9P, offers a robust set of features:

  • Standard Raspberry Pi 40PIN GPIO extension header, ensuring compatibility with Raspberry Pi series boards and Jetson Nano.
  • Multi-band RTK with fast convergence times, providing centimeter-level accuracy and a high update rate.
  • Supports Moving Base RTK mode for precise navigation and centimeter-level accuracy in dynamic scenarios.
  • Concurrent reception of 4 GNSS constellations (GPS, BeiDou, Galileo and GLONASS) while maintaining low power consumption.
  • Augment positioning systems support, including SBAS, QZSS, IMES, and D-GPS, to enhance location performance.
  • A-GNSS (Assisted GNSS) support, reducing initial positioning time and improving acquisition sensitivity.
  • Features -167dBm navigating sensitivity and exceptional anti-spoofing & anti-jamming capabilities, alongside geo-fencing support.
  • Compatible with U-Center software for easy module configuration.
  • Onboard battery holder for an ML1220 rechargeable cell, preserving ephemeris information for hot starts.
  • Four LEDs indicate the module's operating status.
  • Comprehensive development resources and manuals provided (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

Technical Specifications

GNSS Specifications
ZED-F9P Concurrent Receiving
GPS
GLONASS
Galileo
BeiDou		 GPS
GLONASS
Galileo		 GPS
Galileo		 GPS
GLONASS		 GPS
BeiDou		 GPS
Frequency band u-blox F9 platform
GPS L1C/A L2C, SBAS, QZSS, GLONASS L1OF L2OF, BeiDou B1I B2I, Galileo E1B/C E5b
Max navigation update rate RTK 8Hz 10Hz 15Hz 15Hz 15Hz 20Hz
PVT 10Hz 12Hz 20Hz 25Hz 25Hz 25Hz
RAW 20Hz 20Hz 25Hz 25Hz 25Hz 25Hz
RTK convergence time <10s <10s <10s <10s <10s <30s
Time-To-First-Fix Cold starts 24s 25s 29s 26s 28s 29s
Hot starts 2s 2s 2s 2s 2s 2s
Aided starts 2s 2s 2s 2s 2s 2s
Positioning accuracy PVT 1.5m CEP
RTK (horizontal and vertical) 0.01m+1ppm CEP
Sensitivity Tracking and navigating -167 dBm
Re-acquisition -160 dBm
Cold starts -148 dBm
Hot starts -157 dBm
Velocity accuracy 0.05 m/s
Heading accuracy 0.3 degree
PPS accuracy RMS 30ns
99% 60ns
Jamming Ā±11ns
PPS frequency 0.25Hz ~ 10MHz (configurable)
Operational limits Acceleration (max): 4g
Altitude (max): 50000m
Velocity (max): 500m/s
Other Specifications
Communication interface USB, UART (4800~921600bps, 9600bps by default), I2C (max 400KHz), SPI (5MHz)
Protocol NMEA 0183 Version 4.10, UBX, RTCM 3.3
Power supply 5V
Overall current < 120mA@5V (continue mode)
Module current 130mA@3V max (tracking status)
Operating temperature -40ā„ƒ ~ 85ā„ƒ
Dimensions 65mm Ɨ 30.5mm

Standard Raspberry Pi 40PIN GPIO

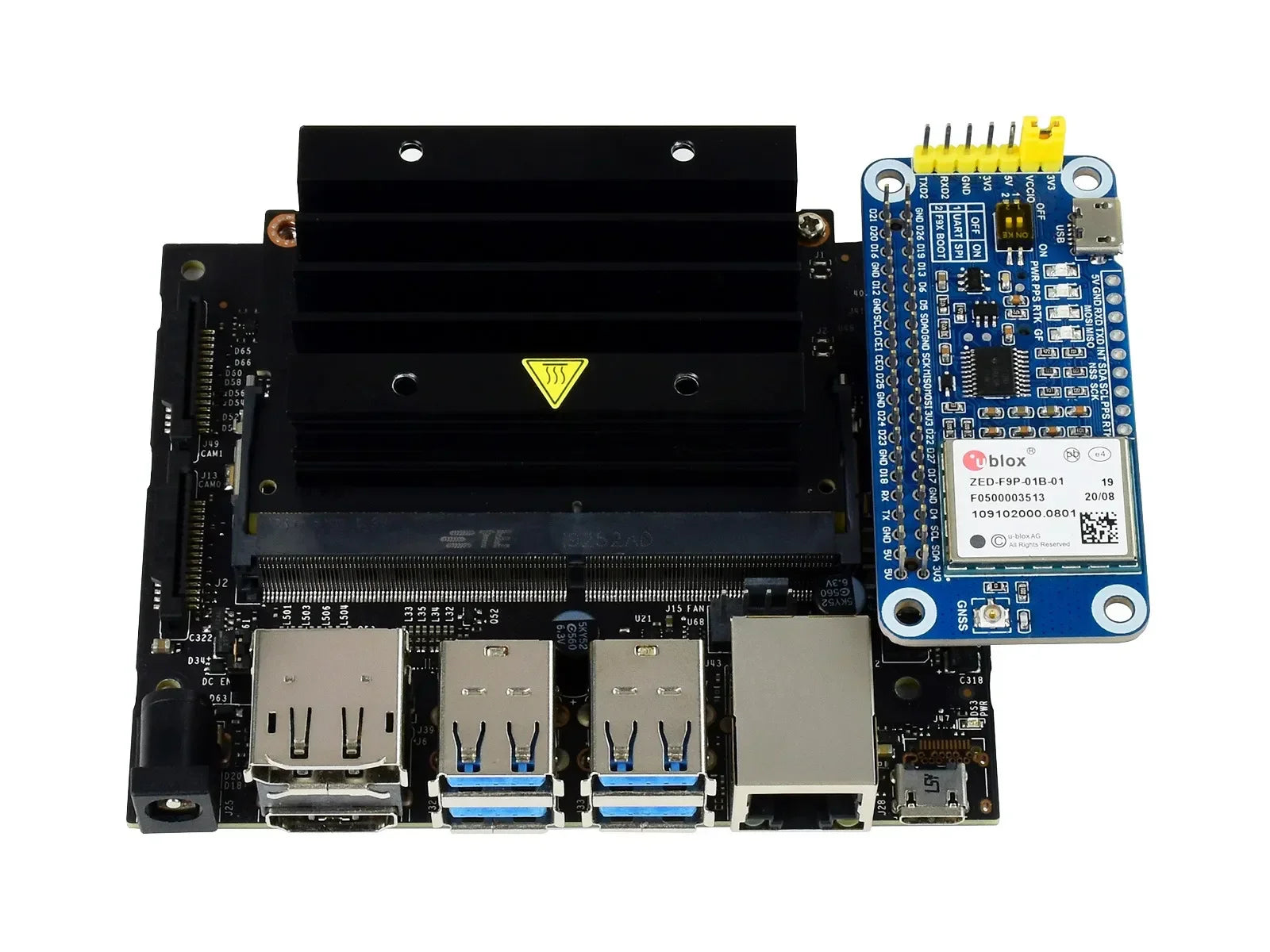

Ensures broad compatibility with Raspberry Pi series boards and Jetson Nano for seamless integration.

RTK Centimeter-Level Positioning & High Update Rate

Can be utilized as either a reference station, or a positioning terminal.

By establishing continuously operating reference stations with known fixed coordinates using the ZED-F9P module, or through paid RTK base station enhanced services, GNSS observed values are transmitted to ZED-F9P terminals which uploading rough positioning data, the terminals, with errors like multipath refraction, is able to calculate observed value in real time, for centimeter level positioning in seconds.


Moving Base RTK Mode Support

Moving Base RTK (MB RTK) allows for the concurrent use of two or three ZED-F9P modules to output precise deflection angles, altitudes, centimeter-level positioning coordinates, or attitude angles. This mode is perfect for applications such as vessel heading determination, heavy machinery control, and agricultural vehicle heading guidance.


Concurrent Reception of 4 GNSS Systems

Supports GPS, Beidou, Galileo, GLONASS and still retains low power consumption.


Augment Systems Support

Augment system is aimed at improving the accuracy, completeness, reliability, and availability of positioning and navigation.

Supports augment systems including SBAS, QZSS, IMES, and D-GPS.


Geo-Fencing Support

Features -167dBm navigating sensitivity, outstanding ability for anti-spoofing & anti-jamming.


Software U-Center Support

An intuitive and easy way to config the module for optimal performance.


Applications

Perfect for intelligent driving systems, precise agriculture, fleet management, asset tracking, and various GIS applications.

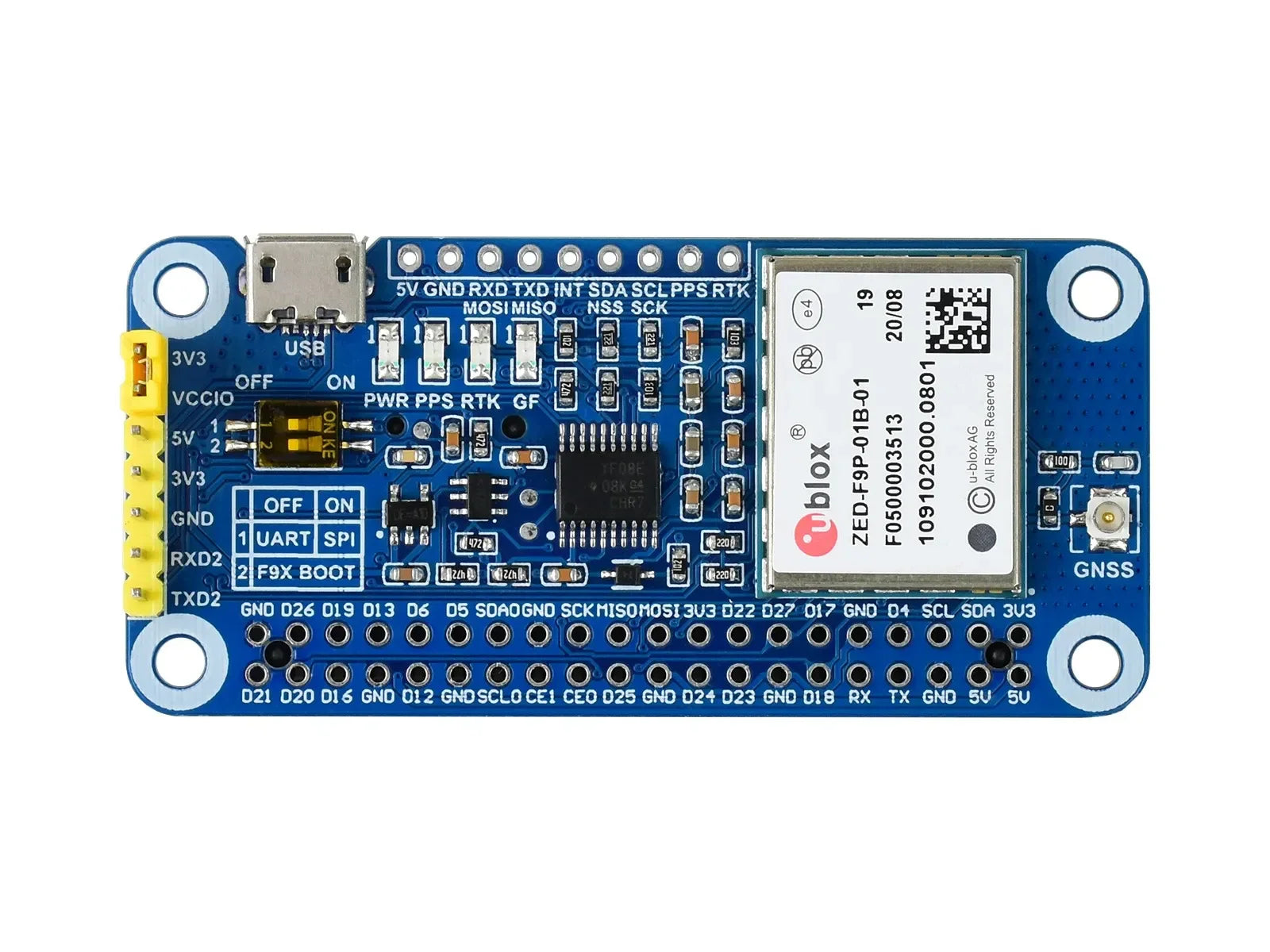

What's On Board


  1. ZED-F9P module
  2. TXS0108EPWR voltage translator
  3. Status indicators
    PWR: power indicator
    PPS: GPS status indicator
    RTK: RTK status indicator
    GF: geo fencing status indicator
  4. DIP switch
    1: UART/SPI selection
    2: firmware upgrade
  5. RT9193-33 power chip
  6. NDC7002N voltage translator

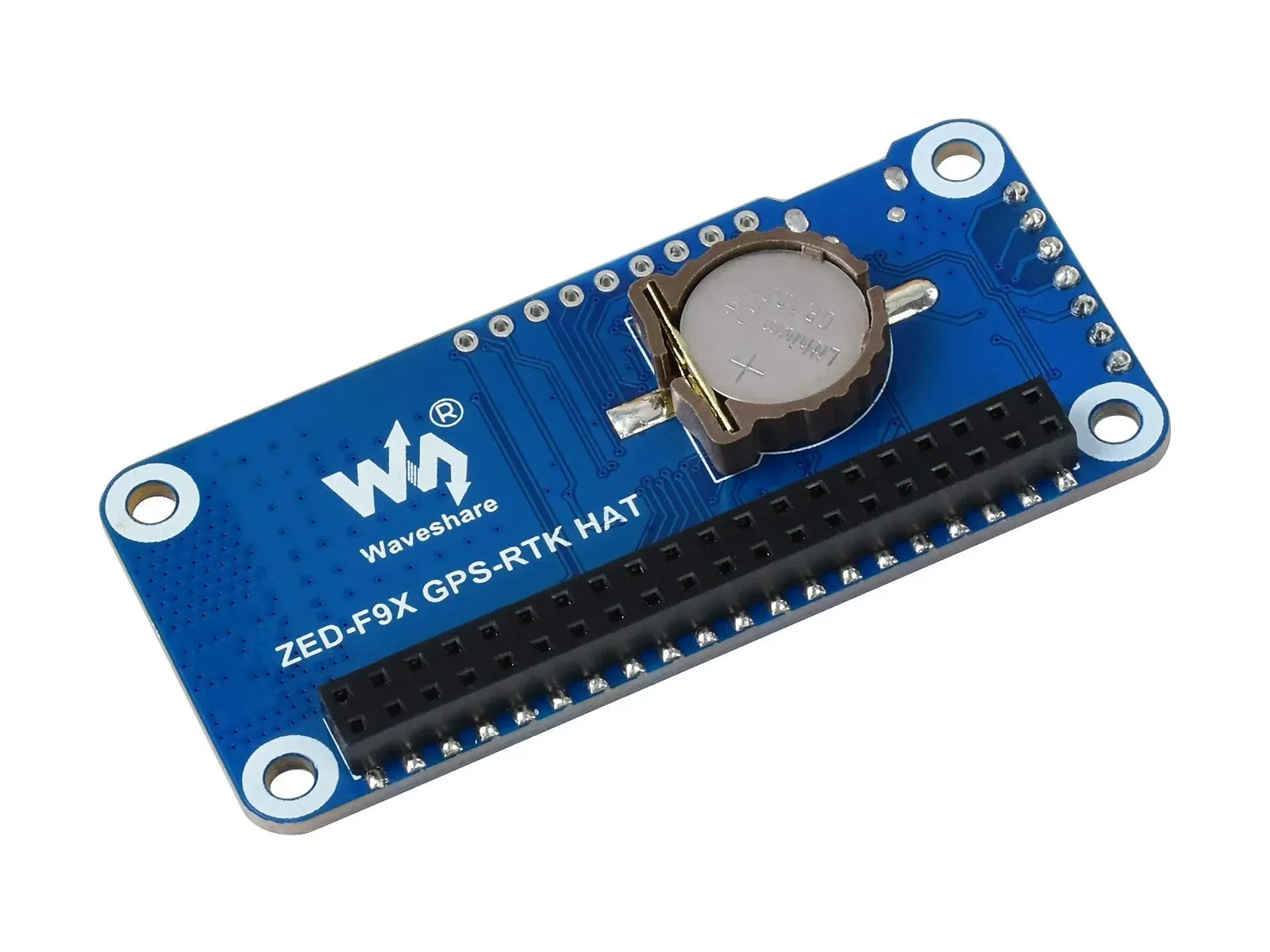

  1. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  2. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  3. USB port
  4. UART, I2C interface
    for connecting with other MCUs
  5. GNSS antenna connector
  6. UART peripheral and IO voltage level selection jumper

Pinout Definition


Outline Dimensions
