YourCee USB-TTL/RS232/RS485/CAN Serial Communication Module
Efficient data transfer is crucial when integrating systems with differing data representations. When software undergoes significant upgrades, a complete database overhaul often follows. As each software platform typically employs unique structures and data storage formats for its underlying database, seamless data conversion becomes essential.
This versatile device serves as a comprehensive solution for bridging USB devices with standard CAN bus systems. It boasts an extensive array of features, including data caching, a pass-through mode, and analog CAN capability. Supporting adjustable data transfer rates from 3 Kbps to 1 Mbps, it allows for flexible configuration within this range. To minimize signal interference, the module is equipped with 14 sets of shielding filters. Users can select from five distinct modes for frame filtering, enhancing data integrity.
For connectivity, the device integrates seamlessly via pin rows. Furthermore, it offers a broad serial baud rate range, extending from 1200 to 921600 bps, with a default setting of 9600 bps. This robust converter is engineered to facilitate reliable and efficient data exchange between USB and CAN interfaces.

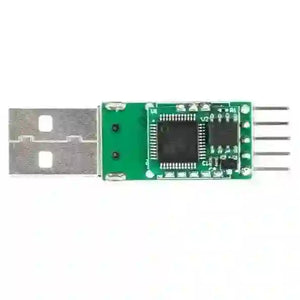

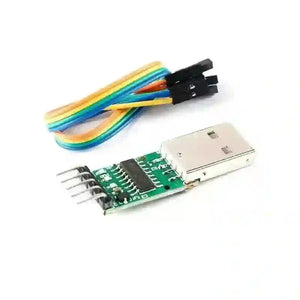

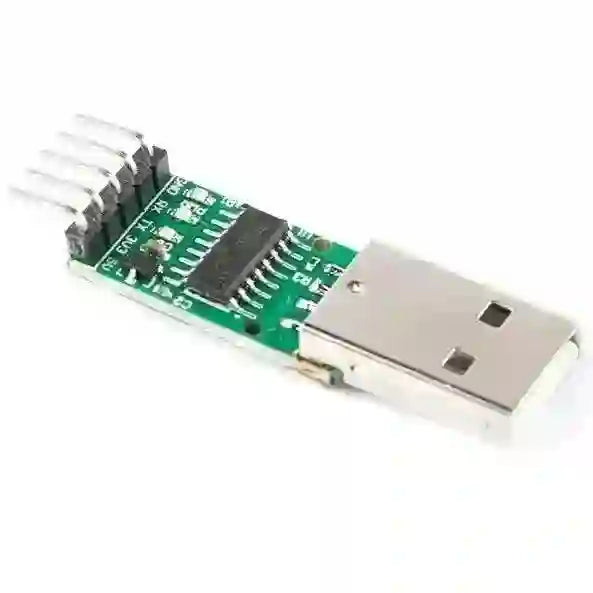

Integrated USB to TTL Module Features
- Utilizes the mainstream CH340 driver.
- Compatible with various operating systems, including Windows, Linux, and more.
- Supports 3.3V/5V voltage input/output, capable of powering microcontrollers.
- Features three clear indicator lights:
- COM port connection (Yellow light) – steady.
- Data reception RX (Red light) – blinking.
- Data transmission TX (Green light) – blinking.

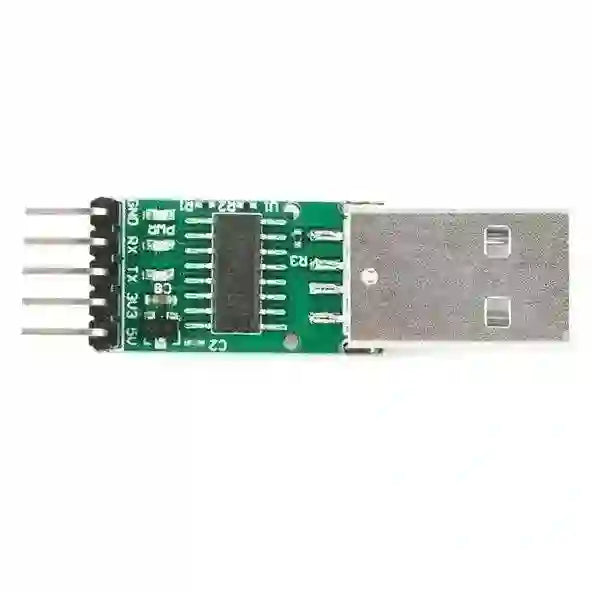

USB to TTL Pin Definitions
| Pin | Description |
|---|---|
| +5V | Module power, 5V input/output |
| 3V3 | Module power, 3.3V output |
| RX | Serial data input, TTL level |
| TX | Serial data output, TTL level |
| GND | Ground |

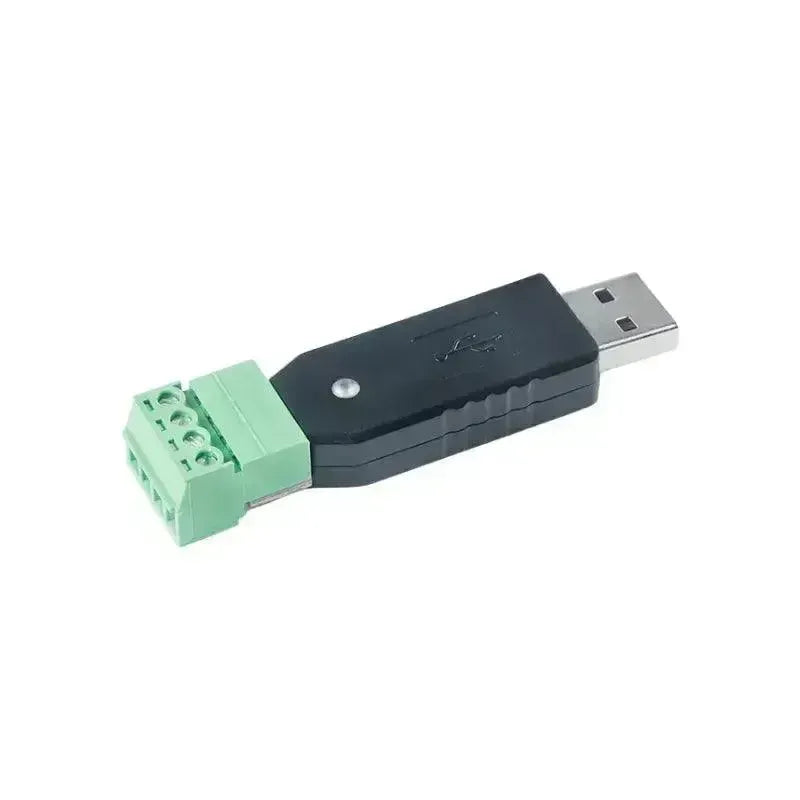

USB to CAN Module Capabilities
Data Buffer Transmission and Reception: In transparent transmission mode, data integrity is maintained, with minimal loss even when high baud rate devices continuously send large data volumes to lower baud rate devices.
Serial Port Transparent Data Buffer with Hardware Filtering: Simulates full CAN functionality.
USB to CAN Module Parameters
| Parameter | Description |
|---|---|
| CAN Baud Rate Range | 3Kbps - 1Mbps |
| CAN Baud Rate Programmability | Configurable to any value within the specified range |
| CAN Filter | 14 precise shielding filters |
| Matching Filter Modes | Five distinct modes for user selection |
| Craftsmanship | Connectable via pin headers |
| Serial Port Baud Rate | 1200~921600bps (default 9600) |
| Data Buffering | Yes, supports bulk data transfer without packet loss or system crashes |
| Transmission Types | Supports Standard data frames, extended data frames, standard remote frames, extended remote frames |
Additional Features
- High-Quality Design: Features a black backplate and circuit board for robust construction.
- Flexible Interface Configuration: Includes standard DB-9 (female) plugs, an additional pin connector, and dual RS232 channels for enhanced application flexibility.
-
Intuitive LED Indicators:
- LED 1: Indicates transceiver status.
- LED 2: Indicates power supply status.
- Robust Power Supply: On-board voltage regulator chip supports a wide voltage range of 3.3V~5V.
- Industrial-Grade RS232 Chip: Utilizes a genuine, industrial-grade RS232 chip for stable and reliable system performance.
- Dual-End Driver Interface: Supports multiple placement methods and simplifies wiring for user convenience.
