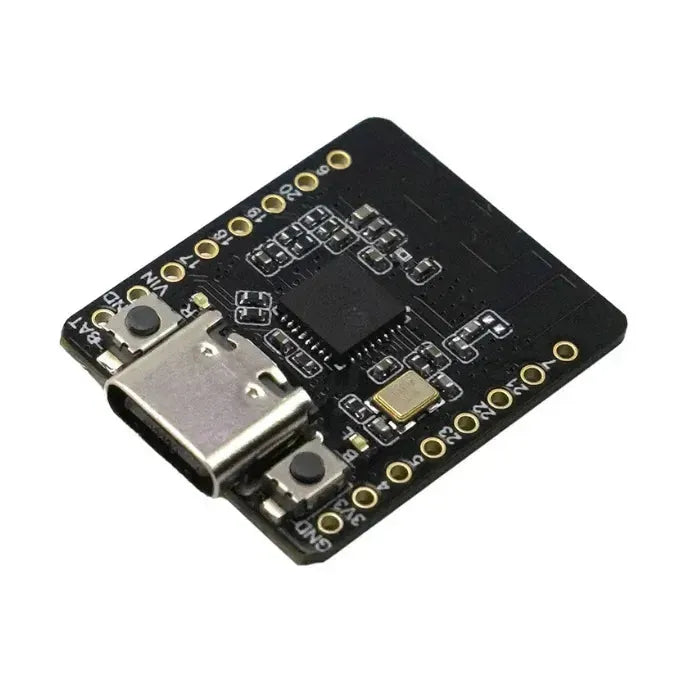

Beetle ESP32 C6 Mini Development Board (Supports BLE / Matter)
The Beetle ESP32-C6 is an exceptionally compact and power-efficient IoT development board, fully compatible with Arduino. Powered by the advanced ESP32-C6 chip, it integrates a 160MHz RISC-V 32-bit processor. This versatile board supports a wide array of wireless protocols, including Wi-Fi 6, Bluetooth 5 (BLE), Zigbee 3.0, Thread 1.3, and Matter, making it an ideal solution for developing next-generation smart home devices and wearables. Measuring just 25×20.5mm, it's perfect for projects where space is at a premium, fitting into designs as small as a coin.
Featuring an integrated battery charging management function, the Beetle ESP32-C6 allows direct connection of lithium batteries. This capability, combined with its small size, broad connectivity, and energy efficiency, makes it an excellent choice for portable and battery-powered applications.
Core Features
- Miniature Footprint: Only 25 × 20.5 mm.
- Comprehensive Wireless Support: Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter.
- Powerful Processor: RISC-V 32-bit, operating at 160 MHz.
- Integrated Power Management: Built-in battery charging and voltage monitoring.
- Broad Development Ecosystem: Compatible with Arduino IDE, ESP-IDF, MicroPython, and C/Python.
- Application Focus: Ideal for wearables, smart home systems, and low-power network applications.
Extensive Protocol Support for Seamless Connectivity
The Beetle ESP32-C6 offers support for a diverse range of communication protocols, ensuring broad compatibility:
- Wi-Fi 6: Delivers faster speeds, improved efficiency, and reduced latency.
- Bluetooth 5 (LE): Supports BLE Mesh for robust, high-speed communication.
- Zigbee 3.0 & Thread 1.3: Essential protocols for advanced smart home integration.
- Matter: Future-proof your IoT projects with this cutting-edge protocol.
Thanks to its rich protocol capabilities, this board can function as a Thread border router, a Matter gateway, or a Zigbee bridge, facilitating effortless integration across various smart ecosystems.
Optimized for Ultra-Low Power with Wi-Fi 6
Utilizing Wi-Fi 6 Target Wake Time (TWT) technology, the Beetle ESP32-C6 significantly reduces power consumption during inactive periods, thereby extending battery life.
-
Sleep Current:
- Version 1.0: 14 µA
- Version 1.1: 37 µA
Technical Specifications
General Parameters
- Operating Voltage: 3.3V
- Type-C Input Voltage: 5V
- VIN Input Voltage: 5V
- Max Charging Current: 0.5A
- Operating Temperature: -10 ~ 60°C

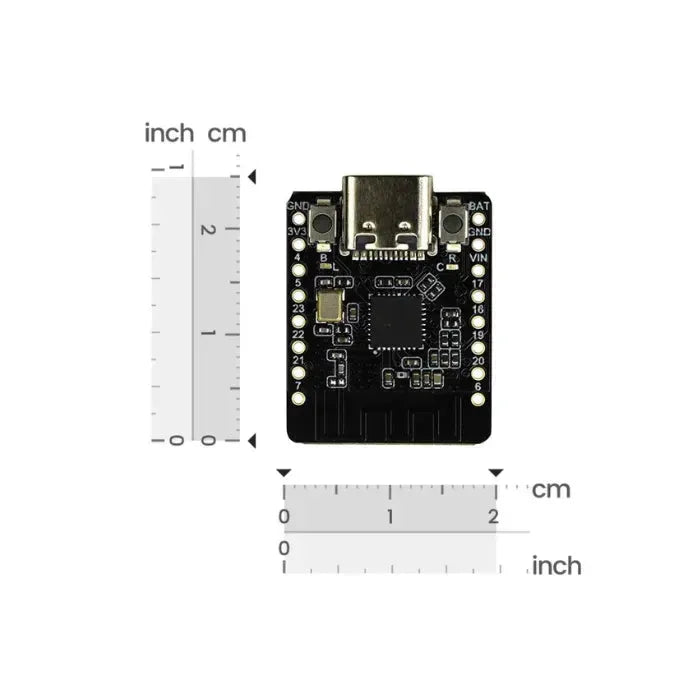

- Dimensions: 25 × 20.5 mm / 0.98 × 0.81"
Hardware Details
- Processor: RISC-V single-core
- Frequency: 160 MHz
- SRAM: 512 KB
- ROM: 320 KB
- Flash: 4 MB
- RTC SRAM: 16 KB
- USB: USB 2.0 CDC
Wireless Capabilities
Wi-Fi
- IEEE 802.11 b/g/n & 802.11ax (Wi-Fi 6)
- Bandwidth: 20 MHz / 40 MHz @ 2.4 GHz
- Modes: Station, SoftAP, SoftAP+Station
- Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU
Bluetooth
- Bluetooth 5, BLE Mesh
- Data Rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
IEEE 802.15.4
- Zigbee 3.0 & Thread 1.3 Support
- Frequency: 2.4 GHz
- Data Rate: 250 Kbps
Connectivity Ports & Interfaces
- Digital I/O: 13
- LED PWM: 6 channels
- SPI: 1
- UART: 3 (including 1 LP UART)
- I2C: 2 (including 1 LP I2C)
- I2S: 1
- IR Transceiver: 5 TX, 5 RX
- ADC: 1 × 12-bit SAR ADC, 7 channels
- DMA Controller: 3 TX + 3 RX channels
Potential Use Cases
- Electronic Badges
- Backpack Charms
- Pet Trackers
- Smart Watches
- Smart Buttons
- Smart Lighting Systems
- Interactive Human-Machine Interface Devices
- Smart Locks

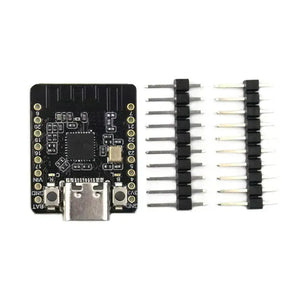

Package Contents
- Beetle ESP32-C6 Mini Development Board ×1
- 10-pin 2.54mm Pin Header ×2
