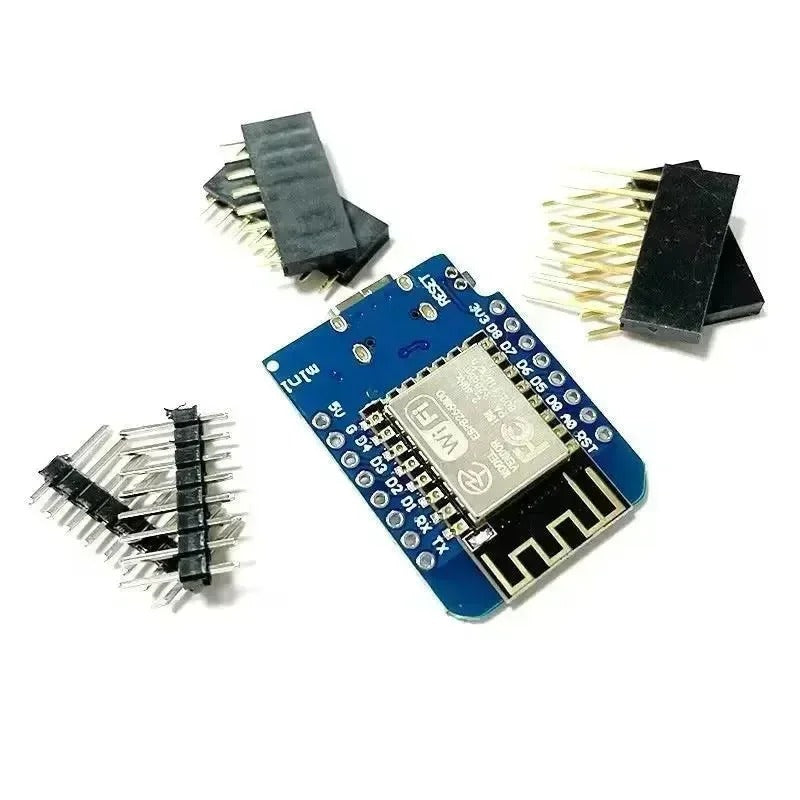

Type: MICRO-USB (Feeder pin not soldered)
Add to Wishlist Add to Compare

Free Shipping from $50 in the US, $70 for non-continental US

- US Delivery Time: 2~7 Business days.

- Non-Continental US Delivery Time: 3~9 working days.

Ask a question

Guarantee & Return Policy

Effective Date: September 16th, 2025

At OpenELAB, we are committed to providing accurate product descriptions and delivering high-quality products. If you experience any issues with your purchase, please notify us within 30 days of the shipment date.



1. Warranty Disclaimer

Unless explicitly stated in a specific agreement or purchase order, OpenELAB makes no warranties—express or implied—regarding the fitness, suitability, or merchantability of any product for a particular purpose or special use.



2. Warranty Policy

Warranty Period

The standard warranty period for products sold by OpenELAB is 12 months from the date of delivery.

Under this warranty, OpenELAB will make a reasonable effort to repair or replace products free of charge if defects are due to issues with raw materials, design, or manufacturing.

If the defect qualifies under this policy but falls outside the covered scope, reasonable charges may apply for repair or replacement.

After the warranty period, support may still be available at a reasonable fee.



Warranty Exclusions

The warranty does not apply in the following cases:

  • The product is beyond the 12-month warranty period.
  • Damage due to misuse, improper maintenance or storage, or failure to follow the user guide or manual.
  • Issues caused by Force Majeure events (e.g., natural disasters, war, legal changes, etc.).
  • Unauthorized repair attempts by the customer.
  • The product is not defective but has been opened and is non-returnable by policy.



3. Returns & Refunds

If you're not satisfied with your purchase, you may be eligible for a return or exchange:

  • Return for Refund: Within 15 days of receipt (unopened).
  • Return for Replacement: Within 30 days of receipt (damaged or defective).
  • Exchange Window: Up to 30 days from receipt.

Please email us at info@openelab.com for a return authorization before sending anything back.



Return Conditions

  • Items must be in original, clean, and mint condition with packaging intact.
  • Returns of damaged, used, scratched, modified, or programmed items will not be accepted.
  • Include the receipt, a brief note with your name, order number, and reason for return.



Shipping & Fees

  • Customers are responsible for return shipping to our warehouses in the US.
  • If a return is requested due to customer reasons (e.g., change of mind, incorrect order, etc.), both the original shipping cost and the return shipping cost will be deducted from the refund amount.
  • For returns due to customer reasons, we will generate and provide a return shipping label.



Payment Platform Fees

For all refunds requested due to customer reasons, a standard service fee will be deducted from the refund amount, which is charged by the payment platforms. The specific fees are as follows:

Shopify Payments: 2.9% + $ 0.3

PayPal: 4.4%
Share

- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.

- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.

Visa
PayPal
Mastercard
American Express
Shop Pay

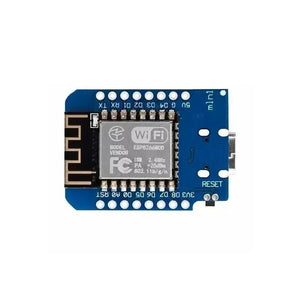

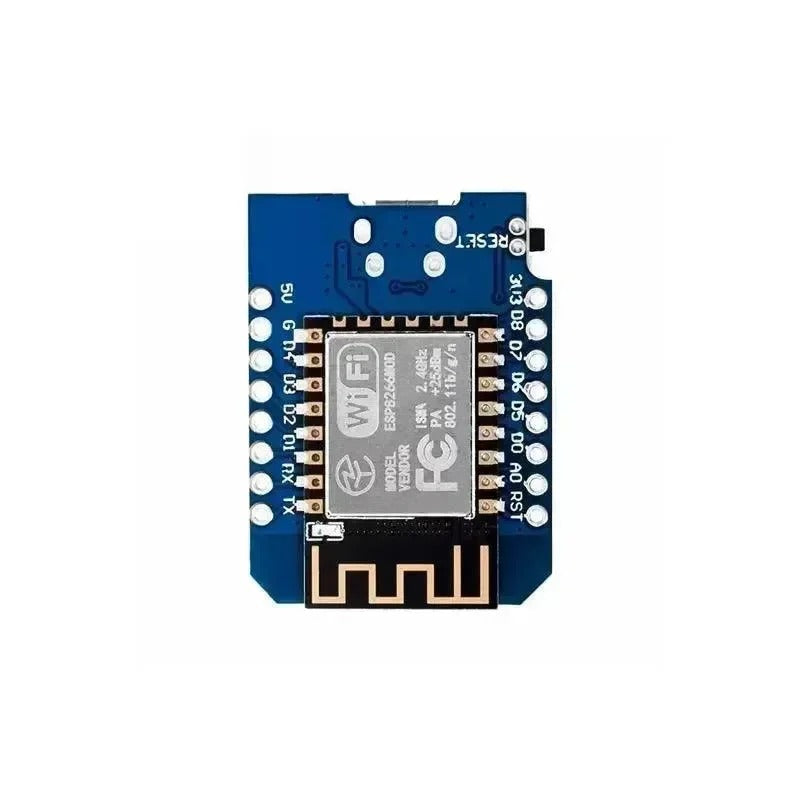

D1 Mini Nodemcu with ESP8266-12F WLAN module

D1 Mini Nodemcu with ESP8266-12F WLAN module

The D1 Mini NodeMCU is a compact yet powerful development board, meticulously designed around the high-performance ESP8266-12F WLAN module. This board features both Micro-USB and USB TYPE-C interfaces, combined with a reliable CH340G driver, ensuring effortless connectivity and programming. Its remarkably small footprint makes the D1 Mini a favorite among developers for projects requiring minimal space.

With integrated Wi-Fi capabilities and compatibility with the Arduino IDE, this board significantly accelerates the prototyping of smart devices. It offers up to 11 GPIO pins, supporting I2C, SPI, and UART communication, making it an ideal choice for a wide array of applications, including IoT projects, smart home automation, and remote monitoring solutions.

  • Versatile Pin Configuration: Equipped with 9 digital input/output pins, all supporting interrupt, PWM, I2C, and 1-Wire protocols, alongside a convenient Micro-USB connector.
  • Compact and Portable: Its ultra-compact design is perfectly suited for decentralized or space-constrained applications, offering superior flexibility.
  • User-Friendly Development: Fully compatible with the Arduino IDE, this wireless development board simplifies programming, further enhanced by a comprehensive e-book to guide your projects.

Programming Capabilities

The D1 Mini supports direct programming via its Micro-USB port, facilitating auto-programming. Additionally, it offers the convenience of Over-The-Air (OTA) programming for remote updates.

Important Warnings

All I/O pins operate at 3.3V.

Special Features

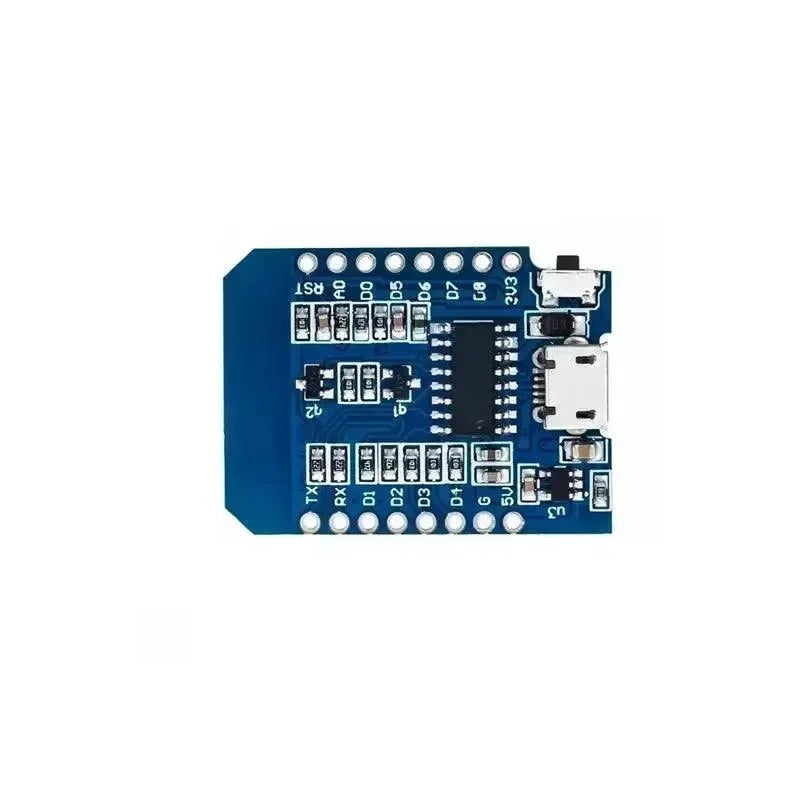

  • Built-in CH340 Chip: Ensures easy and reliable programming.
  • Compact and Lightweight Design: Its portable and efficient design makes this development board suitable for a diverse range of applications and projects.
  • Versatile Functionality: Ideal for integration with various sensors to monitor air pressure, temperature, and humidity, with data accessible through its own web server via WLAN.

Technical Specifications

Parameter Value
Operating Voltage 3.3V DC
Chip ESP8266-12F
Clock Frequency 80 MHz / 160MHz
Flash Memory 4MB
Digital I/O Pins 9
Analog Input PIN 1
USB Port Micro USB
USB Chip CH340 chip
Dimensions 25 x 35 x 6mm

Hardware Package Installation

Hardware packages can be installed using two methods: Boards Manager or Git. For Arduino IDE versions 1.6.4 and newer, third-party platform packages can be installed via Boards Manager. Packages are available for Windows, Mac OS, and Linux (32 and 64-bit).

Featured Articles & Guides

Pinout Diagram

Pin

Function

ESP-8266 Pin

TX

TXD

TXD

RX

RXD

RXD

A0

Analog input, max 3.3V input

A0

D0

IO

GPIO16

D1

IO, SCL

GPIO5

D2

IO, SDA

GPIO4

D3

IO, 10k Pull-up

GPIO0

D4

IO, 10k Pull-up, BUILTIN_LED

GPIO2

D5

IO, SCK

GPIO14

D6

IO, MISO

GPIO12

D7

IO, MOSI

GPIO13

D8

IO, 10k Pull-down, SS

GPIO15

G

Ground

GND

5V

5V

-

3V3

3.3V

3.3V

RST

Reset

RST

Note: All I/O pins support interrupt, PWM, I2C, and one-wire protocols (except D0).
