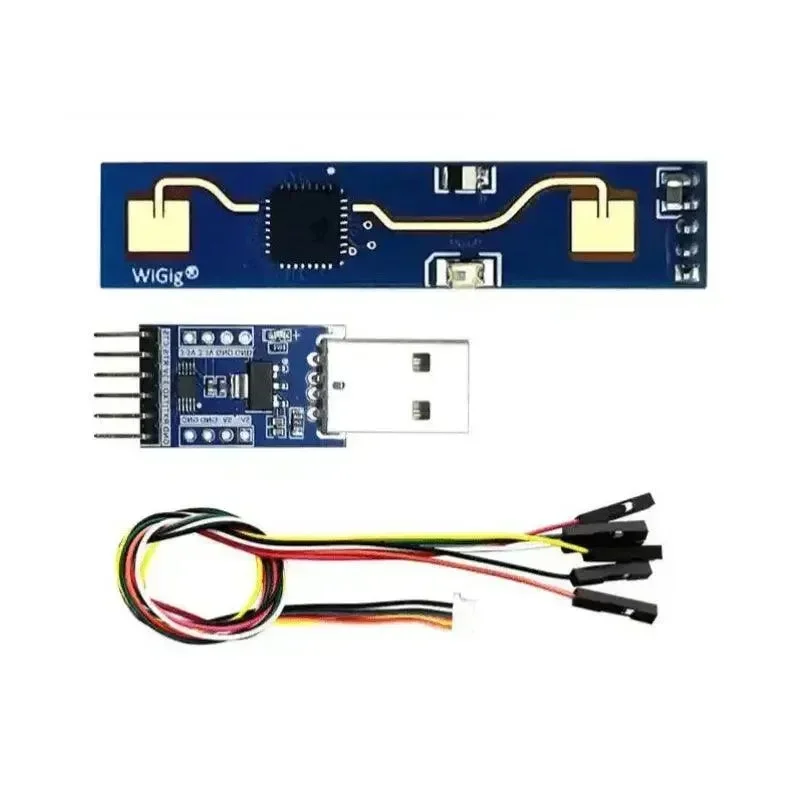

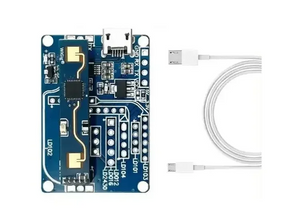

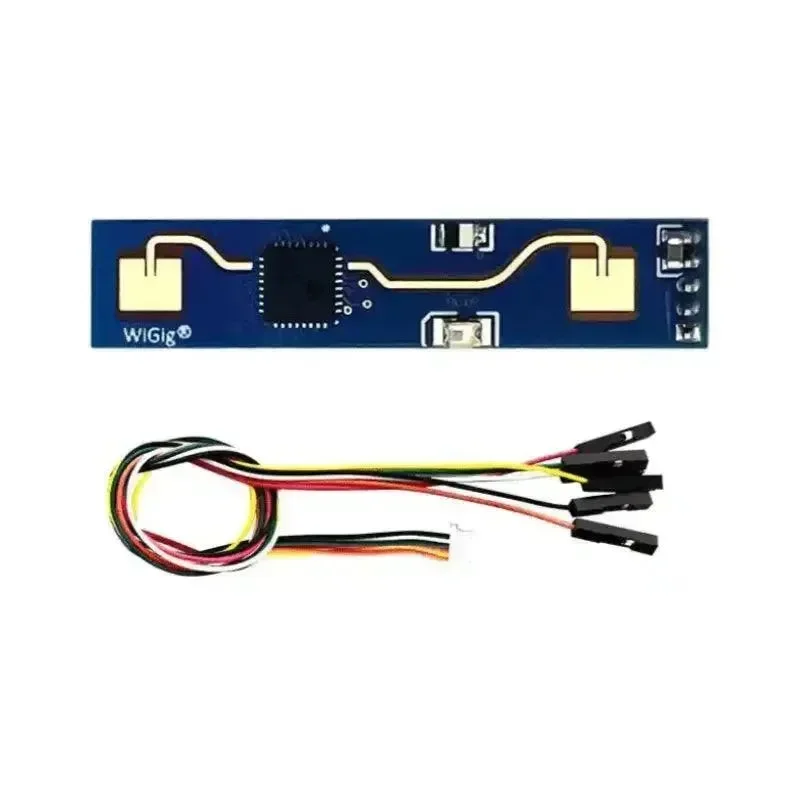

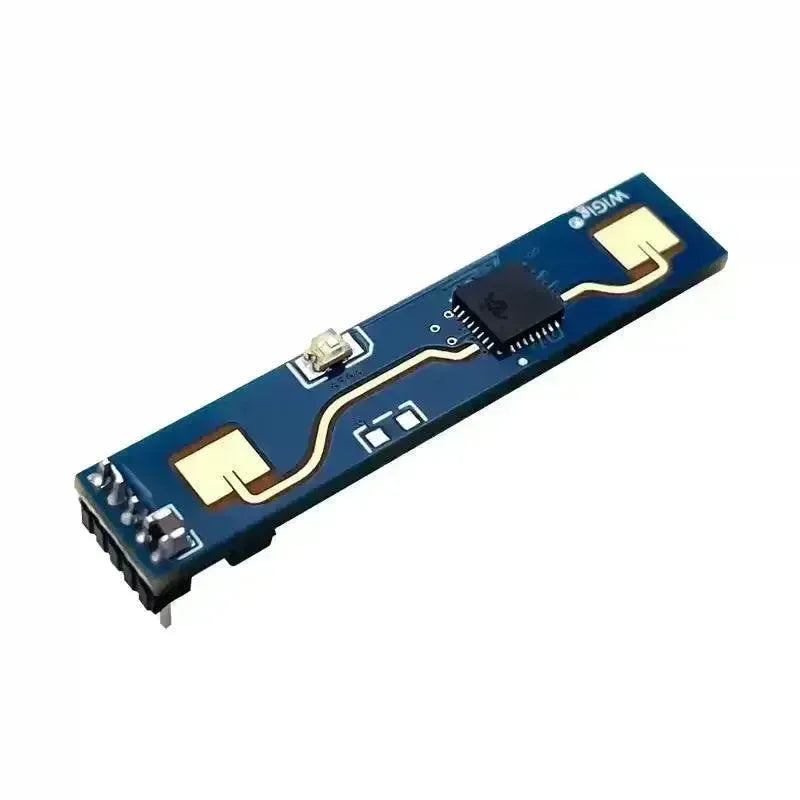

HLK-LD2410B+BLE 24Ghz Human Micromotion Detection Radar Sensor Module Test Board Kit
LD2410B is an advanced 24GHz human presence detection module from Hi-link. This module utilizes FMCW (Frequency-Modulated Continuous Wave) technology to accurately identify human targets within a defined space. By combining sophisticated radar signal processing with a precise human body sensing algorithm, the LD2410B achieves high-sensitivity detection of both moving and stationary individuals. Additionally, it can determine auxiliary information such as the target's distance.
Supporting both GPIO and UART output, the LD2410B is plug-and-play, offering flexible integration into a variety of smart scenarios and terminal products.
Product Features
- Plug-and-play functionality for simplified assembly.
- Extended sensing range of up to 5 meters.
- Wide detection angle, covering up to ±60 degrees.
- Precise identification within specified intervals, allowing for segmented sensing and interference blocking.
- Multi-level intelligent parameter adjustment to adapt to changing scene requirements.
- Includes visual debugging and configuration tools.
- Compact and streamlined design, with a minimum size of just 7mm x 35mm.
- Supports flexible installation methods, including ceiling and wall mounting.
- Operates in the 24GHz ISM band, compliant with FCC and CE spectrum regulations.
- Wide voltage power supply compatibility from 5V to 12V.
- Offers a highly cost-effective solution.
Technological Advantages
The LD2410 human body sensing module leverages 24GHz millimeter wave radar sensor technology, providing significant advantages over traditional solutions in human body sensing applications:
- Beyond detecting moving bodies, it can sensitively perceive static, micro-movements, and sitting/lying postures that conventional methods often miss.
- Excellent environmental adaptability ensures sensing performance is unaffected by external factors such as temperature, brightness, humidity, and light fluctuations.
- Good shell penetration allows for hidden integration within product casings, eliminating the need for surface openings and enhancing product aesthetics.
- Flexible configuration options for the farthest sensing distance and sensitivity levels across each distance gate enable personalized and fine-tuned performance.
Applications
Human Body Sensor Light Control
Detects human presence in a space to automatically control lighting, such as in public areas, various sensor lights, and bulb lights.
Human Body Induction Wake-up for Advertising Screens and Equipment
Automatically activates devices upon approach and enters sleep mode when unoccupied, conserving power and enhancing information delivery efficiency.
Life Safety Protection
Protects against accidental activation of UV lamps when people are present, preventing personal injury. Provides automatic detection and alarm in hazardous zones to prevent unauthorized entry into high-risk areas, like coal mine blasting sites.
Smart Home Appliances
Automatically deactivates TVs, air conditioners, and other appliances when a room has been empty for an extended period, promoting energy saving and safety.
Intelligent Security
Detects and identifies intruders or lingering individuals within a specified security perimeter.
