HLK-LD2411S 24G Distance Detection Radar Module
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
HLK-LD2411S 24G Distance Detection Radar Module
The LD2411-S is an advanced motion and micro-motion human body induction ranging sensor module, part of the Hi-link radar series. This module integrates highly simplified 24 GHz radar sensor hardware with the intelligent algorithm firmware RM01, offering precise human detection capabilities. Designed primarily for single-target environments, the module intelligently identifies and tracks the target with the strongest echo energy in scenarios with multiple targets.

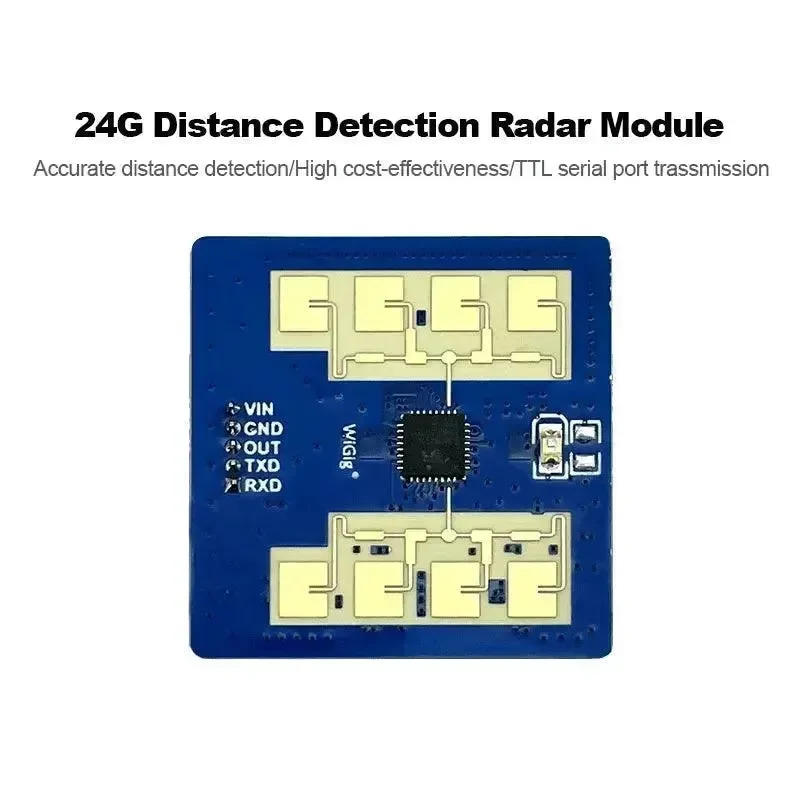

At its core, the LD2411-S hardware features a 24 GHz millimeter-wave radar chip, a high-performance microstrip antenna (one transmitter, one receiver), a cost-effective MCU, and essential peripheral circuits. The radar beam utilizes a flat beam design, providing a 20° detection range in the E-plane and a 45° detection range in the H-plane. This design allows users to strategically adjust module placement for optimal performance in various application scenarios.
The intelligent RM01 algorithm firmware employs FMCW waveform technology and advanced signal processing, proprietary to the S3 series chip. This enables accurate human ranging and sophisticated detection of both motion and micro-motion, making it highly versatile for a wide array of modern applications.
Product Highlights
- Operates within the 24 GHz ISM frequency band.
- Integrates a smart millimeter-wave radar single chip with intelligent algorithm firmware.
- Provides accurate indoor/outdoor human motion and micro-motion sensing, along with distance detection.
- Requires a 5V single power supply for operation.
- Achieves a continuous working average current of 48mA at a 20 Hz reporting frequency.
- Includes visualization tools for configuring detection distance intervals and setting sensitivity based on distance gates.
- Offers a human body sensing range of up to 6m, with micro-motion detection up to 3.5m.
- Delivers high-precision ranging: 30-350cm with ±5cm accuracy; 350-600cm with ±5% accuracy.
- Features an azimuth angle of +20° and a pitch angle of +45°.
Application Scenarios
The LD2411-S motion/micro-motion human body sensing sensor excels at detecting and recognizing human presence and movement, reporting real-time distances. Its capabilities make it invaluable across diverse AIoT applications, including:
- Smart Home Systems: Accurately senses human presence and movement, providing distance data to main control modules for intelligent automation of household appliances.
- Intelligent Commercial Solutions: Ideal for inductive doors, escalators, and other automated systems in commercial settings.
- Smart Lighting: Enhances intelligent lighting systems through inductive access control and precise human presence detection.
- Advanced Security Systems: Integrates into inductive access control, building intercoms, electronic cat eyes, and other security measures.
Configuring Parameters with Upper Computer Software
Adjusting the LD2411-S parameters is straightforward using the dedicated upper computer software:
Step 1: Connect the Device
- Launch the software. Click "Refresh" to update the serial port list.
- Select the correct serial port for your radar module and input the baud rate.
- Click "Connect Device." Upon successful connection, the button text will change to "Disconnect Device," and the radar module's firmware version will be displayed.
Step 2: Configure Parameters
- Click the "Parameter Configuration" button to open the settings interface.
- Modify parameter values as needed (refer to Chapter 5 of the Communication Protocol for definitions).
- Click "Set Parameter" to send updated settings to the module and return to the main interface.
Step 3: Start Real-time Data Acquisition
- Click the "Start" button on the main interface to begin receiving real-time data from the radar module.
- The software will display the detected target's distance and status, along with a 15-second distance curve.
Step 4: Stop Data Transmission
- Click the "Stop" button to halt data transmission between the radar module and the software.
- All test data can be reviewed in the "Log" folder within the software's directory.
