LILYGO LoRa32 V2.1 ESP32 433/868/915MHZ 0.96 Inch OLED WIFI SD Card
The LILYGO Paxcounter Disaster-Radio LoRa V2.1_1.6.1 ESP32 is an exceptionally versatile and high-performance module, expertly designed to cater to a broad spectrum of IoT applications, including precise passenger flow metering, robust disaster communication, and accurate environmental monitoring. Driven by the powerful LILYGO ESP32 microcontroller, this module offers advanced LoRa communication capabilities across 433MHz, 868MHz, and 915MHz frequencies. This ensures long-range, low-power connectivity, making it an ideal choice for projects built around the LILYGO LoRa32 V2.1 and TTGO T4 ESP32 platforms. LILYGO is widely recognized for its consistent reliability and performance across various demanding applications.
Key Attributes of the LILYGO LoRa32 V2.1
- Digital RSSI Functionality: Enhance signal strength monitoring and management.
- Automatic Frequency Correction: LILYGO’s proprietary technology ensures stable and precise frequency tuning.
- Adaptive Gain Control: Guarantees consistent performance across varying signal conditions.
- Rapid Wake-up & Frequency Hopping: Optimizes power efficiency and communication reliability.
- Configurable Data Packet Handler: Tailored for seamless integration with LILYGO devices.
- SMA Antenna Support: Boosts signal reception and transmission for extended range.
Technical Specifications of the LILYGO ESP32 Module
| MCU | ESP32 |
| Flash Memory | 4MB |
| Serial Chip | CH9102 |
| Wireless Protocols | Wi-Fi + Bluetooth 4.2 |
| External Storage | TF card slot |
| Integrated Functions | Reset & Power switch |
| Antenna System |
Default 3D WiFi Antenna (Supports WiFi IPEX external antenna via jump resistance modification) LoRa antenna optimized for LILYGO LoRa32 V2 for extended reach. |
| Power Options |
Dual power supply: USB Micro & Li-Po Battery (JST GH 2pin 1.25mm) USB can charge the battery. |
LoRa Transceiver Features (Long Range, Low Power)
- Exceptional Sensitivity: Achieves -148dBm for reliable long-distance communication.
- High Transceiver Rate: Supports speeds up to 300 kbps.

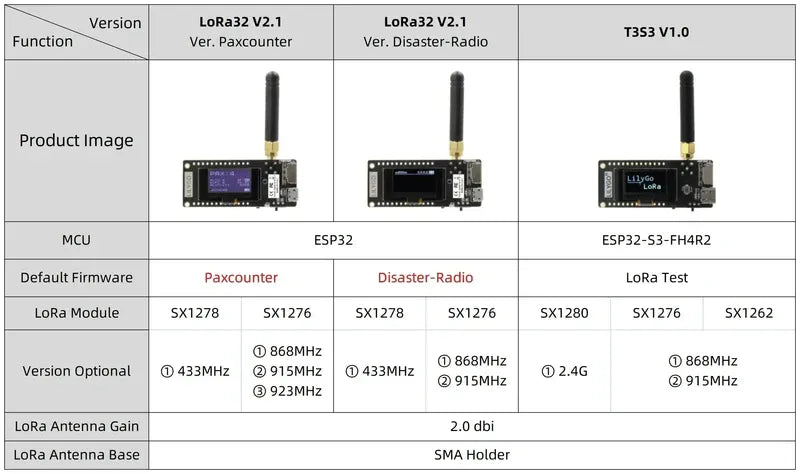

- Hardware Options: Available with SX1278 (433MHz) or SX1276 (868/915MHz), compatible with TTGO 433 models.
Key Applications & Use Cases

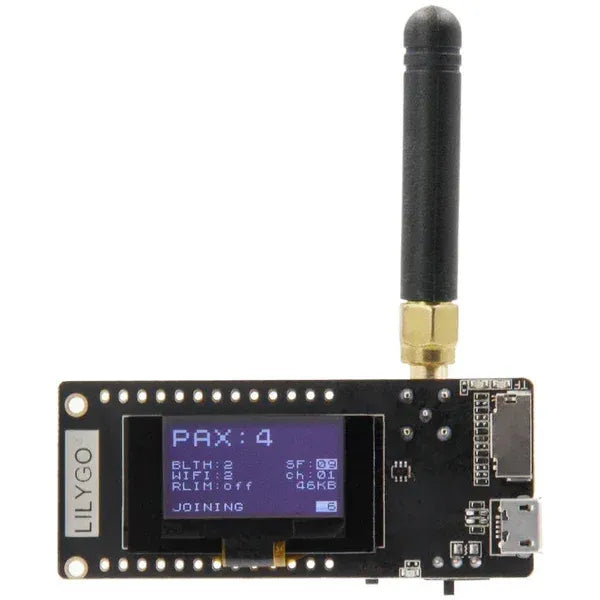

- Paxcounter Functionality: An ESP32 MCU-based program for real-time passenger flow metering, counting mobile devices (Wi-Fi and Bluetooth signals) to estimate crowd density. This is crucial for smart city initiatives leveraging the LILYGO LoRa32 V2.1, focusing on privacy by not storing MAC addresses or performing device fingerprinting. Data can be stored on a local SD card, transmitted to the cloud via LoRaWAN or MQTT over TCP/IP, or sent to a local host via a serial (SPI) interface.
- Disaster.radio Integration: This module is an excellent choice for LILYGO LoRa32 V2 and Lily Pi ESP32 users, supporting Disaster.radio—an off-grid, solar-powered, long-range mesh network. Built on free, open-source software and affordable hardware, Disaster.radio is designed to be open, distributed, and decentralized, currently in its prototype/development phase.

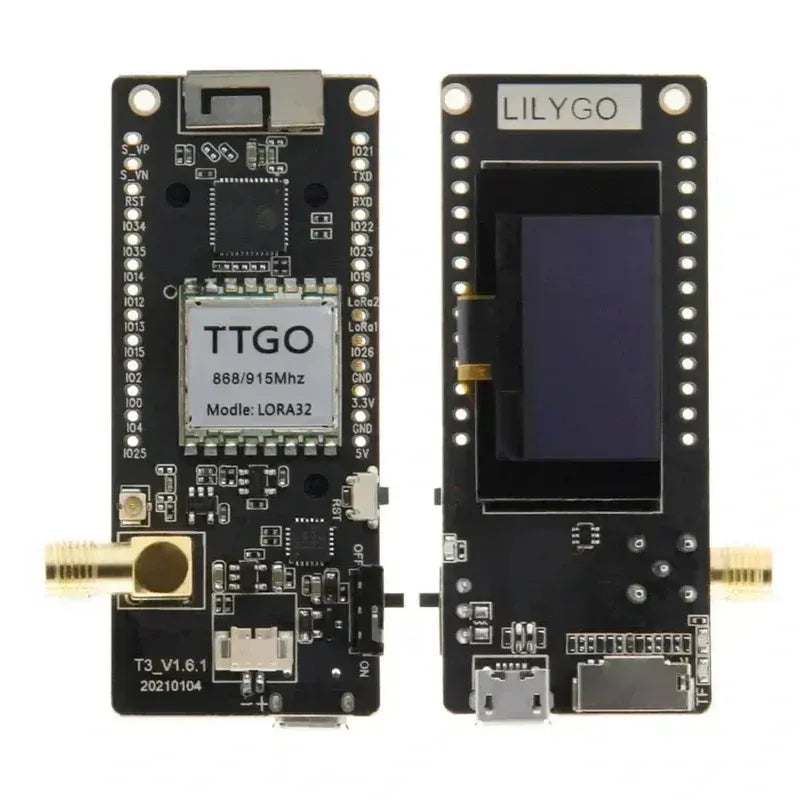

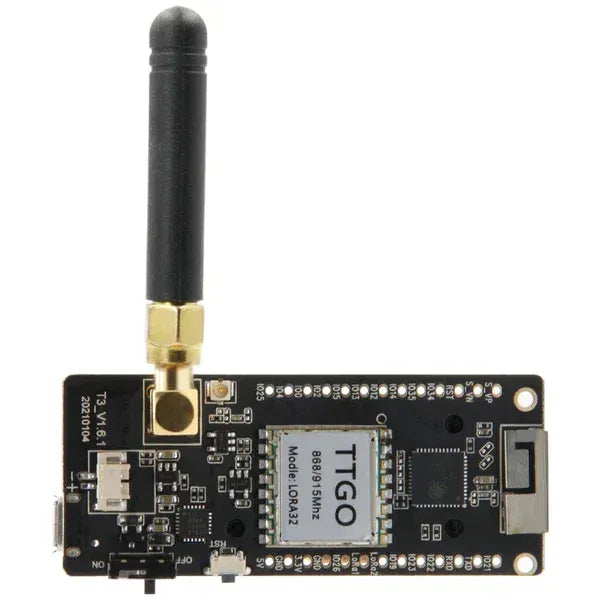

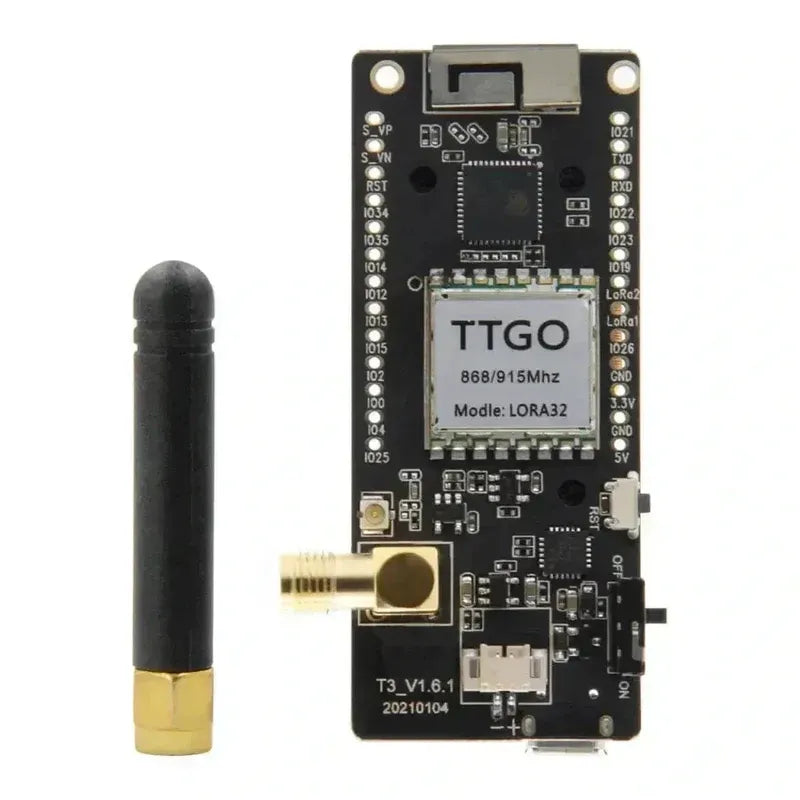

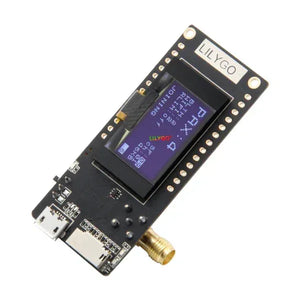

Visual Overview

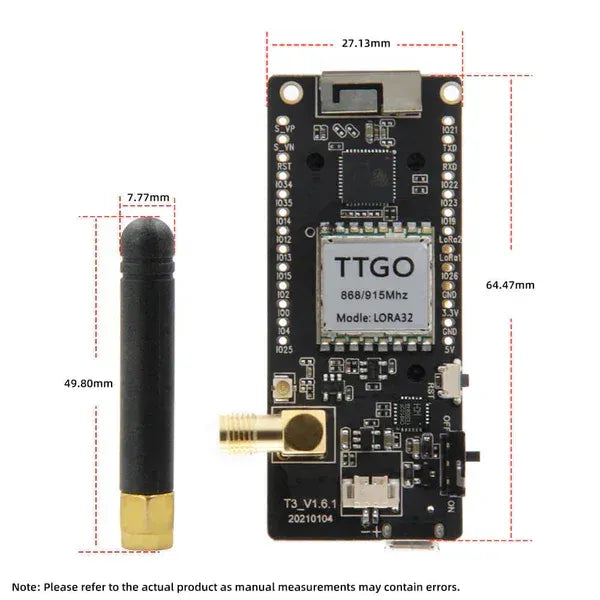

Dimensions
Pinout Diagram
Technical Support & Resources
- ESP32-Paxcounter GitHub: Comprehensive details and sample code.
- TTGO-LoRa-Series GitHub: Explore the TTGO LoRa Series.
- cyberman54-ESP32-Paxcounter: Additional Paxcounter testing resources.
- Disaster.radio Official Site: Learn more about the project.
- Disaster.radio GitHub: Project code and development updates.
- Disaster.radio Releases: Latest releases and versions.
Important Note: Please exercise caution with the OLED screen when unboxing.

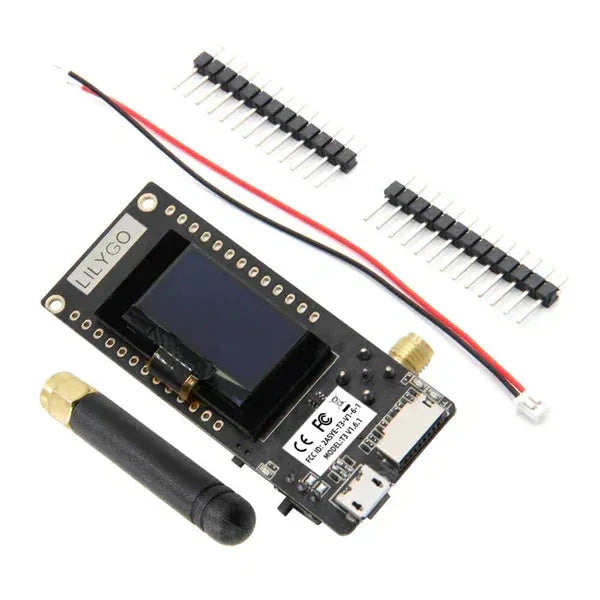

Shipping List: 433/868/915 Mhz CH9102F Options
Notice: Battery and SD card are not included in the shipping list.
- 1 X LILYGO LoRa32 V2.1 (433/868/915 Mhz)
- 1 X Power Cable (JST 2pin 1.25mm)
- 1 X LoRa Antenna
- 2 X Pin Headers
