M5PaperS3 ESP32S3 Development Kit (960x540, 4.7inch eInk Display, 235 ppi)
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
M5PaperS3 ESP32S3 Development Kit (960x540, 4.7inch eInk Display, 235 ppi)
Elevate your IoT projects with the M5PaperS3 ESP32-S3 Development Kit, a robust and energy-efficient solution designed for clarity and performance. At its core lies a vibrant 4.7-inch, 960×540 capacitive touch E-Ink display, providing crisp, sunlight-readable visuals with ultra-low power consumption. Powered by a dual-core ESP32-S3 processor and featuring seamless Wi-Fi connectivity, this kit is perfectly suited for a wide array of applications, including intuitive smart home control panels, comprehensive industrial monitoring dashboards, dynamic digital signage, and portable data loggers.
Equipped with 8MB PSRAM and 16MB flash memory, alongside MicroSD expansion capabilities, the M5PaperS3 ensures ample storage and swift data access. Integrated features such as a built-in gyroscope, RTC (BM8563), and an 1800mAh rechargeable battery make it a versatile platform for developers aiming to create always-on, highly efficient IoT interfaces that truly bring their ideas to life.

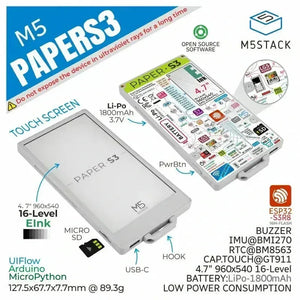

Core Features & Specifications
- Advanced E-Ink Display: A 4.7-inch capacitive touch screen with 960x540 resolution and 16-level grayscale for exceptional clarity and image retention, even when powered off. Features GT911 capacitive touchscreen with dual-point touch and gesture recognition.
- Powerful Processing: Driven by the ESP32-S3R8, an Xtensa® 32-bit LX7 Dual-Core Processor clocked at 240MHz, offering robust performance for complex applications.
- Ample Memory: Integrates 8MB PSRAM and 16MB external Flash memory for efficient operation and data storage.
- Enhanced Connectivity: Features 2.4GHz Wi-Fi for reliable wireless communication. Supports OTG functionality for external USB peripherals and includes an HC1.25-4P interface for expanded sensor and module integration.
- Integrated Sensors & Interaction: Includes a built-in gyroscope sensor (BMI270) for intelligent power management like lift-to-wake, an onboard buzzer for audio feedback, and physical buttons for tactile control.
- Optimized Power System: Equipped with an 1800mAh rechargeable lithium battery (LGS4056H charging chip) and a BM8563 RTC chip for smart sleep/wake cycles, ensuring ultra-low power consumption and extended battery life. Battery status is monitored in real-time.
- Expandable Storage: A MicroSD slot allows for flexible and removable data storage.
- Development Friendly: Supports multiple platforms including UIFlow 2.0, Arduino IDE, ESP-IDF, and Platform.IO.
Versatile Applications
- IoT Monitoring: Track environmental data, device status, or remote sensors with high clarity and low power.
- Smart Home Control: Create intuitive touch-based interfaces for home automation and system management.
- Digital Signage & E-Labels: Ideal for displaying price tags, shelf information, or dynamic labels that remain visible without continuous power.
- Educational Tools: Develop interactive teaching aids, coding platforms, or low-distraction e-ink study companions.
- Field Data Logging: Portable and energy-efficient solution for collecting data in various environments.
Included in the Box
- 1x M5PaperS3 Development Kit
Technical Documentation & Resources
- Schematics: Download M5PaperS3 Schematic PDF

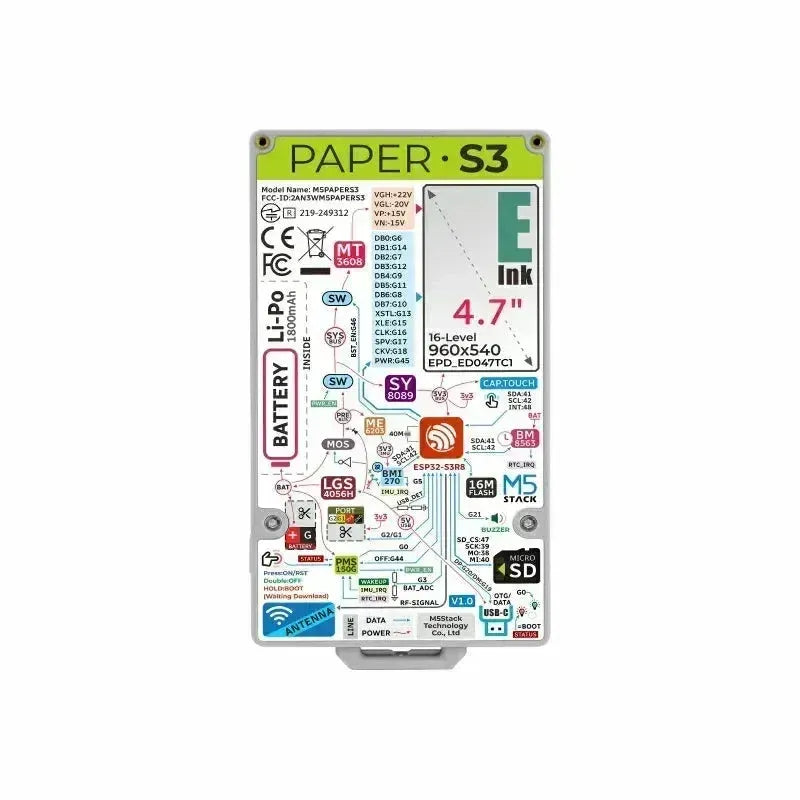

- PinMap: Detailed pin configurations for EPD_ED047TC1, GT911, BM8563, BMI270, BAT_ADC, BUZZER, and MicroSD.
- Model Size: M5PaperS3 Model Size PDF
- Arduino Quick Start: M5PaperS3 Arduino Programming Guide
- Arduino Libraries:
- UiFlow2 Quick Start: M5PaperS3 UiFlow2 Programming Guide
- ESP-IDF & Firmware: M5PaperS3 Factory Firmware (GitHub) & Easyloader Download
