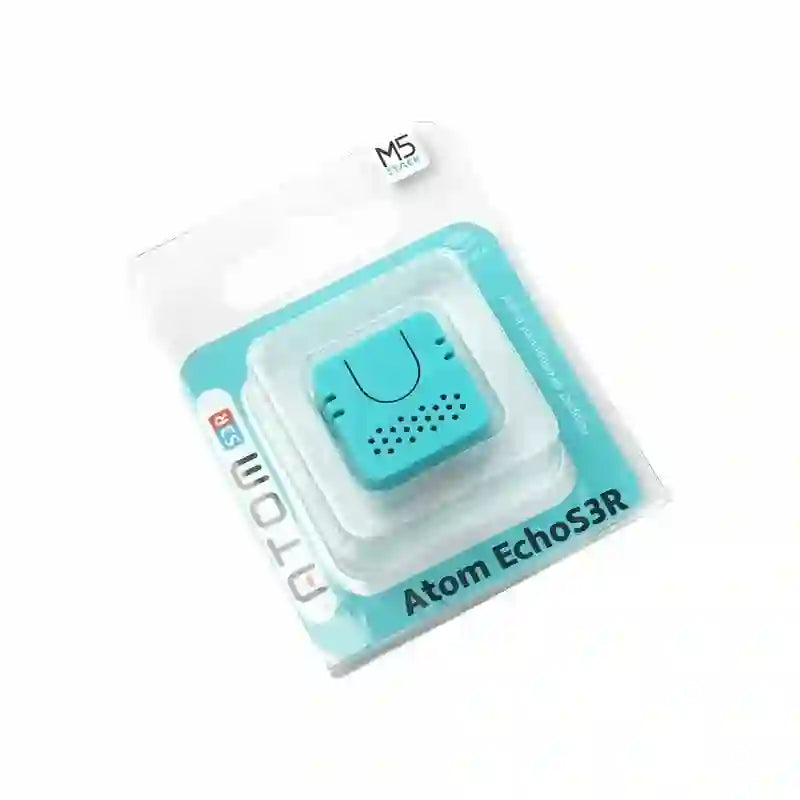

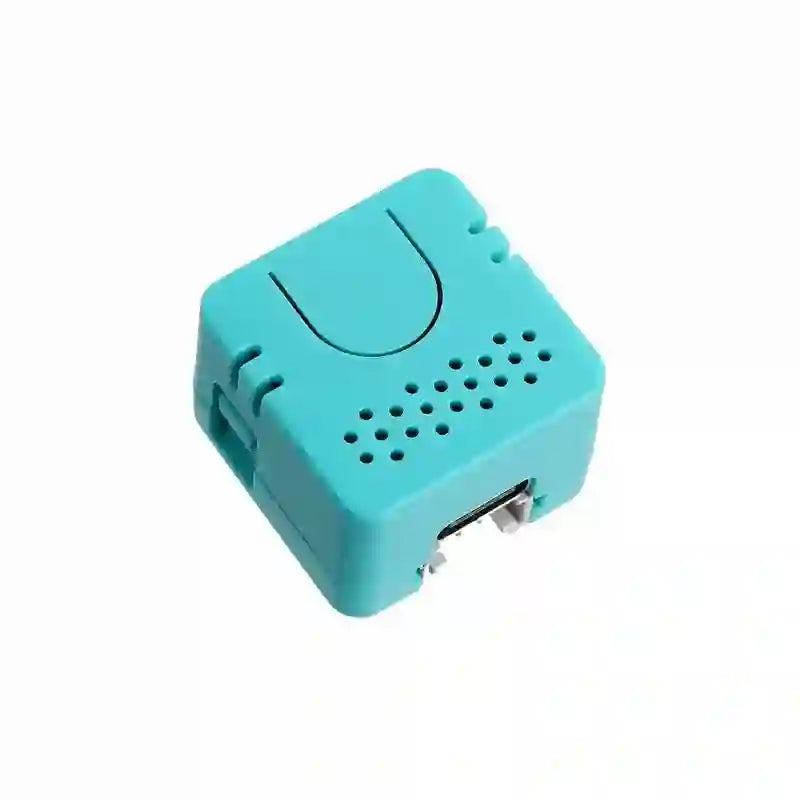

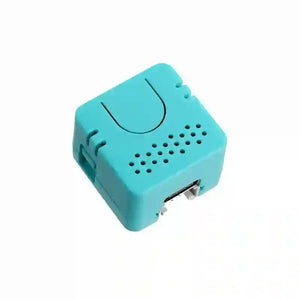

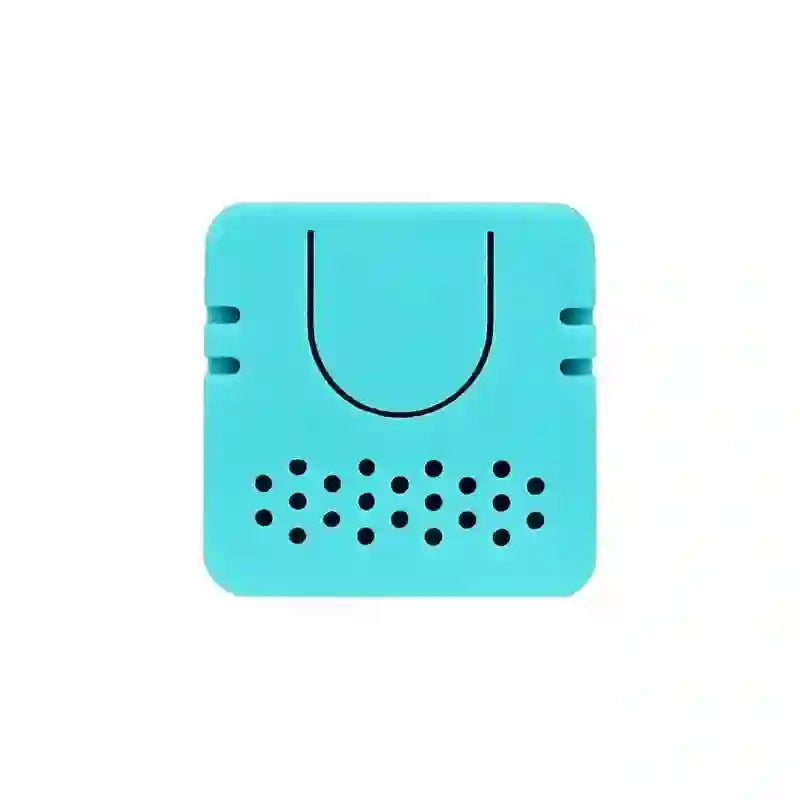

M5Stack Atom EchoS3R Smart Speaker Dev Kit
Unleash Intelligent Voice Control with Atom EchoS3R
The Atom EchoS3R Smart Speaker Dev Kit is an exceptionally compact and fully programmable IoT voice interaction controller. It’s engineered for cutting-edge intelligent voice control and seamless human-computer interaction across various applications. At its core, the device is powered by the robust ESP32-S3-PICO-1-N8R8 dual-core processor, offering reliable 2.4GHz Wi-Fi connectivity and an integrated 8MB Flash + 8MB PSRAM. This powerful combination ensures outstanding performance and unparalleled scalability for all your development projects.
Experience crystal-clear communication with its professional audio system, which includes an ES8311 mono codec, a highly sensitive MEMS microphone, and a robust NS4150B power amplifier. This setup guarantees precise voice capture and high-fidelity audio output, making the Atom EchoS3R the ideal choice for creating advanced AI voice assistants, sophisticated smart home control systems, and innovative IoT solutions.
Core Features
-

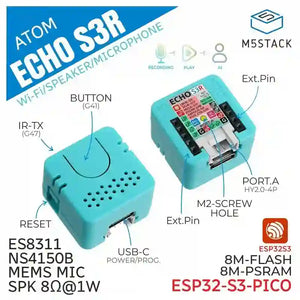

Advanced SoC: ESP32-S3 dual-core Xtensa LX7 operating at 240MHz for superior processing power.
-
Generous Memory: 8MB Flash + 8MB PSRAM, providing ample space for complex applications.
-
Premium Audio System: Features an ES8311 codec and a MEMS microphone with 65dB SNR for excellent sound quality.
-
Robust Sound Output: Equipped with an NS4150B amplifier and an 8Ω@1W speaker for clear and powerful audio.
-
Integrated IR Transmitter: Built-in infrared functionality for versatile device control.
-

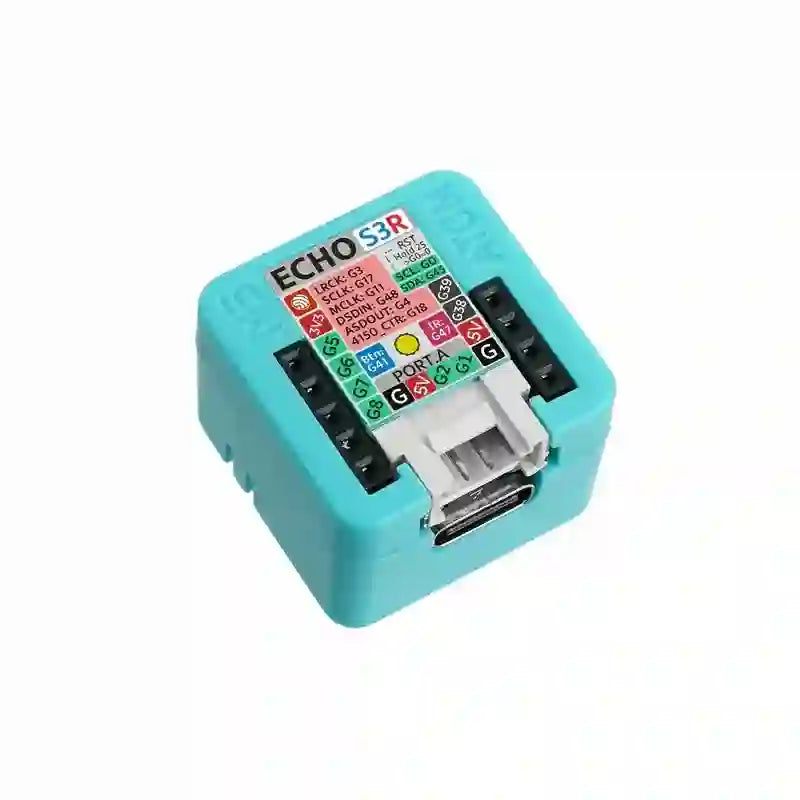

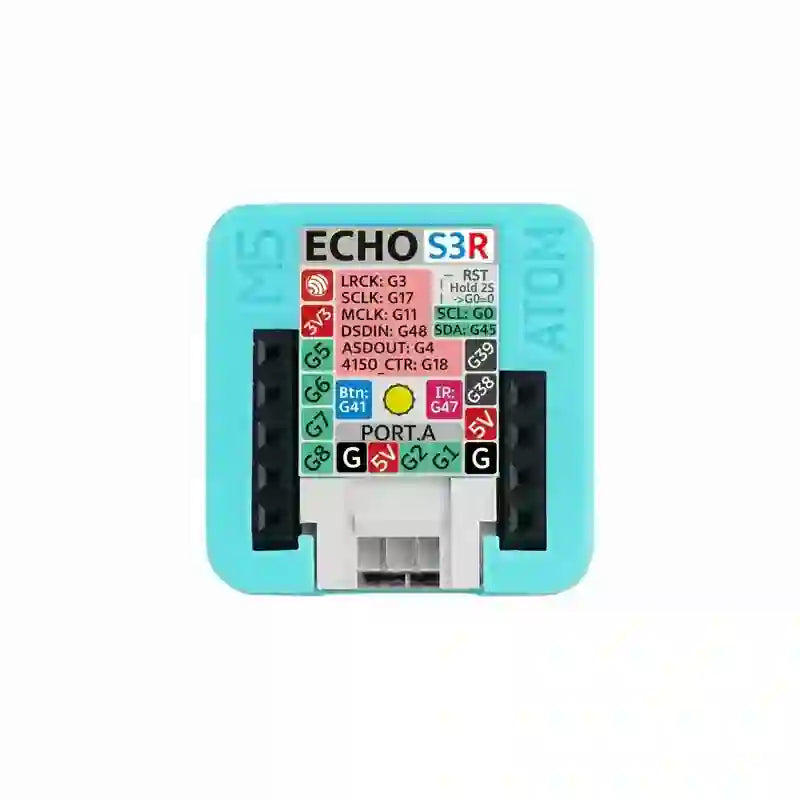

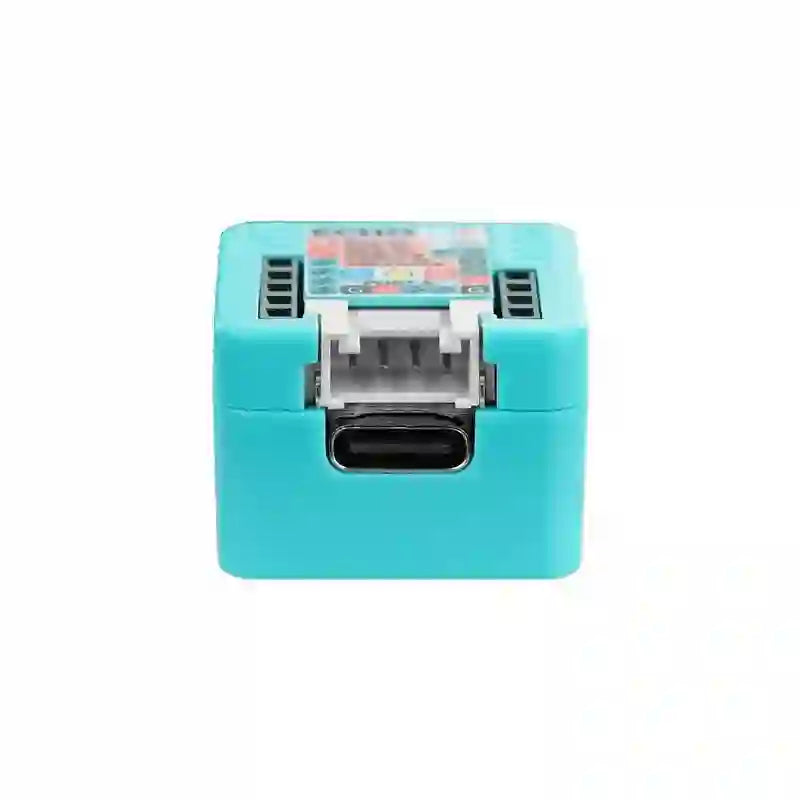

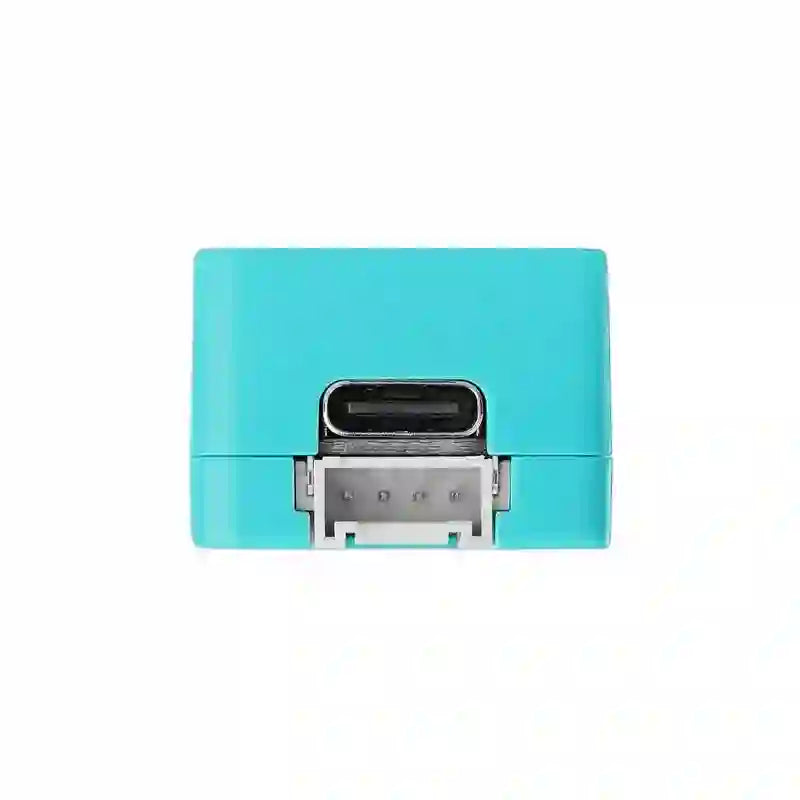

Flexible Expansion: Offers expandable pinouts for effortless integration with external peripherals.
-
Broad Platform Support: Compatible with Arduino, UiFlow2, ESP-IDF, and PlatformIO for diverse development environments.
-
Ultra-Compact Design: Measuring just 24 × 24 × 16.8 mm and weighing 9.3 g, it is perfect for space-constrained projects.
Technical Specifications
| Parameter | Details |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8, Dual-core Xtensa LX7, up to 240MHz |
| Memory | 8MB Flash + 8MB PSRAM |
| Audio Codec | ES8311, 24-bit resolution, I2S protocol |
| Microphone | MEMS mic, 65dB SNR |
| Speaker | NS4150B amplifier + 8Ω@1W speaker |
| Power Input | DC 5V |
| Dimensions | 24.0 × 24.0 × 16.8 mm |
| Weight | 9.3 g |
| Operating Temp | 0 ~ 40°C |
Versatile Application Scenarios
-
AI Voice Assistants: Develop custom voice-enabled devices with intelligent capabilities.
-
Smart Home Control: Implement voice commands for controlling lighting, appliances, and security systems.
-
IoT Development: Accelerate rapid prototyping and deployment of innovative IoT products.
-
Education & Research: Ideal for projects involving embedded AI and advanced voice recognition.
Atom EchoS3R vs Atom Echo Comparison
| Feature | Atom EchoS3R | Atom Echo |
|---|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 (Dual-core Xtensa LX7, up to 240MHz) | ESP32-PICO-D4 |
| Flash | 8MB | 4MB |
| PSRAM | 8MB | None |
| Audio Solution | ES8311 codec + NS4150B amplifier | NS4168 amplifier + SPM1423 mic |
| Microphone | MEMS microphone (65dB SNR) | SPM1423 microphone |
| Speaker | NS4150B amplifier + 8Ω@1W speaker | Built-in speaker |
| Infrared Transmitter | ✅ Integrated | ❌ Not available |
| RGB LED | ❌ None | ✅ WS2812 x1 |
| Development Platforms | Arduino, UiFlow2, ESP-IDF, PlatformIO | Arduino, UiFlow, ESP-IDF |
| Dimensions | 24 × 24 × 16.8 mm | Similar (slightly different) |
| Weight | 9.3 g | Slightly lighter |
Comprehensive Tutorials & Development Resources
The Atom EchoS3R offers more than just powerful hardware; it comes with extensive tutorials and robust software support to jumpstart your development process:
-
Arduino IDE Quick Start: A detailed, step-by-step guide to programming and controlling your Atom EchoS3R.
-
XiaoZhi Voice Assistant: Build your custom voice assistant by easily flashing firmware using M5Burner.
-
M5Unified & M5GFX Libraries: Access official libraries for streamlined graphics and unified device management.
-
PlatformIO Environment: Utilize pre-configured settings for a smooth and efficient development experience.
These comprehensive resources empower both beginners and seasoned professionals to bring their IoT voice projects to life with ease.
Effortless Firmware Flashing
Entering Download Mode is straightforward and quick:
-
Press and hold the reset button for approximately 2 seconds until the internal green LED illuminates.
-
Release the button; your device is now ready for firmware flashing.
This optimized process ensures rapid prototyping and simple updates for all developers.
