M5stack ATOM HUB DIY Proto Board Kit
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
M5stack ATOM HUB DIY Proto Board Kit
🧰 ATOM HUB PROTO: Your DIY Playground for Hardware Innovation
The ATOM HUB PROTO is a DIY expansion board kit tailor-made for the ATOM series, giving makers and developers the freedom to build custom circuits and connect external devices based on their unique project needs. 🎯🔌
🔗 Versatile Connectivity Options
This board is packed with flexible interfaces to support a wide range of hardware setups:
-
🔌 VH3.96 interface
-
⚡ DC5V power interface
-
🌱 GROVE interface for sensor and module integration
Plus, the casing includes pre-cut openings for easy wiring and access. 🛠️
🧱 Built for Expansion
-

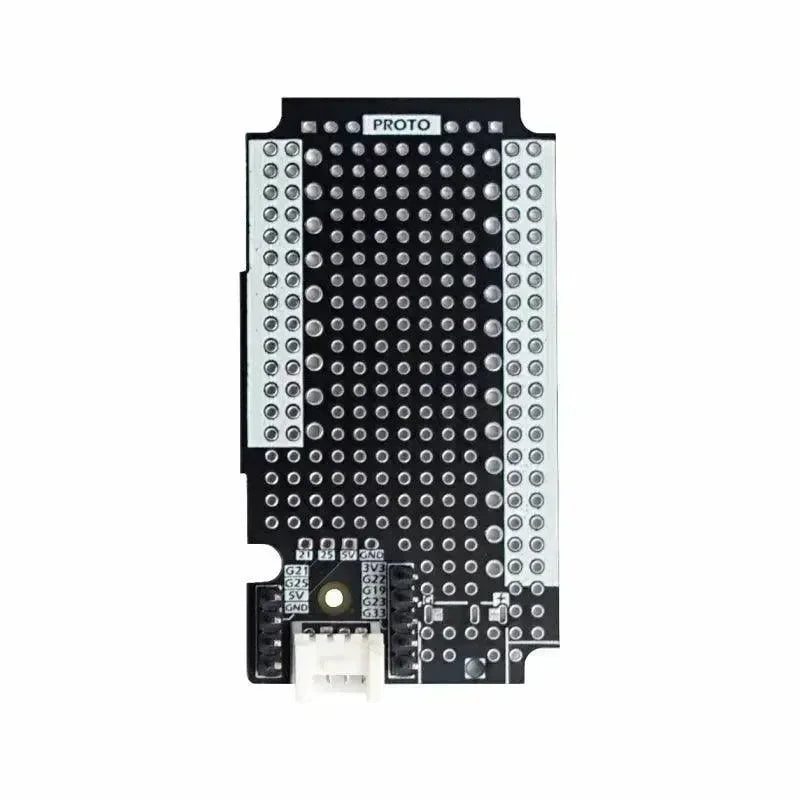

📐 Proto circuit board layout: 45 × 35 × 20 mm
-

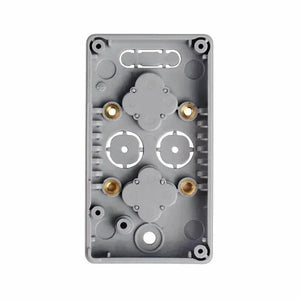

🔩 Multiple mounting options:
-
Hanging holes
-
Screw fixation holes
-

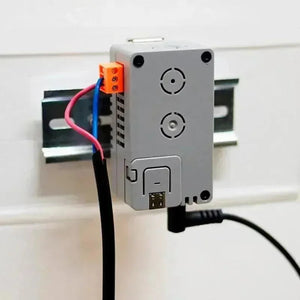

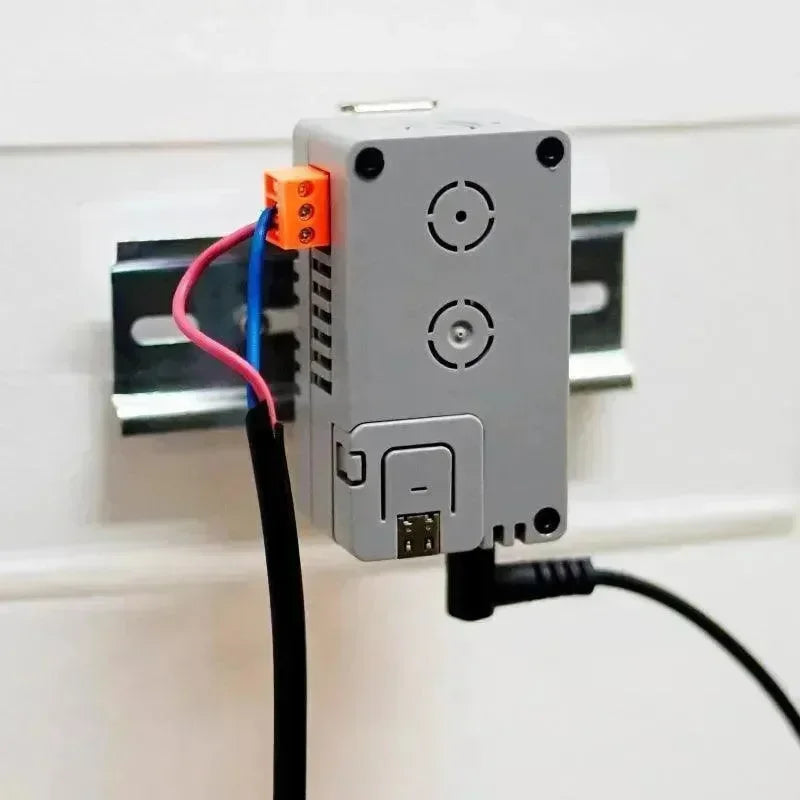

Slide rail compatibility
-
🚀 Unleash Your Creativity
With ATOM HUB PROTO, the possibilities are endless! Build and prototype your own smart devices:
-
🔋 Add a battery with charge/discharge circuit
-
💨 Integrate a mini air pump + pressure sensor for a blood pressure monitor
-
📍 Combine a GPS module + NB-IoT for location tracking
Features

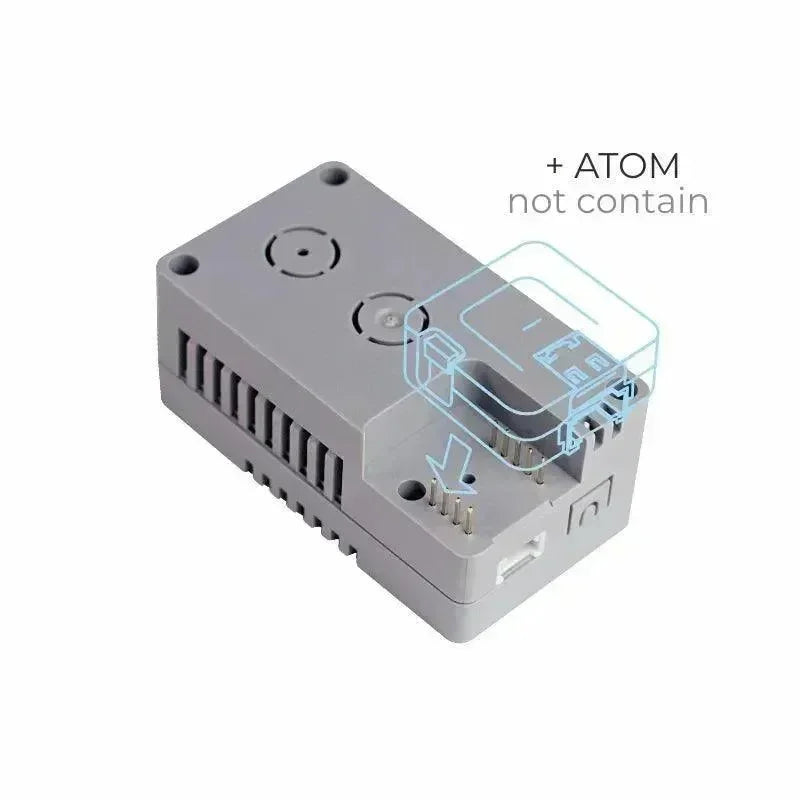

- Compatible with ATOM Matrix/ATOM Lite
- Compact design
- Industrial applications
- Multiple interface output
- Multiple mounting holes
- Creative DIY

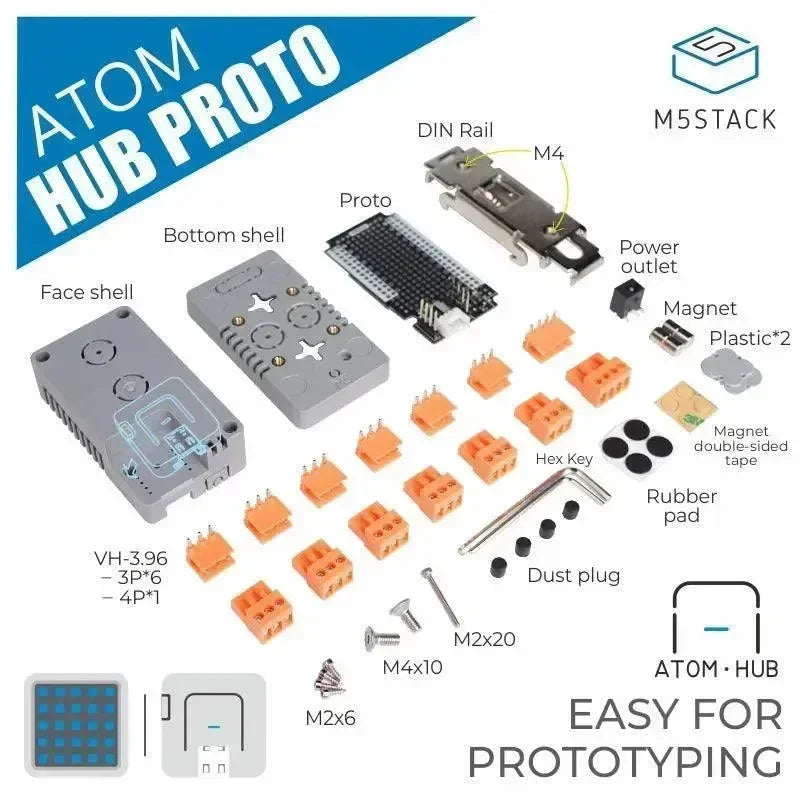

Includes
- 1x Proto board(include GROVE port)
- 1x 3.96*4P Plug & Plug Base
- 6x 3.96*3P Plug & Plug Base

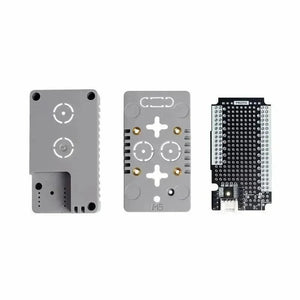

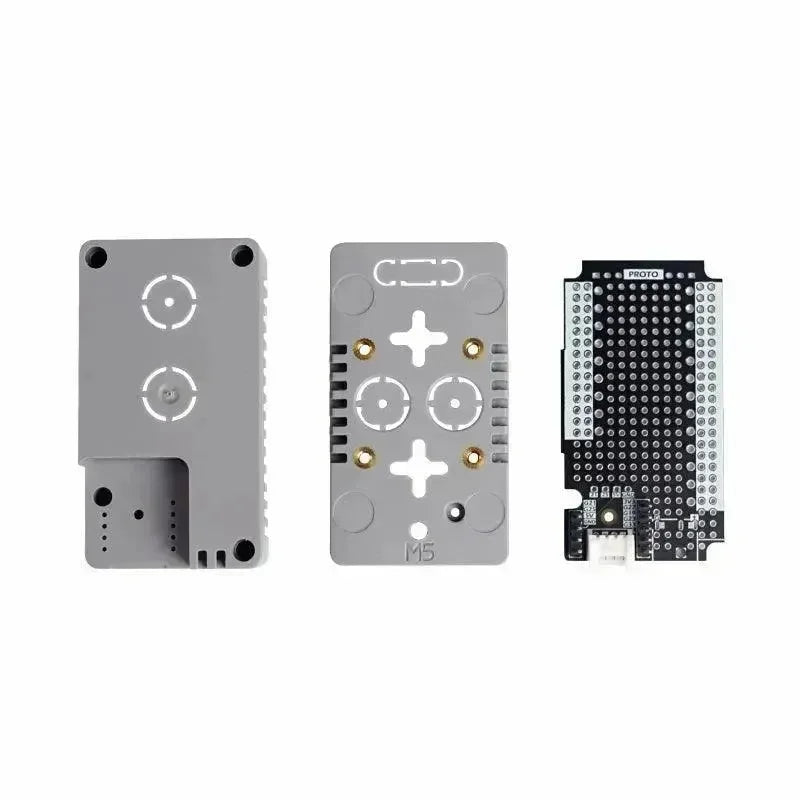

- 1x ATOM HUB PROTO Face shell
- 1x DC 5V Power outlet
- 4x Dust Plug
- 1x DIN Rail
- 2x Plastic
- 4x Magnet double-side tape
- 4x Rubberpad
- 4x Magnet
- 4x M2*6mm Hexagon self tapping screw
- 1x M2*20mm Hexagon socket cup head machine screw

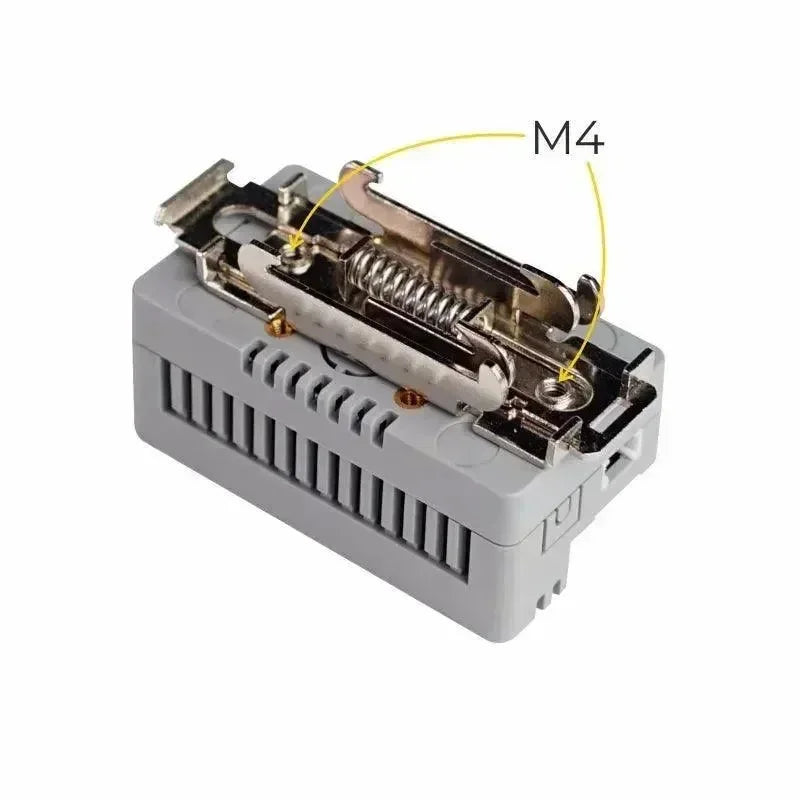

- 2x M4*10mm Hexagon countersunk screw
- 1x M2 Hex Key
- 1x M4 Hex Key
Applications
- Atom expansion board
- Industrial controller node
- Peripheral connection
- DIY hardware
Specification
| External port | 1x VH-3.96 4P 6x VH-3.96 3P 1x DC5V Input 1x GROVE |
| Net weight | 93g |
| Gross weight | 105g |
| Product Size | 72*40*30mm |
| Package Size | 104 x 77 x 35mm |
| Case material | Plastic ( PC ) |
